MV08220010

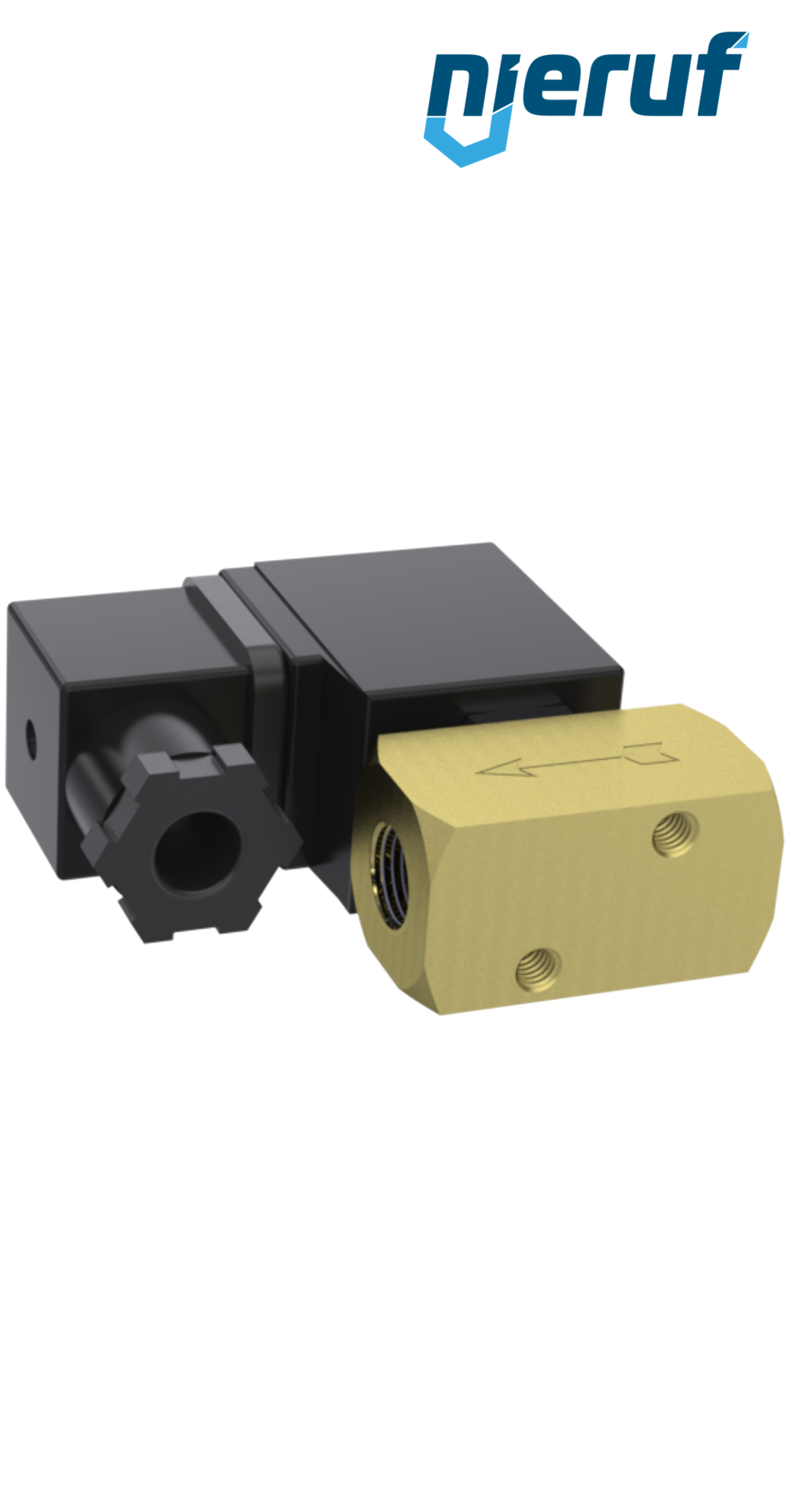

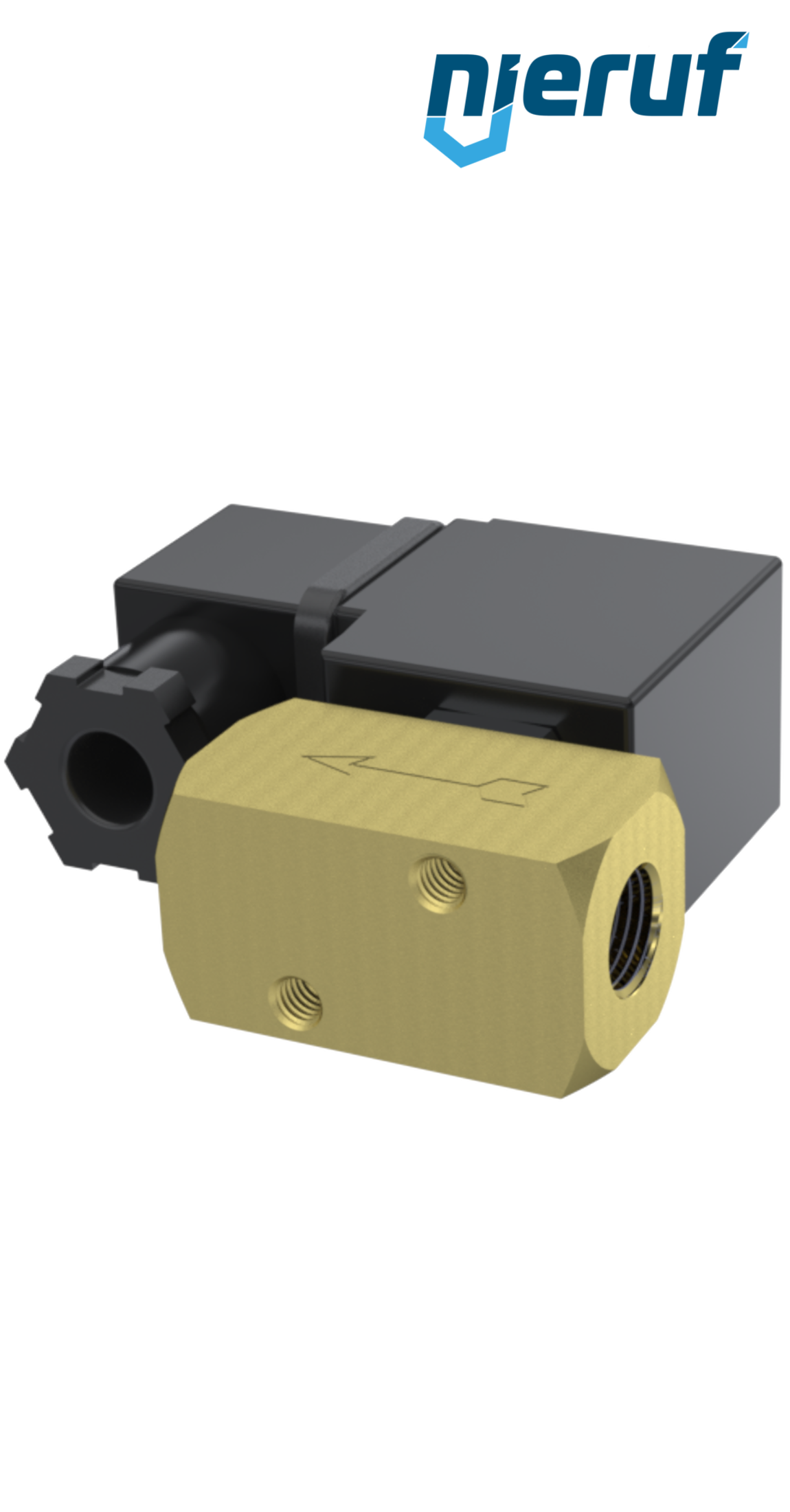

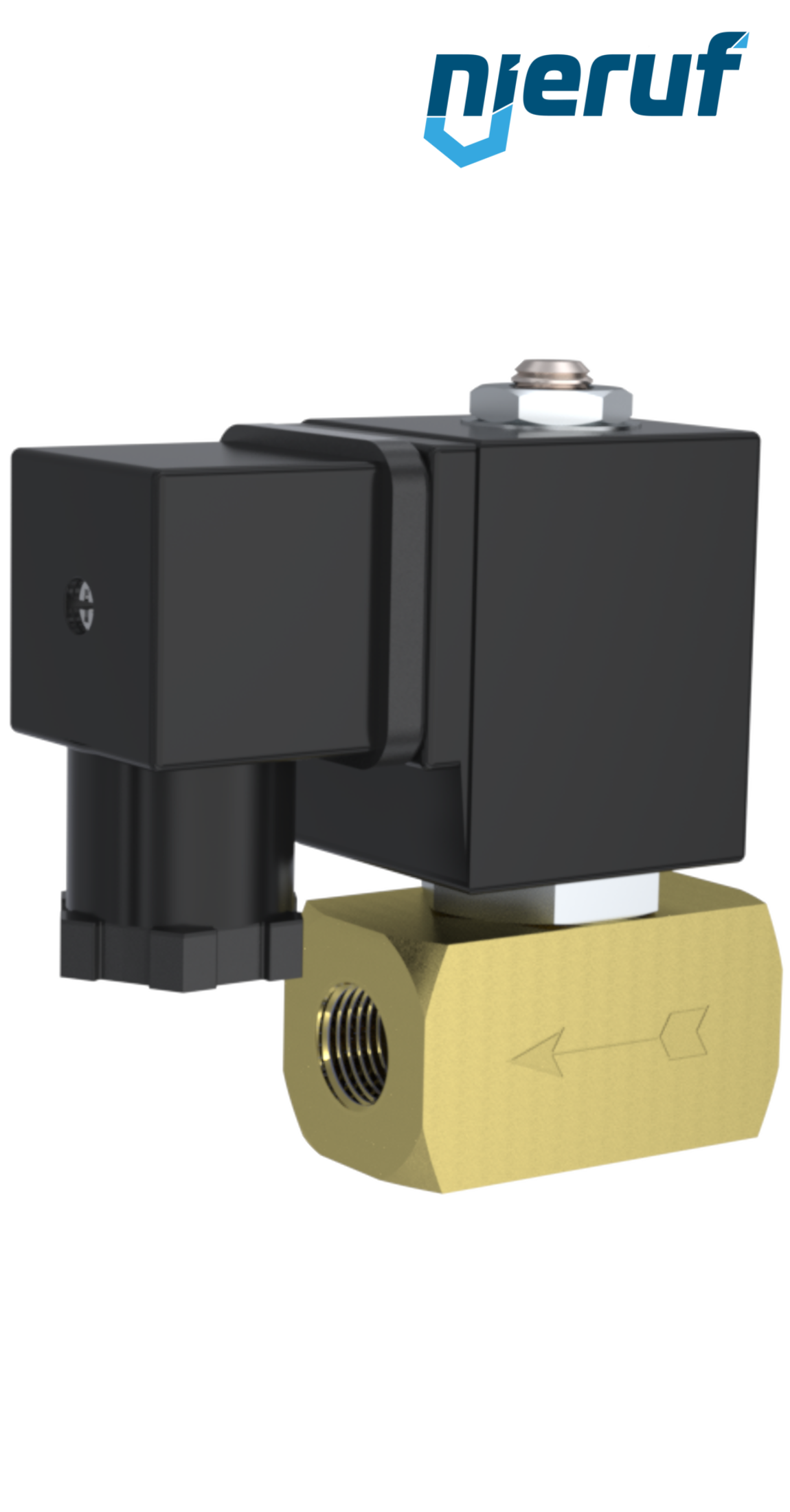

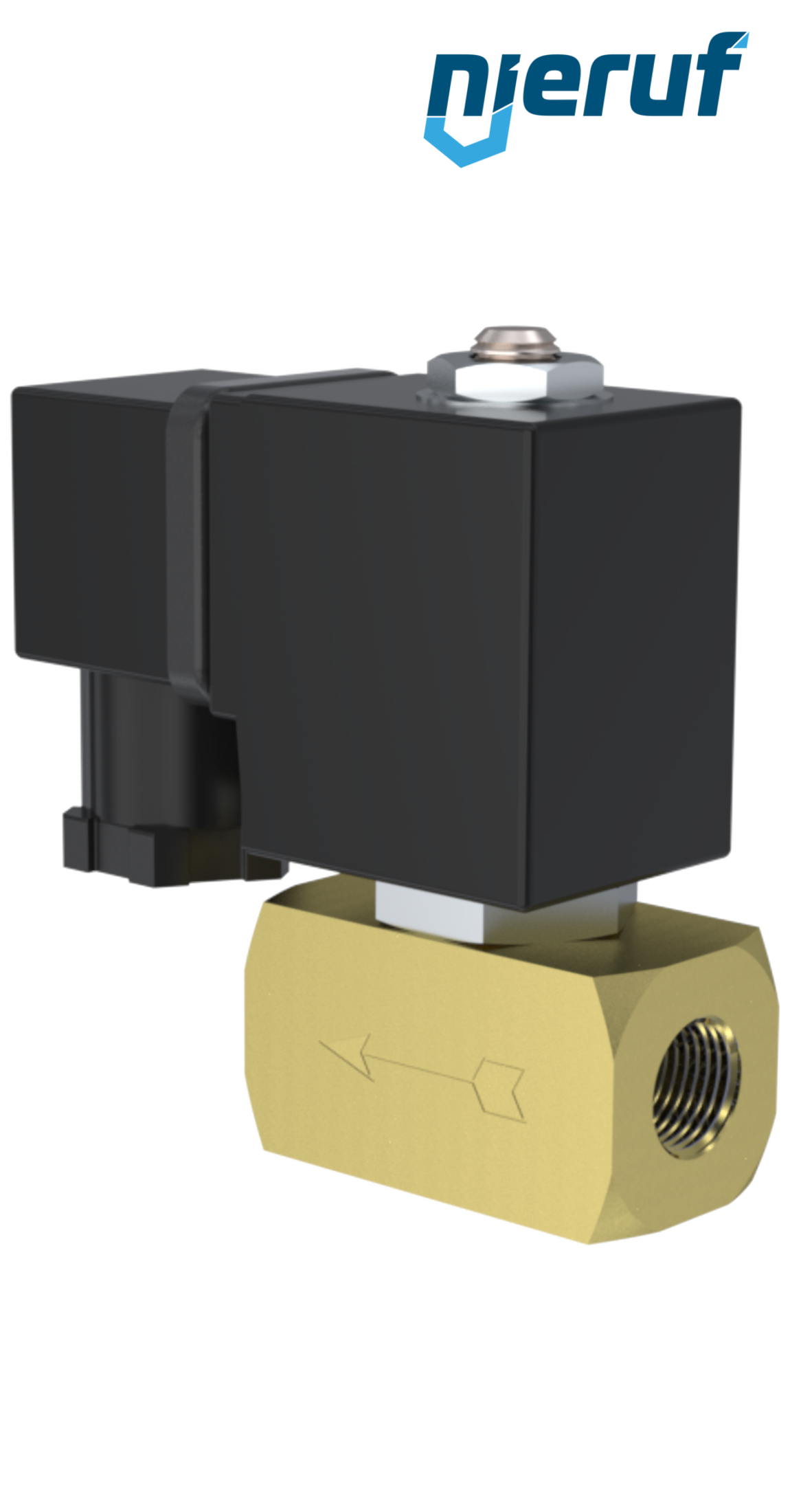

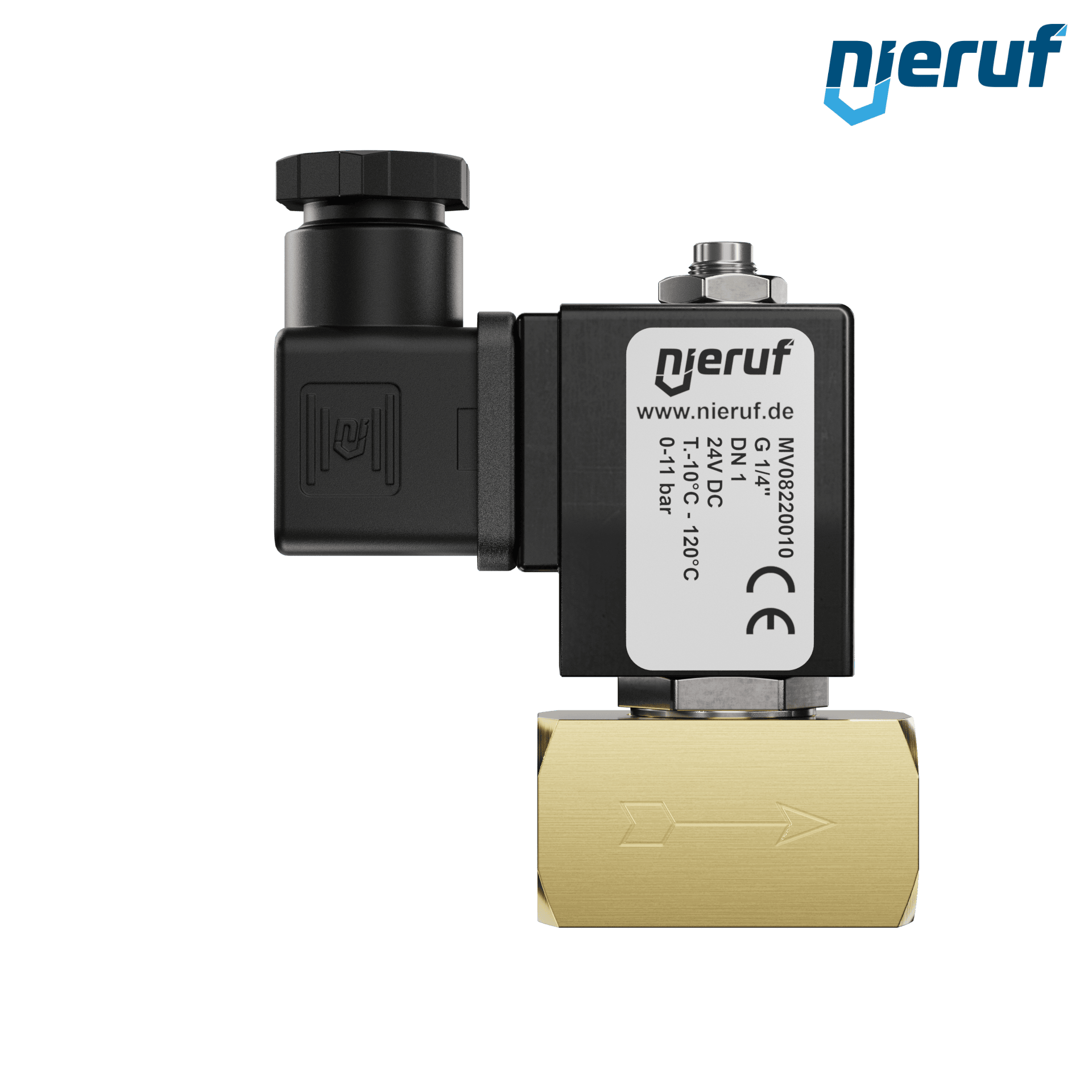

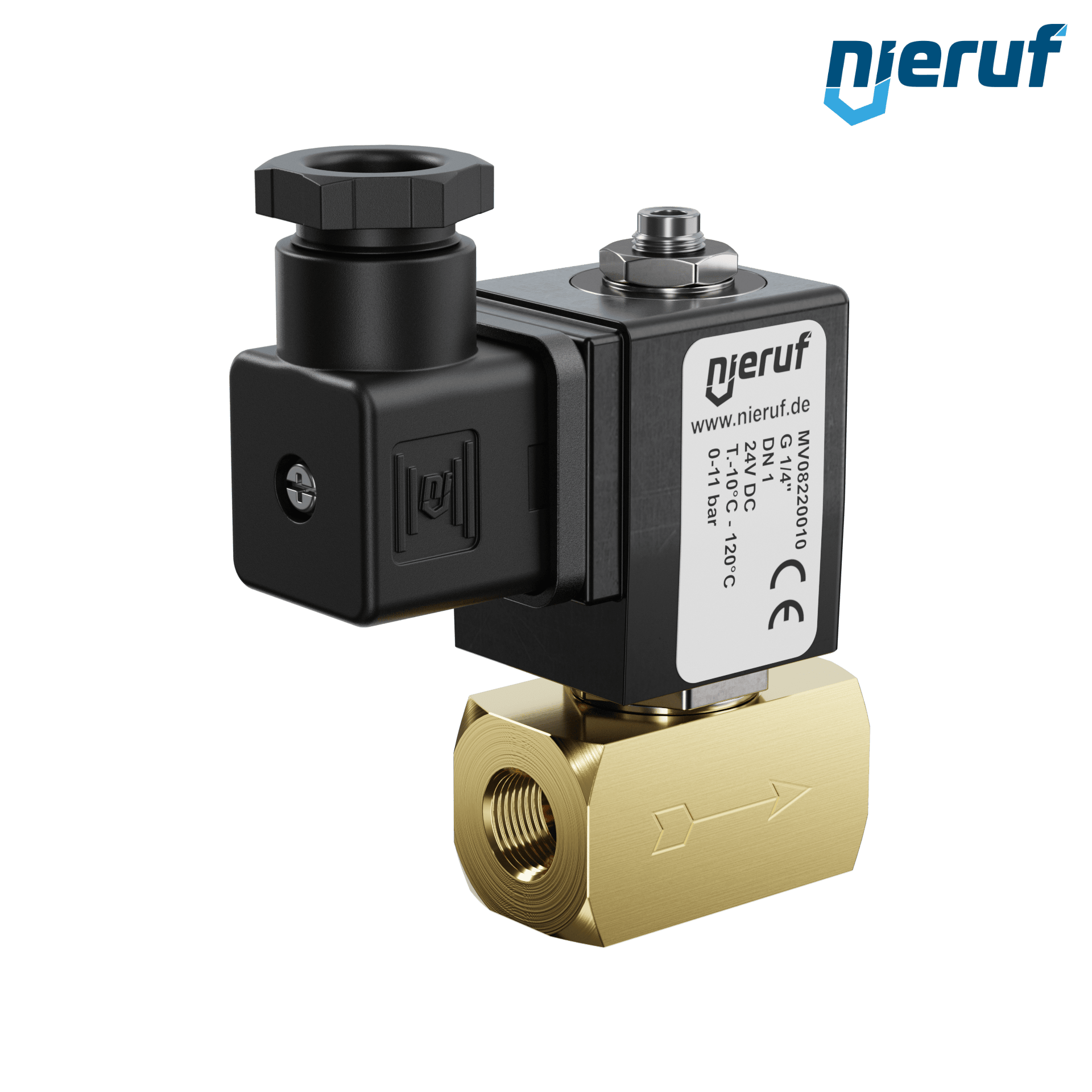

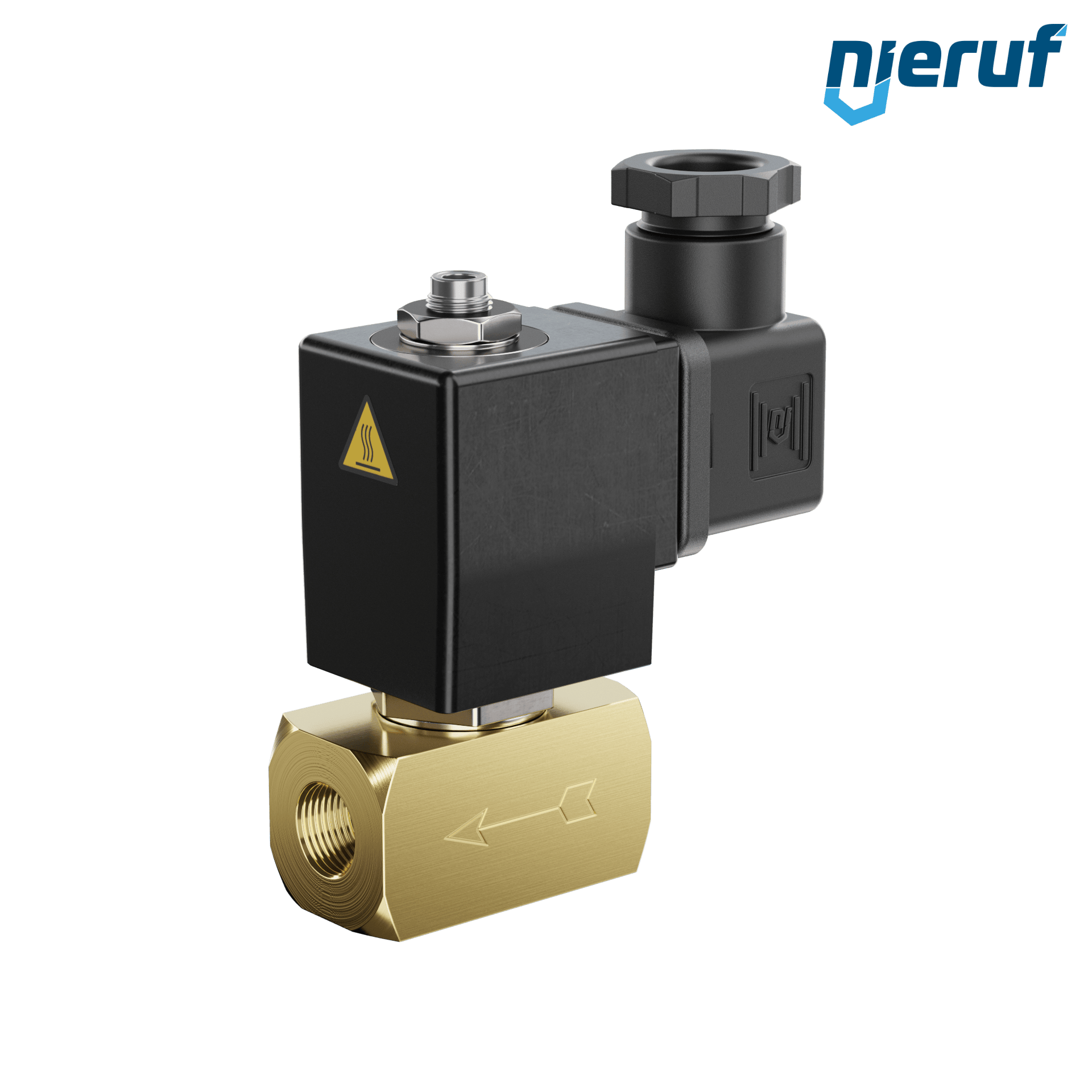

Solenoid valve DN1,0 G 1/4" Inch brass MV08 FKM 24V DC
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
3/2 ways Solenoid valve G 1/4" Inch DN1,0 made of brass seal FKM direct acting nominal voltage 24V DC pressure 0-11 bar
| product: | Solenoid valve |
|---|---|
| type: | MV08 |
| manufacturer: | NieRuf |
| design: | seat valve |
| diameter: | DN1,0 |
| connection: | G 1/4" Inch |
| type of connection: | female thread |
| Type of design: | 3/2 ways |
| flow rate: | 0.7 l/min |
| function: | NC - normally closed |
| control: | direct acting |
| material: | brass |
| seal: | FKM |
| voltage: | 24V DC |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 18 Watt |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +120°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0-11 bar |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Solenoid valve DN1,0 G 1/4" Inch brass MV08 FKM 24V DC
Article no.
: MV08220010
product:
Solenoid valve
type:
MV08
manufacturer:
NieRuf
design:
seat valve
diameter:
DN1,0
connection:
G 1/4" Inch
type of connection:
female thread
Type of design:
3/2 ways
flow rate:
0.7 l/min
function:
NC - normally closed
control:
direct acting
material:
brass
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
18 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0-11 bar
€1.90 VAT included.
€2.14 VAT included.
