EK09000004

3 way automatic-ball valve 24-240V DN20 - 3/4" inch stainless steel reduced port design with T drilling

€369.80*

€440.06 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: in stock

Delivery information

Express delivery:

Shipping on: Monday, 23. December

Guaranteed delivery until Tuesday, 24. December, 12 o'clock

Order in within by express delivery

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

AKKUPACK01

AkkuPack BSR for S20-S85

€267.30*

€318.09 VAT included.


DPSKIT01

Digital Positioning System for S20-S85

€240.30*

€285.96 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Product number: EK09000004

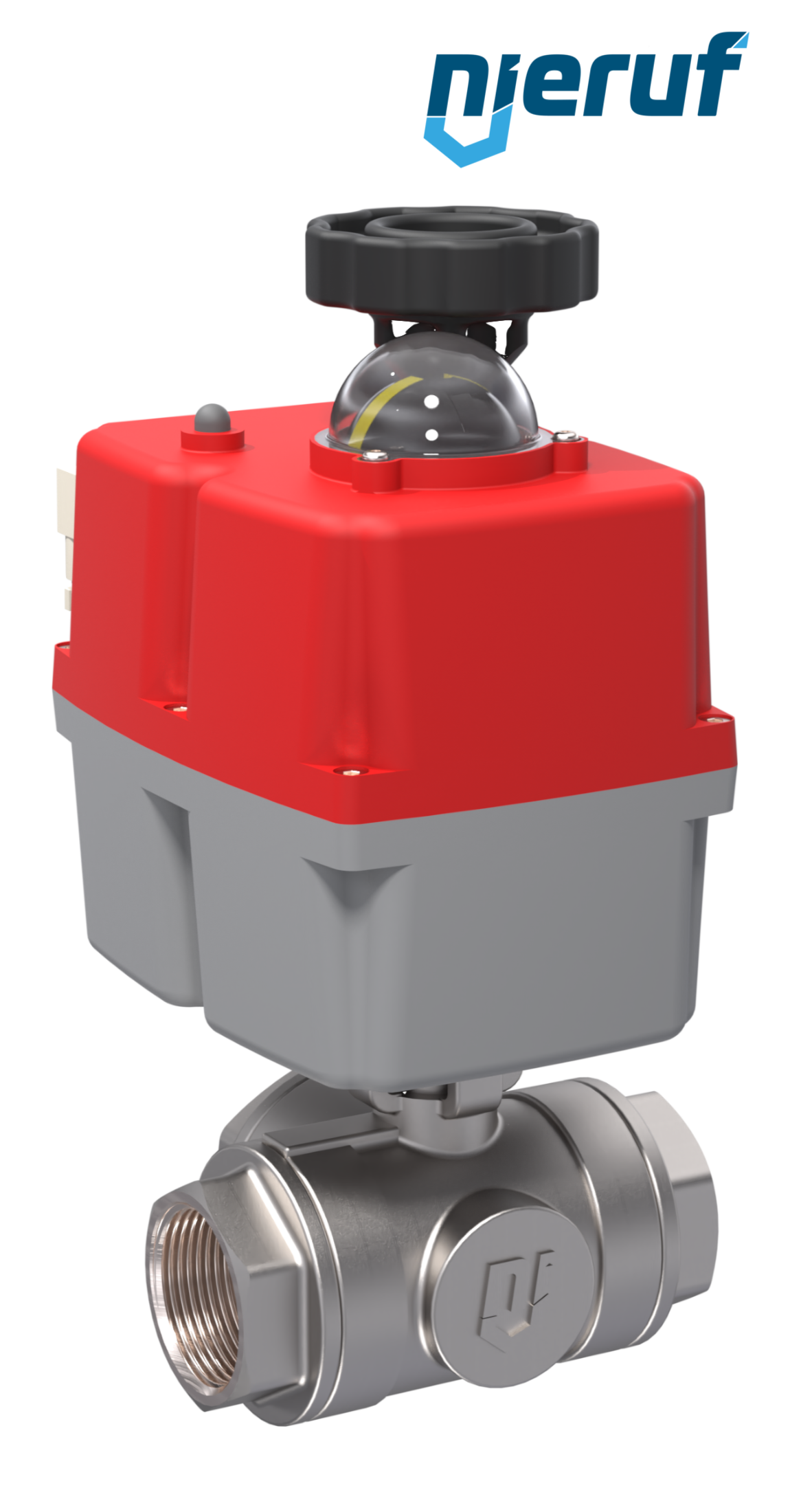

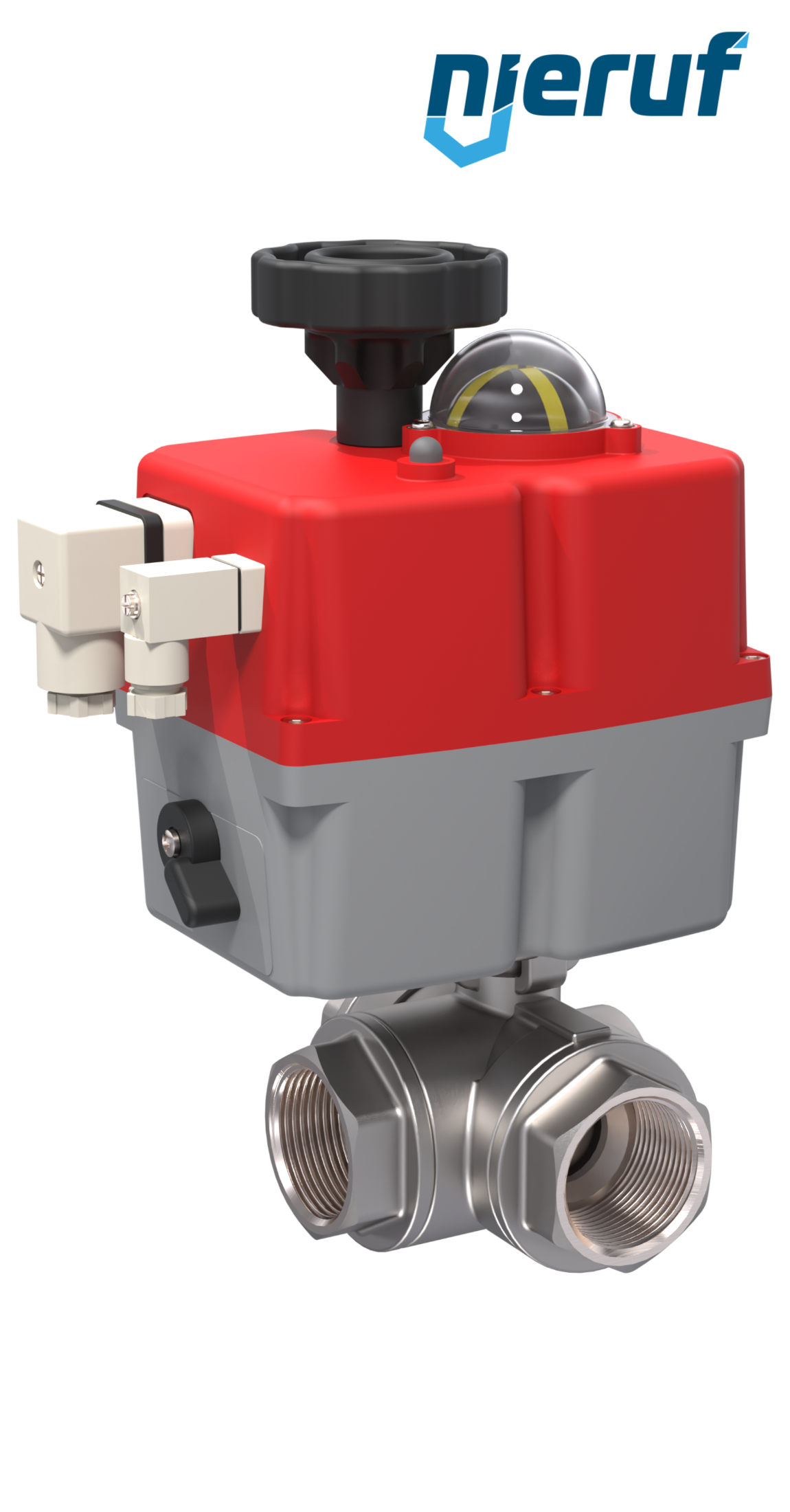

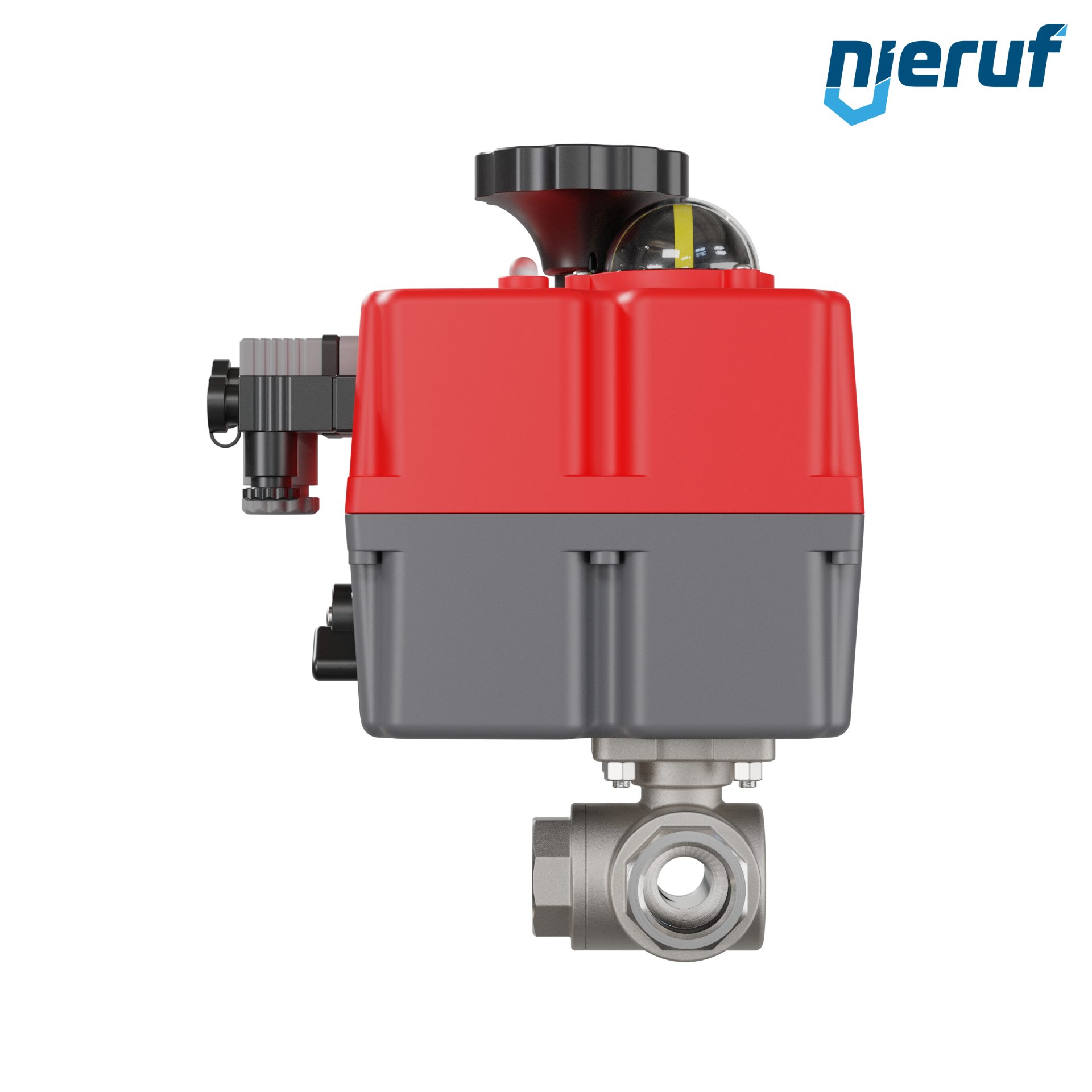

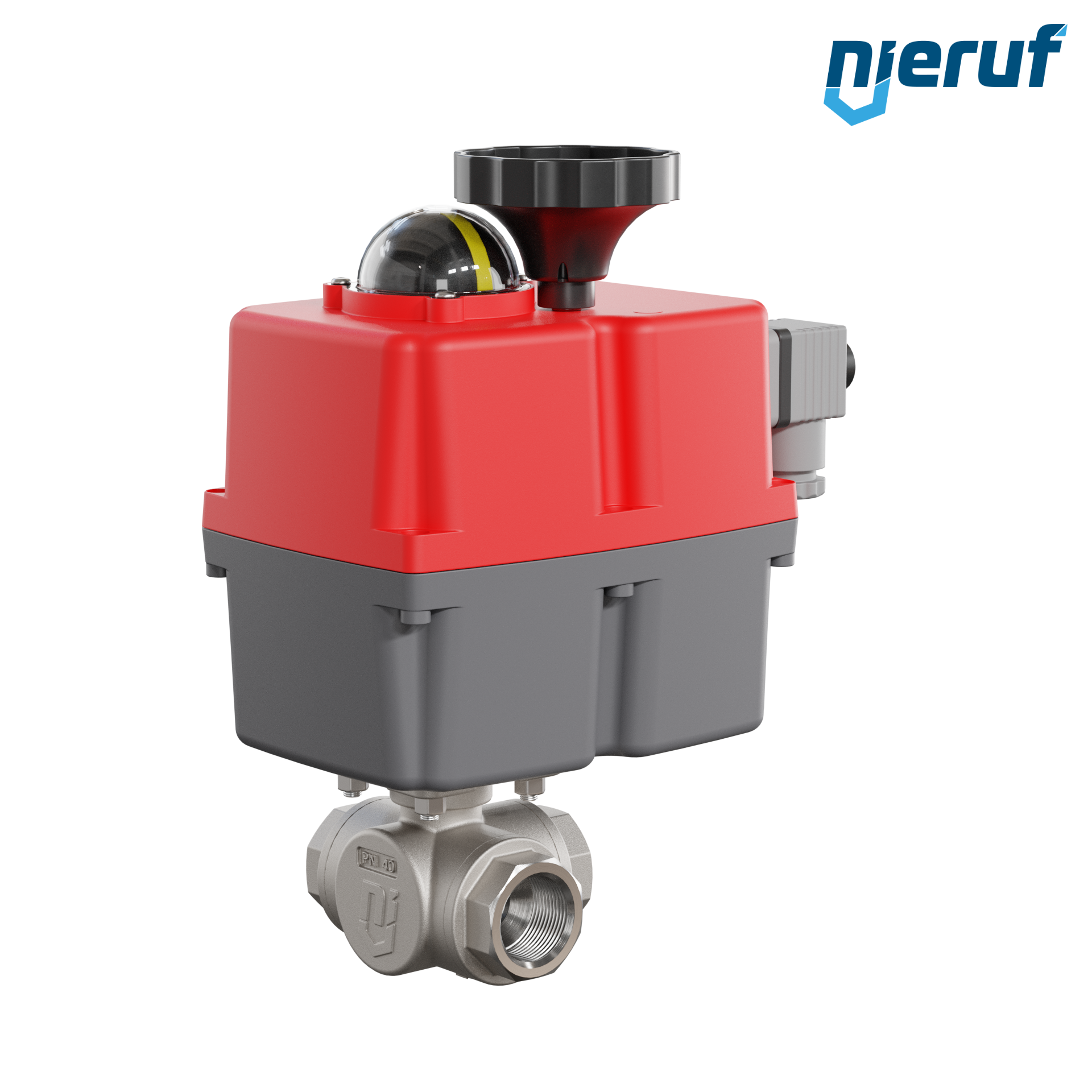

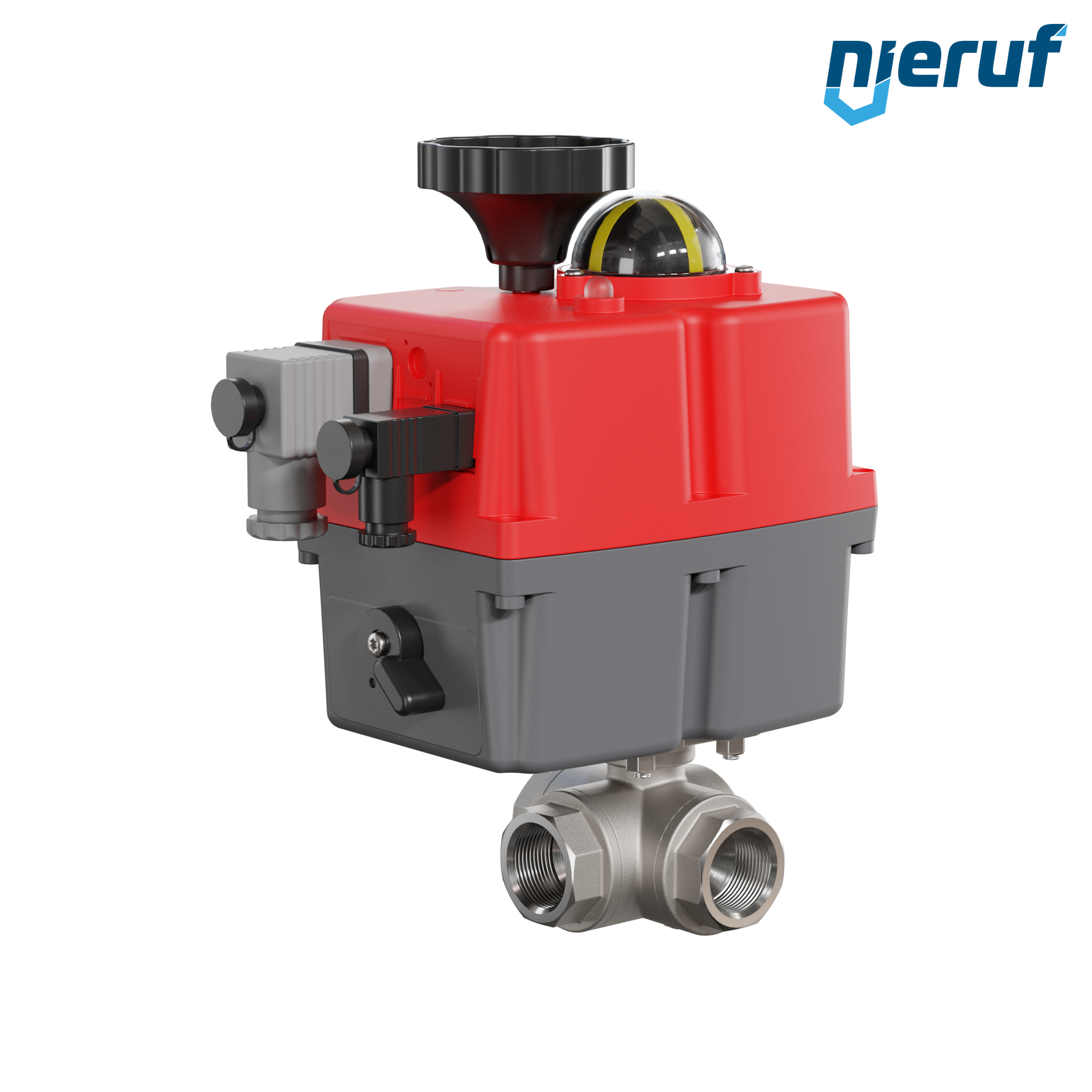

3 way automatic-ball valve 24-240V DN20 - 3/4" inch stainless steel reduced port design with T drilling

3 way automatic-ball valve 24-240V DN20 - 3/4" inch made of stainless steel 1.4408 with reduced port design with T drilling for liquid and gaseous media

product: 3 way automatic-ball valve
type: EK09
manufacturer: NieRuf
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve generally from -25°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN40
design: reduced port design with T drilling
body material: stainless steel 1.4408
ball material: stainless steel
ball seal: PTFE
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3 way automatic-ball valve 24-240V DN20 - 3/4" inch stainless steel reduced port design with T drilling

Article no. : EK09000004
product: 3 way automatic-ball valve
type: EK09
manufacturer: NieRuf
diameter: DN20 - 3/4" inch
connection: female thread
Seal steam: PTFE
media: liquid and gaseous media
temperature: ball valve generally from -25°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure: PN40
design: reduced port design with T drilling
body material: stainless steel 1.4408
ball material: stainless steel
ball seal: PTFE
actuator: electronic actuator S20 - series S for 24-240V AC/DC
actuator informations: corrosion resistant synthetic body
installation position: any position, not upside down
product description: This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.

No spare parts were found for the item number .
