EK09010007
3 way automatic-ball valve 24-240V DN40 - 1 1/2" inch stainless steel reduced port design with L drilling
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

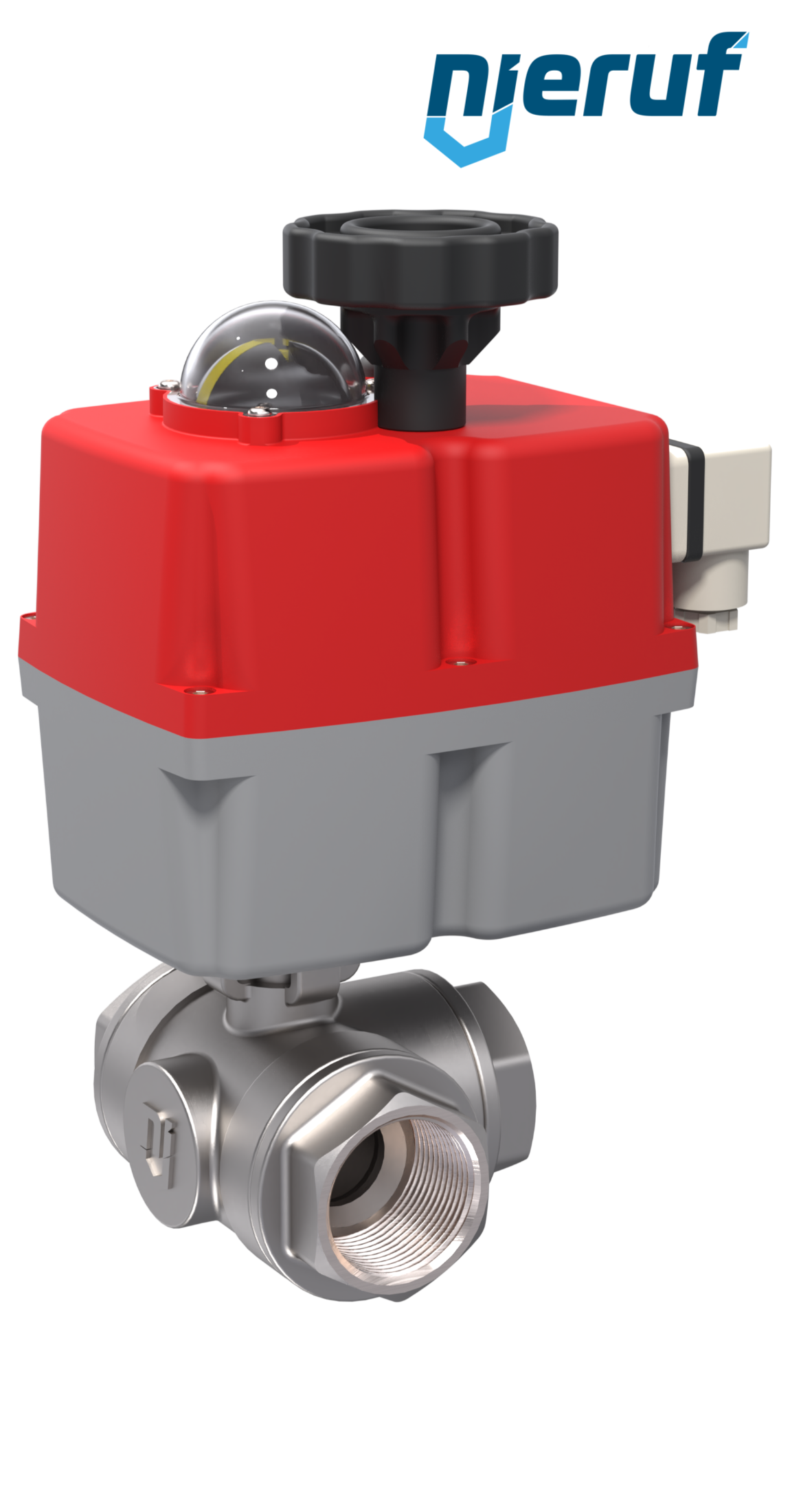

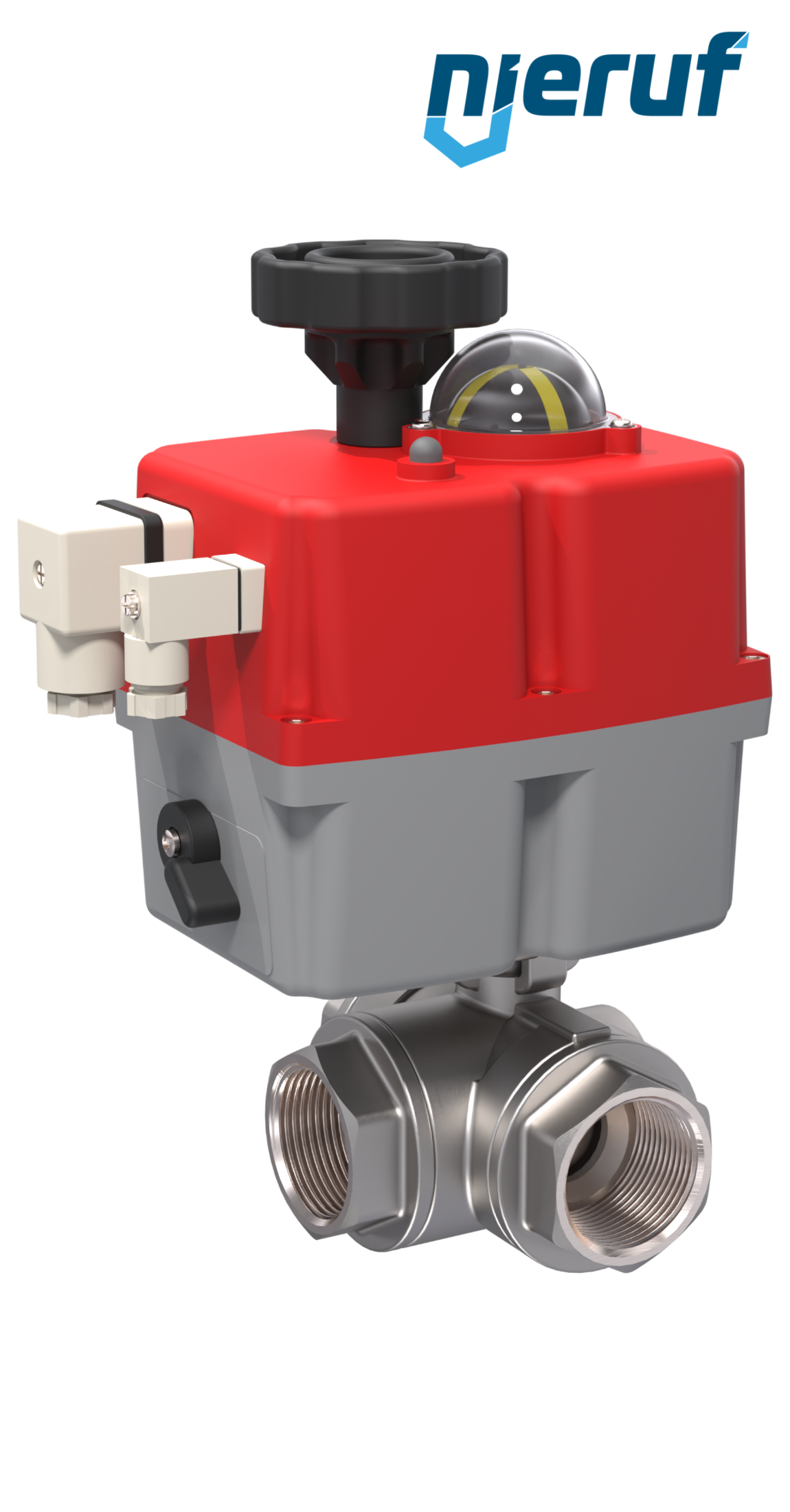

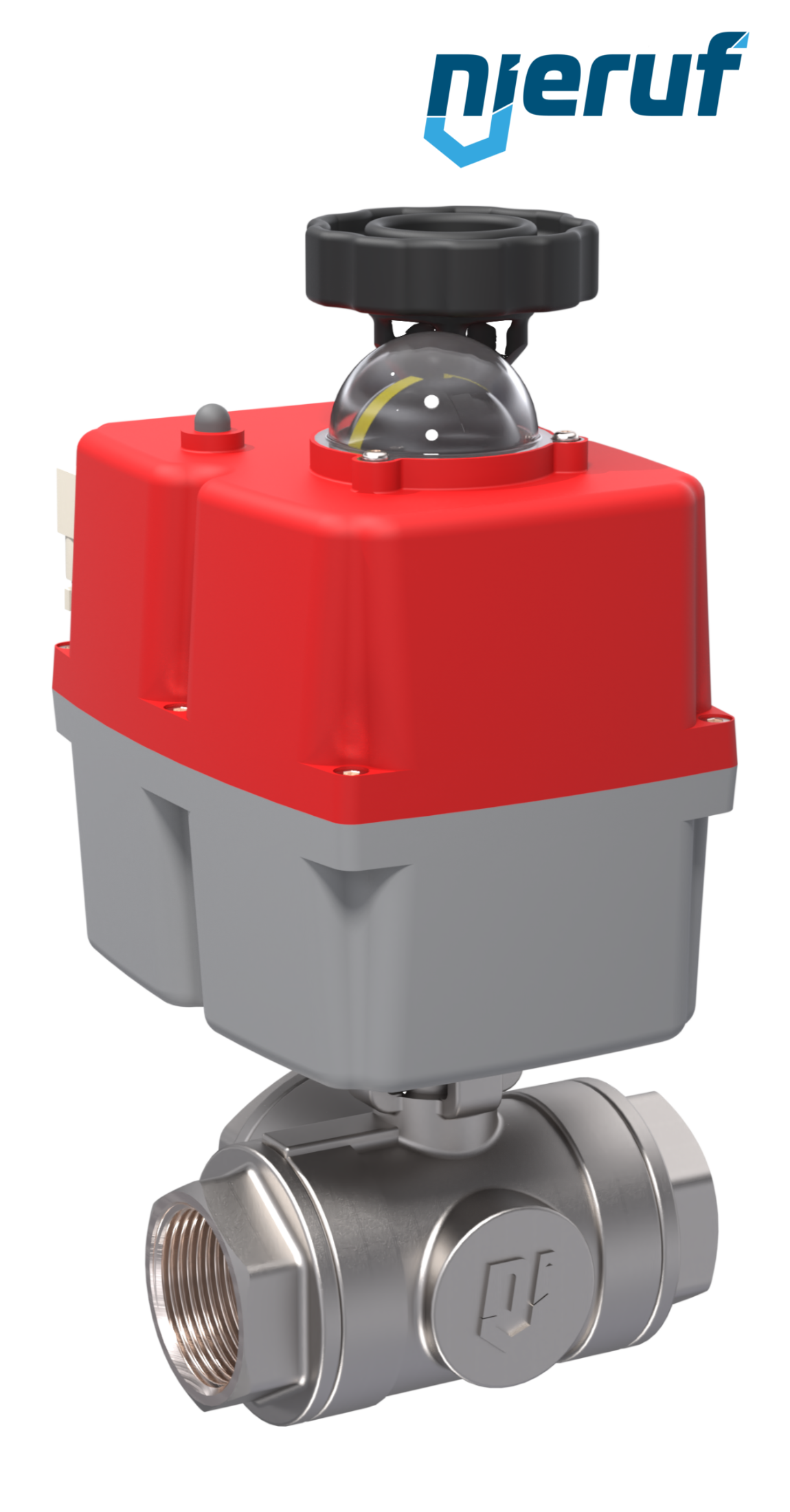

3 way automatic-ball valve 24-240V DN40 - 1 1/2" inch made of stainless steel 1.4408 with reduced port design with L drilling for liquid and gaseous media
| product: | 3 way automatic-ball valve |
|---|---|
| type: | EK09 |
| manufacturer: | NieRuf |
| diameter: | DN40 - 1 1/2" inch |
| connection: | female thread |
| Seal steam: | PTFE |
| media: | liquid and gaseous media |
| temperature: | ball valve generally from -25°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C |
| max. pressure: | PN40 |
| design: | reduced port design with L drilling |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel |
| ball seal: | PTFE |
| actuator: | electronic actuator S55 - series S for 24-240V AC/DC |
| actuator informations: | corrosion resistant synthetic body |
| installation position: | any position, not upside down |
| product description: | This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way automatic-ball valve 24-240V DN40 - 1 1/2" inch stainless steel reduced port design with L drilling
Article no.
: EK09010007
product:
3 way automatic-ball valve
type:
EK09
manufacturer:
NieRuf
diameter:
DN40 - 1 1/2" inch
connection:
female thread
Seal steam:
PTFE
media:
liquid and gaseous media
temperature:
ball valve generally from -25°C up to +180°C (depending on working pressure and media) - electronic actuator: - 20°C bis + 70°C
max. pressure:
PN40
design:
reduced port design with L drilling
body material:
stainless steel 1.4408
ball material:
stainless steel
ball seal:
PTFE
actuator:
electronic actuator S55 - series S for 24-240V AC/DC
actuator informations:
corrosion resistant synthetic body
installation position:
any position, not upside down
product description:
This high quality automatic-stainless-steel ball valves thread connections with electronic actuator (series S) with visual position indicator and emergency operating.
