FK09000006
3 way stainless steel flange ball valve DN32 FK09 T drilling stainless steel 1.4408
Delivery time: 3 - 5 working days
Equipment
Welding neck flange DN32 PN10/16/25/40 EN1092-1 11 B1 1.4541
€47.36 VAT included.
joint set flange/flange DN32 - 1 1/4" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you

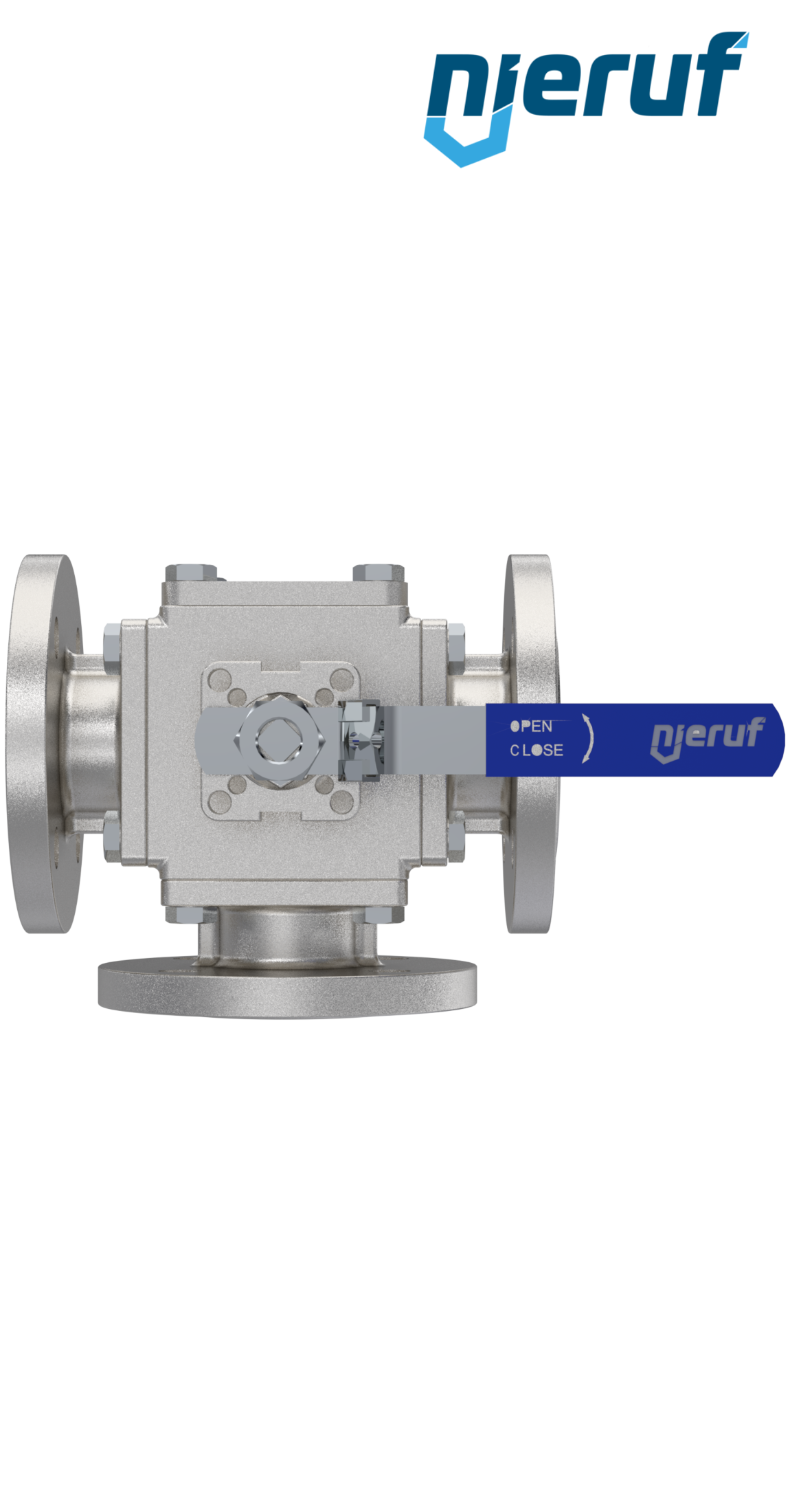

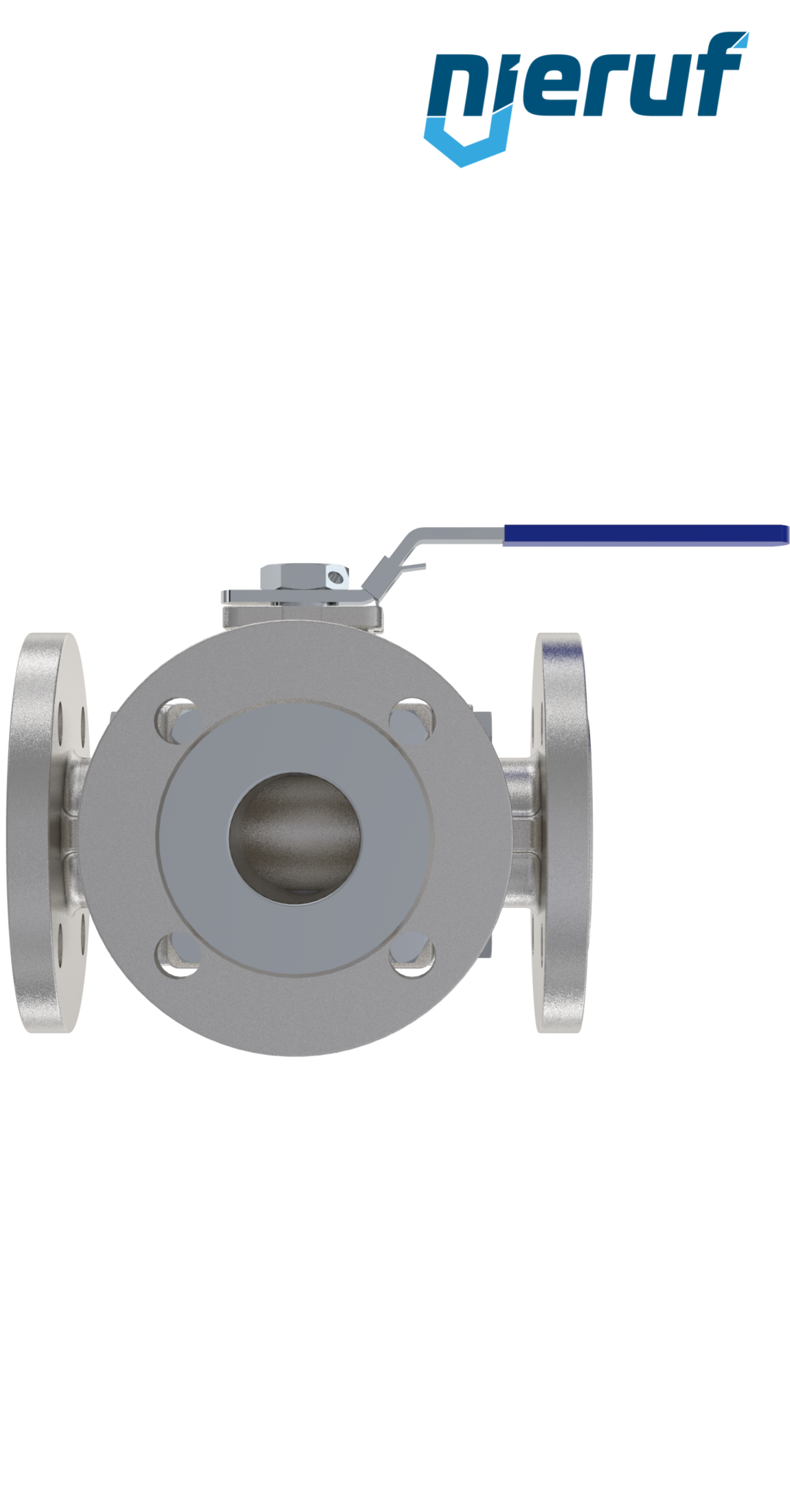

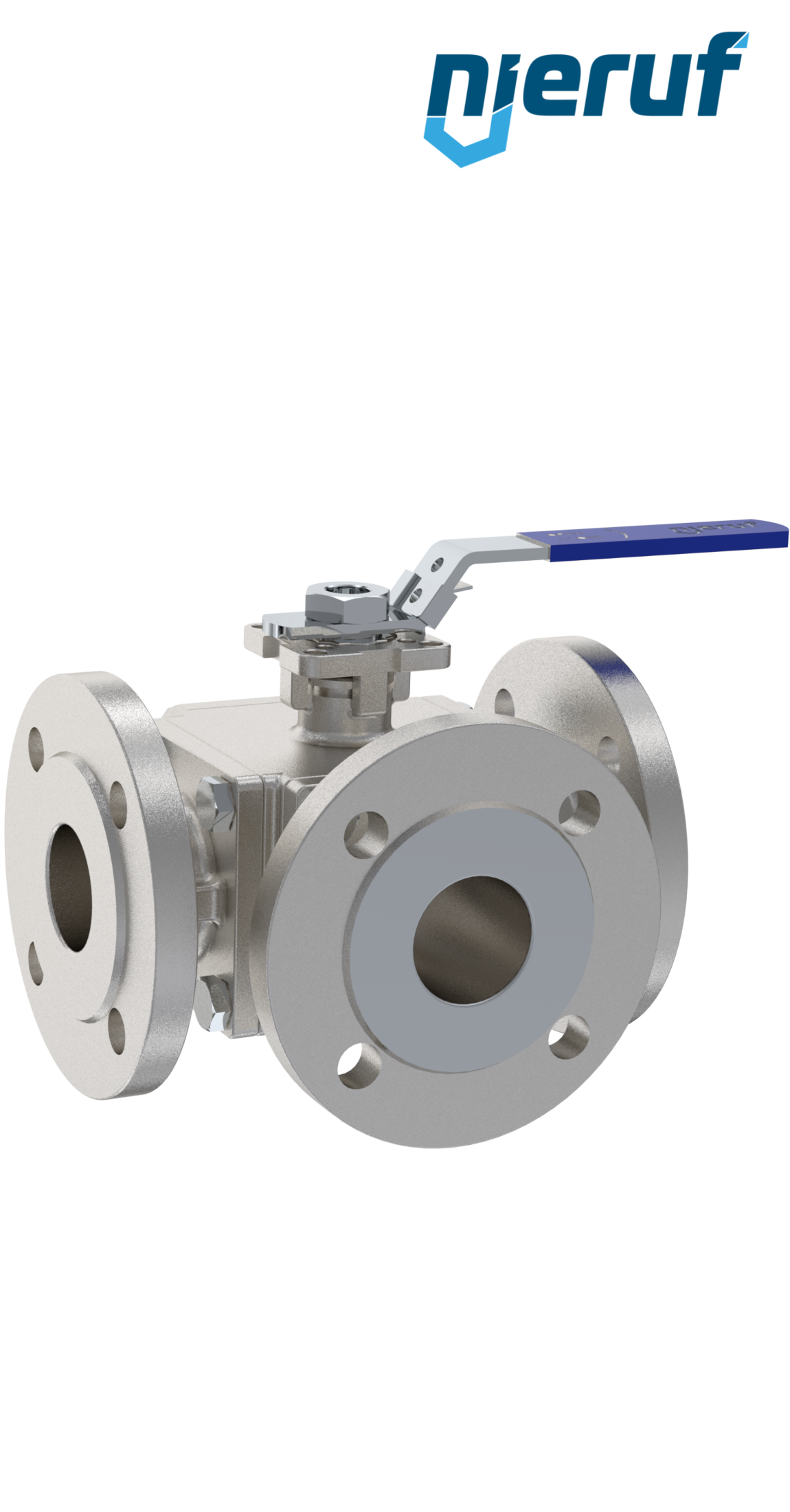

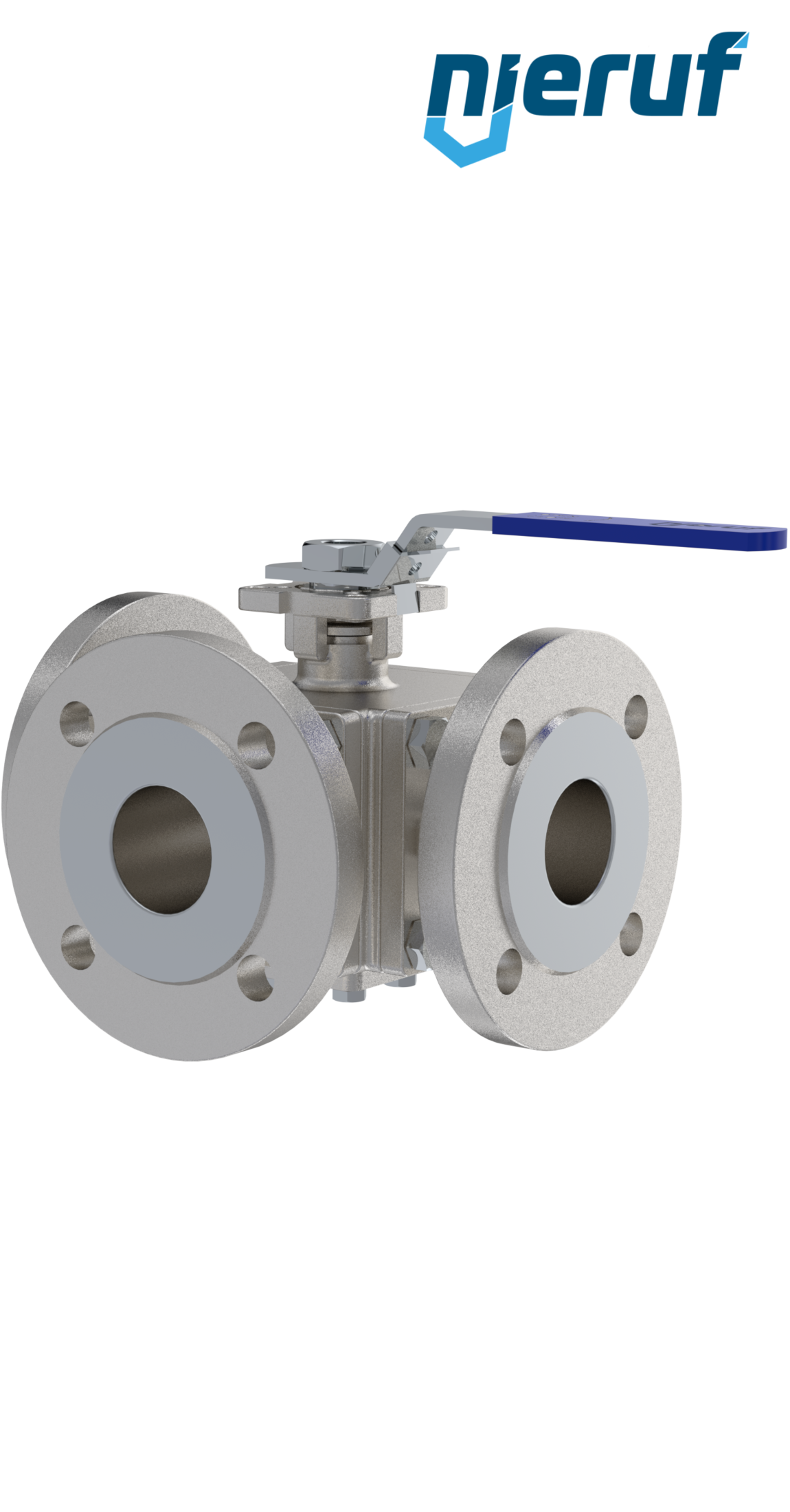

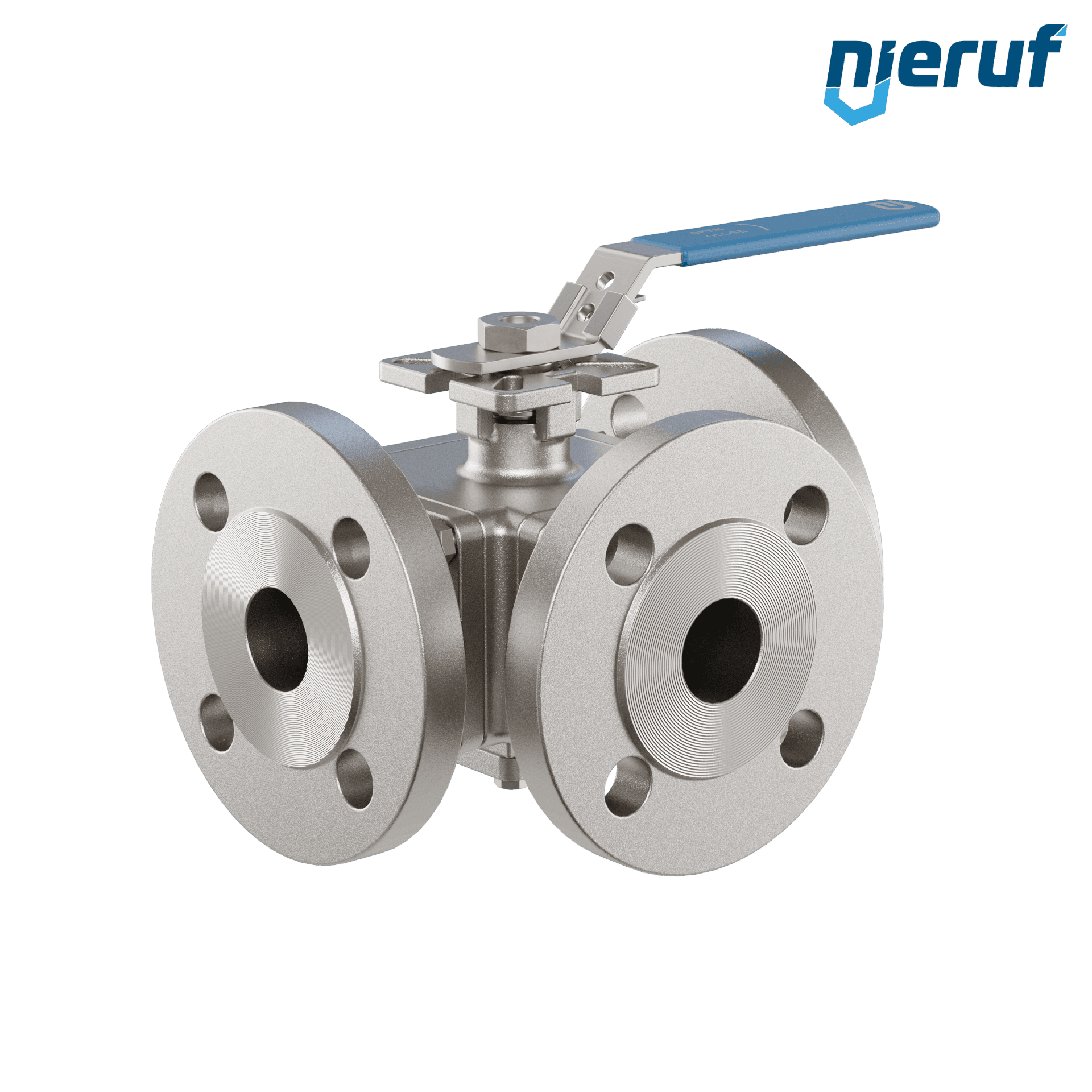

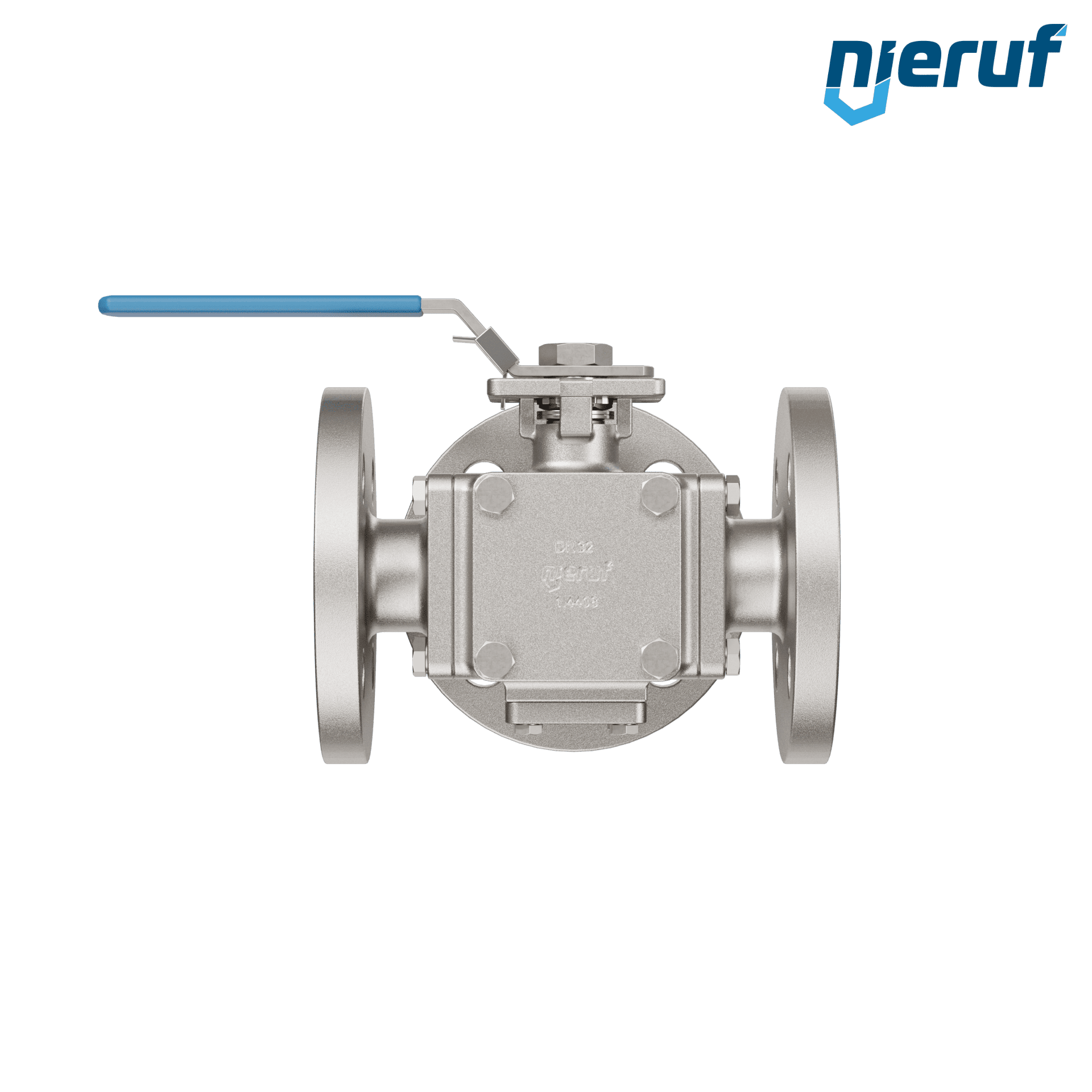

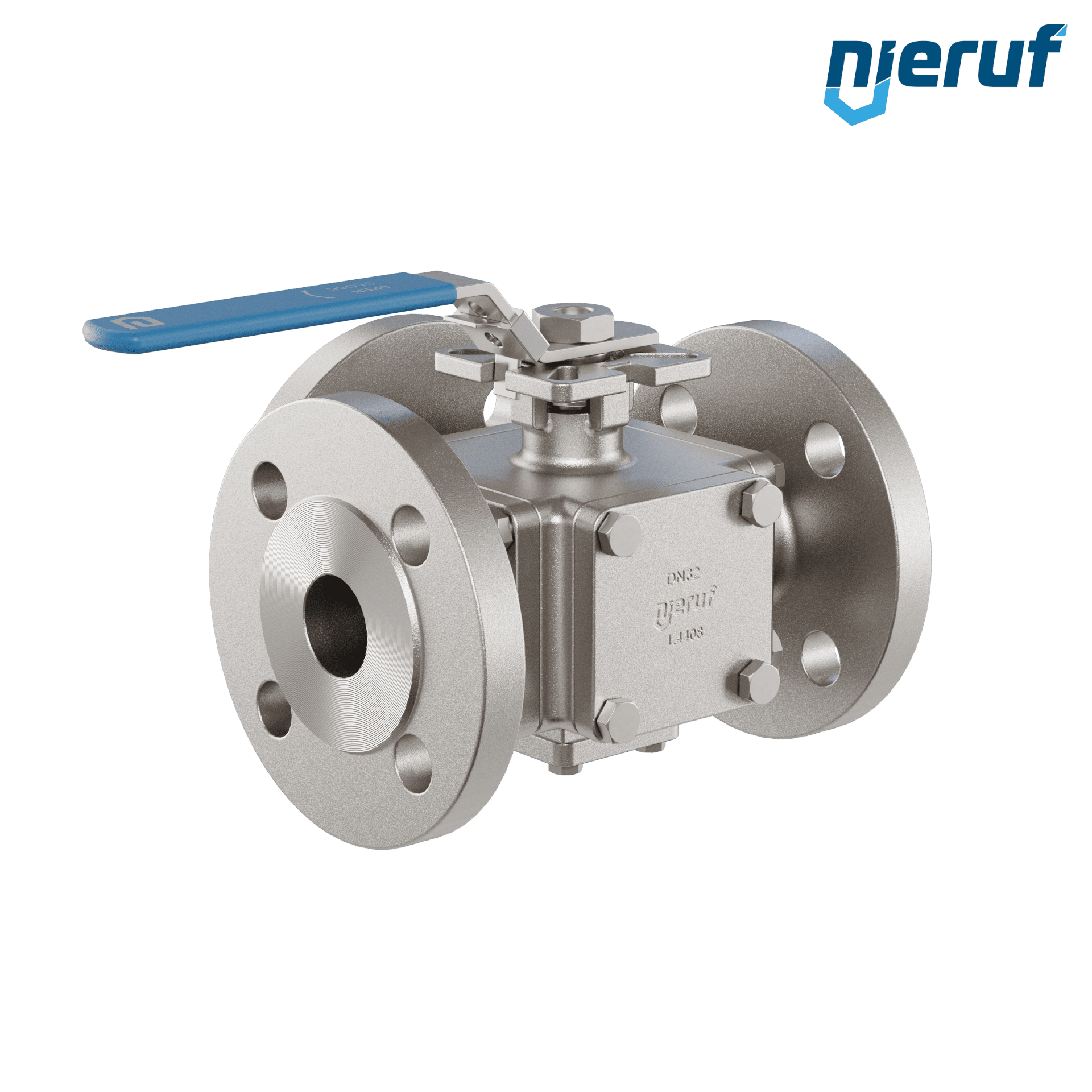

3 way stainless steel flange ball valve DN32 PN16/40 FK09 body stainless steel 1.4408 ball stainless steel 1.4408 seal TFM 1600 / PTFE T drilling
product: | 3 way stainless steel flange ball valve |
---|---|
type: | FK09 |
manufacturer: | NieRuf |
diameter: | DN32 |
connection: | flange dimensions acc. to DIN EN 1092-1 |
Seal steam: | O-ring Viton |
ball seal: | TFM 1600 / PTFE |
media: | liquid and gaseous media |
temperature: | -20°C up to +180°C - depending on working pressure and media |
max. pressure: | PN16/40 |
design: | T drilling |
body material: | stainless steel 1.4408 |
ball material: | stainless steel 1.4408 |
length: | 190mm |
actuator: | hand lever with blue plastic cover |
installation position: | any position |
authorized for: | TA Luft |
product description: | This high quality three-way flange ball valve made of stainless steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way stainless steel flange ball valve DN32 FK09 T drilling stainless steel 1.4408
Article no.
: FK09000006
product:
3 way stainless steel flange ball valve
type:
FK09
manufacturer:
NieRuf
diameter:
DN32
connection:
flange dimensions acc. to DIN EN 1092-1
Seal steam:
O-ring Viton
ball seal:
TFM 1600 / PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN16/40
design:
T drilling
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
190mm
actuator:
hand lever with blue plastic cover
installation position:
any position
authorized for:
TA Luft
product description:
This high quality three-way flange ball valve made of stainless steel with mixed during actuation and mounting flange acc. to DIN ISO 5211. certificates: PED 97/23/EG, category 3 module H, TA-Luft 2002. This valve has a T-drilling - basic postion T=3
