GK08000003

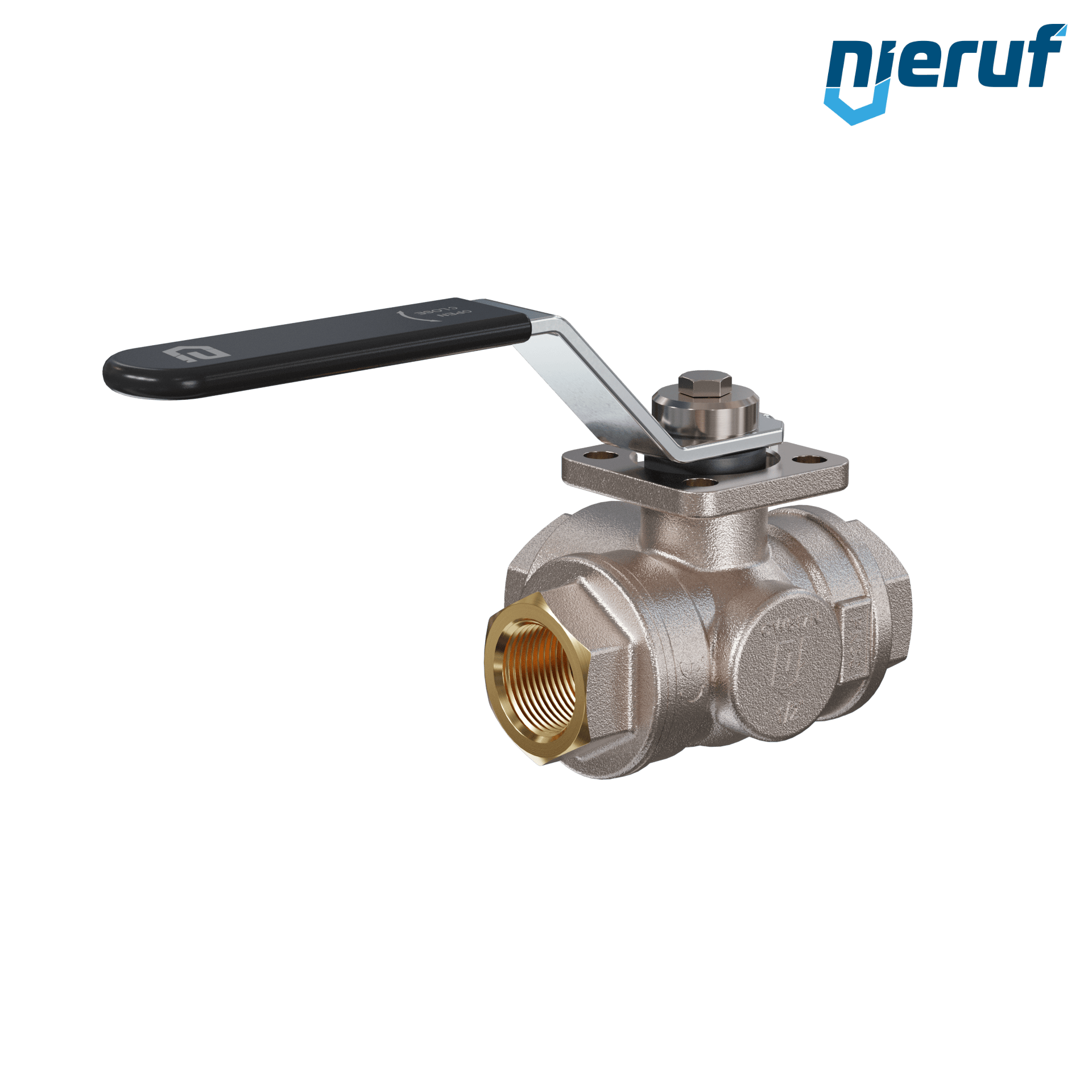

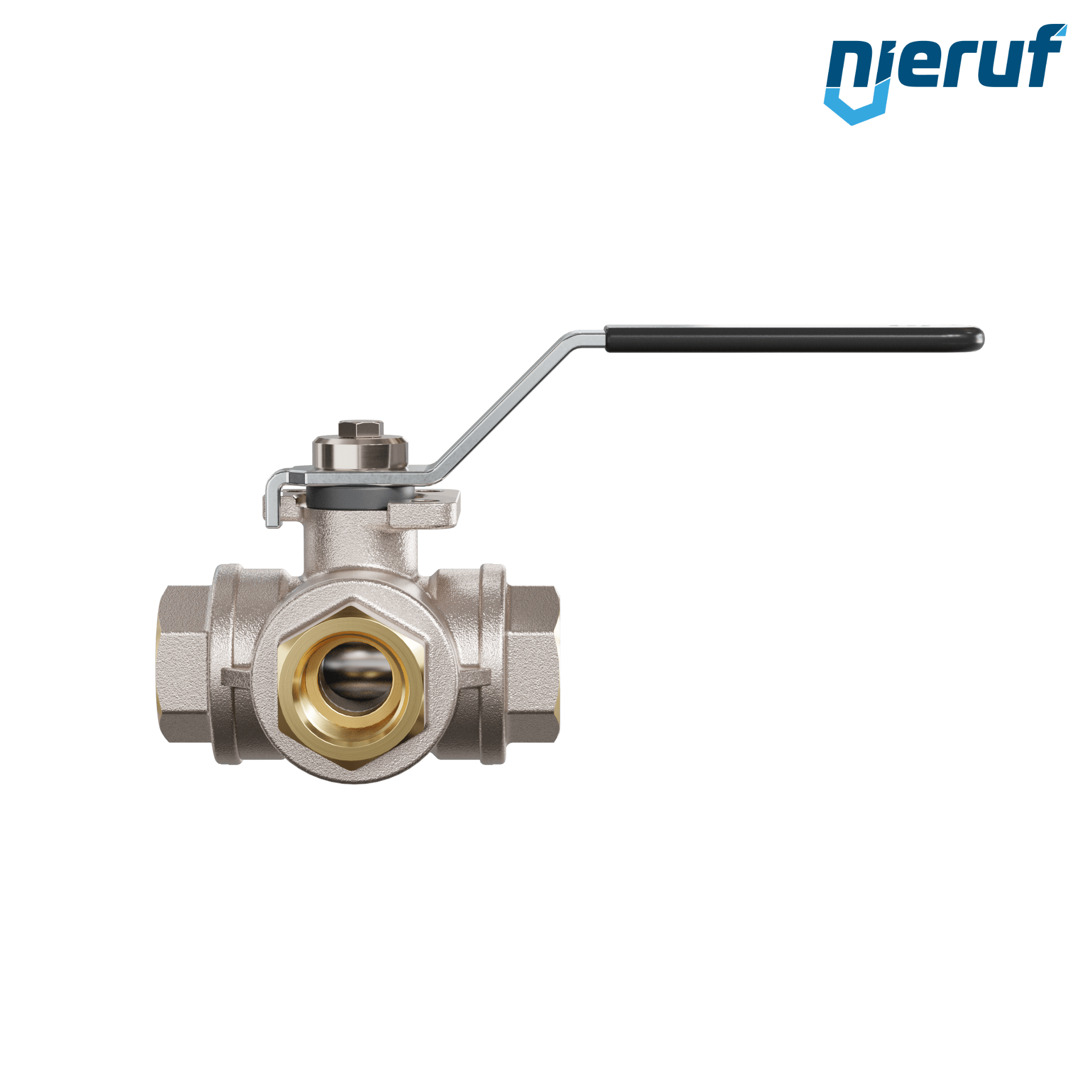

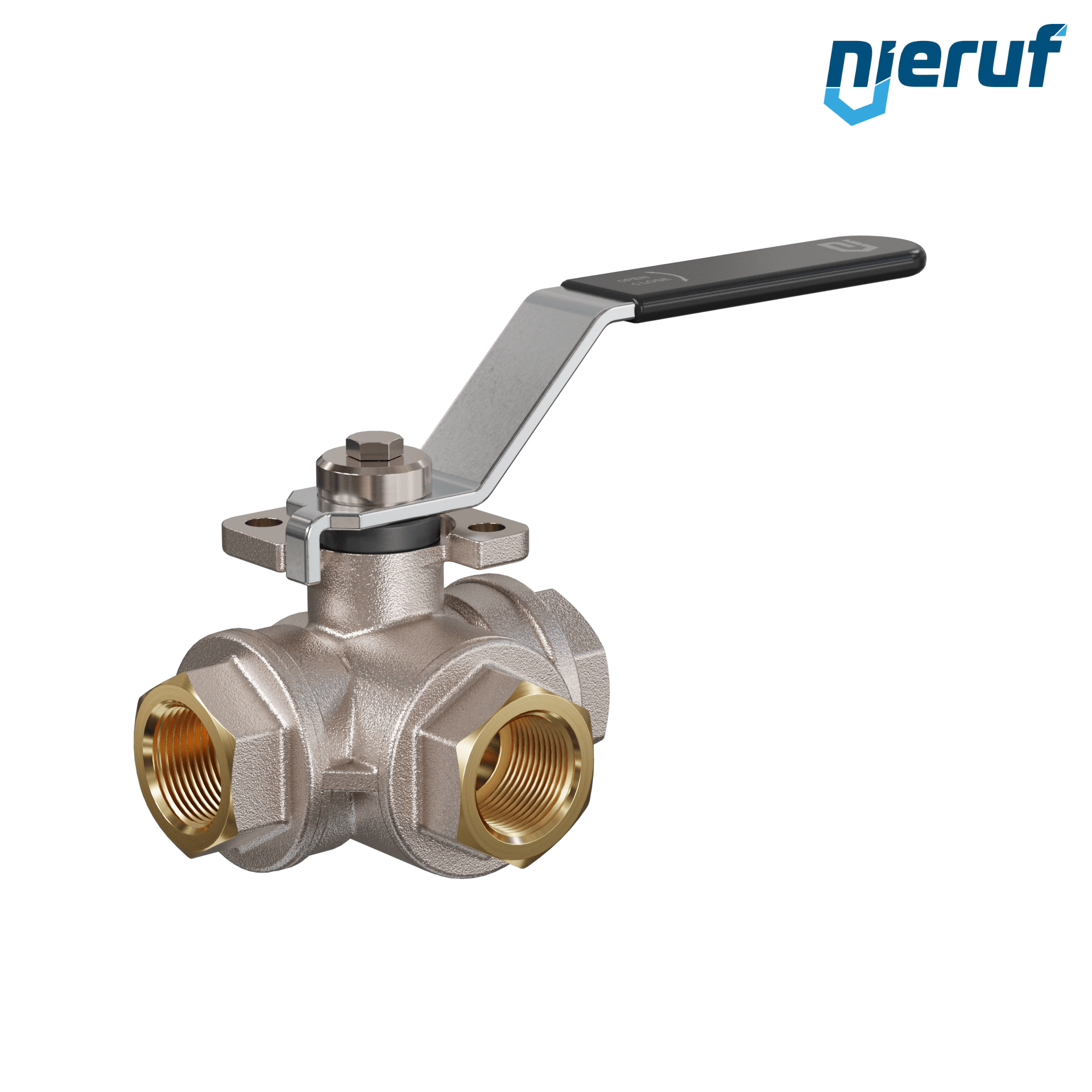

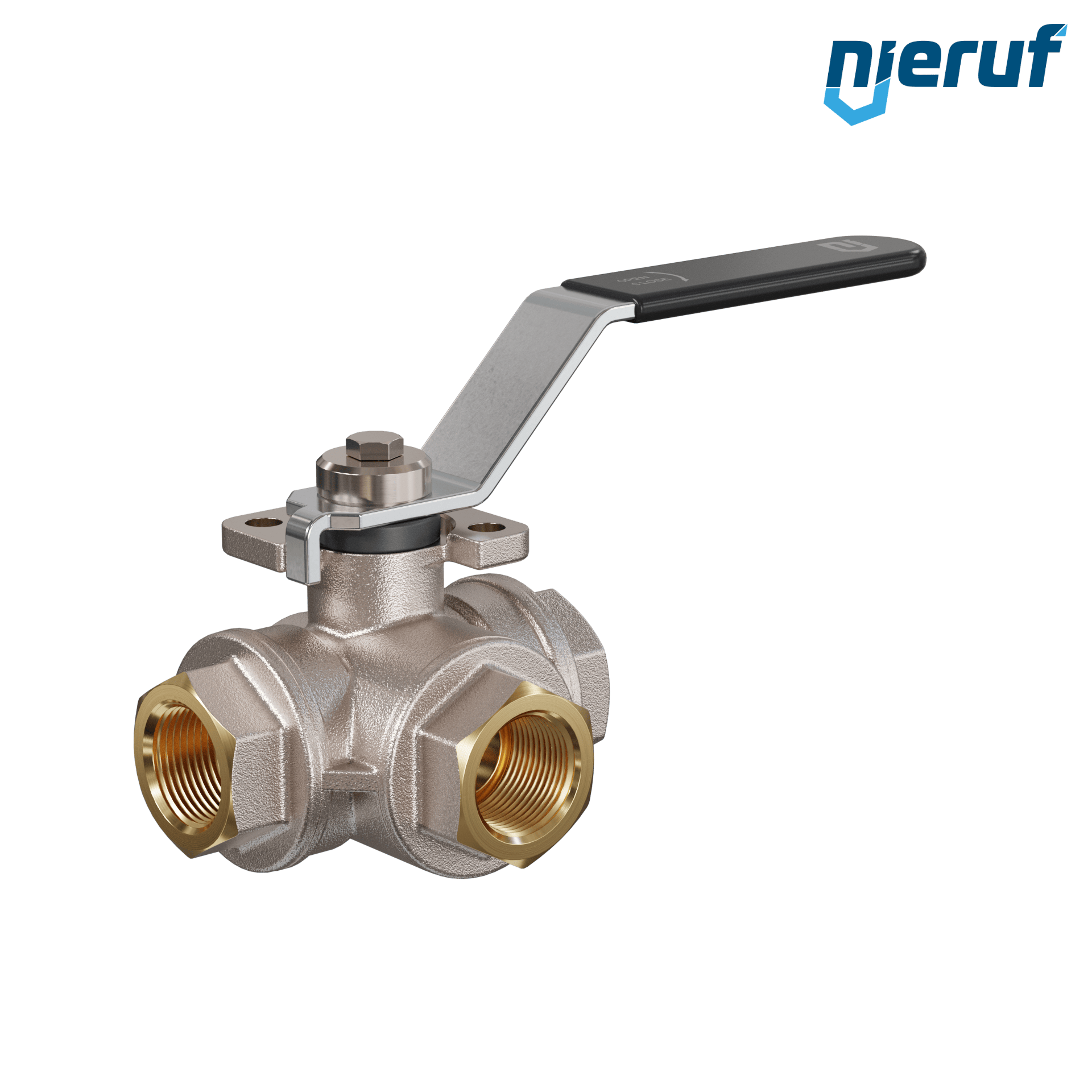

3 way brass ball valve DN15 - 1/2" inch GK08 full port design with T drilling
Delivery time: 3 - 5 working days
Equipment
![Our employee <strong>Max Eisele</strong><br>will be happy to help you](https://www.nieruf.com/theme/dc4c77a3ac174f4ca17ca493f6317dc5/assets/image/meiko-holzinger.png?1724065878)
Questions about the article?
Our employee Max Eisele
will be happy to help you
3 way brass ball valve DN15 - 1/2" inch full port design with T drilling seal made of PTFE for liquid and gaseous media
product: | 3 way brass ball valve |
---|---|
type: | GK08 |
manufacturer: | NieRuf |
diameter: | DN15 - 1/2" inch |
connection: | female thread |
Seal steam: | PTFE |
ball seal: | PTFE |
media: | liquid and gaseous media |
temperature: | -20°C up to +150°C - depending on working pressure and media |
max. pressure: | PN30 |
design: | full port design with T drilling |
body material: | brass |
ball material: | brass chrome plated |
length: | 77mm |
actuator: | hand lever made of steel zinc coated with black plastic cover |
installation position: | any position |
product description: | This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way brass ball valve DN15 - 1/2" inch GK08 full port design with T drilling
Article no.
: GK08000003
product:
3 way brass ball valve
type:
GK08
manufacturer:
NieRuf
diameter:
DN15 - 1/2" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +150°C - depending on working pressure and media
max. pressure:
PN30
design:
full port design with T drilling
body material:
brass
ball material:
brass chrome plated
length:
77mm
actuator:
hand lever made of steel zinc coated with black plastic cover
installation position:
any position
product description:
This high quality three-way ball valve is made of brass with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling
