Product number: GK09000005

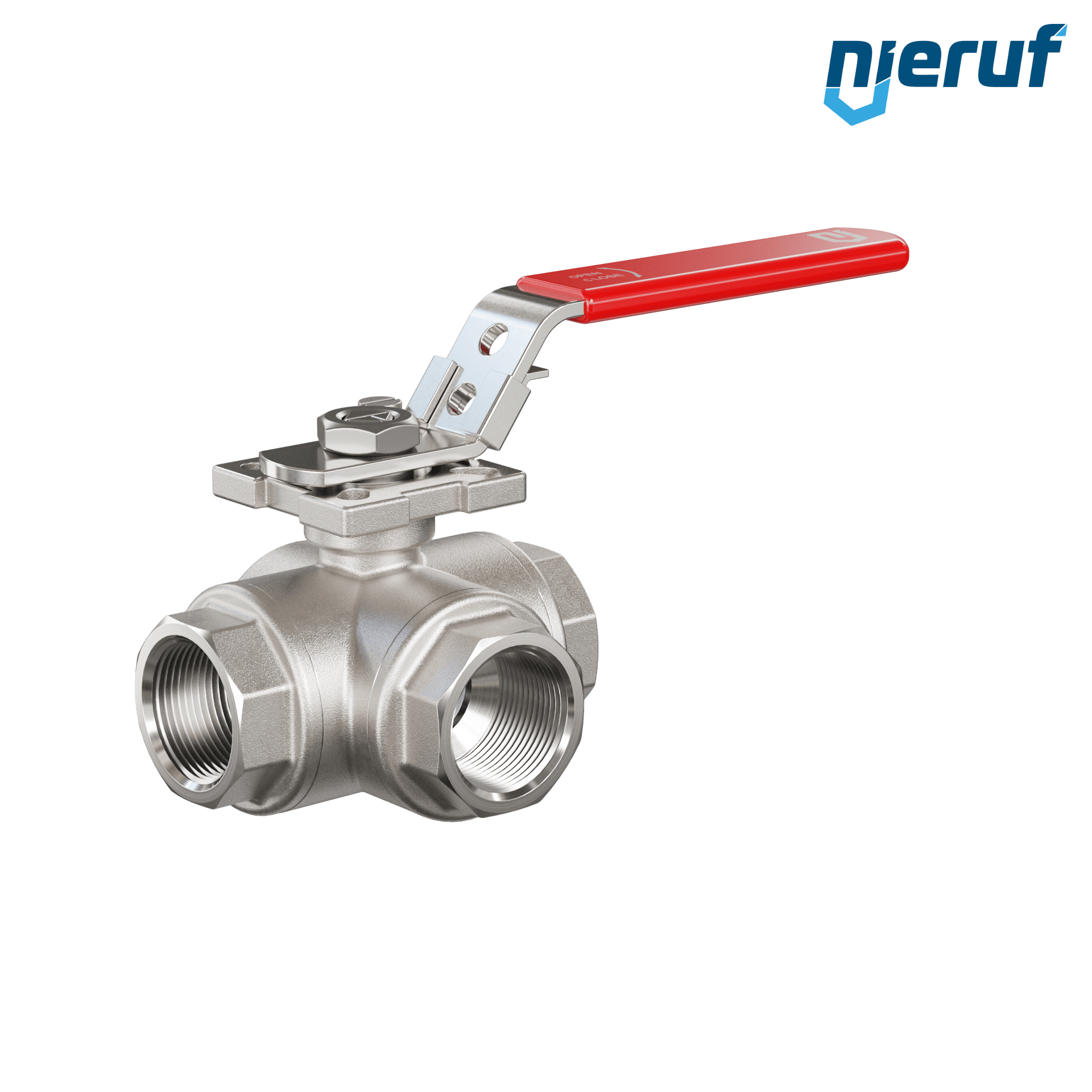

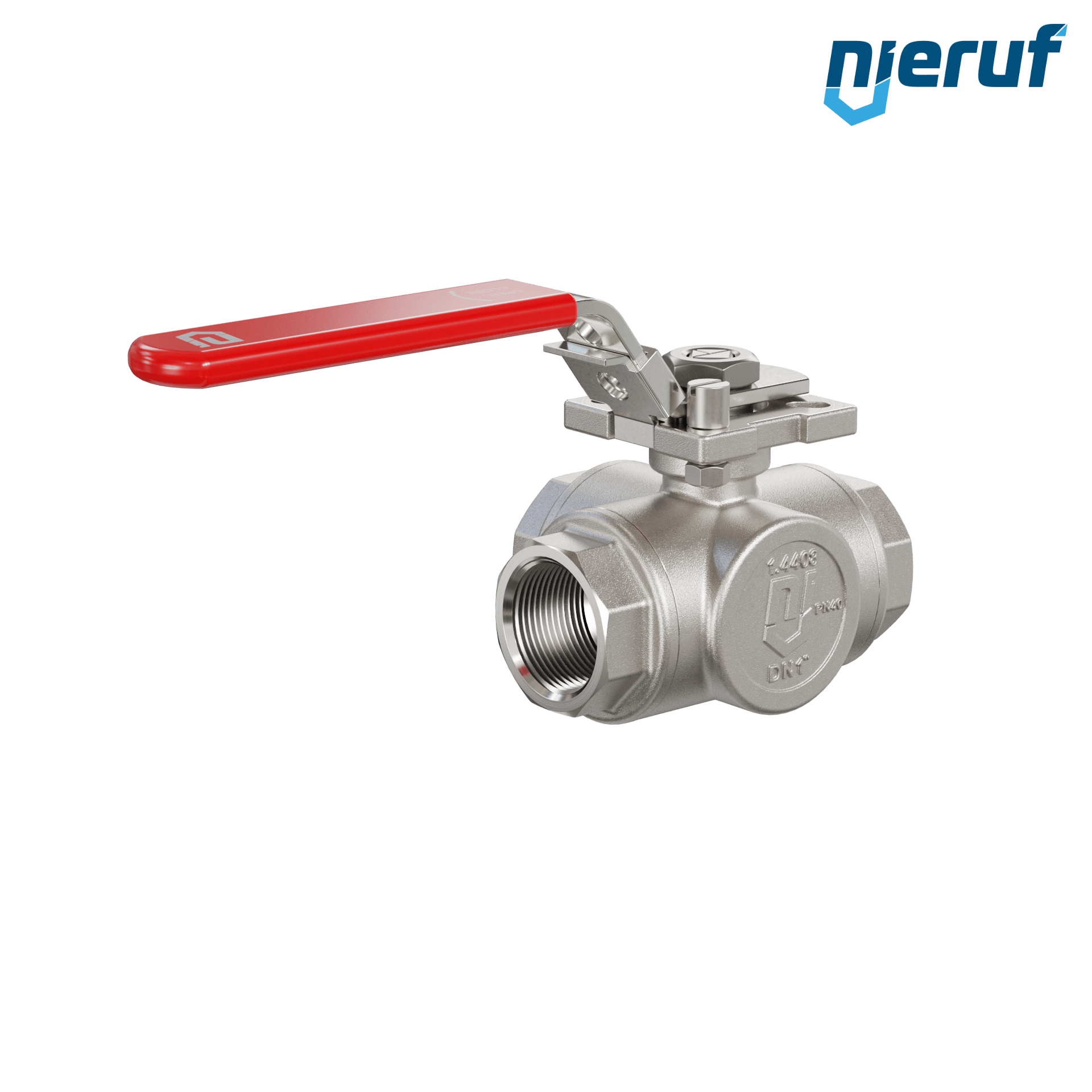

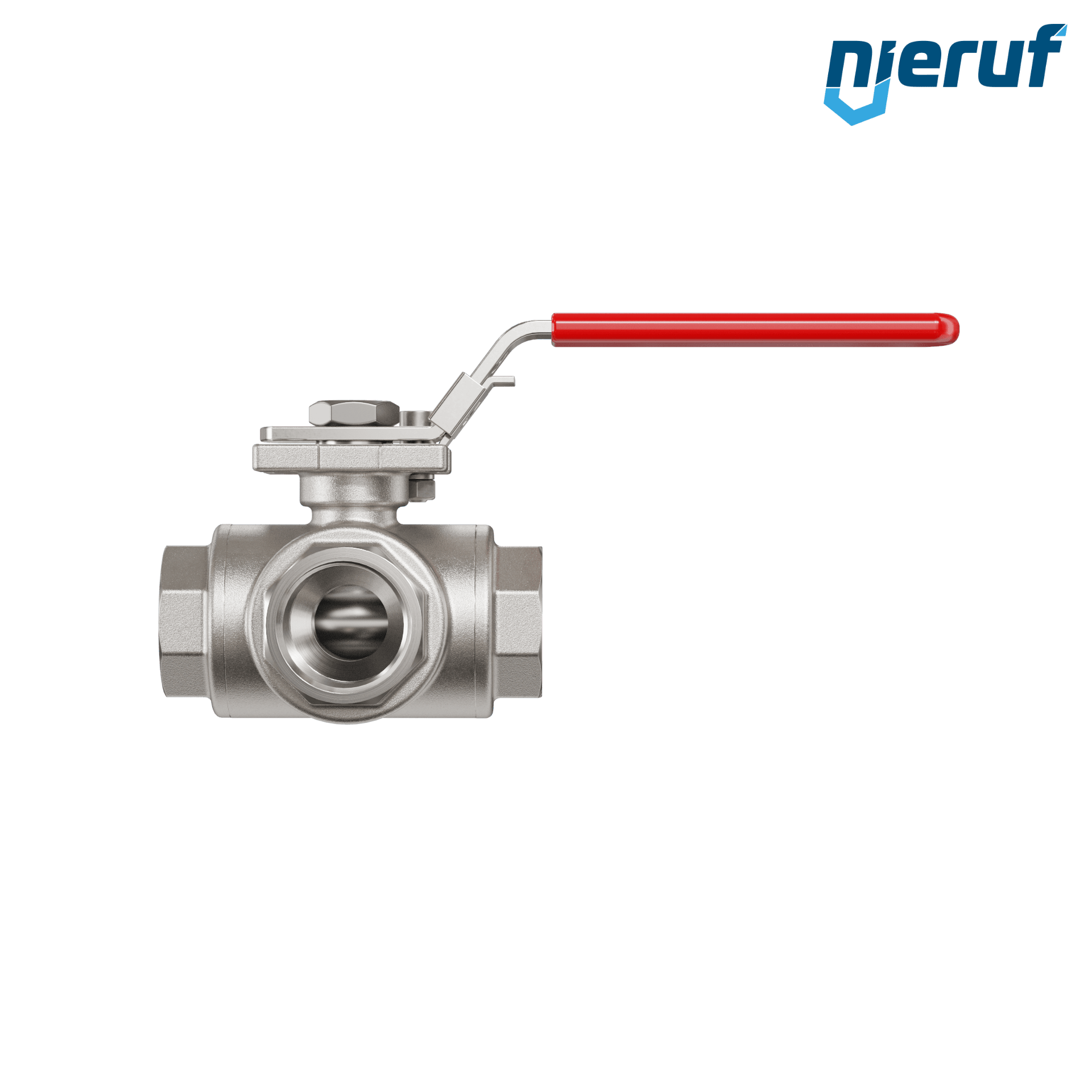

3 way ball valve DN25 - 1" inch GK09 stainless steel T drilling

3 way ball valve DN25 - 1" inch T drilling seal made of PTFE in stainless steel for liquid and gaseous media

product: 3 way ball valve
type: GK09
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -25°C up to +180°C - depending on working pressure and media
max. pressure: PN40
design: T drilling
body material: stainless steel 1.4408
ball material: stainless steel
actuator: hand lever made of stainless steel with locking device
installation position: any position
product description: This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

3 way ball valve DN25 - 1" inch GK09 stainless steel T drilling

Article no. : GK09000005
product: 3 way ball valve
type: GK09
manufacturer: NieRuf
diameter: DN25 - 1" inch
connection: female thread
Seal steam: PTFE
ball seal: PTFE
media: liquid and gaseous media
temperature: -25°C up to +180°C - depending on working pressure and media
max. pressure: PN40
design: T drilling
body material: stainless steel 1.4408
ball material: stainless steel
actuator: hand lever made of stainless steel with locking device
installation position: any position
product description: This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling.
