GK09010008

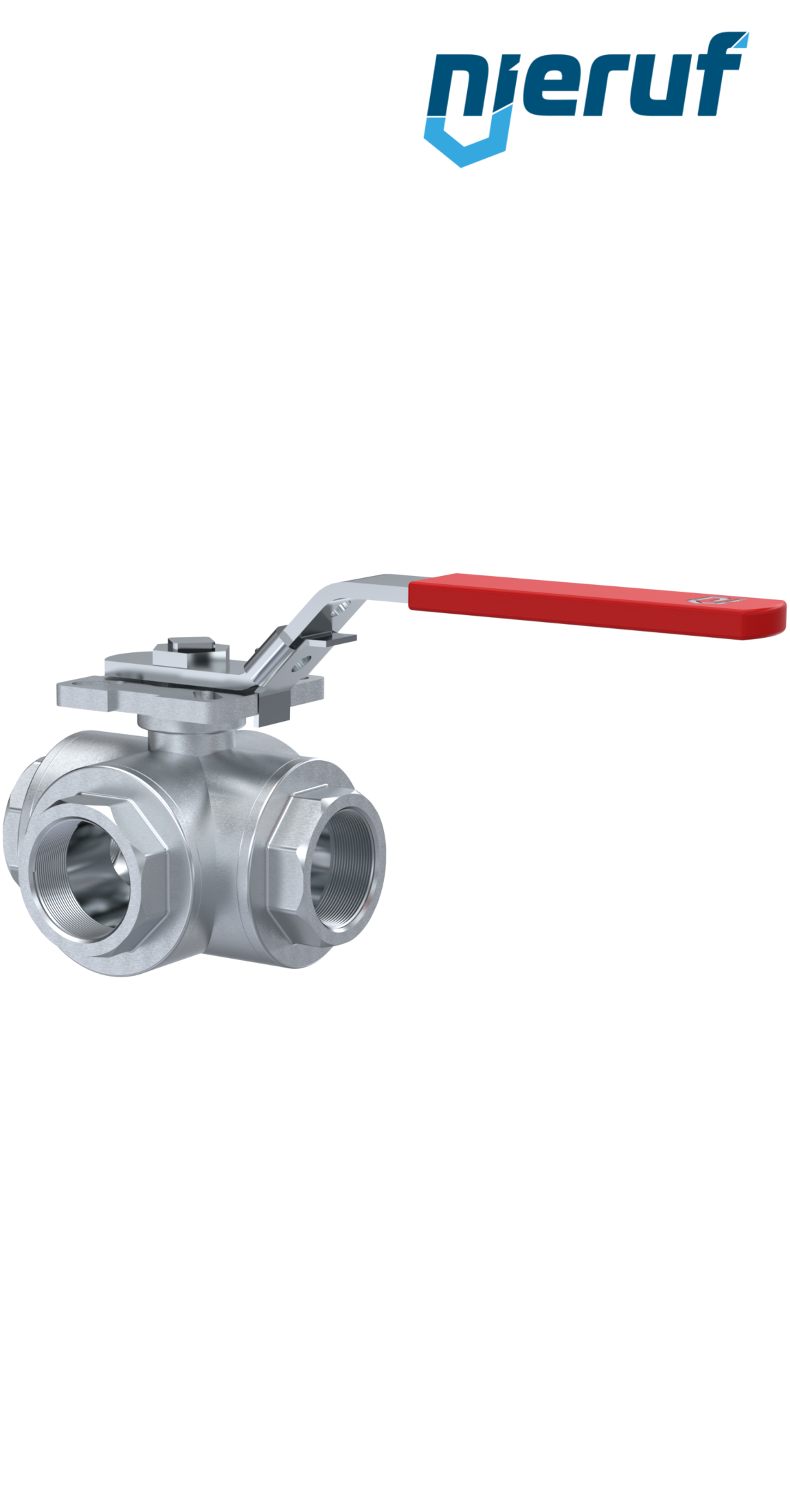

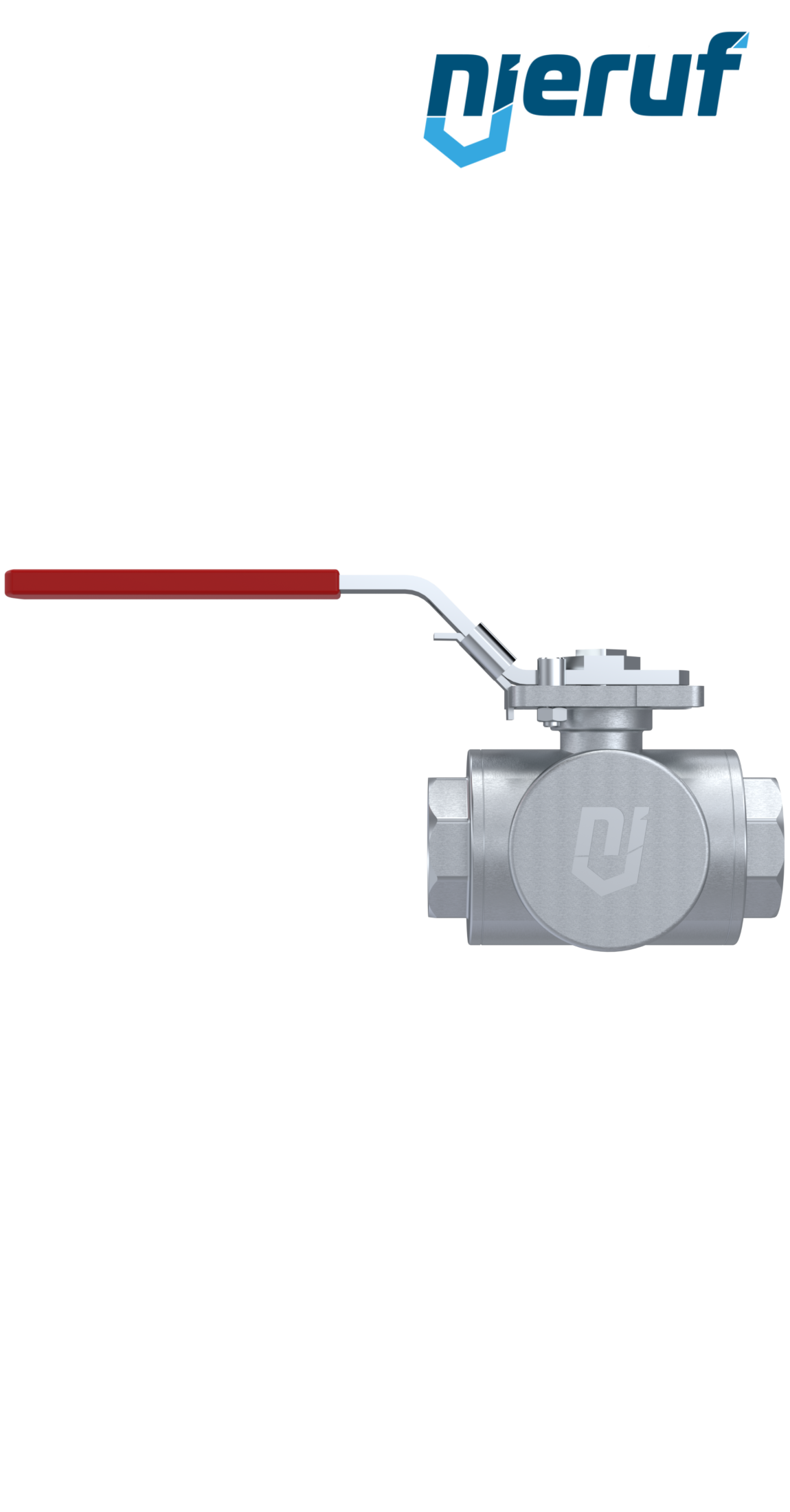

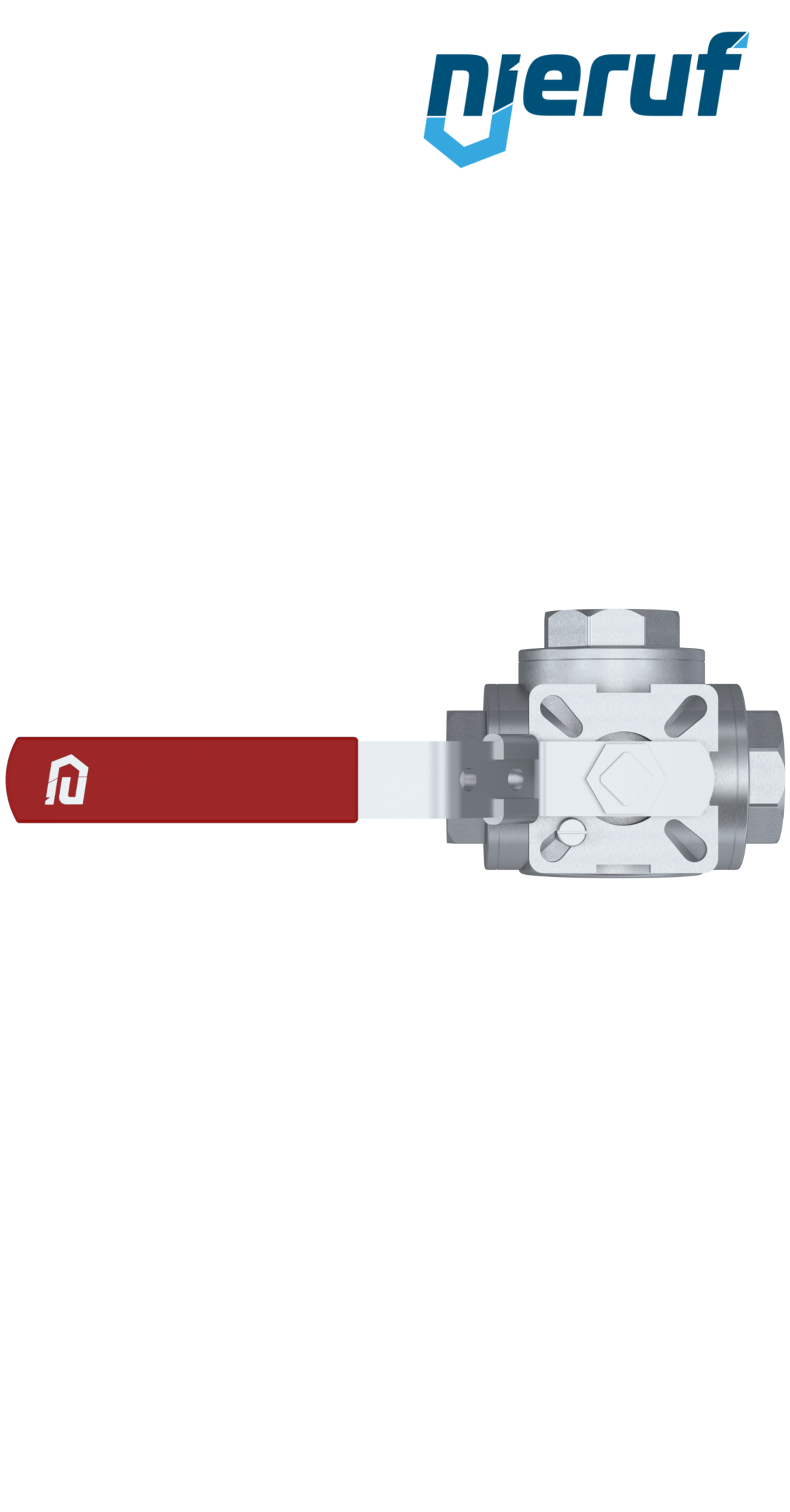

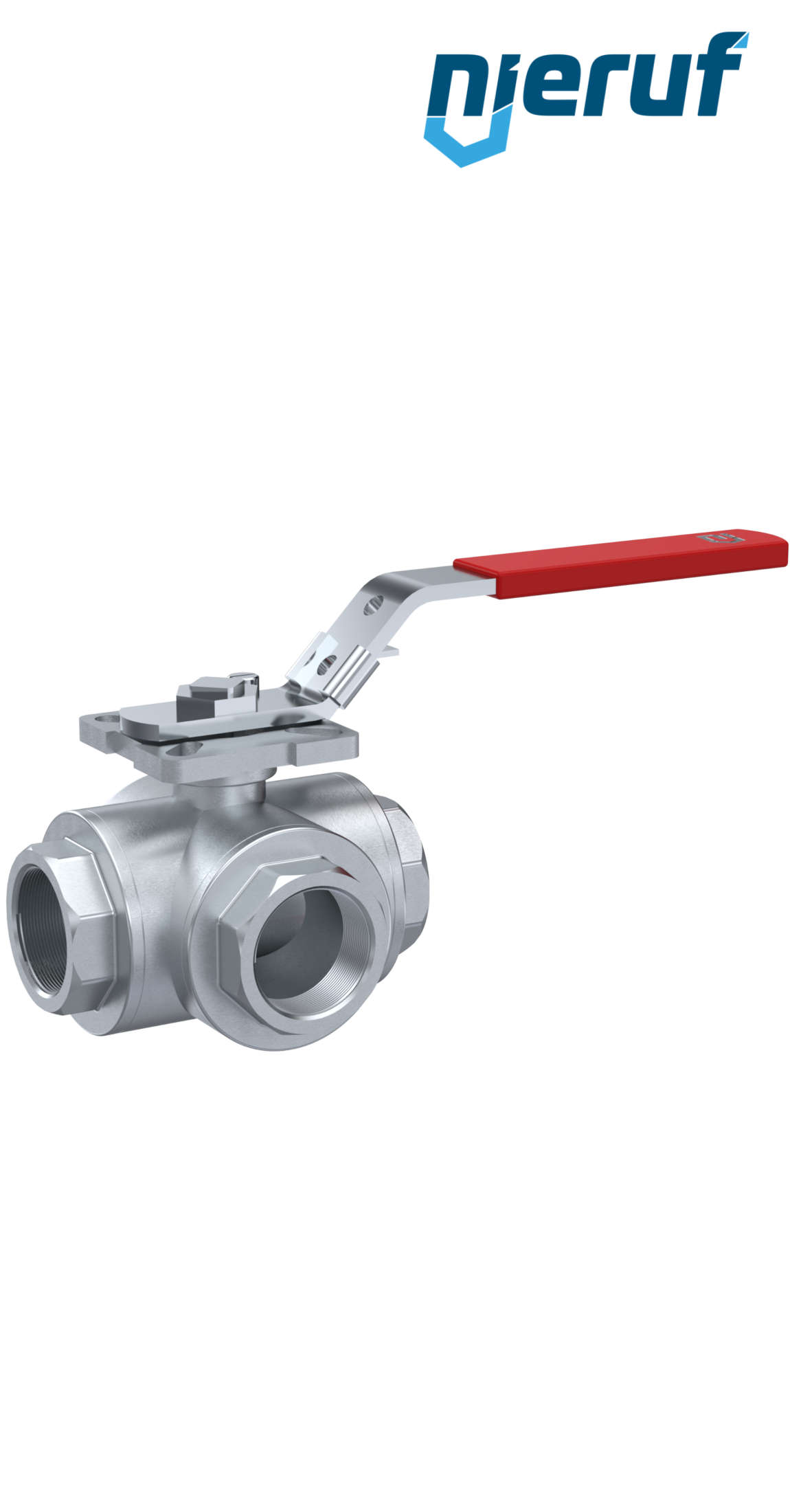

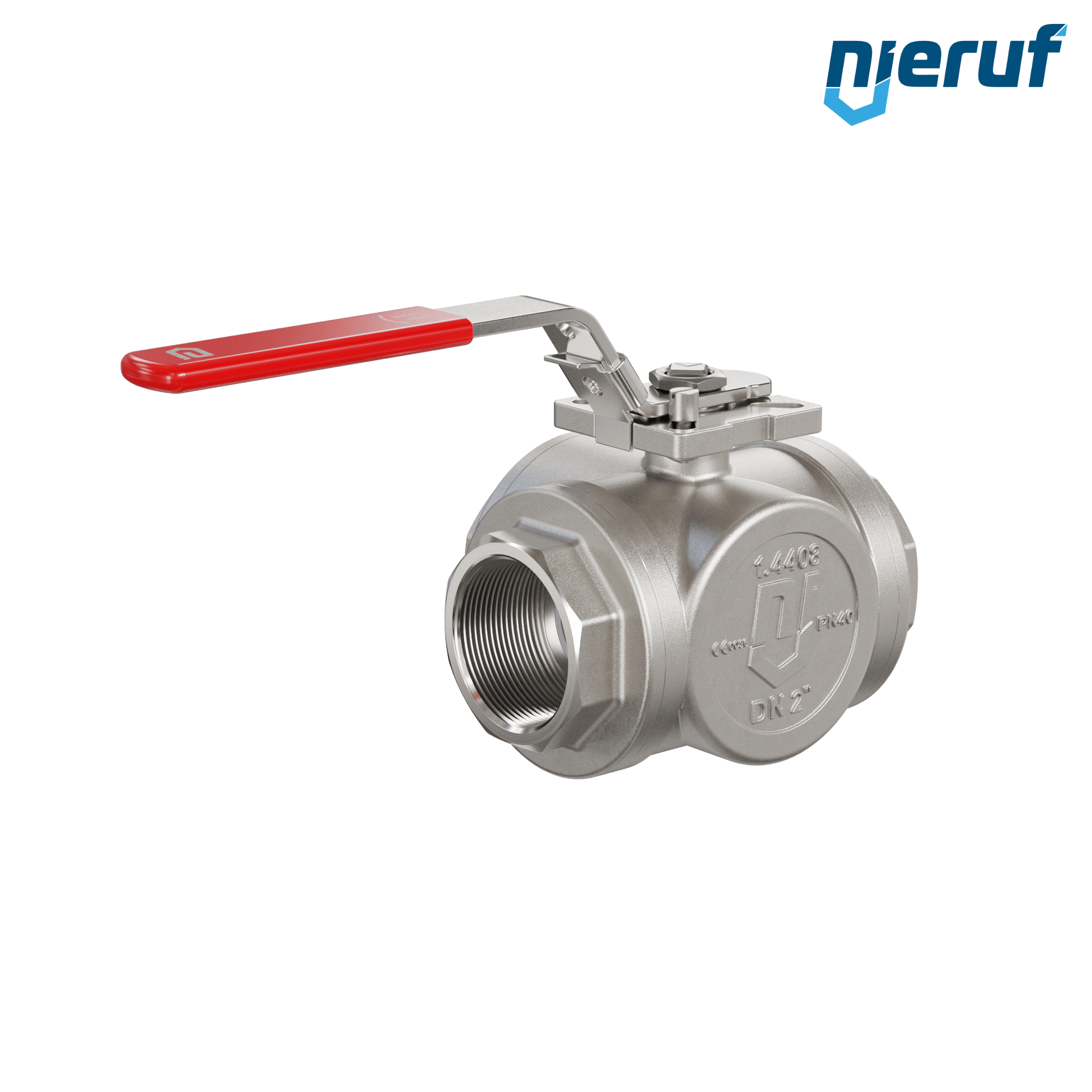

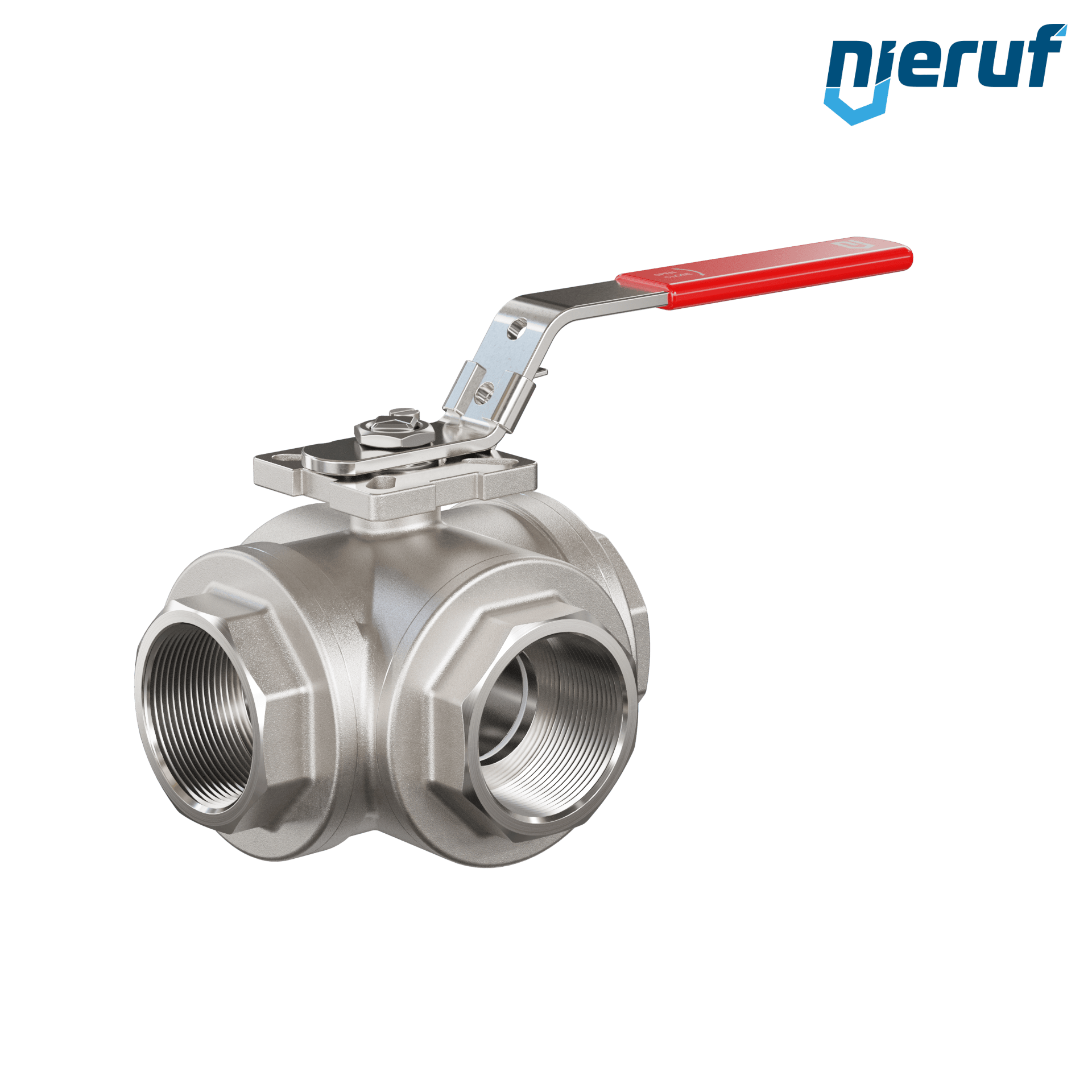

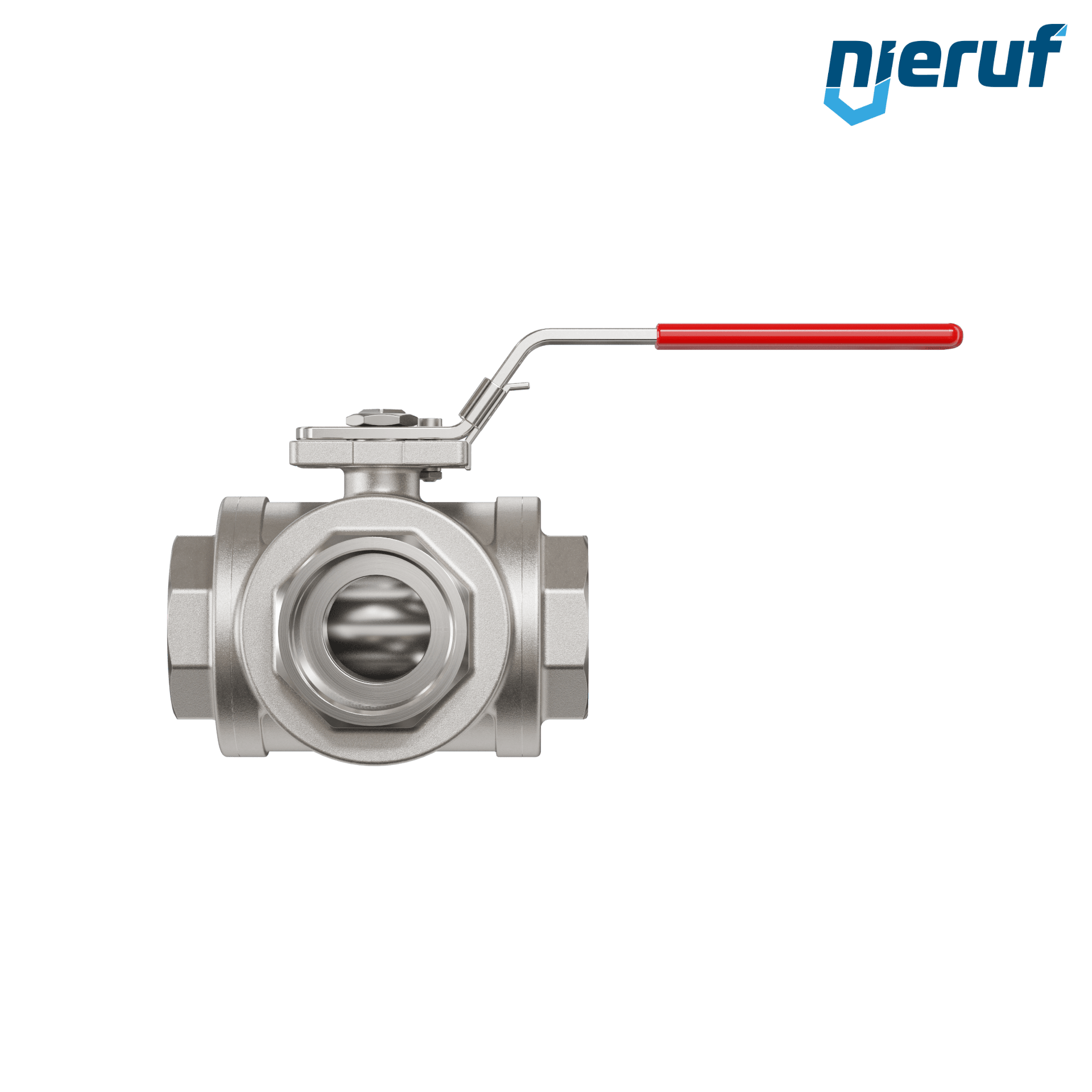

3-way ball valve DN50 - 2" inch GK09 stainless steel L drilling
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
3-way ball valve DN50 - 2" inch L drilling seal made of PTFE in stainless steel for liquid and gaseous media
| product: | 3-way ball valve |
|---|---|
| type: | GK09 |
| manufacturer: | NieRuf |
| diameter: | DN50 - 2" inch |
| connection: | female thread |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -25°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN40 |
| design: | L drilling |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel |
| actuator: | hand lever made of stainless steel with locking device |
| installation position: | any position |
| product description: | This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3-way ball valve DN50 - 2" inch GK09 stainless steel L drilling
Article no.
: GK09010008
product:
3-way ball valve
type:
GK09
manufacturer:
NieRuf
diameter:
DN50 - 2" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-25°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
L drilling
body material:
stainless steel 1.4408
ball material:
stainless steel
actuator:
hand lever made of stainless steel with locking device
installation position:
any position
product description:
This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a L-drilling.
€12.14 VAT included.
€18.68 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
