GK09000002
3 way ball valve DN10 - 3/8" inch GK09 stainless steel T drilling
Delivery time: in stock
Express delivery:
Shipping on: Tuesday, 31. December
Guaranteed delivery until Wednesday, 01. January, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

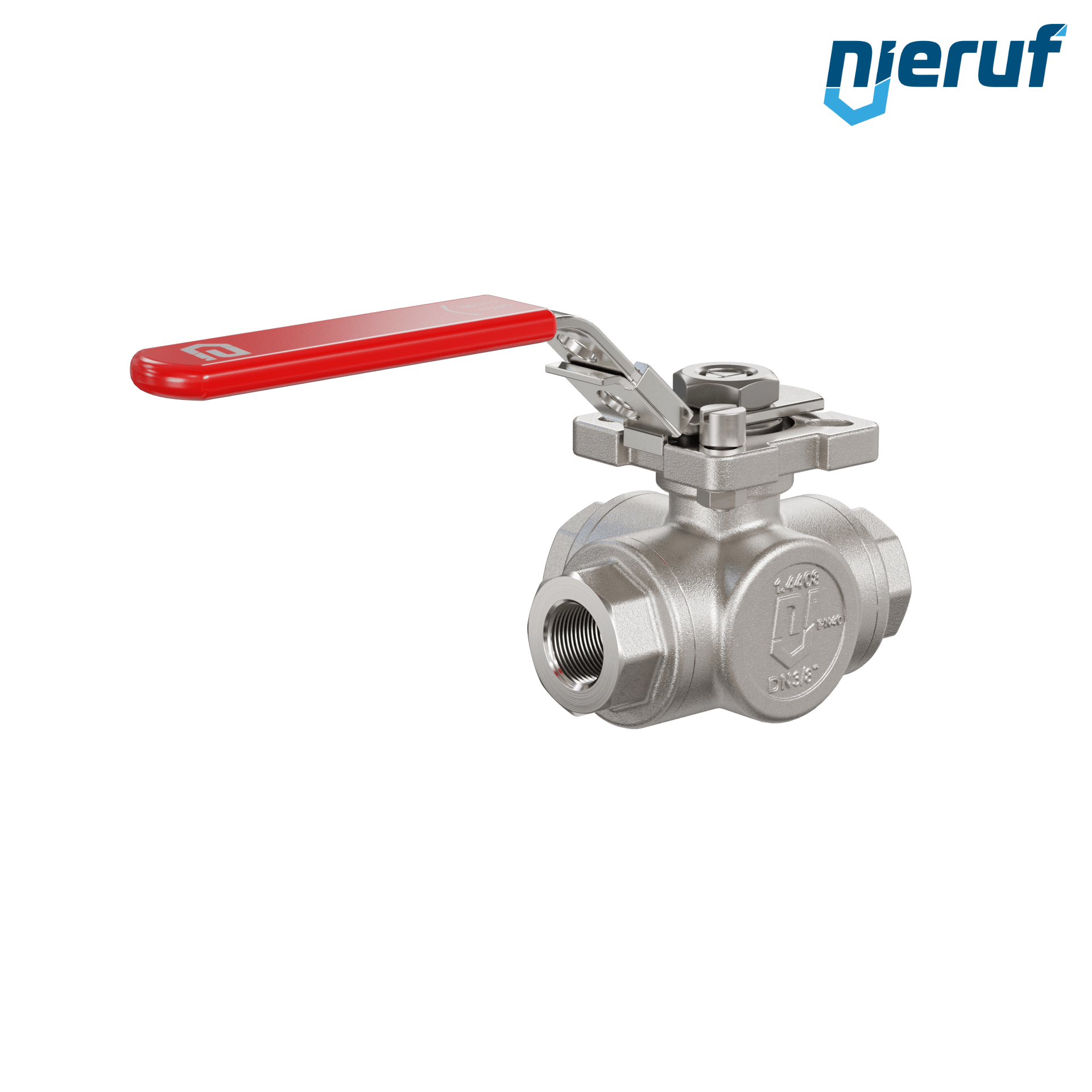

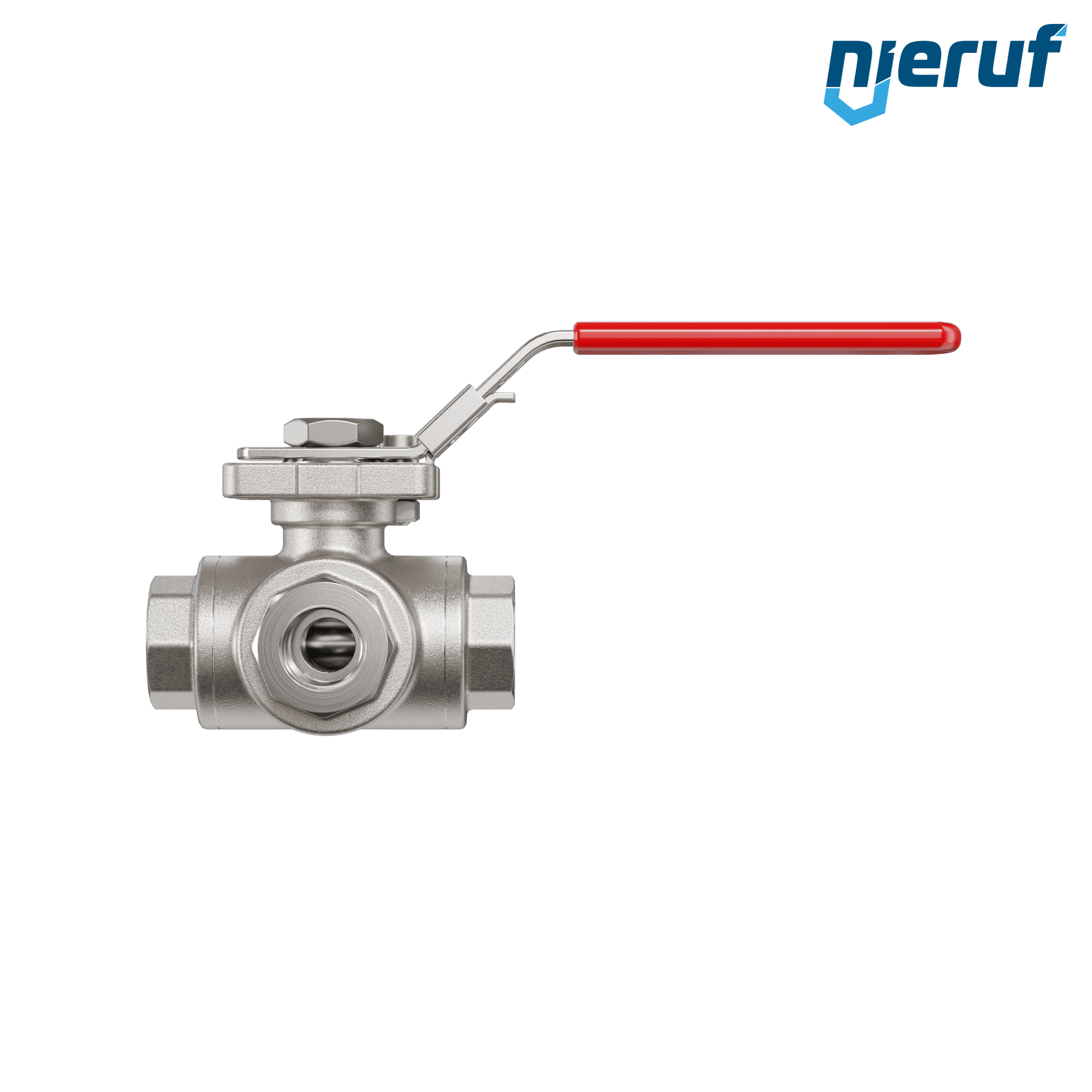

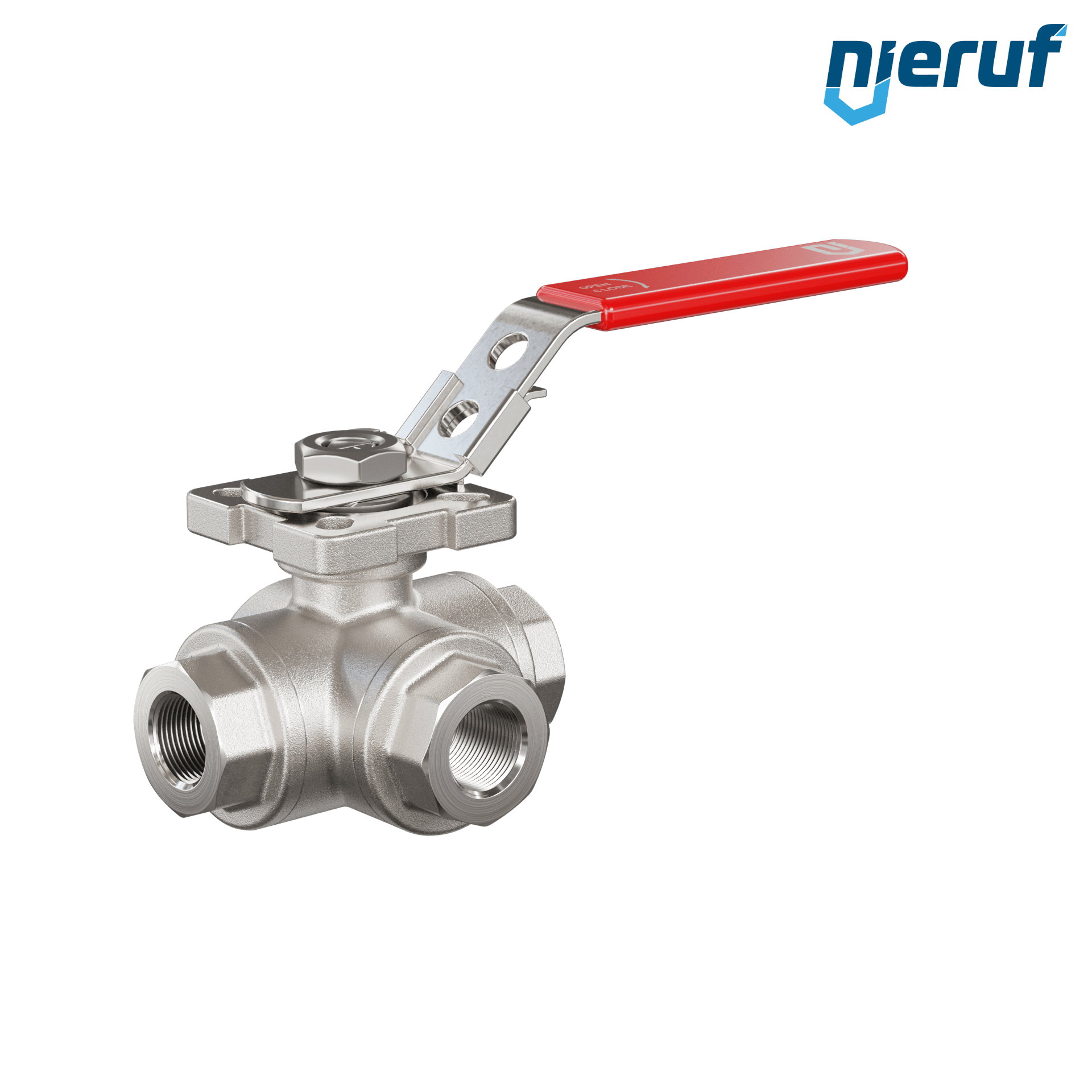

3 way ball valve DN10 - 3/8" inch T drilling seal made of PTFE in stainless steel for liquid and gaseous media
| product: | 3 way ball valve |
|---|---|
| type: | GK09 |
| manufacturer: | NieRuf |
| diameter: | DN10 - 3/8" inch |
| connection: | female thread |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -25°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN40 |
| design: | T drilling |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel |
| actuator: | hand lever made of stainless steel with locking device |
| installation position: | any position |
| product description: | This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
3 way ball valve DN10 - 3/8" inch GK09 stainless steel T drilling
Article no.
: GK09000002
product:
3 way ball valve
type:
GK09
manufacturer:
NieRuf
diameter:
DN10 - 3/8" inch
connection:
female thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-25°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
T drilling
body material:
stainless steel 1.4408
ball material:
stainless steel
actuator:
hand lever made of stainless steel with locking device
installation position:
any position
product description:
This high quality three-way ball valve is made of stainless steel with blow out proof stem design, floating ball and 4 ball seats. This valve has a T-drilling.
€2.02 VAT included.
€2.02 VAT included.
€2.86 VAT included.
