NA02000003

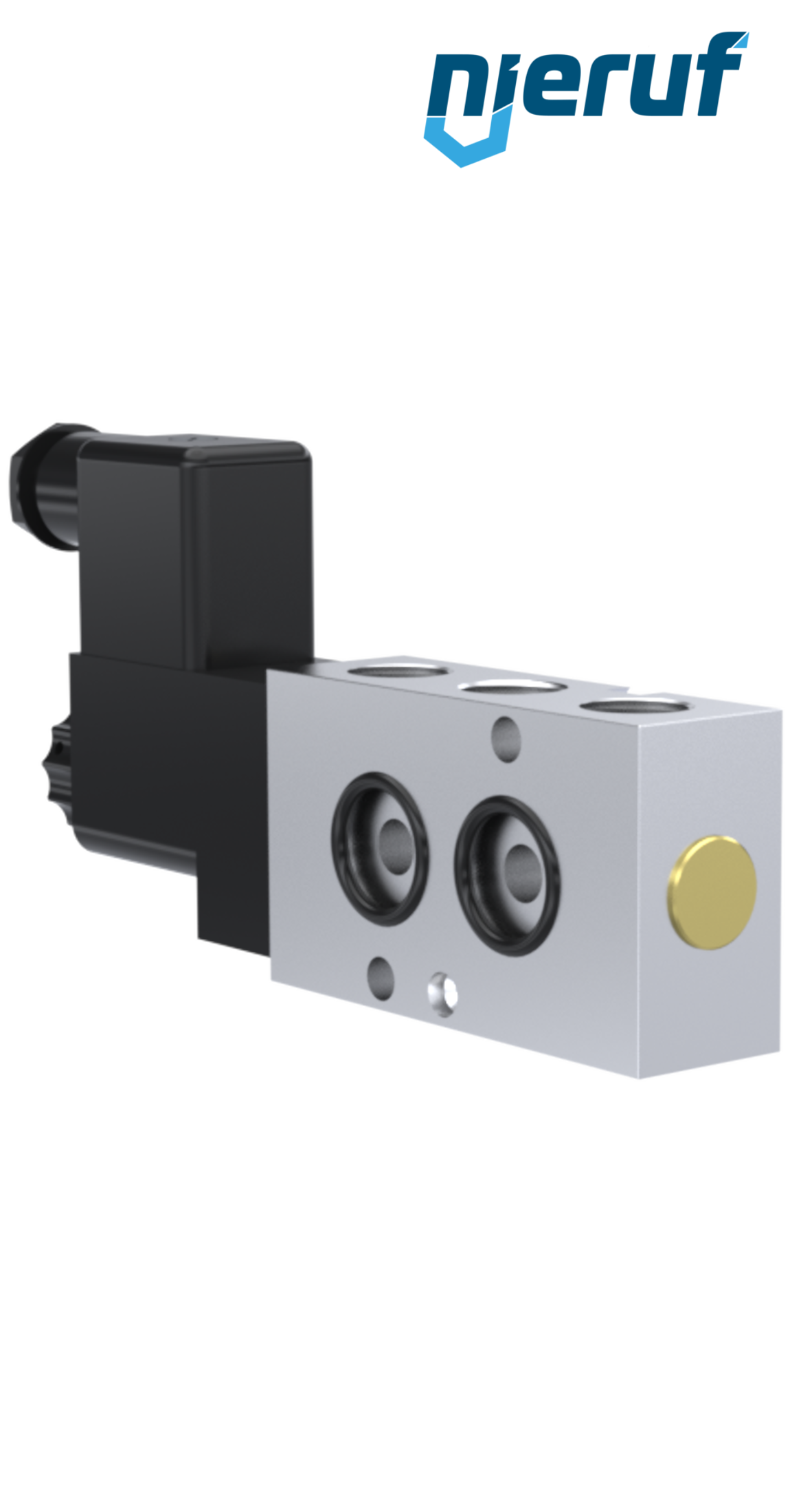

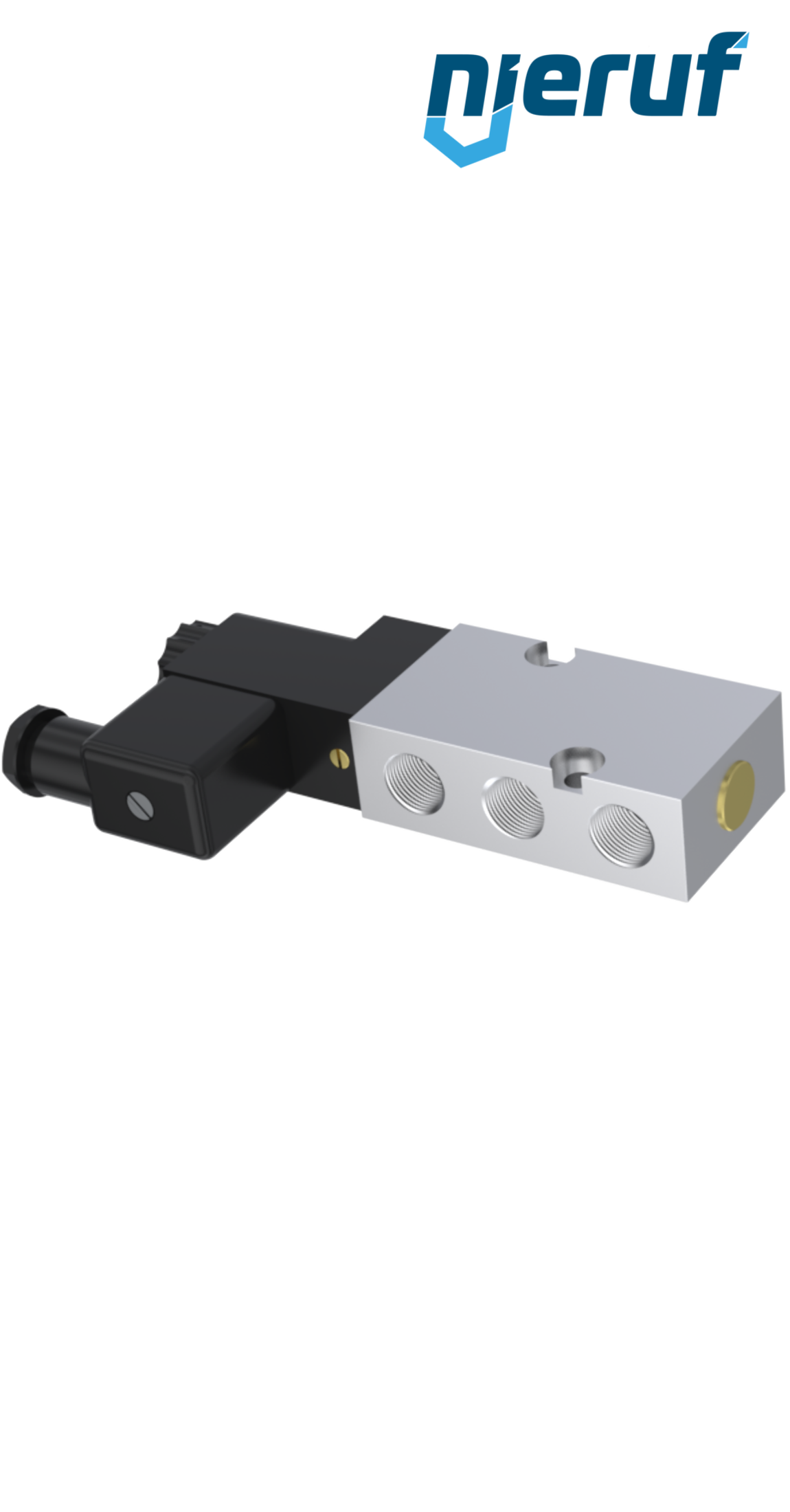

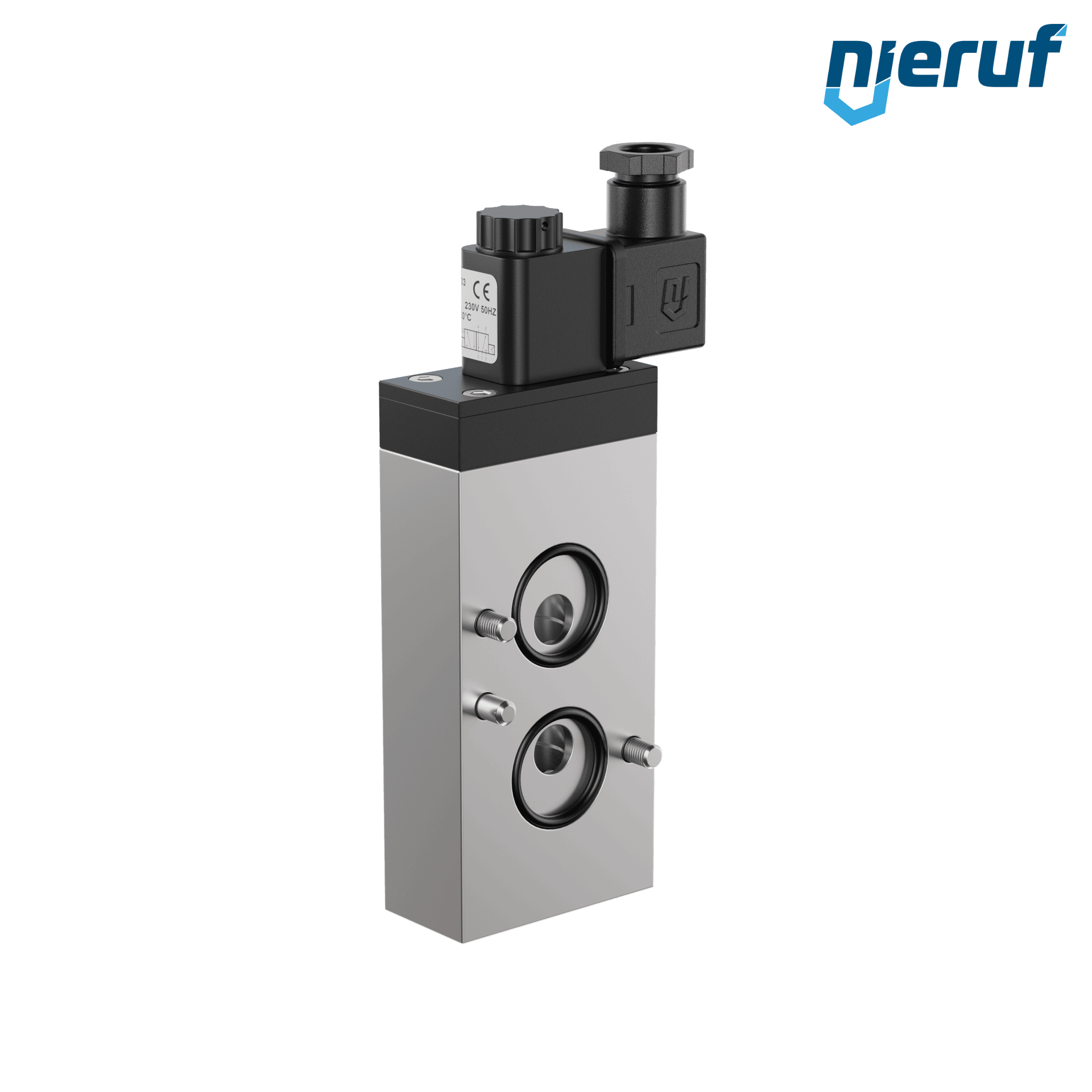

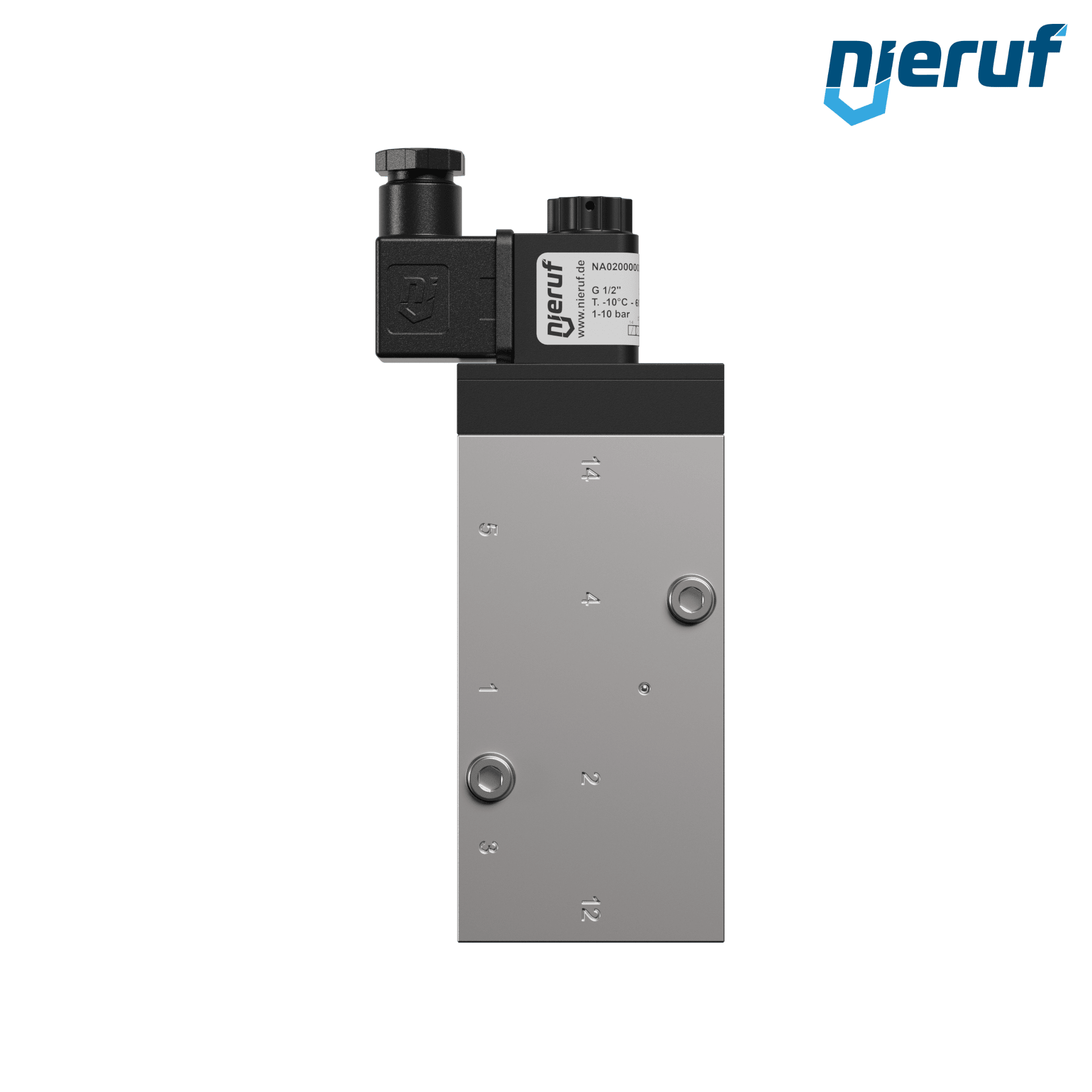

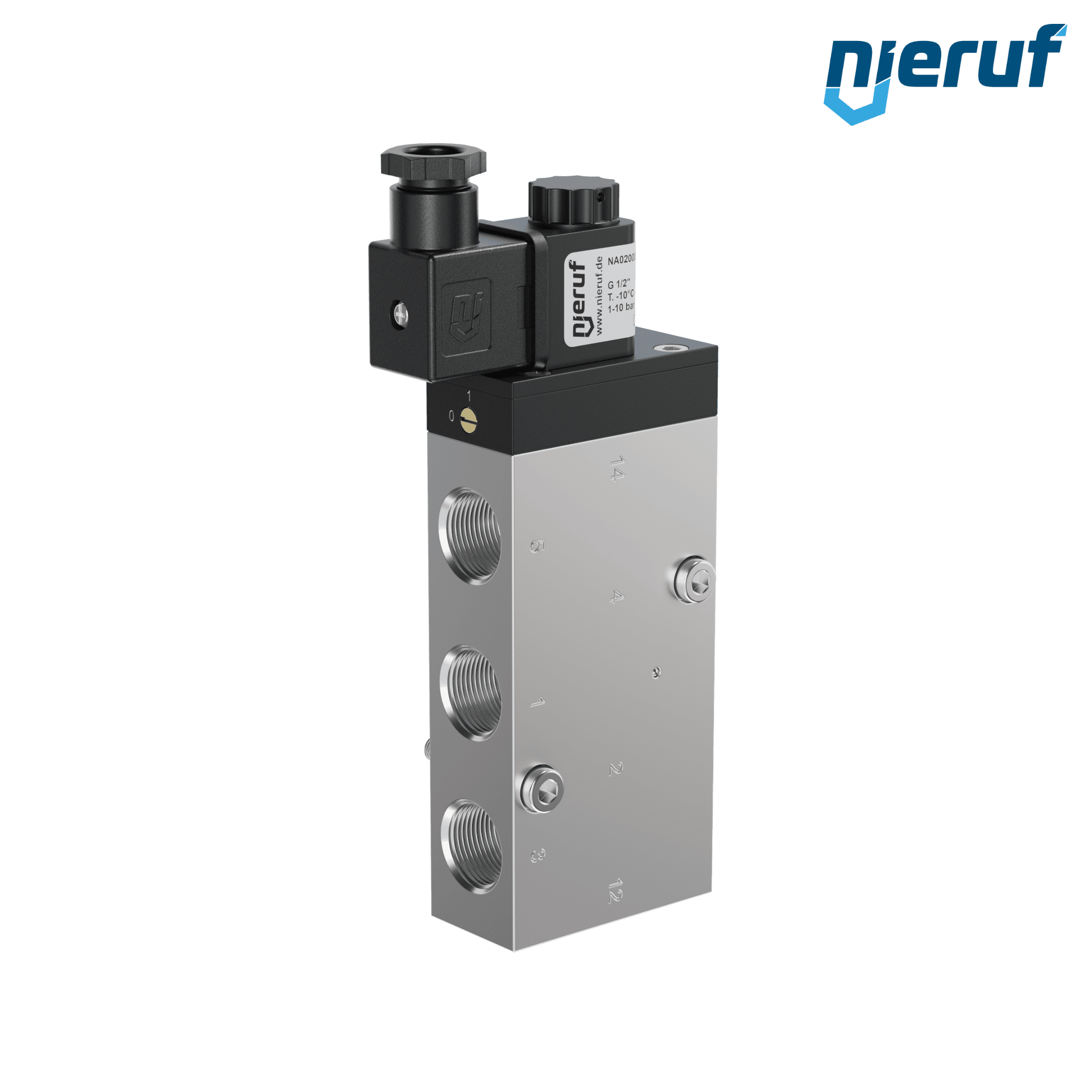

5/2 ways NAMUR-Solenoid valve G 1/2" Inch NA02 230V 50Hz
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
5/2 ways NAMUR Solenoid valve G 1/2" Inch made of aluminium NBR voltage 230V AC Druck 1,0 - 10,0 bar
| product: | Solenoid valve |
|---|---|
| type: | NA02 |
| manufacturer: | NieRuf |
| design: | Namur-valve with spring chamber ventilation |
| diameter: | DN12,0 |
| connection: | G 1/2" Inch |
| type of connection: | Namur |
| Type of design: | 5/2 ways |
| flow rate: | 3000 l/min |
| material: | aluminium |
| seal: | NBR |
| voltage: | 230V AC |
| media: | pressure air |
| temperature ambiente: | max up to +80°C |
| max. pressure: | 1,0 - 10,0 bar |
| installation position: | any position, solenoid valve preferably upwards |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
5/2 ways NAMUR-Solenoid valve G 1/2" Inch NA02 230V 50Hz
Article no.
: NA02000003
product:
Solenoid valve
type:
NA02
manufacturer:
NieRuf
design:
Namur-valve with spring chamber ventilation
diameter:
DN12,0
connection:
G 1/2" Inch
type of connection:
Namur
Type of design:
5/2 ways
flow rate:
3000 l/min
material:
aluminium
seal:
NBR
voltage:
230V AC
media:
pressure air
temperature ambiente:
max up to +80°C
max. pressure:
1,0 - 10,0 bar
installation position:
any position, solenoid valve preferably upwards
