MV06140103
ATEX-Solenoid valve DN16 G 1/2" Inch NBR
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

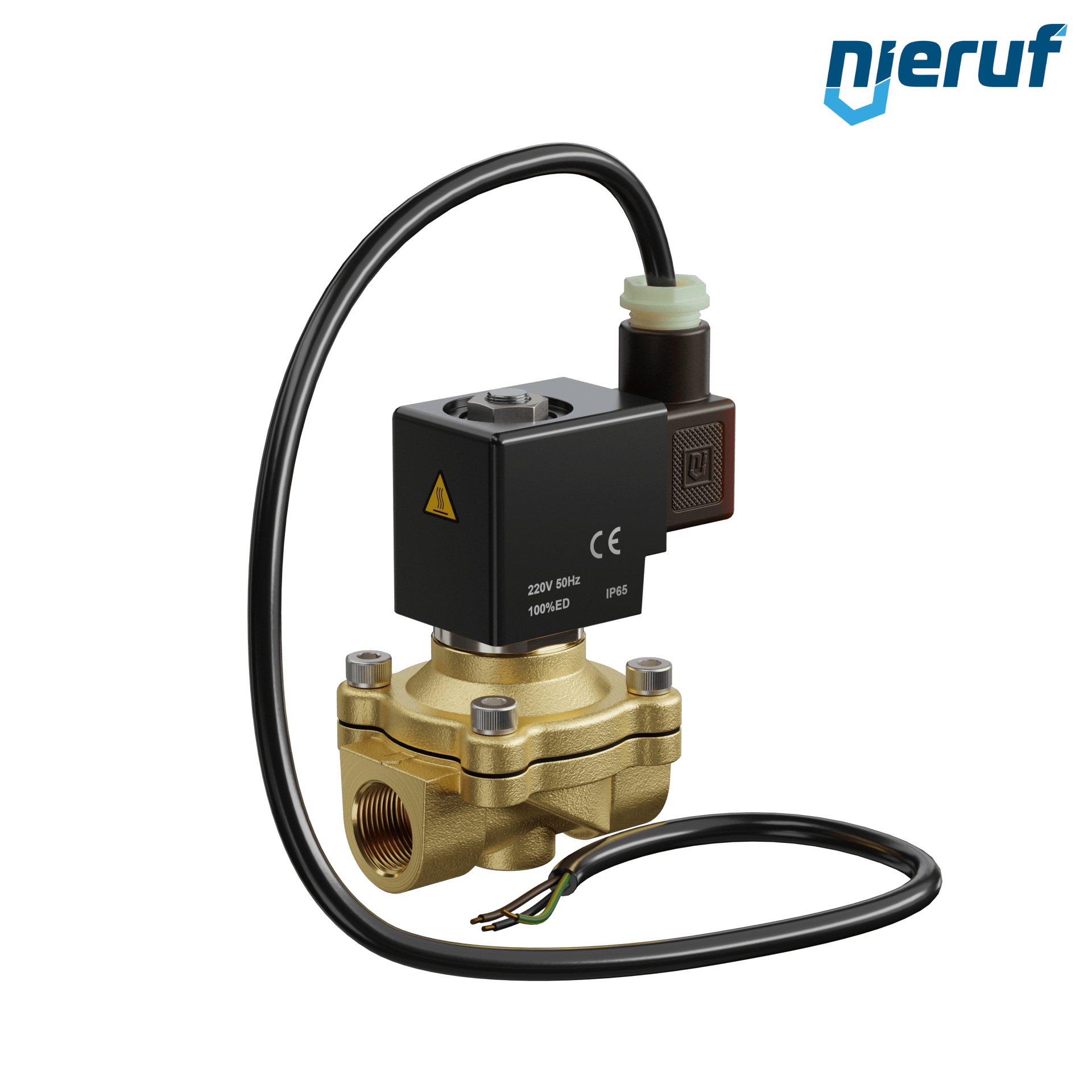

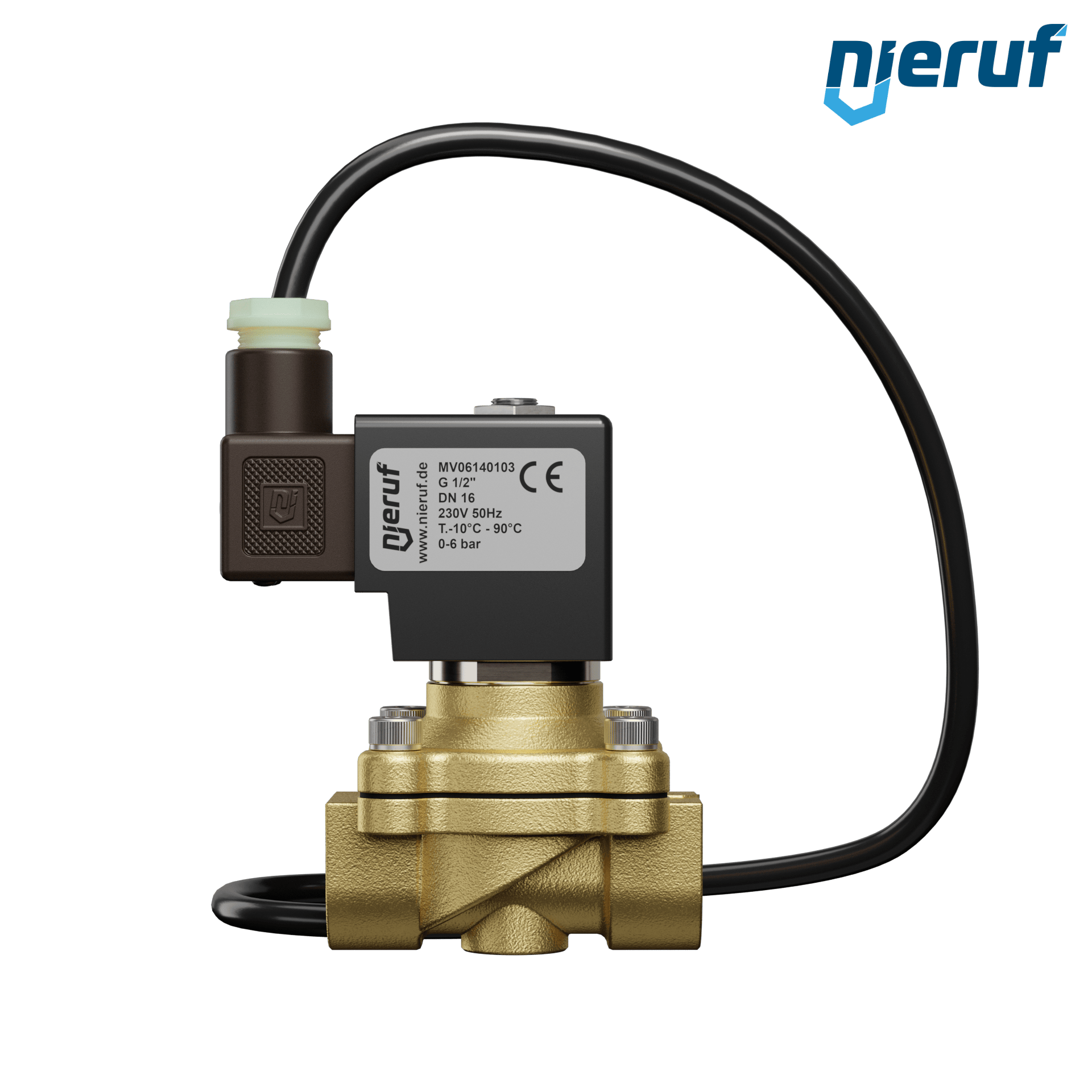

Ex-proofed-Solenoid valve DN16 G 1/2" Inch NBR Type MV06 NC - normally closed force pilot operated brass 230V 50Hz liquid and gaseous media
| product: | Solenoid valve |
|---|---|
| type: | MV06 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN16 |
| connection: | G 1/2" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 4.1 m³/h |
| function: | NC - normally closed |
| control: | force pilot operated |
| material: | brass |
| seal: | NBR |
| voltage: | 230V 50Hz |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 20 VA |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted and 3m cable |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +90°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0.0 - 6 bar |
| Ex-proof: | II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable |
| installation position: | any position, solenoid preferably standing |
