EV06220104
ATEX-Solenoid valve DN20 G 3/4" Inch FKM
- Delivery time
- 2 - 3 weeks
Equipment
Questions about the article?

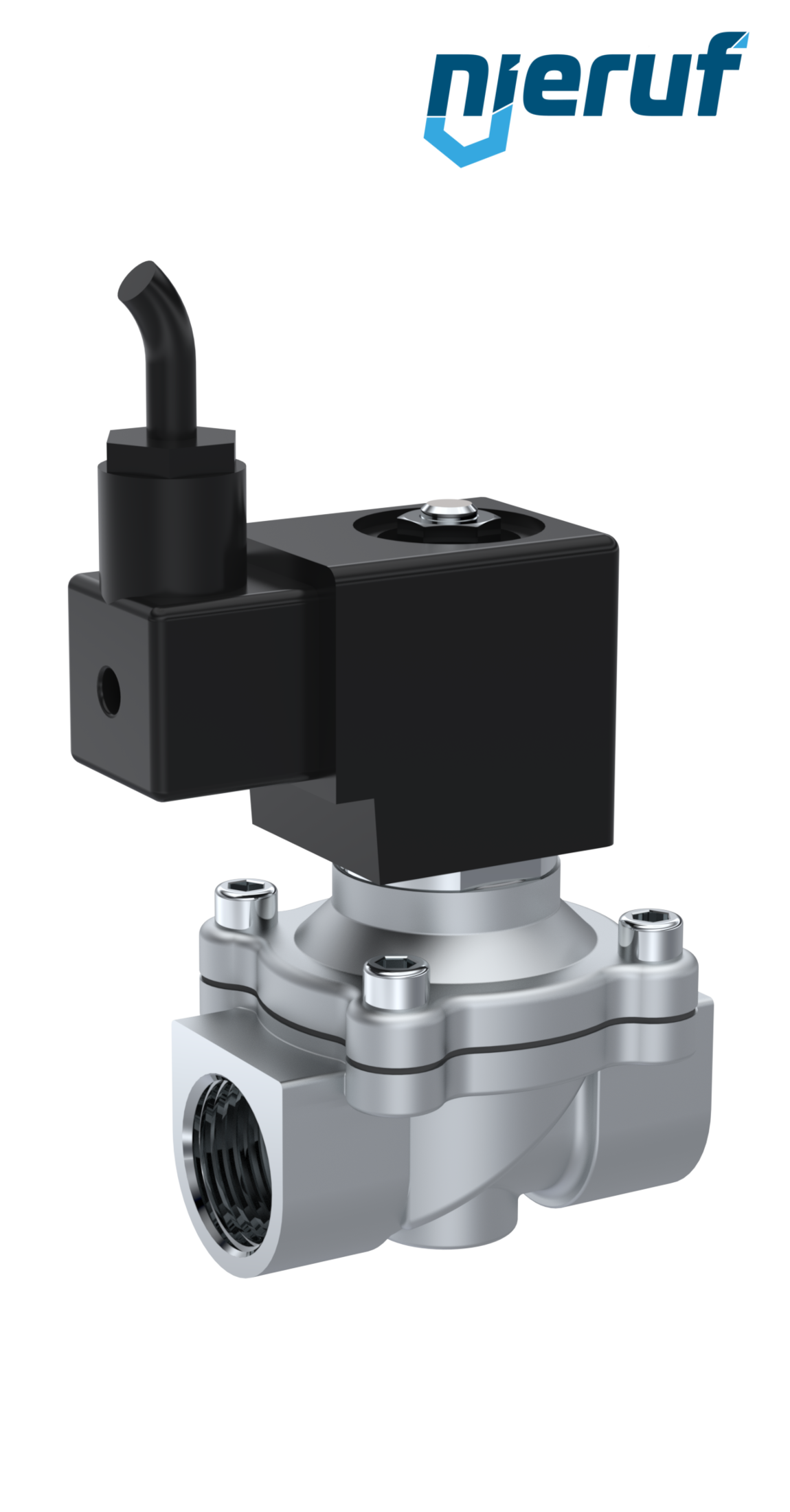

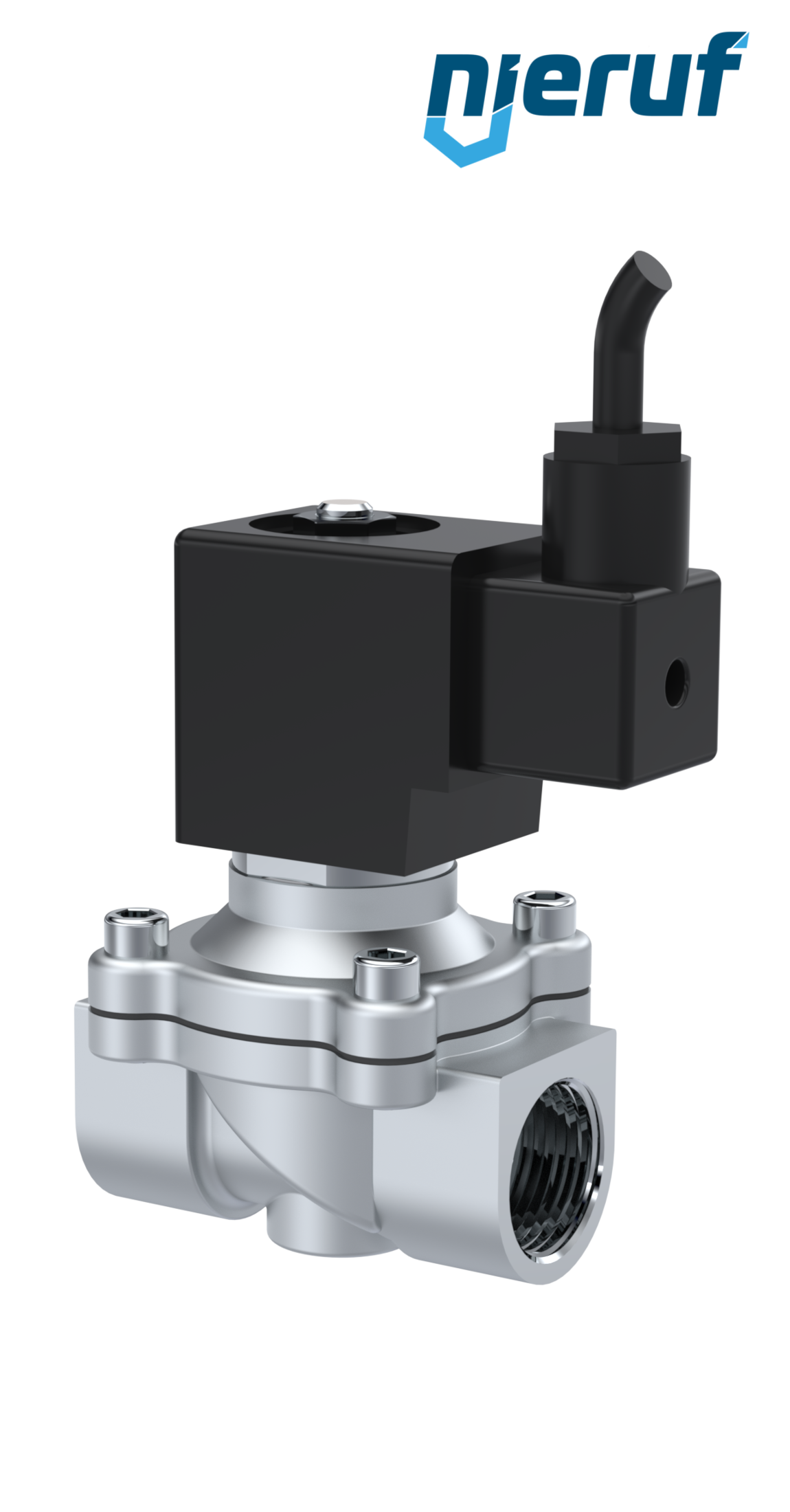

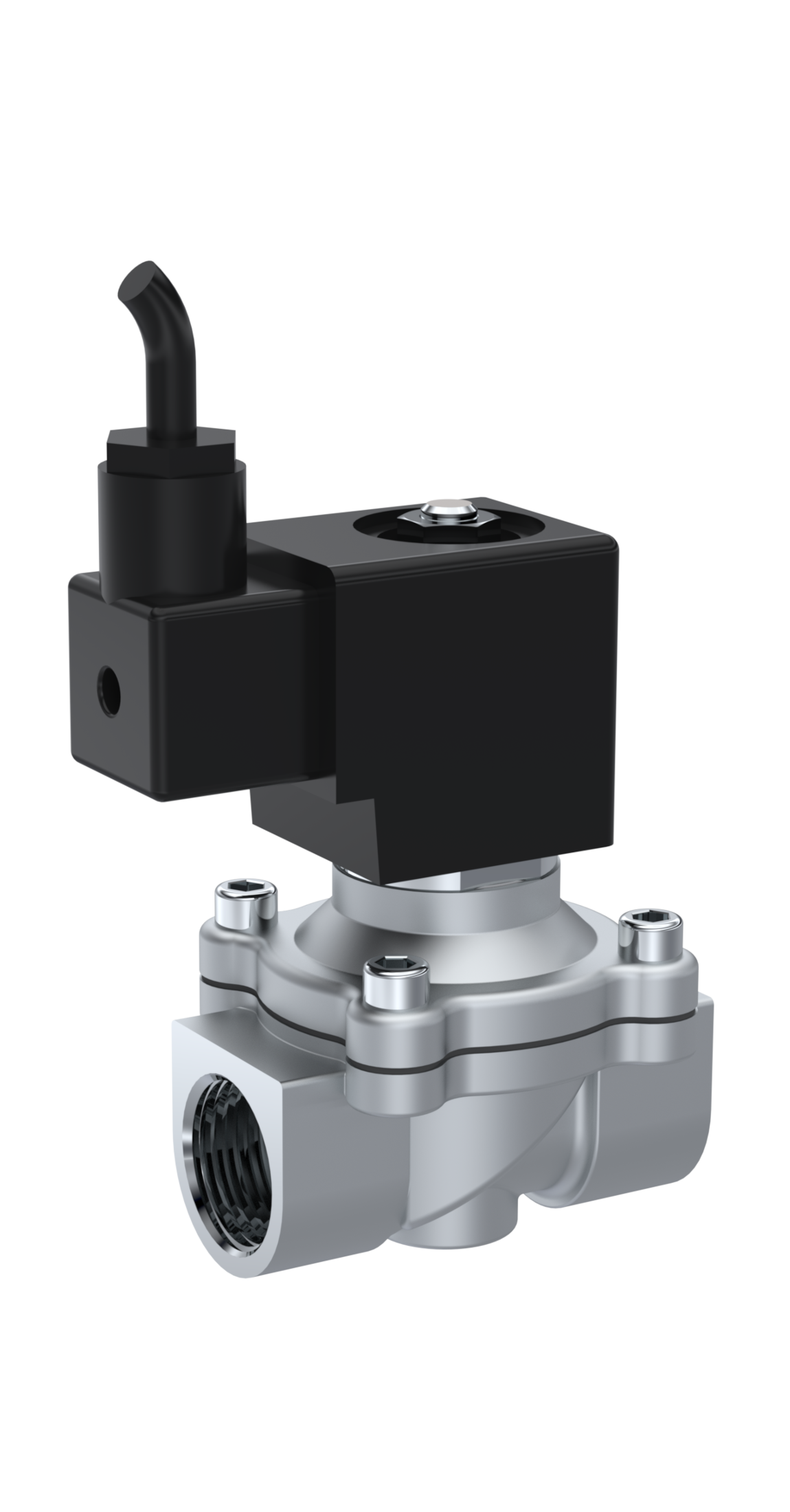

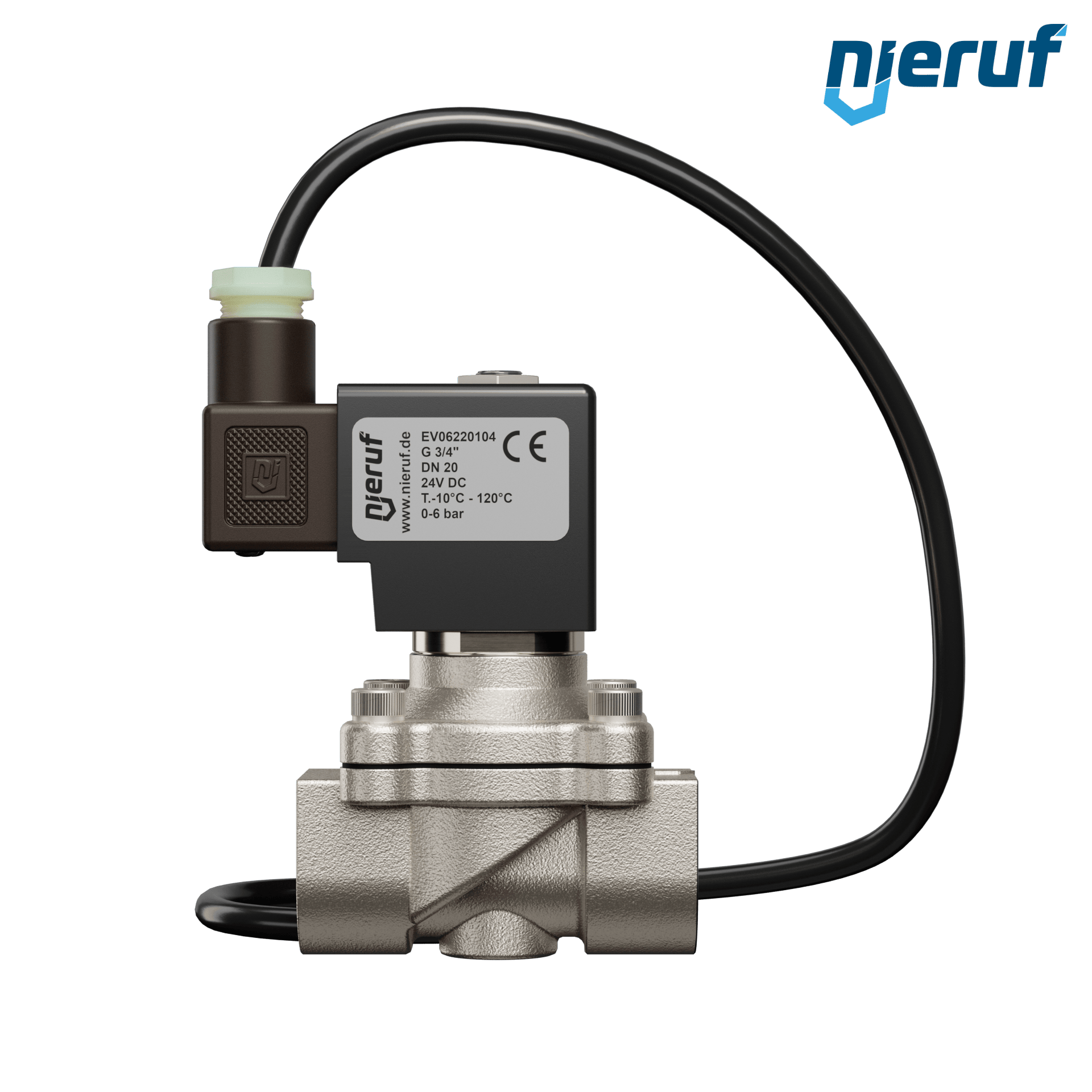

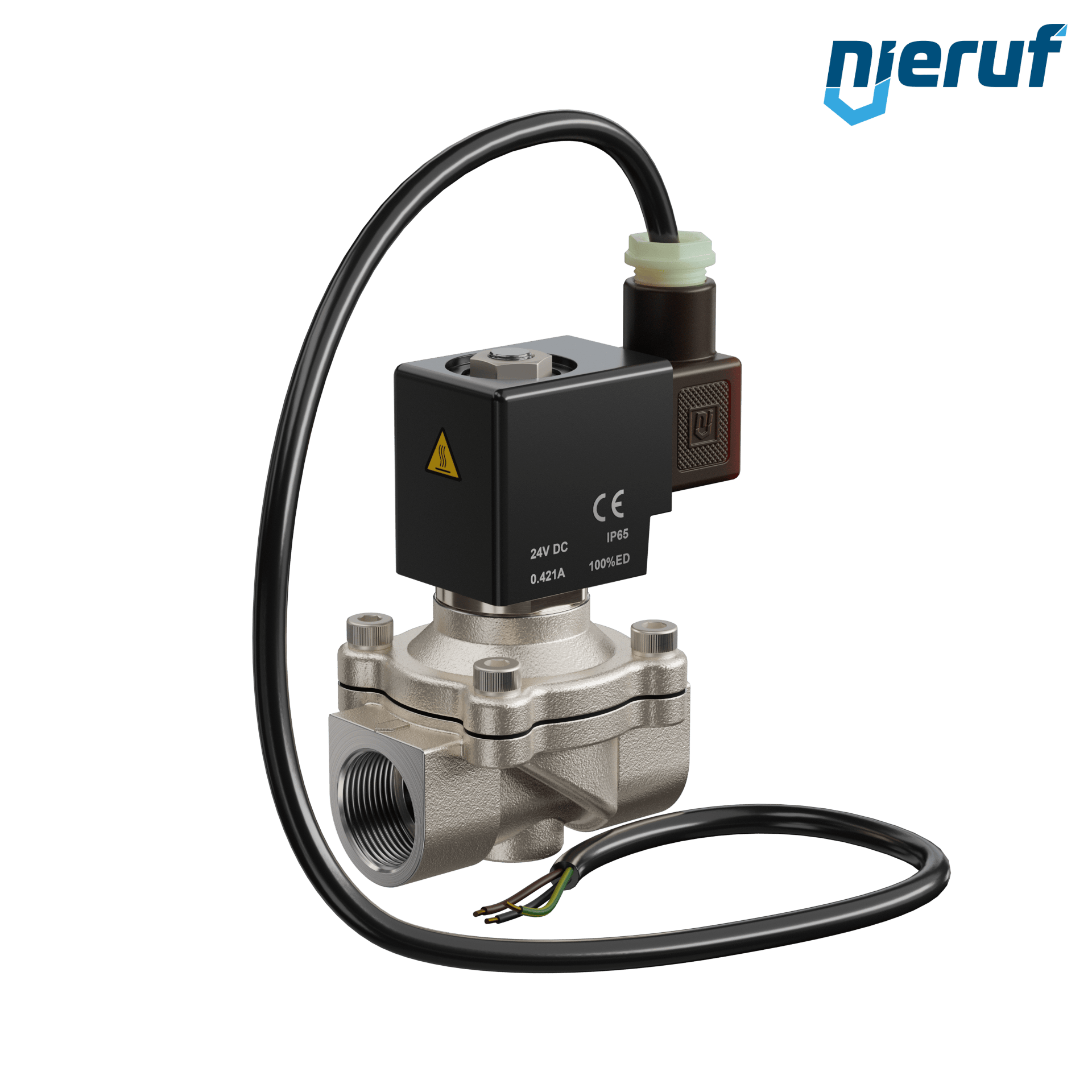

Ex-proofed-Solenoid valve DN20 G 3/4" Inch stainless steel 1.4308 Type EV06 NC - normally closed force pilot operated FKM 24V DC liquid and gaseous media
| product | Solenoid valve |
|---|---|
| type | EV06 |
| manufacturer | NieRuf |
| design | seat valve with membrane |
| diameter | DN20 |
| connection | G 3/4" Inch |
| type of connection | female thread |
| Type of design | 2/2 Ways |
| flow rate | 6.5 m³/h |
| function | NC - normally closed |
| control | force pilot operated |
| material | stainless steel 1.4308 |
| seal | FKM |
| voltage | 24V DC |
| voltage tolerance | +/- 10% acc. VDE 0580 |
| power consumption | 20 Watt |
| duty | 100% ED |
| plug socket | IP65 with plug socket mounted and 3m cable |
| media | liquid and gaseous media |
| temperature media | -10°C up to +120°C |
| temperature ambiente | max up to +50°C |
| max. pressure | 0.0 - 6 bar |
| Ex-proof | II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable |
| installation position | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ATEX-Solenoid valve DN20 G 3/4" Inch FKM
Article no.
: EV06220104
product:
Solenoid valve
type:
EV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN20
connection:
G 3/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
6.5 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
stainless steel 1.4308
seal:
FKM
voltage:
24V DC
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 Watt
duty:
100% ED
plug socket:
IP65 with plug socket mounted and 3m cable
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 6 bar
Ex-proof:
II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable
installation position:
any position, solenoid preferably standing
