MV06120104

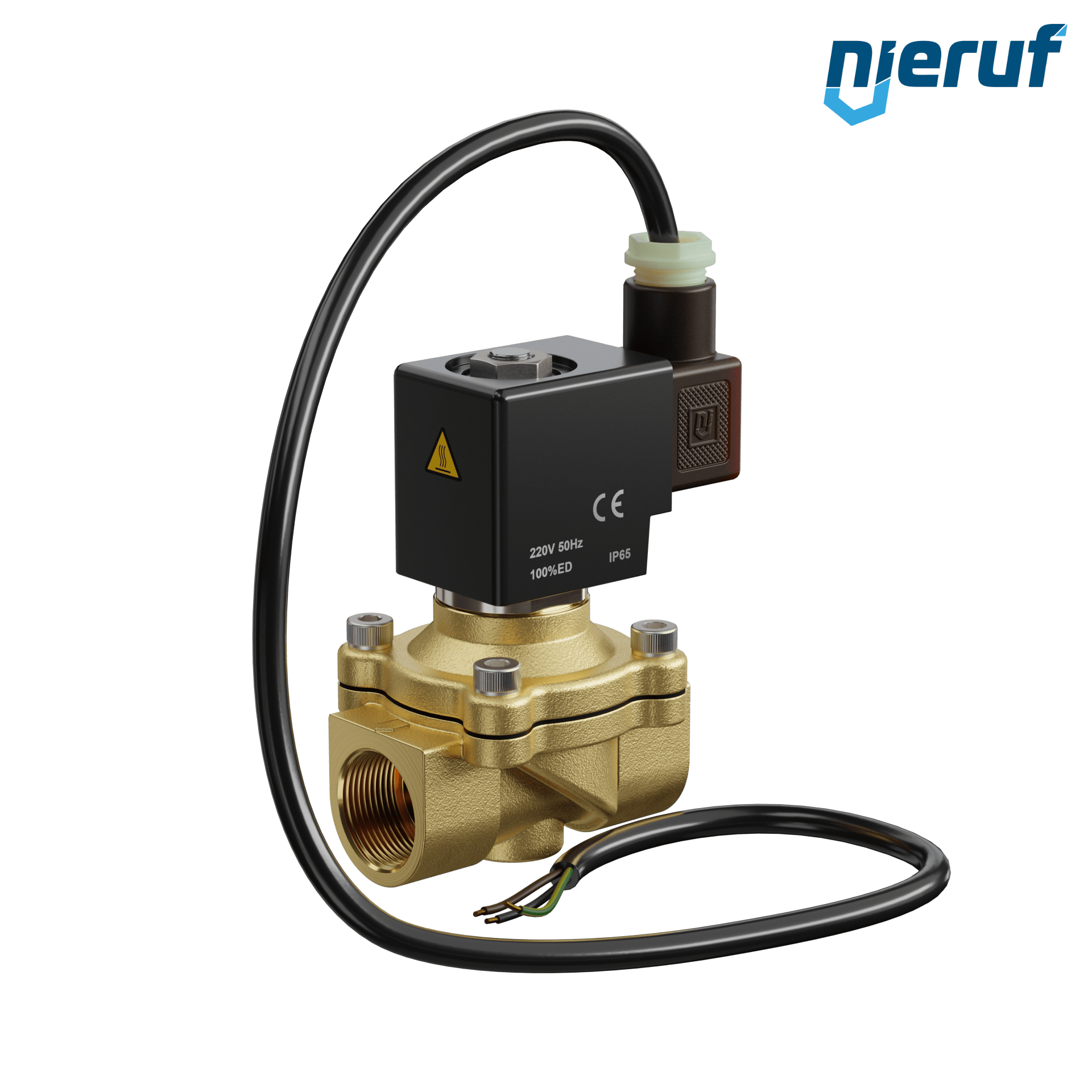

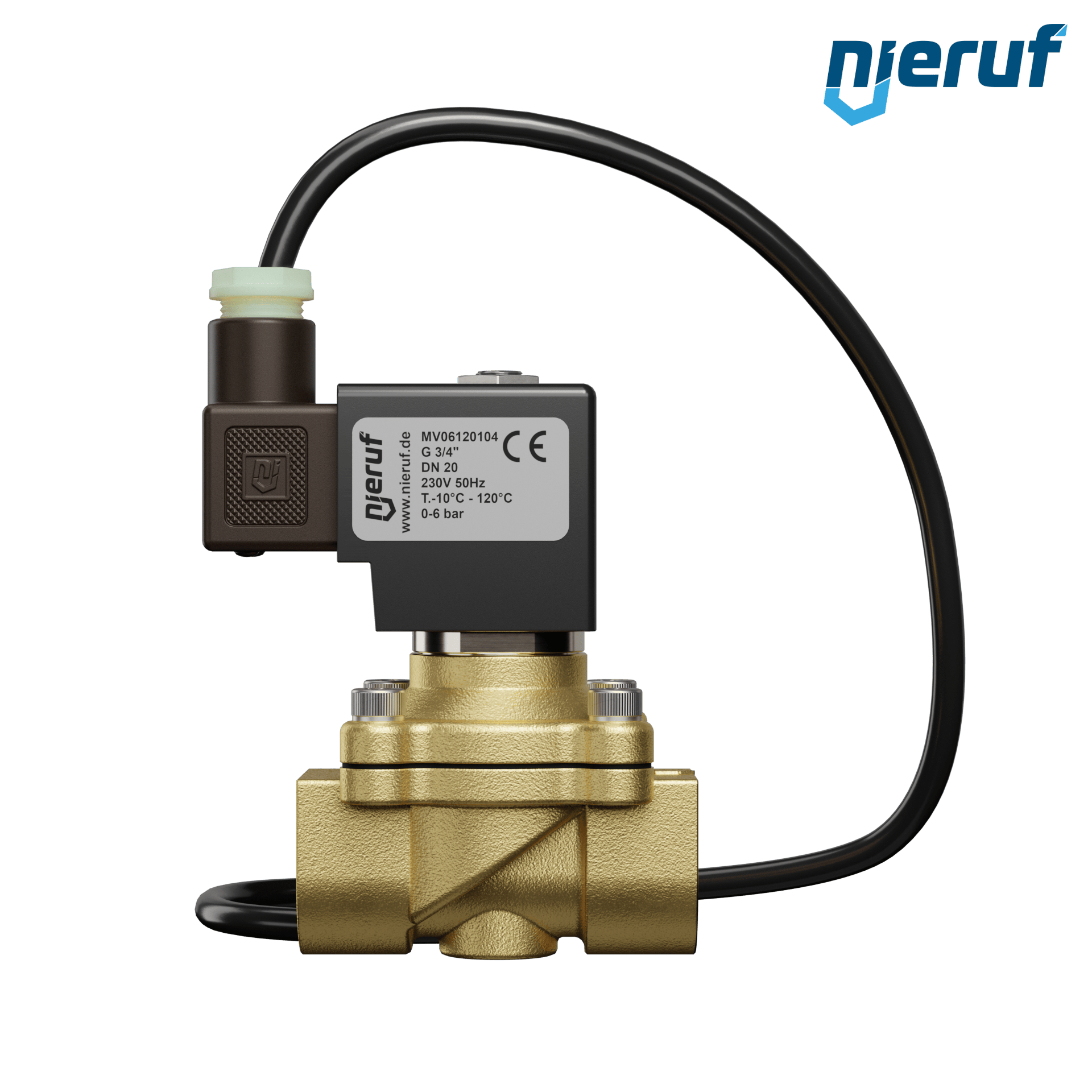

ATEX-Solenoid valve DN20 G 3/4" Inch FKM brass
Delivery time: 2 - 3 weeks
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Ex-proofed-Solenoid valve DN20 G 3/4" Inch 230V 50Hz Type MV06 NC - normally closed force pilot operated brass FKM liquid and gaseous media
| product: | Solenoid valve |
|---|---|
| type: | MV06 |
| manufacturer: | NieRuf |
| design: | seat valve with membrane |
| diameter: | DN20 |
| connection: | G 3/4" Inch |
| type of connection: | female thread |
| Type of design: | 2/2 Ways |
| flow rate: | 6.5 m³/h |
| function: | NC - normally closed |
| control: | force pilot operated |
| material: | brass |
| seal: | FKM |
| voltage: | 230V 50Hz |
| voltage tolerance: | +/- 10% acc. VDE 0580 |
| power consumption: | 20 VA |
| duty: | 100% ED |
| plug socket: | IP65 with plug socket mounted and 3m cable |
| media: | liquid and gaseous media |
| temperature media: | -10°C up to +120°C |
| temperature ambiente: | max up to +50°C |
| max. pressure: | 0.0 - 6 bar |
| Ex-proof: | II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable |
| installation position: | any position, solenoid preferably standing |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ATEX-Solenoid valve DN20 G 3/4" Inch FKM brass
Article no.
: MV06120104
product:
Solenoid valve
type:
MV06
manufacturer:
NieRuf
design:
seat valve with membrane
diameter:
DN20
connection:
G 3/4" Inch
type of connection:
female thread
Type of design:
2/2 Ways
flow rate:
6.5 m³/h
function:
NC - normally closed
control:
force pilot operated
material:
brass
seal:
FKM
voltage:
230V 50Hz
voltage tolerance:
+/- 10% acc. VDE 0580
power consumption:
20 VA
duty:
100% ED
plug socket:
IP65 with plug socket mounted and 3m cable
media:
liquid and gaseous media
temperature media:
-10°C up to +120°C
temperature ambiente:
max up to +50°C
max. pressure:
0.0 - 6 bar
Ex-proof:
II 2G Ex mb IIC T4 Gb, II 2D Ex mb tb IIIC T130°C Db inclusive 3m cable
installation position:
any position, solenoid preferably standing
€3.45 VAT included.
€4.28 VAT included.
€5.59 VAT included.
€23.68 VAT included.
€11.19 VAT included.
