KP05020011

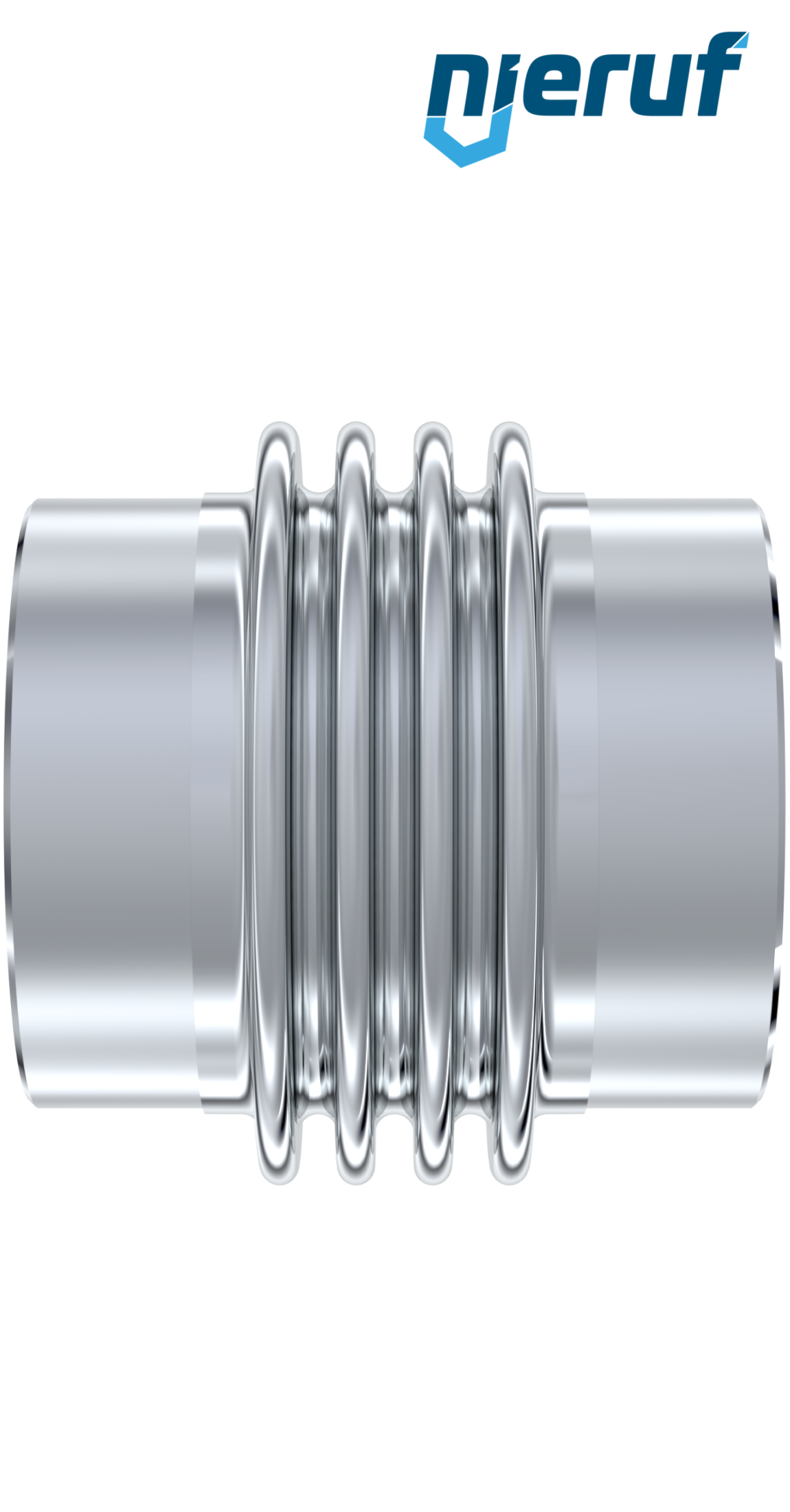

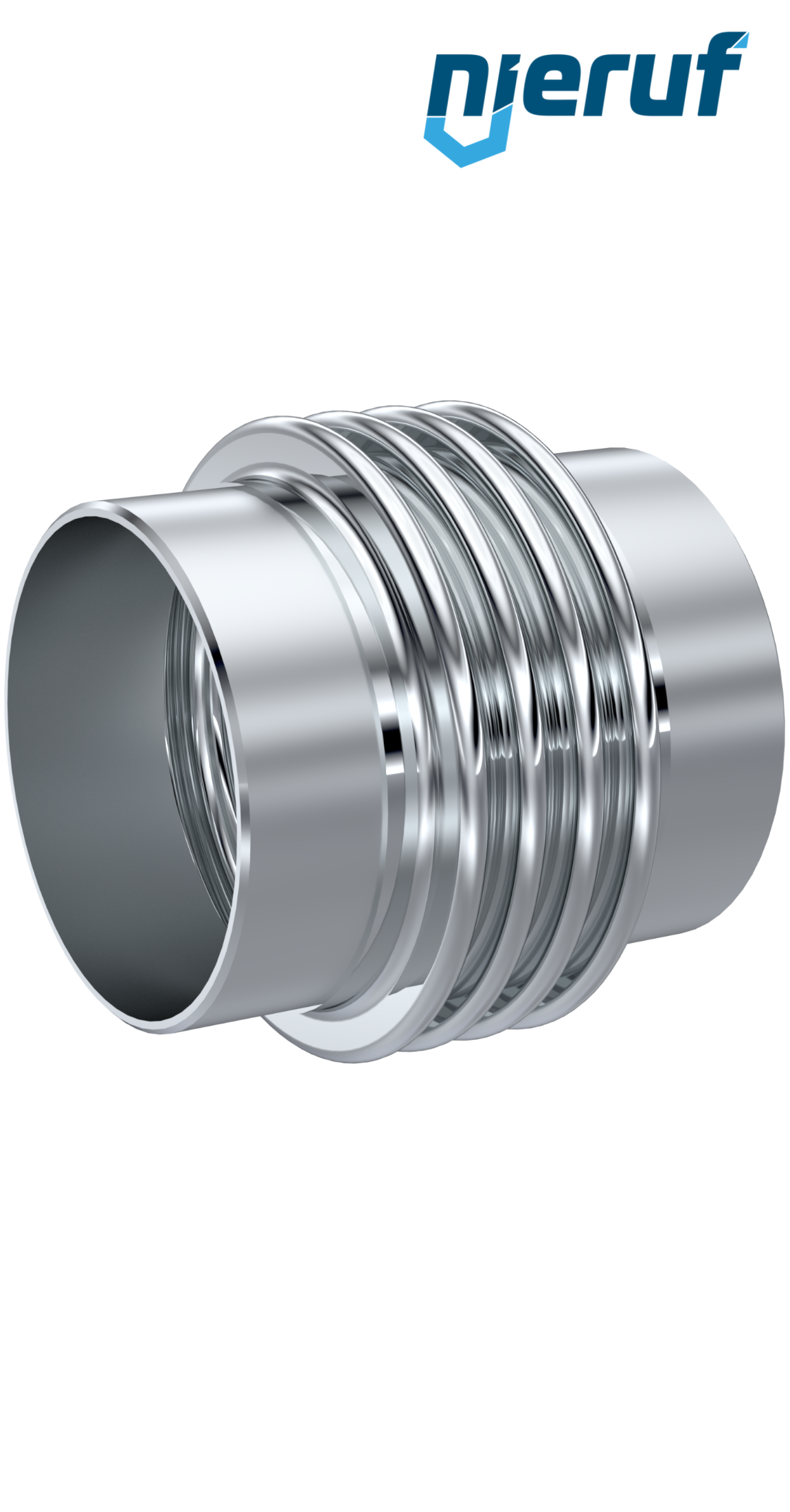

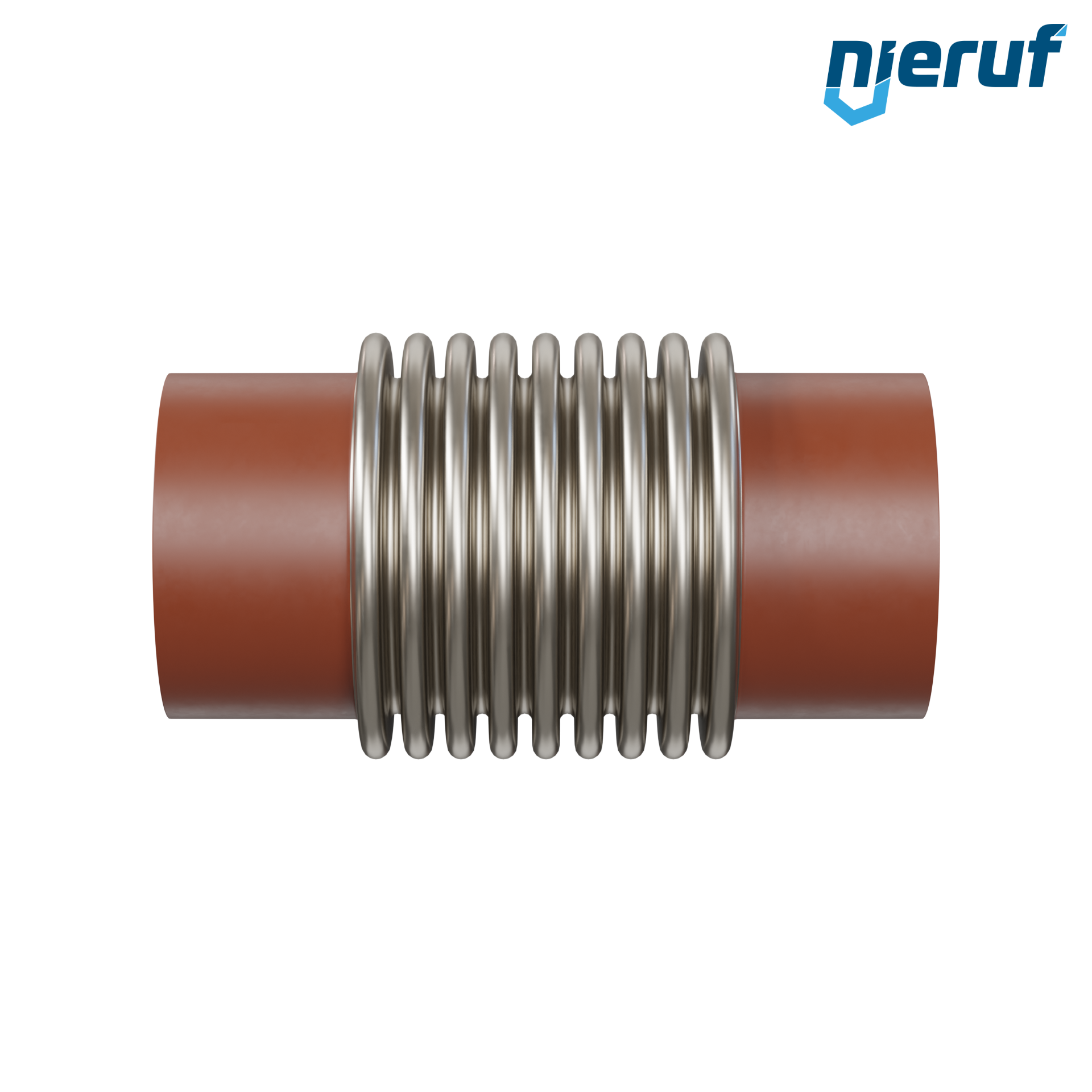

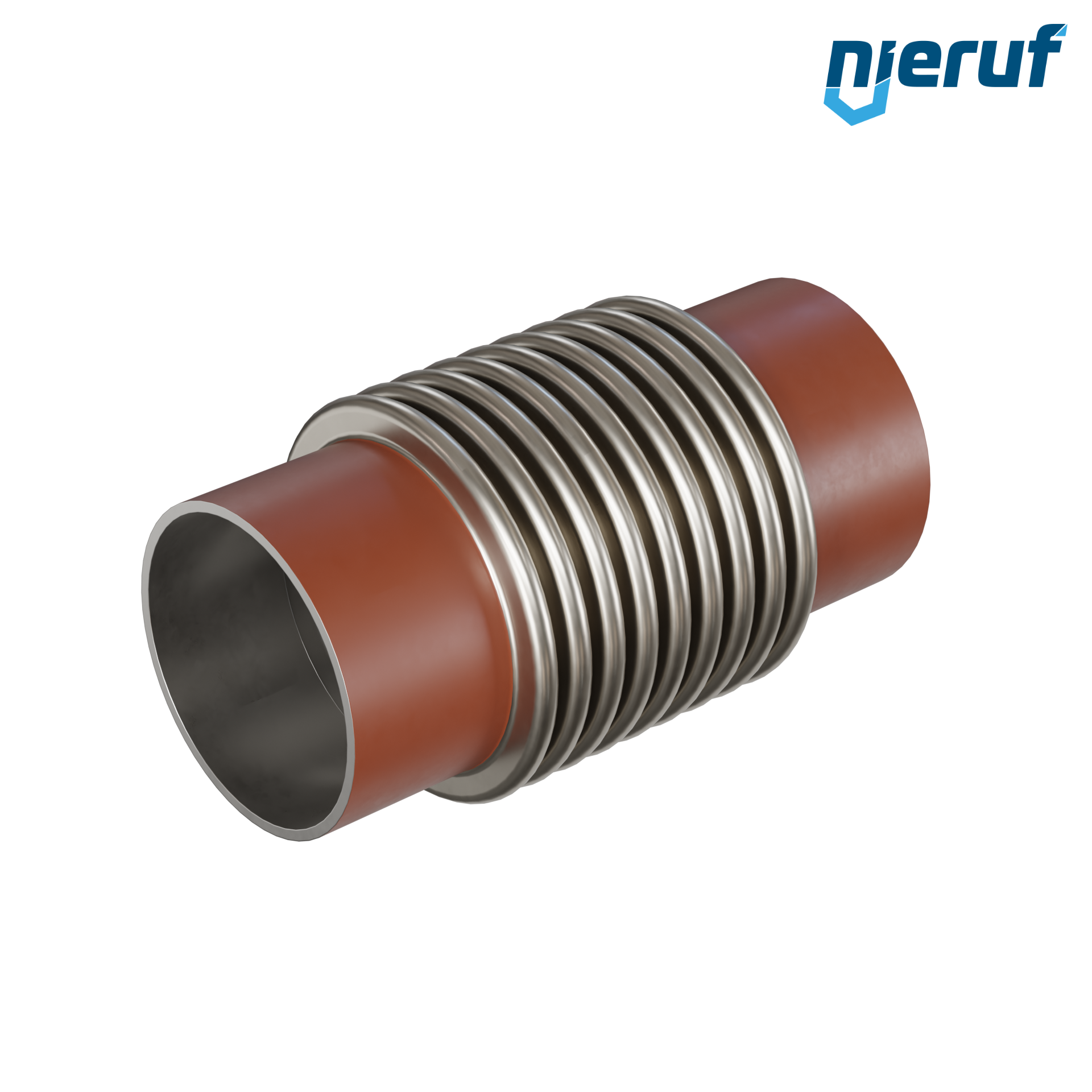

Axial expansion joint DN100 - 114,3mm type KP05 welding ends and stainless steel-bellows
- Delivery time
- 1 - 2 weeks
Questions about the article?
Downloads
Axial expansion joint DN100 - 114,3mm with stainless steel-bellows und welding ends EN 10216/10217 ff or EN 10028 ff for liquid media, gases media and steam
| product | Axial expansion joint |
|---|---|
| type | KP05 |
| manufacturer | NieRuf |
| diameter | DN100 - 114,3mm |
| connection | welding ends EN 10216/10217 ff or EN 10028 ff |
| max. pressure | max. 10 bar |
| nominal pressure | PN 10 |
| material | steel P235GH-TC1 |
| sleeves | stainless steel |
| media | liquid media, gases media and steam |
| temperature | -10°C up to +400°C |
| design | straightway form |
| product feature | This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Axial expansion joint DN100 - 114,3mm type KP05 welding ends and stainless steel-bellows
Article no.
: KP05020011
product:
Axial expansion joint
type:
KP05
manufacturer:
NieRuf
diameter:
DN100 - 114,3mm
connection:
welding ends EN 10216/10217 ff or EN 10028 ff
max. pressure:
max. 10 bar
nominal pressure:
PN 10
material:
steel P235GH-TC1
sleeves:
stainless steel
media:
liquid media, gases media and steam
temperature:
-10°C up to +400°C
design:
straightway form
product feature:
This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.
