KP03000211

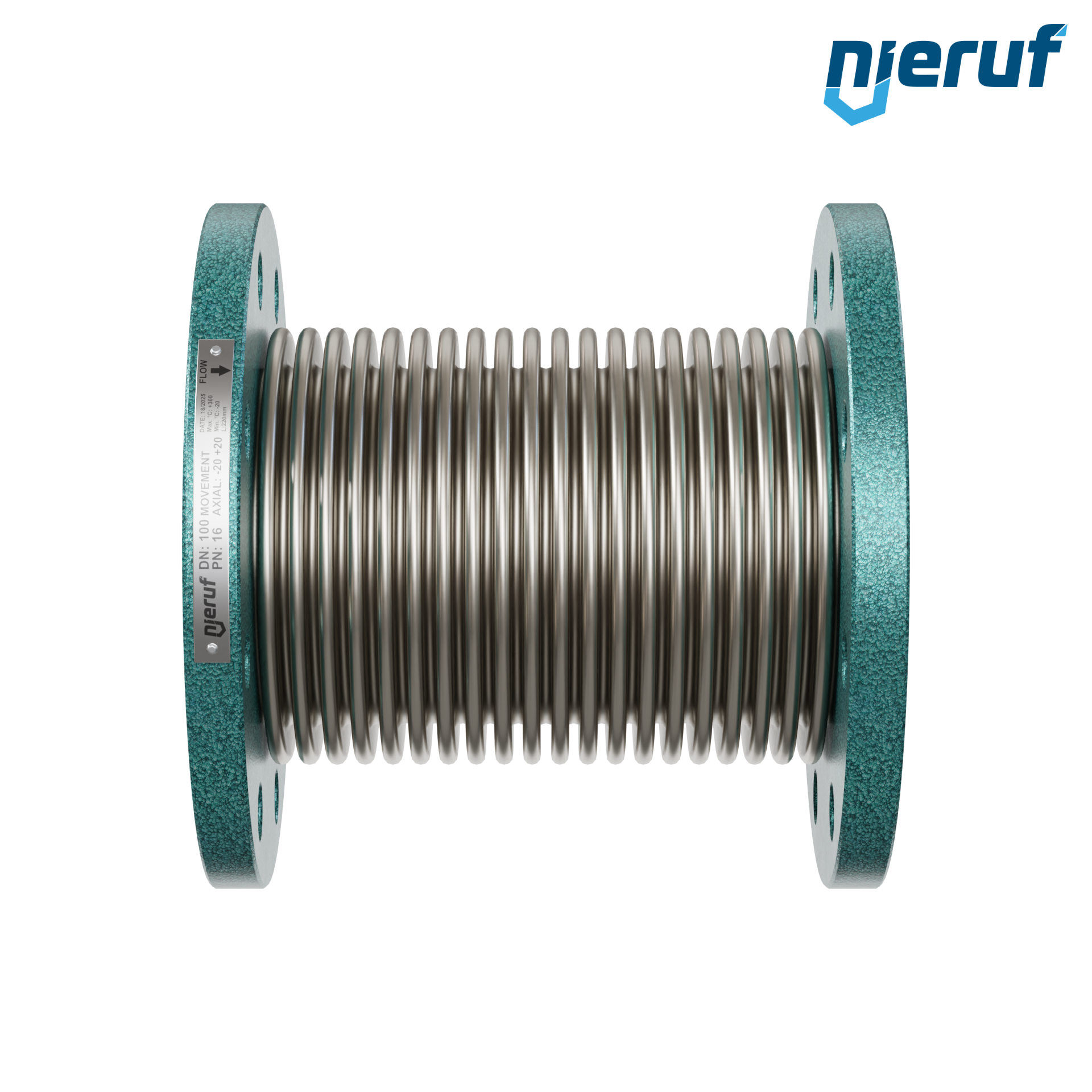

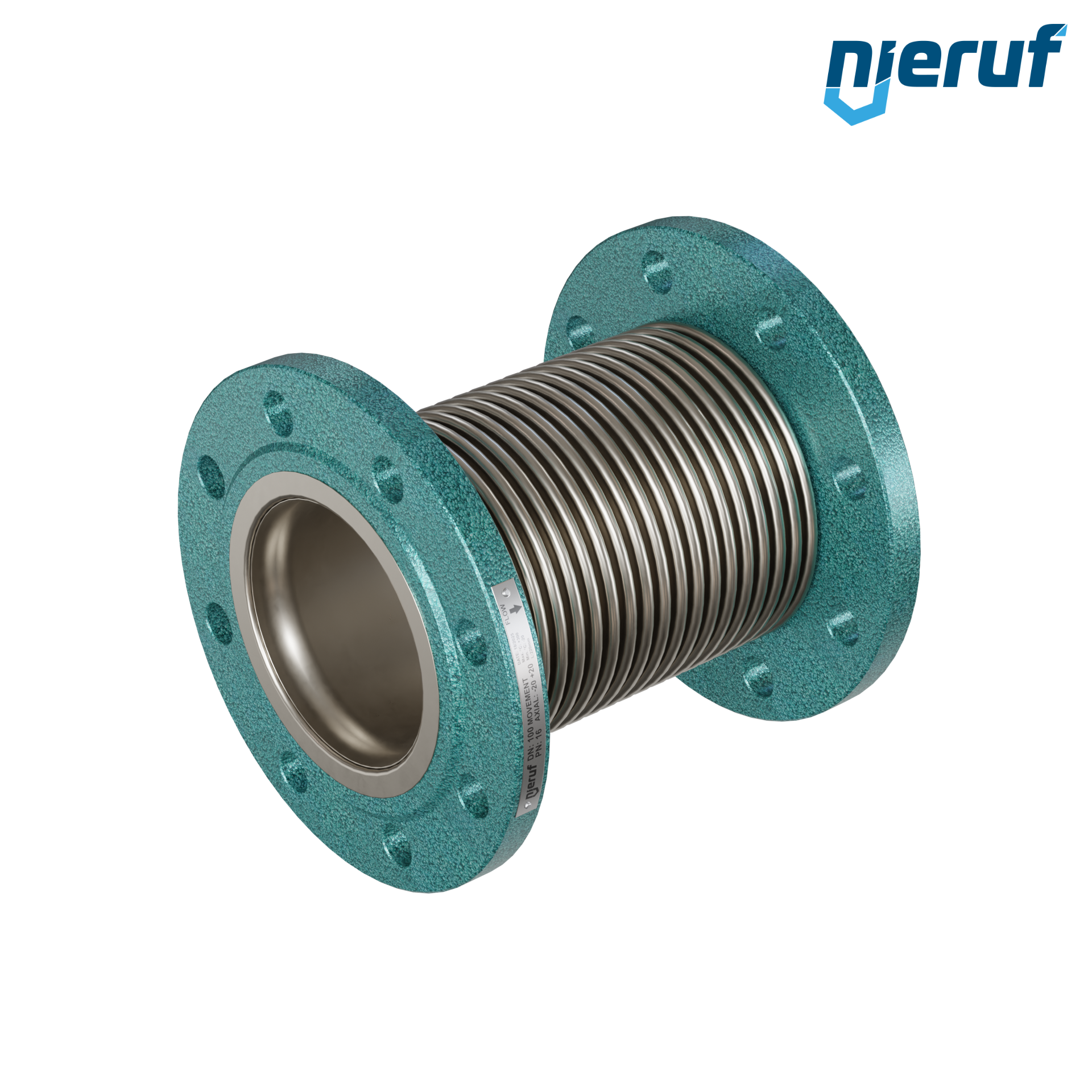

Axial expansion joint DN100 Type KP03 steel-flanges and sleeve made of stainless steel
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN100 - 4" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Axial expansion joint DN100, sleeve and bellow made of stainless steel 1.4541 / SS 321 flange acc. DIN EN 1092-1 PN 10/16
| product: | Axial expansion joint |
|---|---|
| type: | KP03 |
| manufacturer: | NieRuf |
| diameter: | DN100 |
| connection: | flange acc. DIN EN 1092-1 |
| max. pressure: | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure: | PN 10/16 |
| material: | steel 1.0037 St 37.2 |
| sleeves: | stainless steel 1.4541 / SS 321 |
| media: | liquid media, gases media and steam |
| temperature: | -20°C up to +300°C |
| design: | straightway form |
| product feature: | Axial expansion joint with stainless steel bellows and steel flanges for use in high temperatures and rough conditions. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Axial expansion joint DN100 Type KP03 steel-flanges and sleeve made of stainless steel
Article no.
: KP03000211
product:
Axial expansion joint
type:
KP03
manufacturer:
NieRuf
diameter:
DN100
connection:
flange acc. DIN EN 1092-1
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 10/16
material:
steel 1.0037 St 37.2
sleeves:
stainless steel 1.4541 / SS 321
media:
liquid media, gases media and steam
temperature:
-20°C up to +300°C
design:
straightway form
product feature:
Axial expansion joint with stainless steel bellows and steel flanges for use in high temperatures and rough conditions.
€19.99 VAT included.
€5.36 VAT included.
