KP05000012

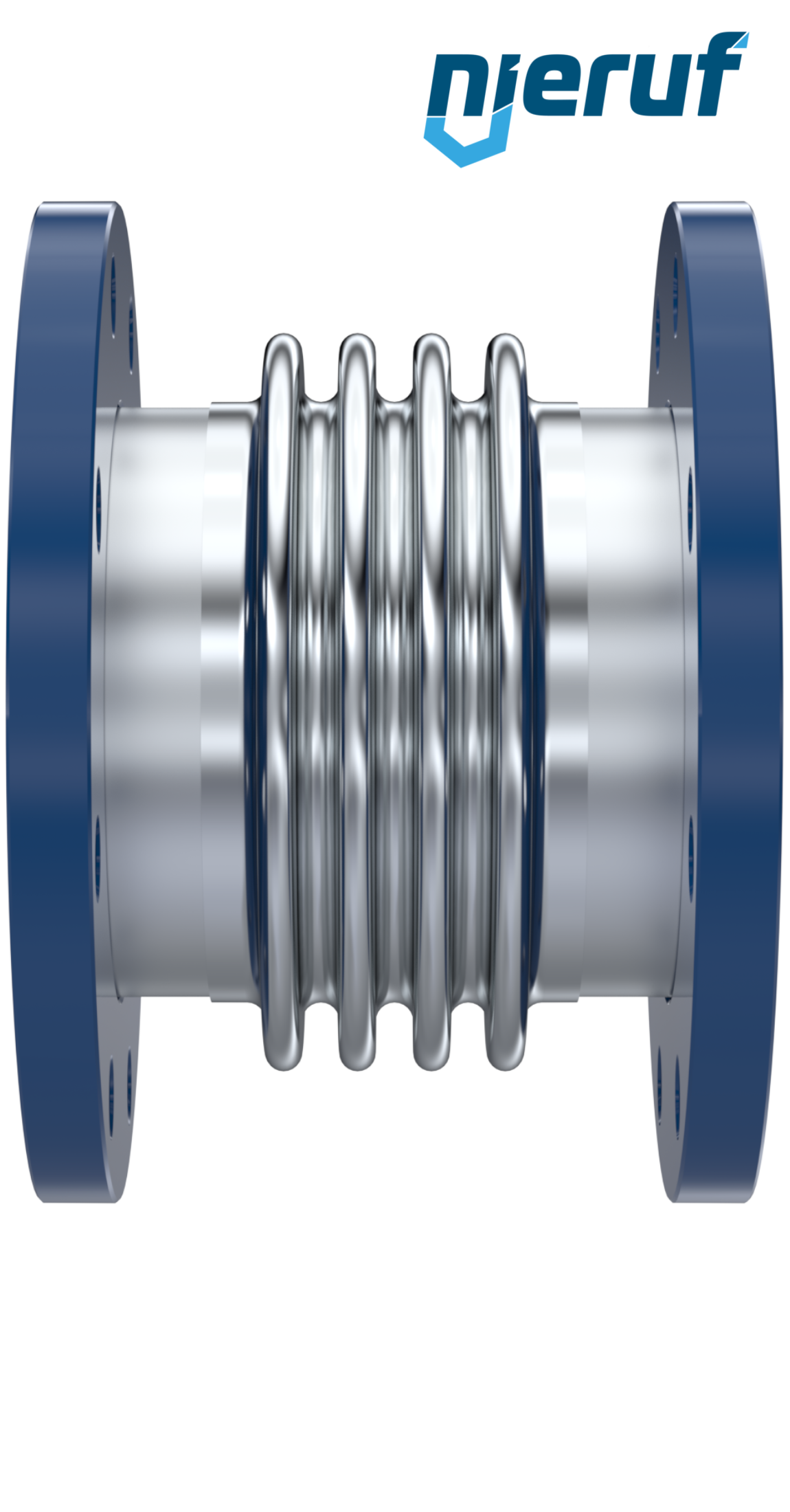

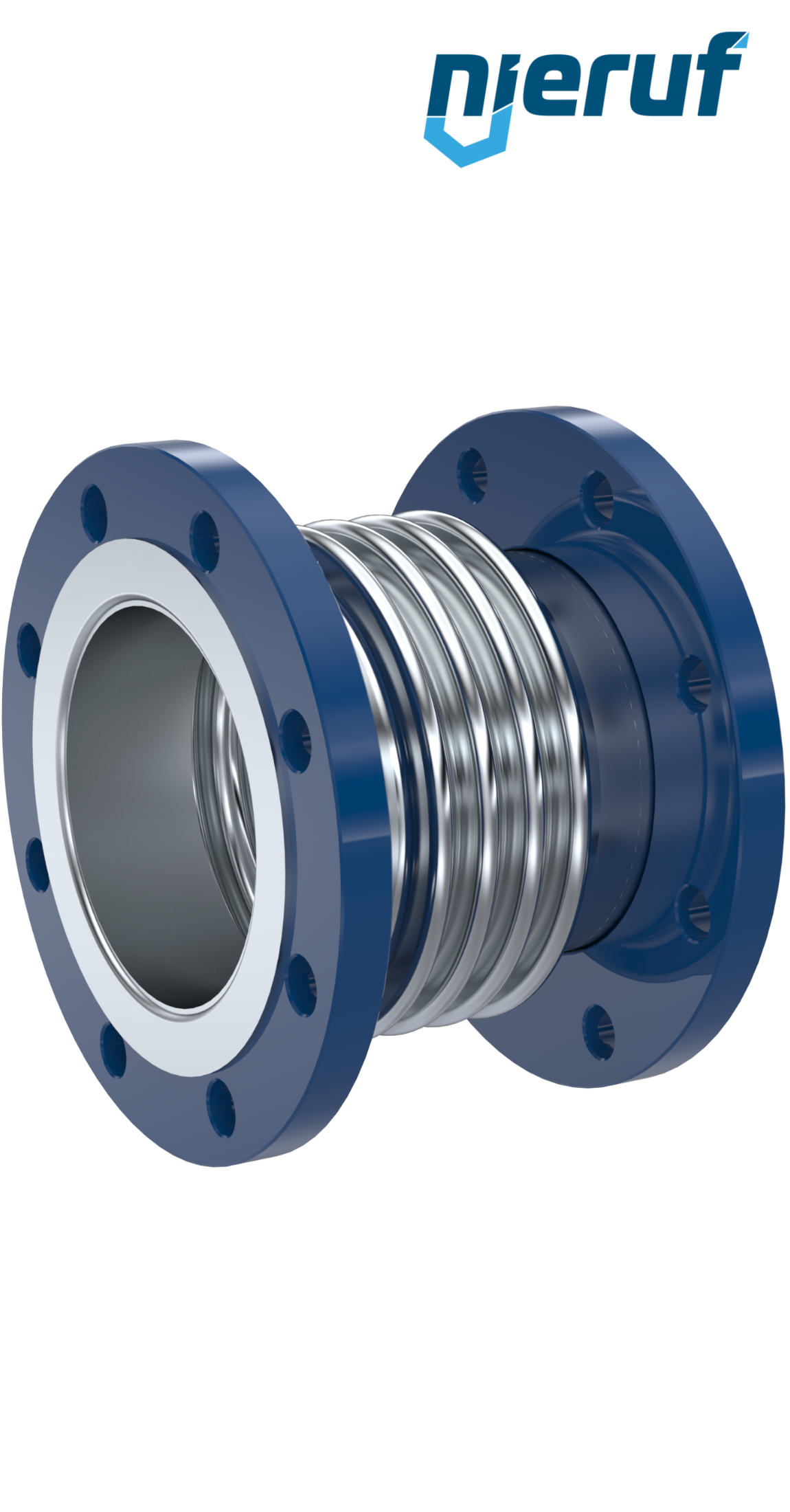

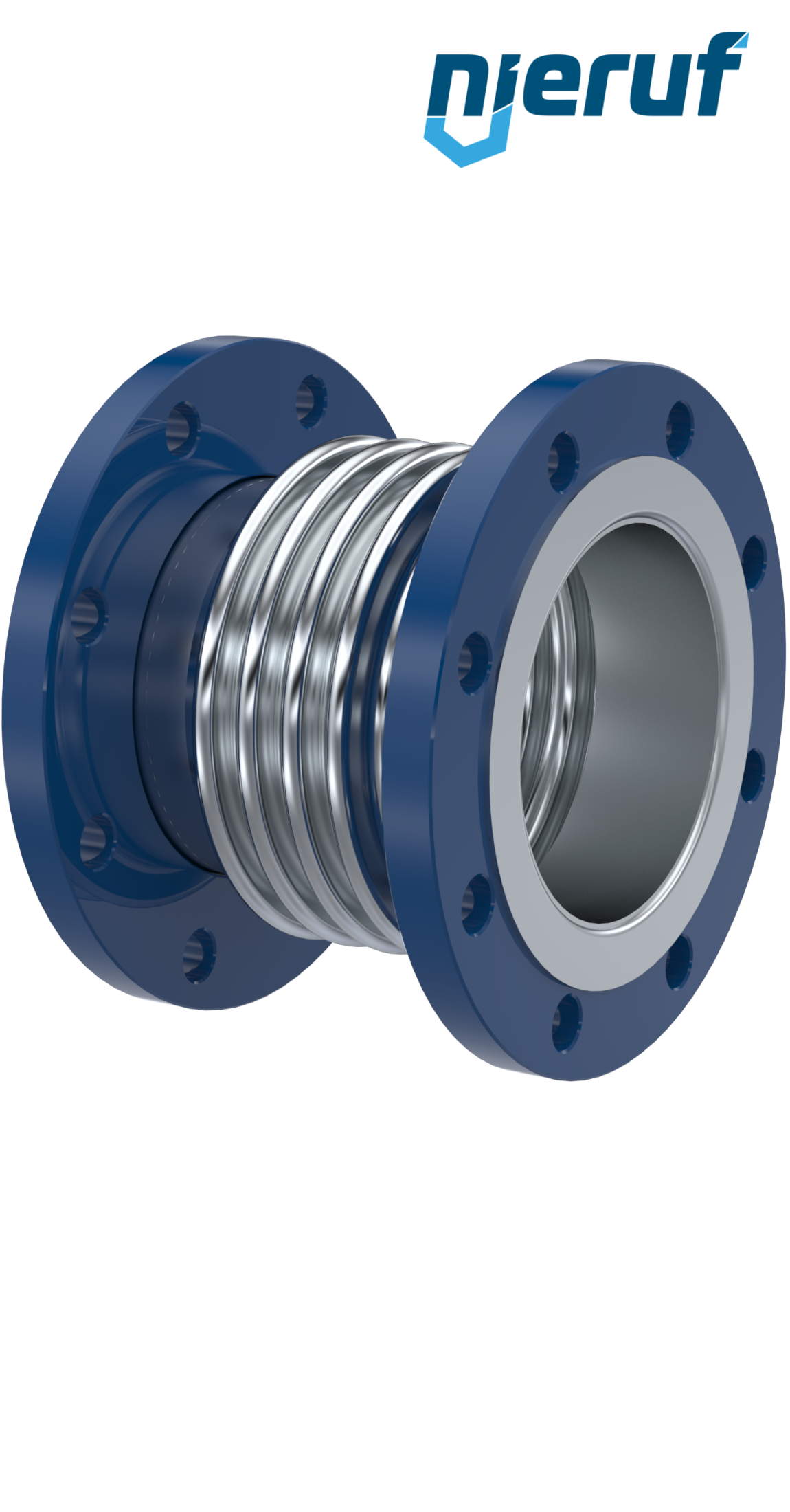

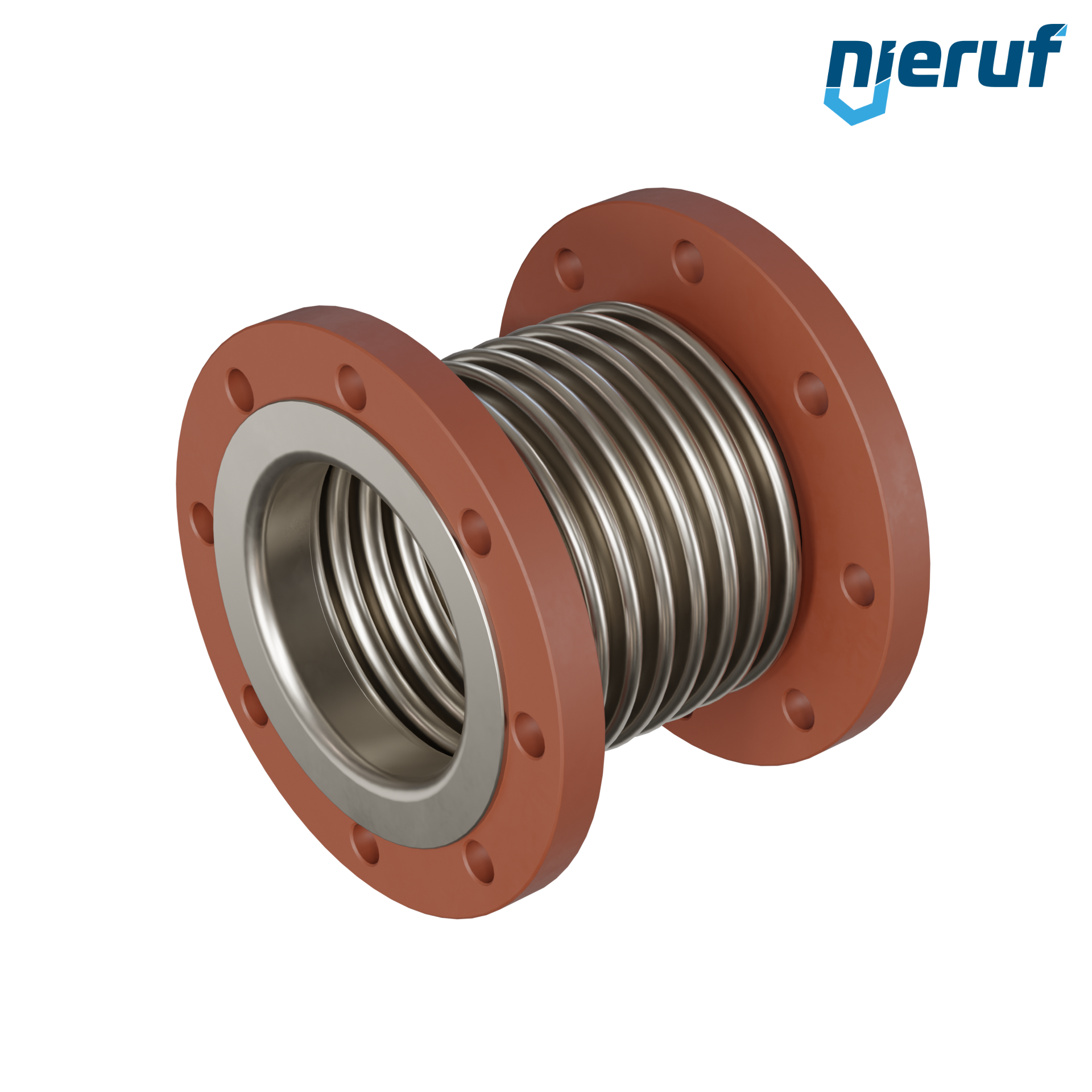

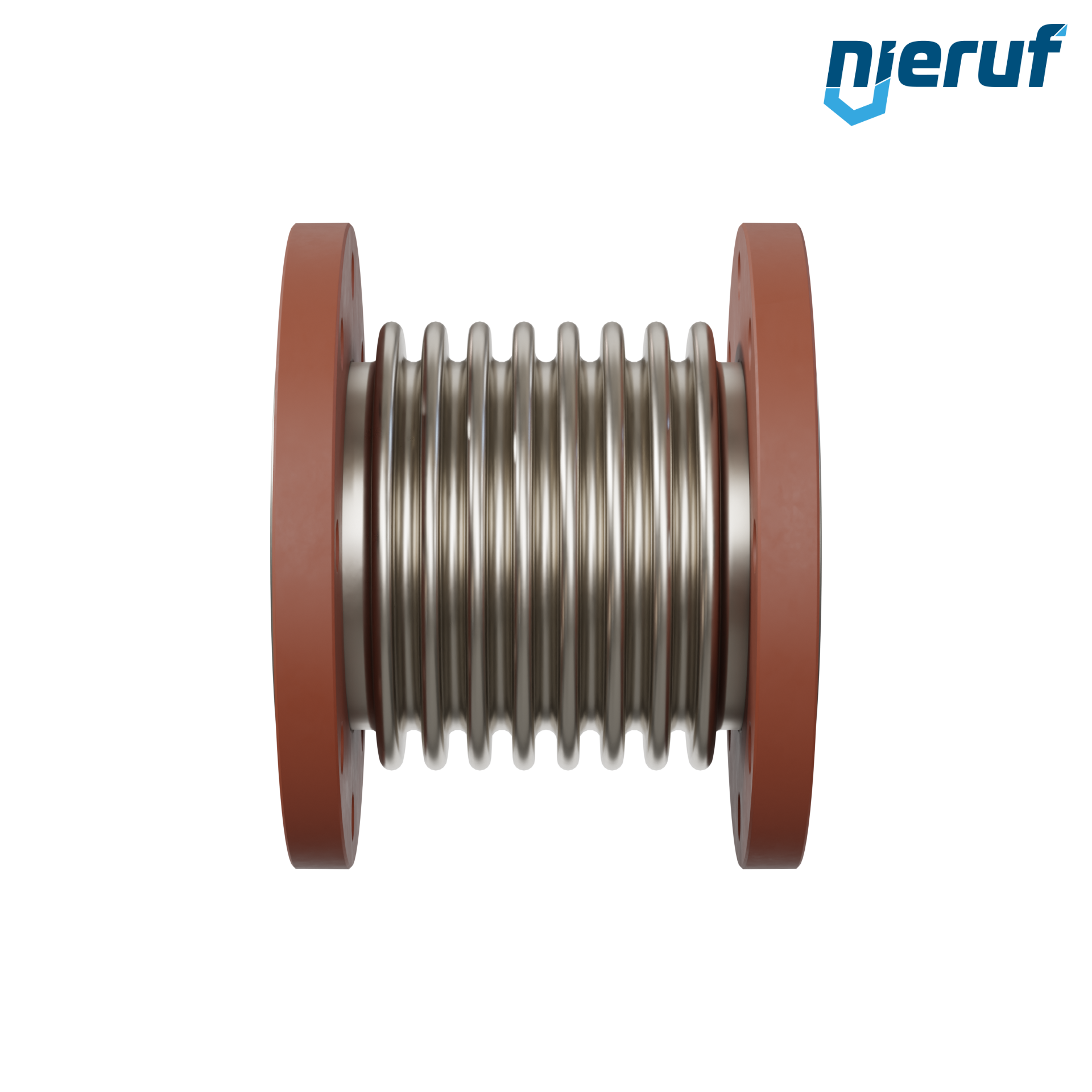

Axial expansion joint DN125 type KP05 flared flanges and stainless steel-bellows
Delivery time: 3 - 4 weeks
Equipment
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel
€20.94 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Axial expansion joint DN125 with stainless steel-bellows und flared flanges acc. DIN EN 1092-1 PN16 for liquid media, gases media and steam
| product: | Axial expansion joint |
|---|---|
| type: | KP05 |
| manufacturer: | NieRuf |
| diameter: | DN125 |
| connection: | flared flanges acc. DIN EN 1092-1 PN16 |
| max. pressure: | max. 10 bar |
| nominal pressure: | PN 10 |
| material: | steel 235JR |
| sleeves: | stainless steel |
| media: | liquid media, gases media and steam |
| temperature: | -10°C up to +300°C |
| design: | straightway form |
| product feature: | This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Axial expansion joint DN125 type KP05 flared flanges and stainless steel-bellows
Article no.
: KP05000012
product:
Axial expansion joint
type:
KP05
manufacturer:
NieRuf
diameter:
DN125
connection:
flared flanges acc. DIN EN 1092-1 PN16
max. pressure:
max. 10 bar
nominal pressure:
PN 10
material:
steel 235JR
sleeves:
stainless steel
media:
liquid media, gases media and steam
temperature:
-10°C up to +300°C
design:
straightway form
product feature:
This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.
€158.51 VAT included.
€20.94 VAT included.
€7.26 VAT included.
