KP05000014

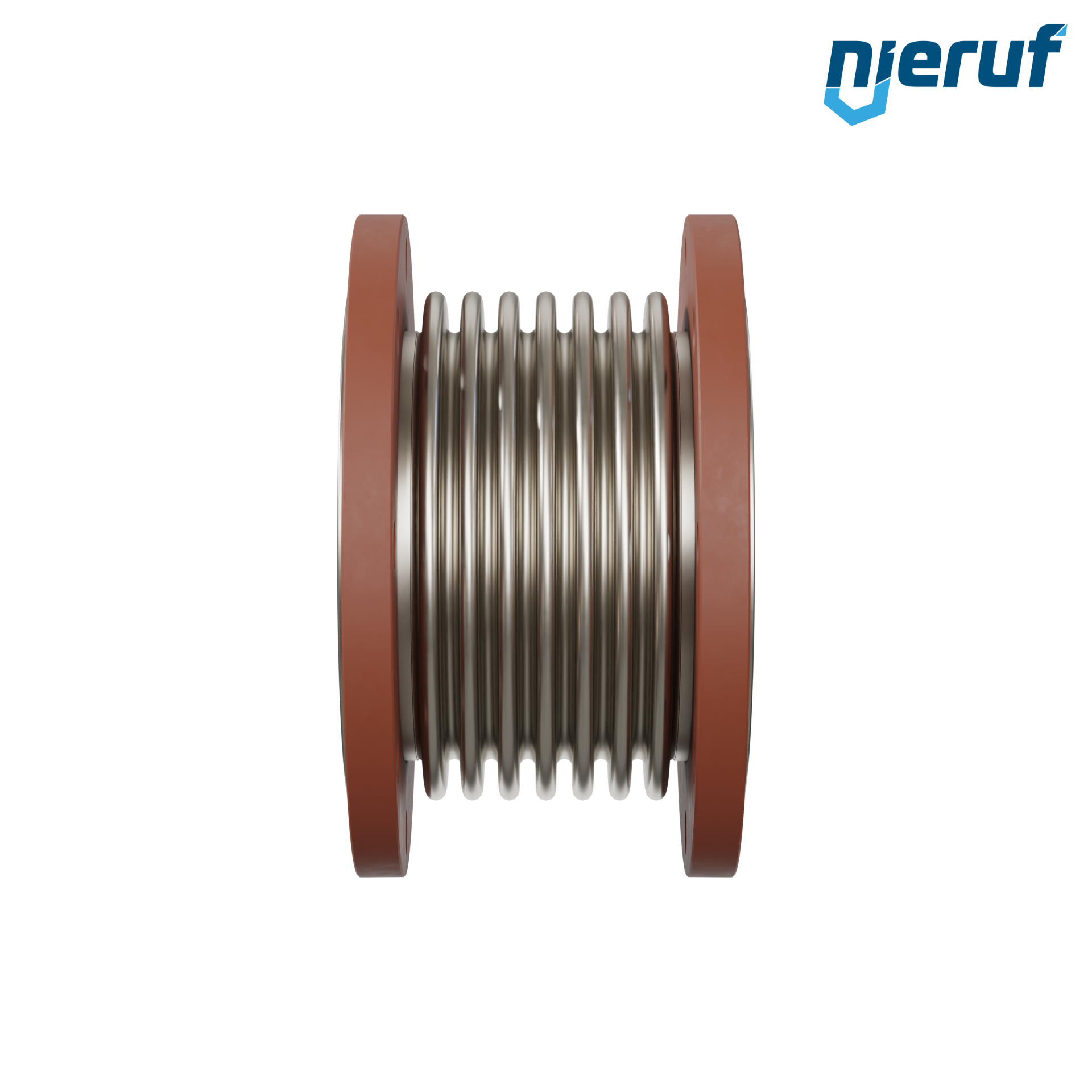

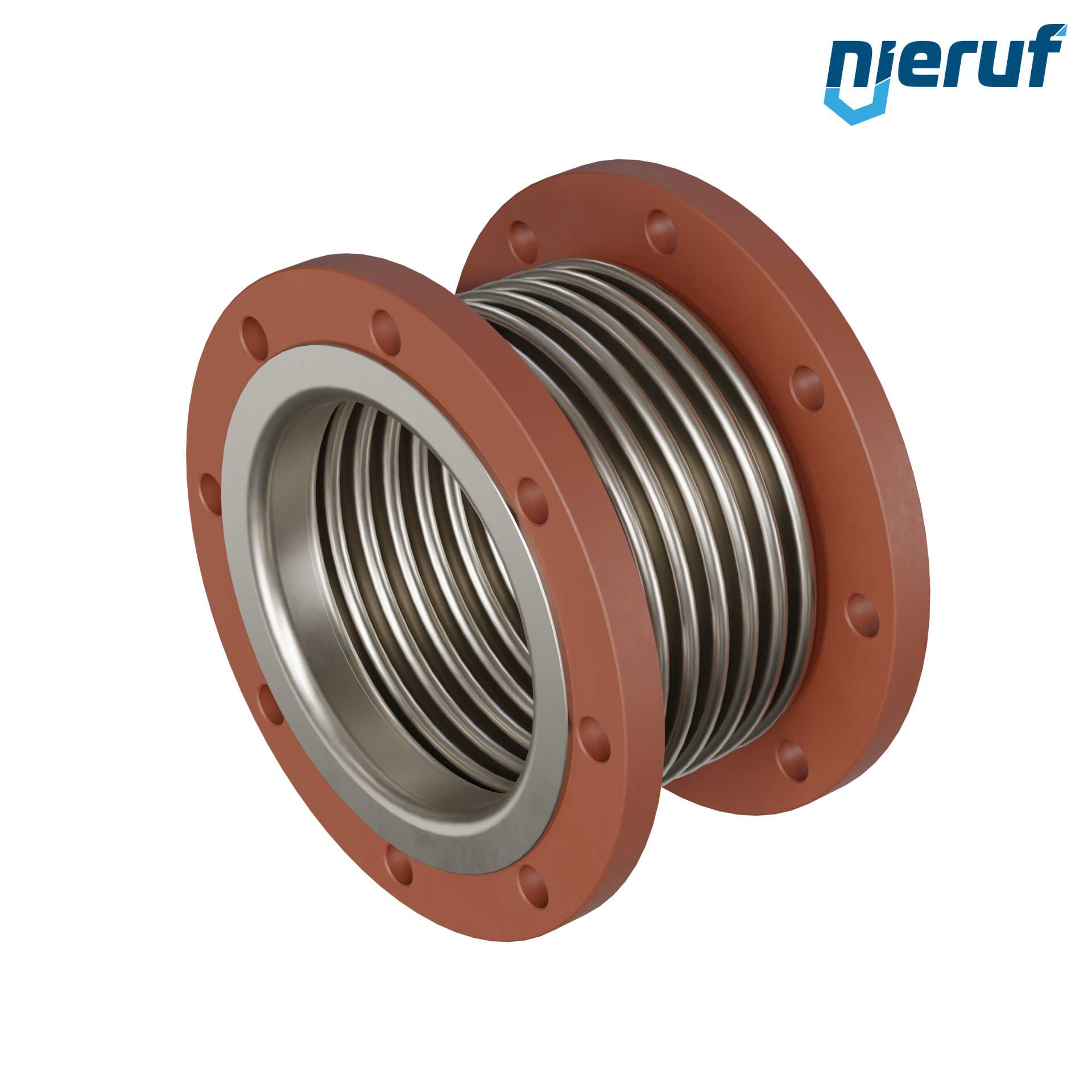

Axial expansion joint DN200 type KP05 flared flanges and stainless steel-bellows
Delivery time: 3 - 4 weeks
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 stainless steel
€35.22 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Axial expansion joint DN200 with stainless steel-bellows und flared flanges acc. DIN EN 1092-1 PN10 for liquid media, gases media and steam
| product: | Axial expansion joint |
|---|---|
| type: | KP05 |
| manufacturer: | NieRuf |
| diameter: | DN200 |
| connection: | flared flanges acc. DIN EN 1092-1 PN10 |
| max. pressure: | max. 10 bar |
| nominal pressure: | PN 10 |
| material: | steel 235JR |
| sleeves: | stainless steel |
| media: | liquid media, gases media and steam |
| temperature: | -10°C up to +300°C |
| design: | straightway form |
| product feature: | This high quality axial-compensator joint with stainless steel bellows and flared flanges made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube. |
