KP05010016

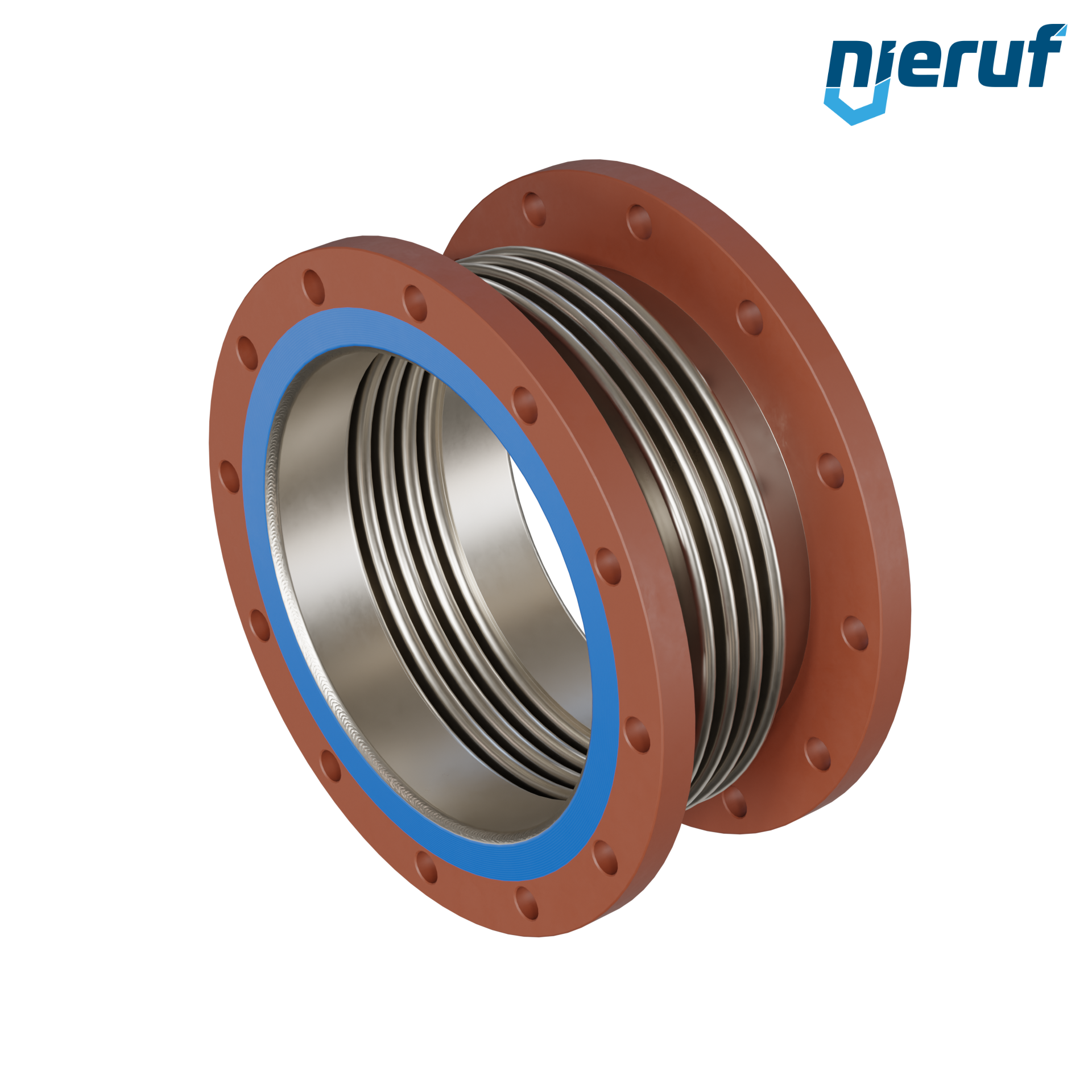

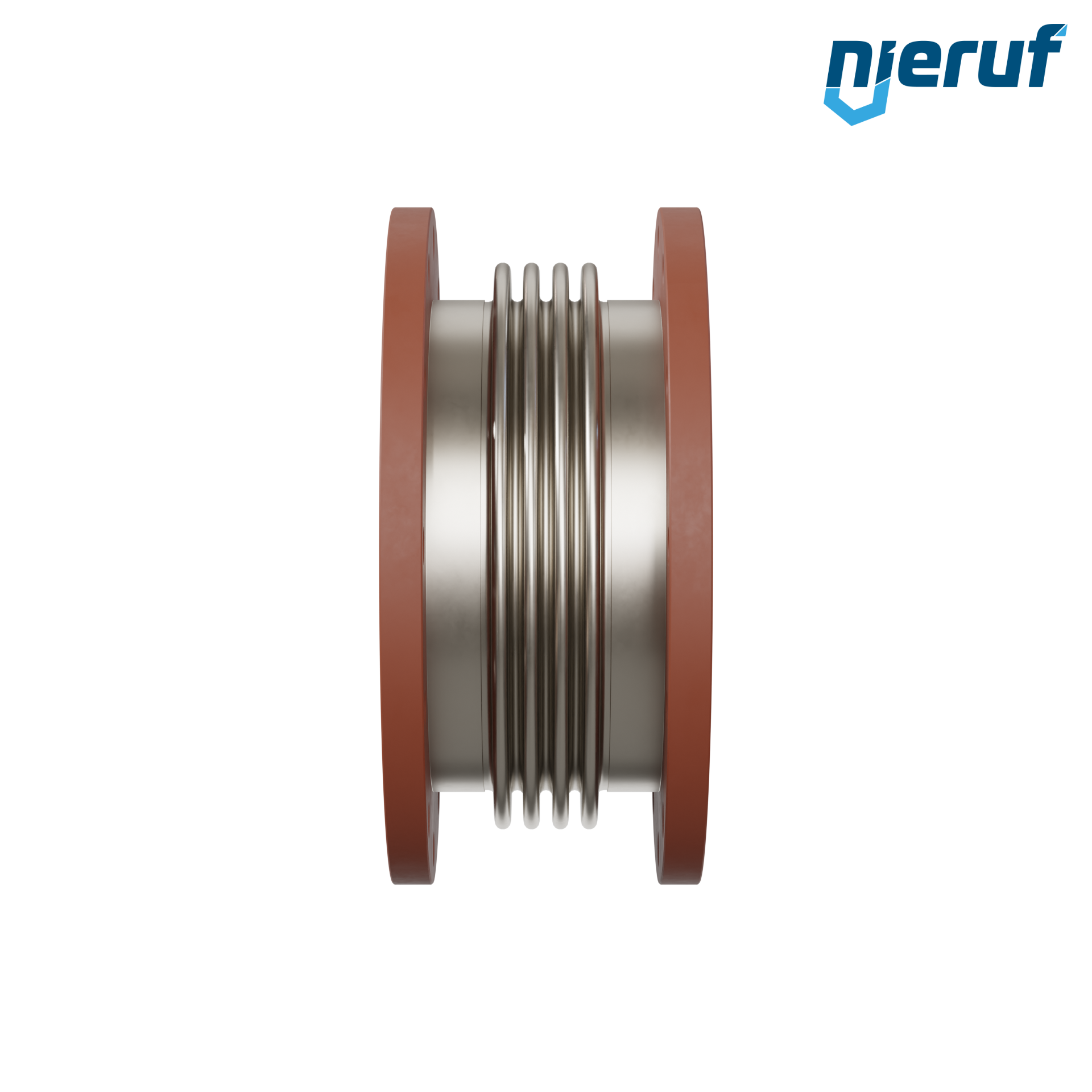

Axial expansion joint DN300 type KP05 fixed flanges and stainless steel-bellows
Delivery time: 3 - 4 weeks
Equipment
joint set flange/flange DN300 - 12" Inch for flange PN10 stainless steel
€52.84 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Axial expansion joint DN300 with stainless steel-bellows und fixed flanges acc. DIN EN 1092-1 PN10 for liquid media, gases media and steam
| product: | Axial expansion joint |
|---|---|
| type: | KP05 |
| manufacturer: | NieRuf |
| diameter: | DN300 |
| connection: | fixed flanges acc. DIN EN 1092-1 PN10 |
| max. pressure: | max. 10 bar |
| nominal pressure: | PN 10 |
| material: | steel 235JR |
| sleeves: | stainless steel |
| media: | liquid media, gases media and steam |
| temperature: | -10°C up to +300°C |
| design: | straightway form |
| product feature: | This high quality axial-compensator joint with stainless steel bellows and fixed made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Axial expansion joint DN300 type KP05 fixed flanges and stainless steel-bellows
Article no.
: KP05010016
product:
Axial expansion joint
type:
KP05
manufacturer:
NieRuf
diameter:
DN300
connection:
fixed flanges acc. DIN EN 1092-1 PN10
max. pressure:
max. 10 bar
nominal pressure:
PN 10
material:
steel 235JR
sleeves:
stainless steel
media:
liquid media, gases media and steam
temperature:
-10°C up to +300°C
design:
straightway form
product feature:
This high quality axial-compensator joint with stainless steel bellows and fixed made of steel is suitable for use in high temperatures and rough conditions. The type can also be offered in other nominal sizes, pressure ratings and overall lengths, as well as with special coating and extended by a guide or protection tube.
€52.84 VAT included.
€34.63 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
