Automatic-ball valves DN8 - 1/4" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 85-240V AC+DC
diameter:
DN8 - 1/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
automatic-ball valve DN20 - 3/4" inch stainless steel 1.4408 EK02 electronic actuator H10 - series H (high voltage) for 85-240V AC/DC
diameter:
DN20 - 3/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
Automatic-ball valves DN20 - 3/4" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 85-240V AC+DC
diameter:
DN20 - 3/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
pneumatic-ball valve DN20 - 3/4" inch stainless steel 1.4408 PK02 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN20 - 3/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
ball valve with actuator DN15 stainless steel 1.4408 PK05 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN15 - 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 40
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE
automatic ball valves DN8 - 1/4" inch brass CW617N nickel plated PK01 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN8 - 1/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
automatic ball valves DN20 - 3/4" inch brass CW617N nickel plated PK01 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN20 - 3/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
automatic-ball valve DN25 - 1" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24V AC/DC
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
ball valve with actuator DN25 stainless steel 1.4408 PK05 pneumatic actuator GD052 made of aluminium (mode of function: GD = double acting)
diameter:
DN25 - 1" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 40
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE
pneumatic-ball valve DN25 - 1" inch stainless steel 1.4408 PK02 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
ball valve with actuator DN25 stainless steel 1.4408 PK05 pneumatic actuator GS063 made of aluminium (mode of function: GS = single acting)
diameter:
DN25 - 1" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 40
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE
automatic-ball valve DN32 - 1 1/4" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24-240V AC/DC
diameter:
DN32 - 1 1/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
Automatic-ball valves DN25 - 1" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 85-240V AC+DC
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
automatic-ball valve DN32 - 1 1/4" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24V AC/DC
diameter:
DN32 - 1 1/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
automatic-ball valve DN25 - 1" inch stainless steel 1.4408 EK02 electronic actuator S20 - series S for 24-240V AC/DC
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
automatic-flange ball valve DN25 - 1" inch stainless steel 1.4408 EK05 24V
diameter:
DN25 - 1" inch
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE + 15% GF
automatic ball valves DN25 - 1" inch brass CW617N nickel plated PK01 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN25 - 1" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
automatic-flange ball valve DN25 - 1" inch stainless steel 1.4408 EK05 electronic actuator S20 - series S for 24-240V AC/DC
diameter:
DN25 - 1" inch
connection:
flange dimensions acc. DIN EN 1092-2 PN 16
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE + 15% GF

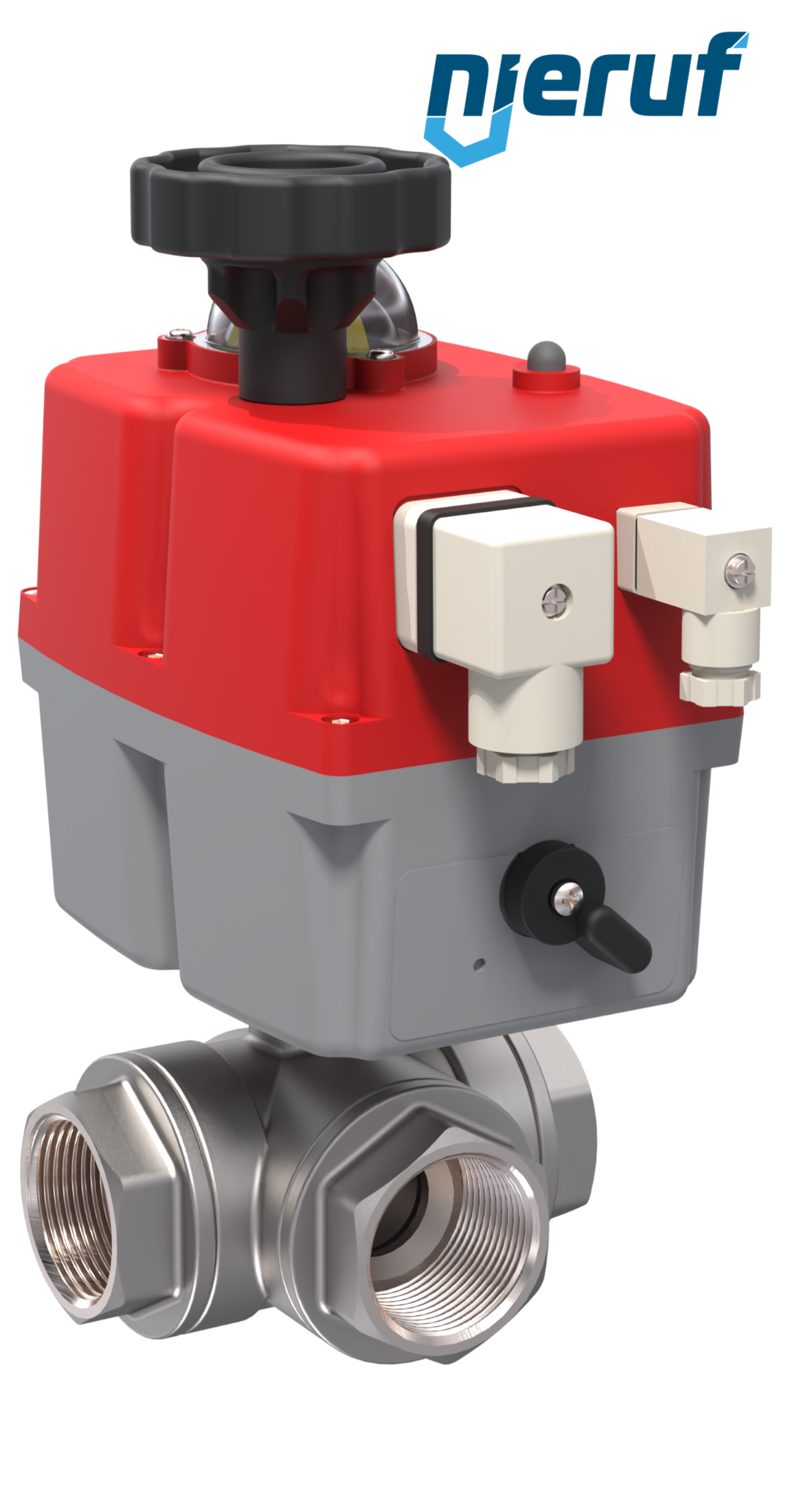

3 way automatic-ball valve 24-240V DN15 - 1/2" inch made of stainless steel 1.4408 with reduced port design with L drilling for liquid and gaseous media
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE
3 way automatic-ball valve 24-240V DN15 - 1/2" inch made of stainless steel 1.4408 with reduced port design with T drilling for liquid and gaseous media
diameter:
DN15 - 1/2" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE
automatic-flange stainless steel ball valve DN15 stainless steel 1.4408 PK07 pneumatic actuator GS58 made of aluminium (mode of function: GS = single acting)
diameter:
DN15 - 1/2" inch
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE
automatic ball valves DN10 - 3/8" inch brass CW617N nickel plated PK01 pneumatic actuator GS052 made of aluminium (mode of function: GS = single acting)
diameter:
DN10 - 3/8" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
Automatic-ball valves DN10 - 3/8" inch brass CW617N nickel plated EK01 electronic actuator H10- series H (high voltage) for 85-240V AC+DC
diameter:
DN10 - 3/8" inch
connection:
female thread
media:
liquid and gaseous media
body material:
brass CW617N nickel plated
Seal steam:
Viton
pneumatic-ball valve DN32 - 1 1/4" inch stainless steel 1.4408 PK02 pneumatic actuator GD040 made of aluminium (mode of function: GD = double acting)
diameter:
DN32 - 1 1/4" inch
connection:
female thread
media:
liquid and gaseous media
body material:
stainless steel 1.4408
Seal steam:
PTFE / Viton
Ball valves with pneumatic or electrical actuator in several varieties!
To allow for maximum flexibility within your system, our ball valves with actuator come in several varieties and made from different materials. The ball valve with the pneumatic actuator is regulated using a compressed air system. It comes single-acting or double-acting. If you need an electrical actuator for your ball valve, we can provide it within the power range of 12-24 volt DC voltage or 85-240 volt AC voltage. The electrical actuator comes with electrical torque limiting, automatic voltage detection, and an additional manual override for safety reasons. Just as the regular ball valve, the ball valve with the rotary actuator is made of brass, spheroidal graphite iron or stainless steel. The electrical actuator is based on a synthetic body, the pneumatic actuator within an oxidized aluminium body. Naturally, we deliver our ball valves with actuator with flange or thread connections in all common sizes and with a variety of seals. Some of the actuators are certified up to protection class IP65- IP67, please find additional information on our data sheets on ball valves.
Choosing the right ball valve and actuator:
Several aspects determine the right choice of the ball valve and matching actuator. First, you should decide on a pneumatic or electrical actuator. Second, you need to determine whether or not the medium lubricates. Now you can choose the right ball valve with the actuator. We would love to help you make the right choice! So if you do not find the right ball valve or actuator in our shop, we would love to come up with a specific solution that fits your needs.
