GK01010005

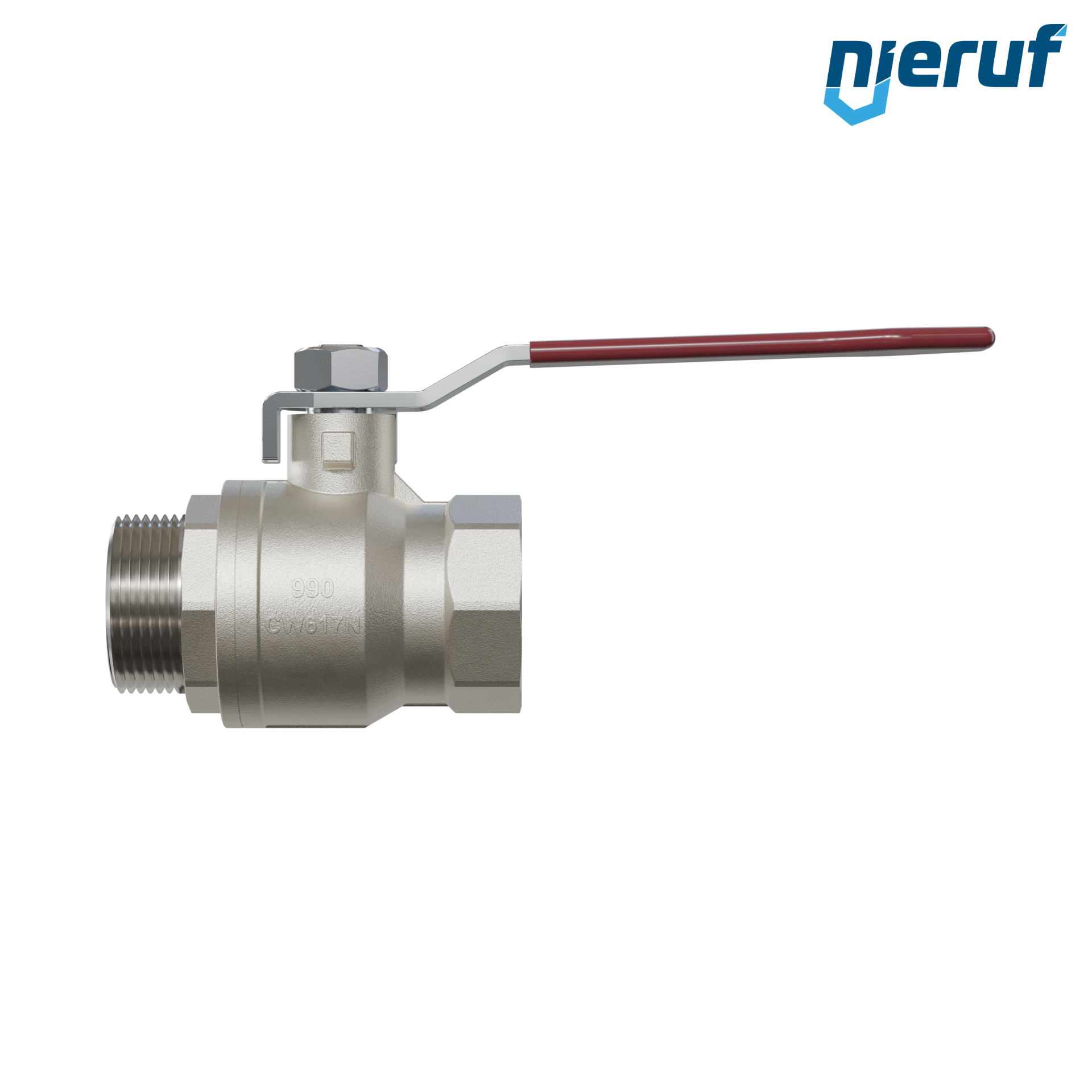

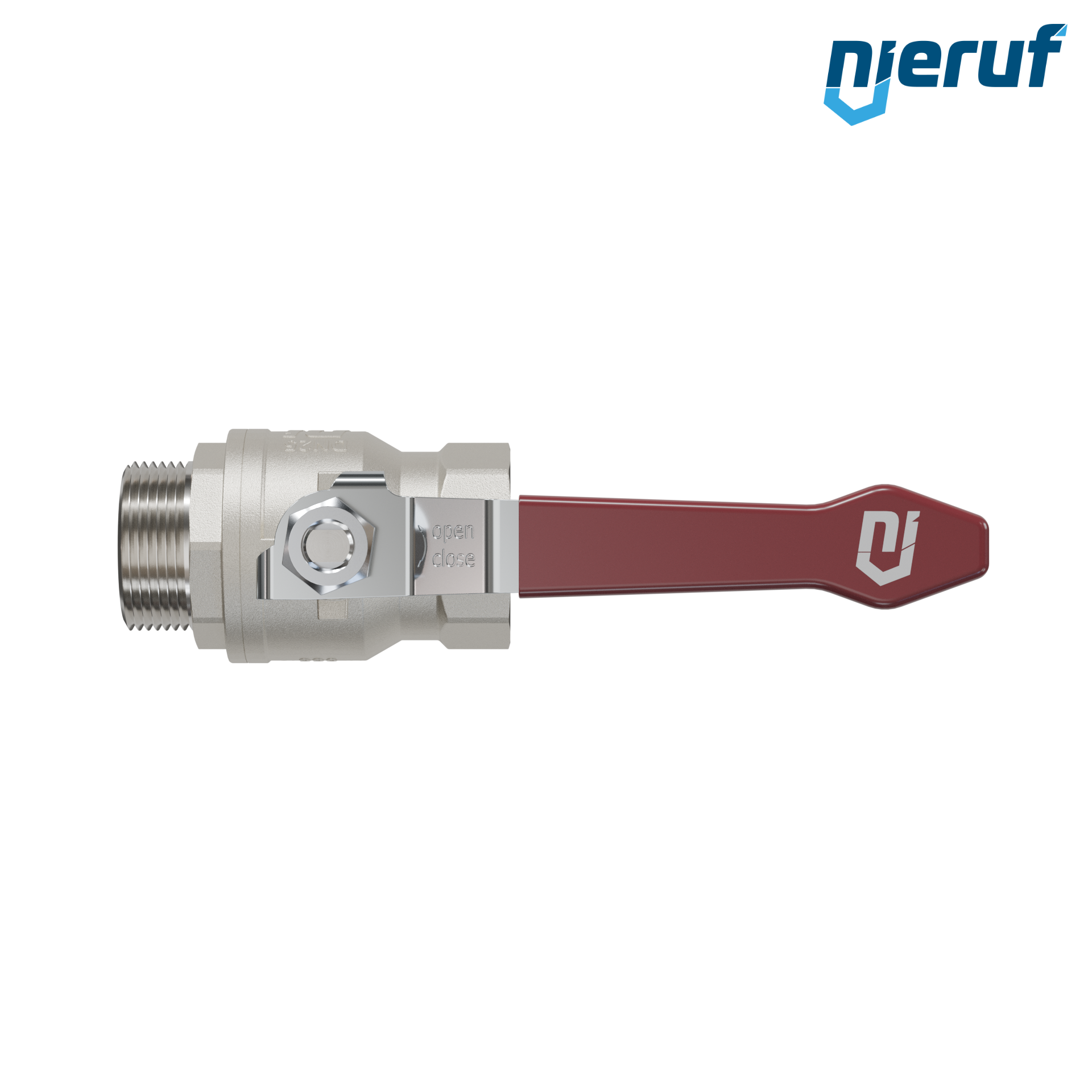

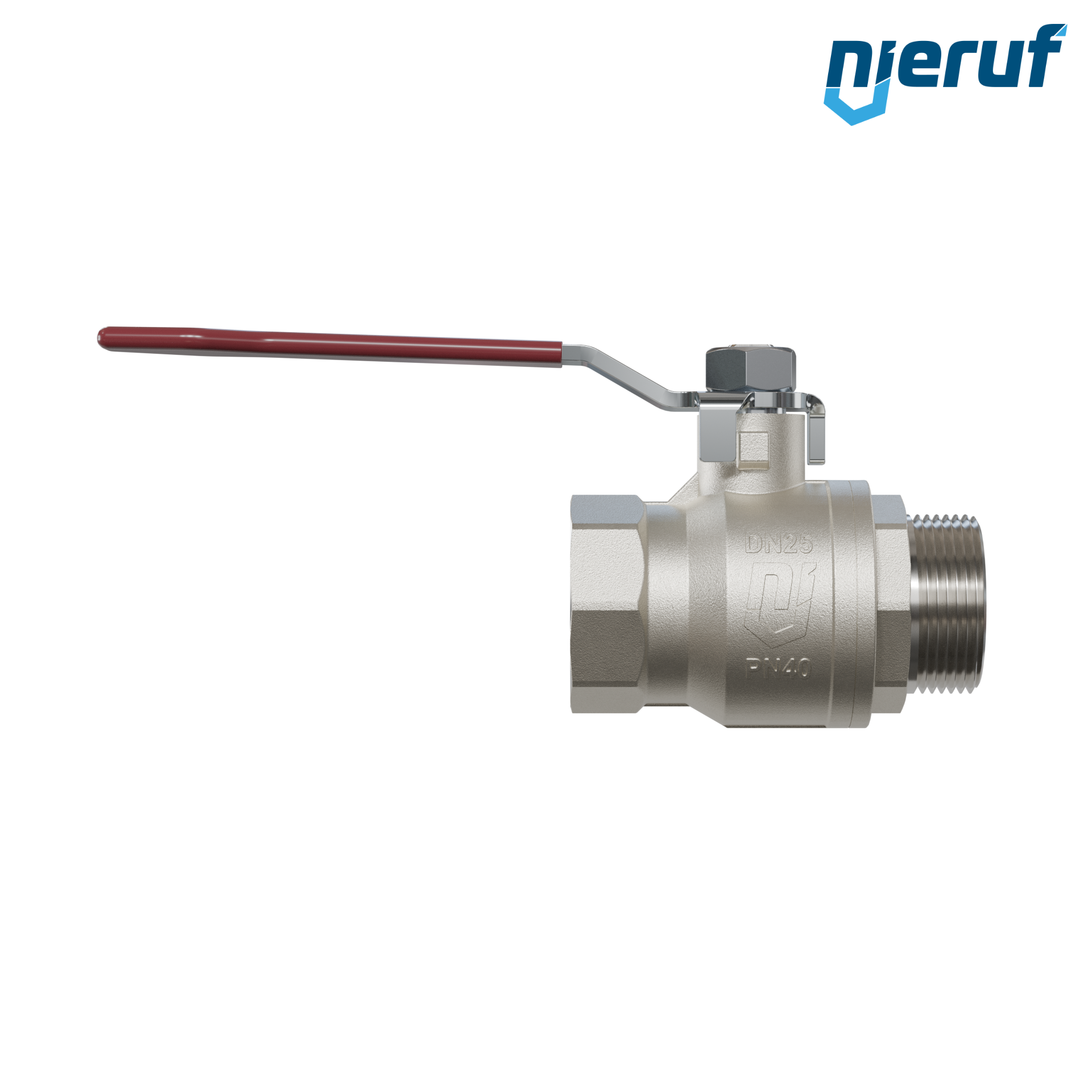

2 way ball valve DN25 - 1" inch GK01 female x male thread
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
2 way ball valve DN25 - 1" inch full port design seal made of PTFE for liquid and gaseous media with female x male thread
| product: | 2 way ball valve |
|---|---|
| type: | GK01 |
| manufacturer: | NieRuf |
| diameter: | DN25 - 1" inch |
| connection: | female / male thread |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +180°C - depending on working pressure and media |
| max. pressure: | PN40 |
| design: | full port design |
| body material: | brass nickel plated (CW617N) |
| ball material: | brass chrome plated (CW614N) |
| length: | 75,5 mm |
| actuator: | lever handle made of steel zinc coated with red plastic cover |
| installation position: | any position |
| product description: | strength of valve body and cap acc. to EN 331 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
2 way ball valve DN25 - 1" inch GK01 female x male thread
Article no.
: GK01010005
product:
2 way ball valve
type:
GK01
manufacturer:
NieRuf
diameter:
DN25 - 1" inch
connection:
female / male thread
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +180°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
brass nickel plated (CW617N)
ball material:
brass chrome plated (CW614N)
length:
75,5 mm
actuator:
lever handle made of steel zinc coated with red plastic cover
installation position:
any position
product description:
strength of valve body and cap acc. to EN 331
€4.64 VAT included.
€6.19 VAT included.
