GK02010002
ball valve made of brass DN10 - 3/8" inch GK02 female thread
Delivery time: in stock
Express delivery:
Shipping on: Tuesday, 31. December
Guaranteed delivery until Wednesday, 01. January, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

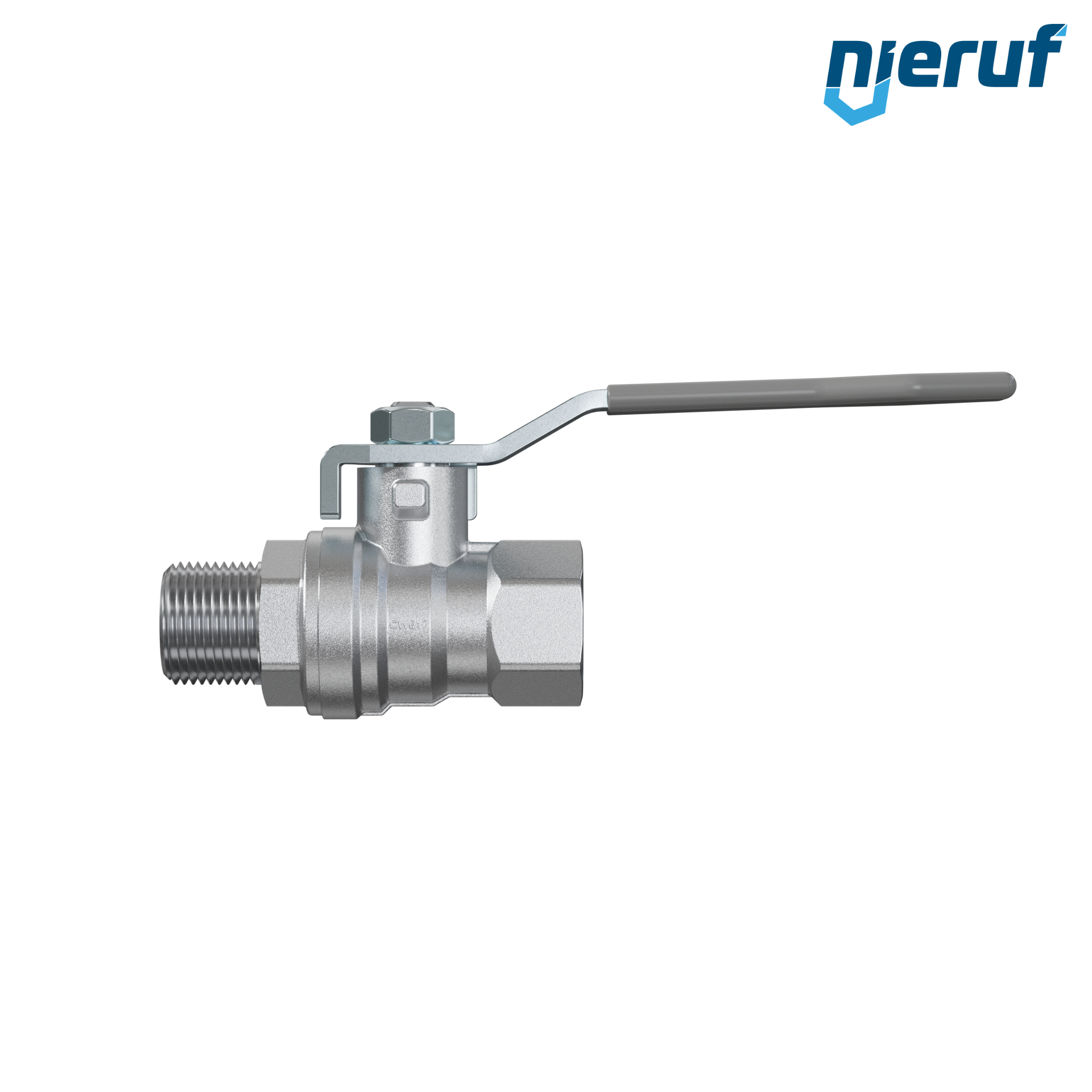

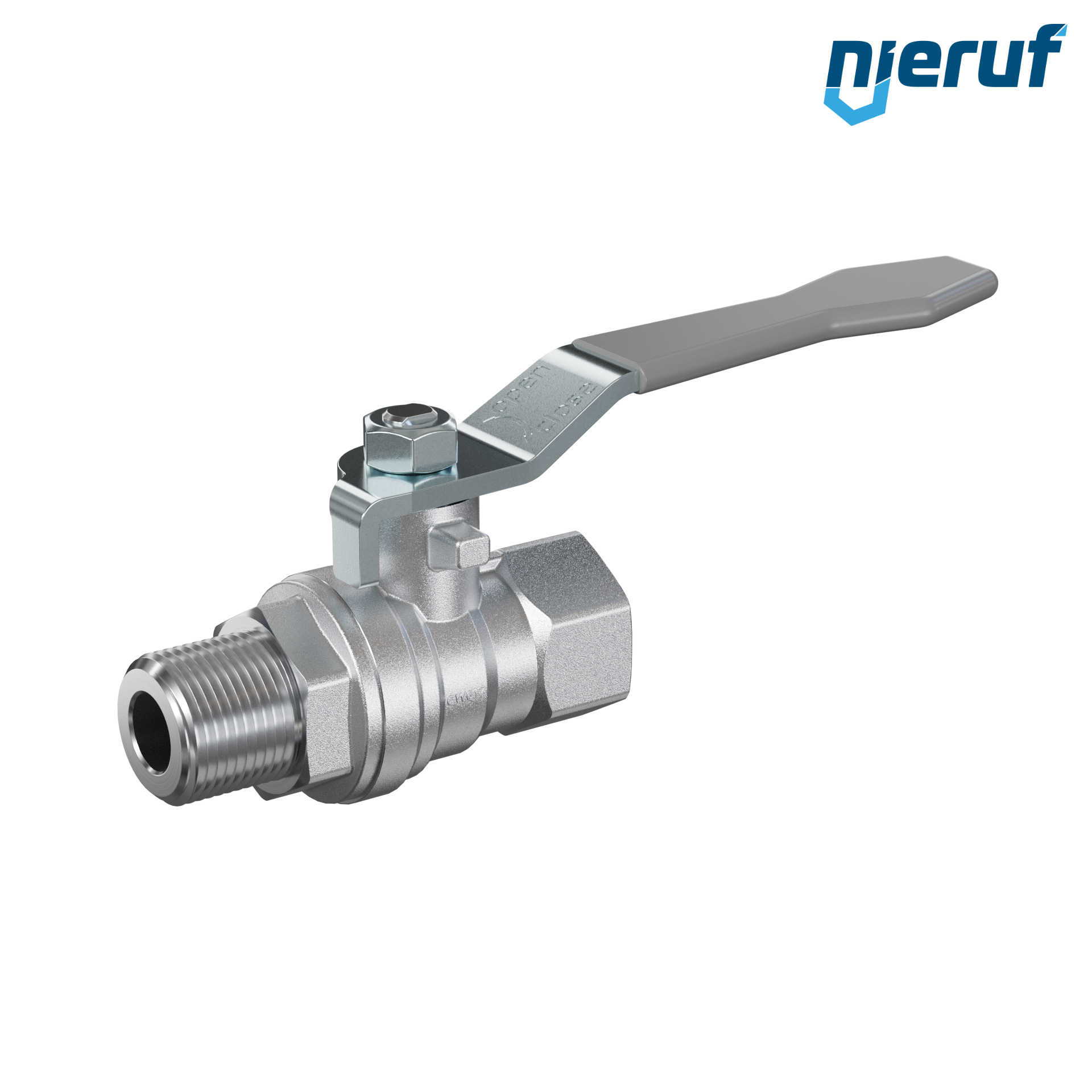

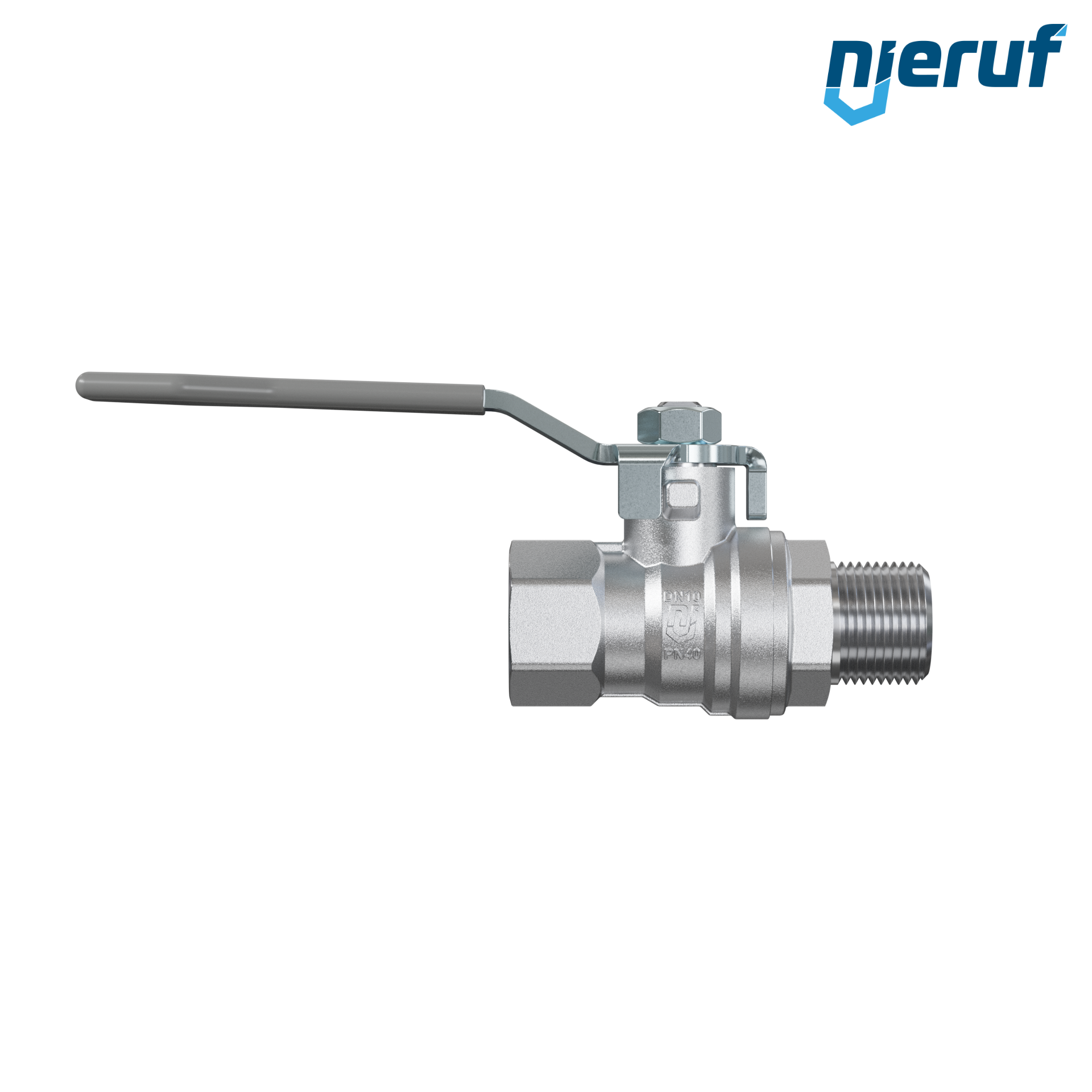

ball valve made of brass DN10 - 3/8" inch full port design seal made of 2xO-ring FKM for liquid and gaseous media
| product: | ball valve made of brass |
|---|---|
| type: | GK02 |
| manufacturer: | NieRuf |
| diameter: | DN10 - 3/8" inch |
| connection: | female / male thread |
| Seal steam: | 2xO-ring FKM |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +170°C - depending on working pressure and media |
| max. pressure: | PN40 |
| design: | full port design |
| body material: | CW617N chrome plated |
| ball material: | CW617N chrome plated |
| length: | 56,5mm |
| actuator: | lever handle made of steel |
| installation position: | any position |
| authorized for: | DVGW-water, DVGW-Gas |
| product description: | This high quality brass ball valve is suitable for drinking water and is authorized for DVGW-G and DVGW-W |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
ball valve made of brass DN10 - 3/8" inch GK02 female thread
Article no.
: GK02010002
product:
ball valve made of brass
type:
GK02
manufacturer:
NieRuf
diameter:
DN10 - 3/8" inch
connection:
female / male thread
Seal steam:
2xO-ring FKM
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
-20°C up to +170°C - depending on working pressure and media
max. pressure:
PN40
design:
full port design
body material:
CW617N chrome plated
ball material:
CW617N chrome plated
length:
56,5mm
actuator:
lever handle made of steel
installation position:
any position
authorized for:
DVGW-water, DVGW-Gas
product description:
This high quality brass ball valve is suitable for drinking water and is authorized for DVGW-G and DVGW-W
€2.02 VAT included.
€2.02 VAT included.
€2.86 VAT included.
