AK11100111
Double offset butterfly-valve AK11 DN 100 PN10-40 ANSI150-300 worm gear
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Questions about the article?
Our employee Max Eisele
will be happy to help you

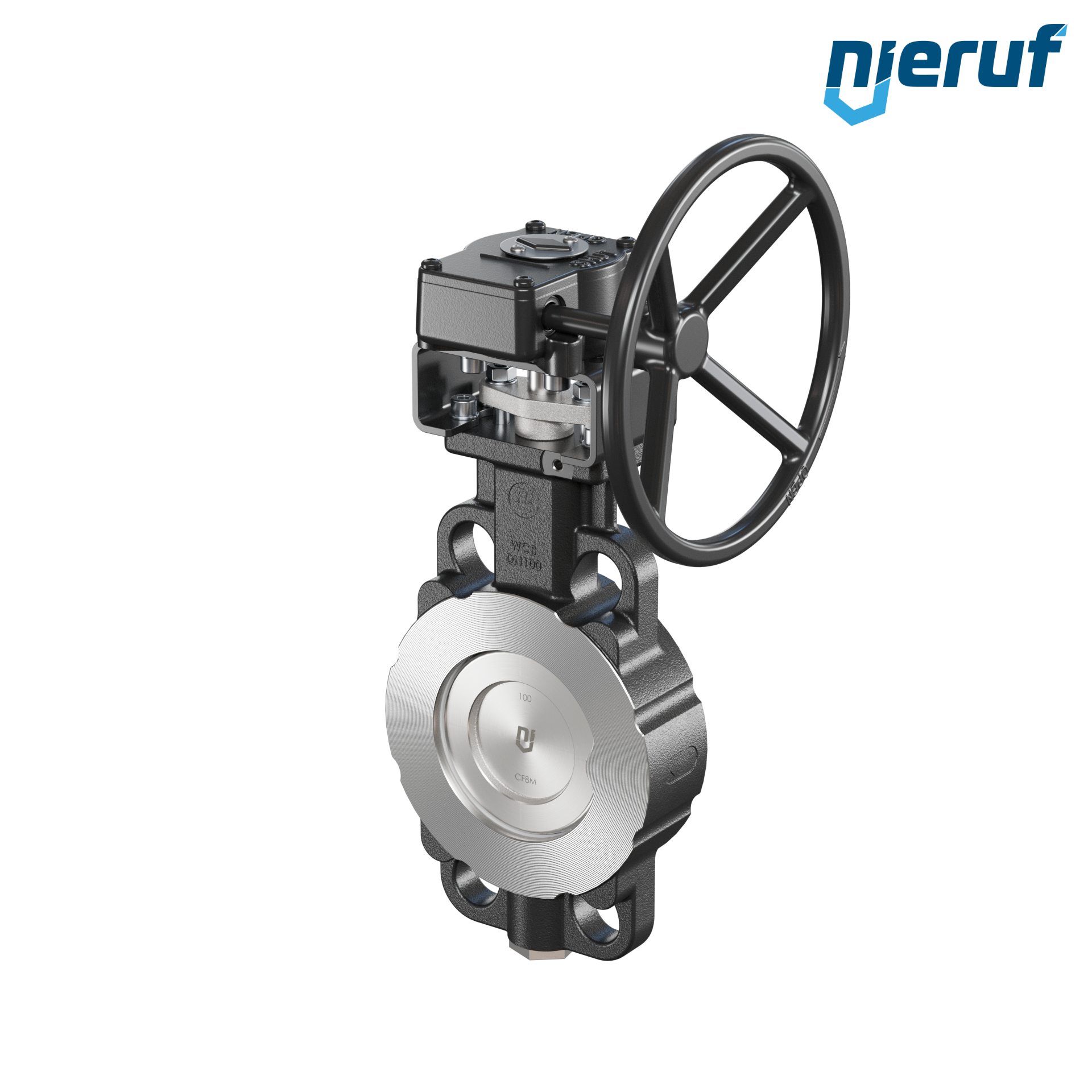

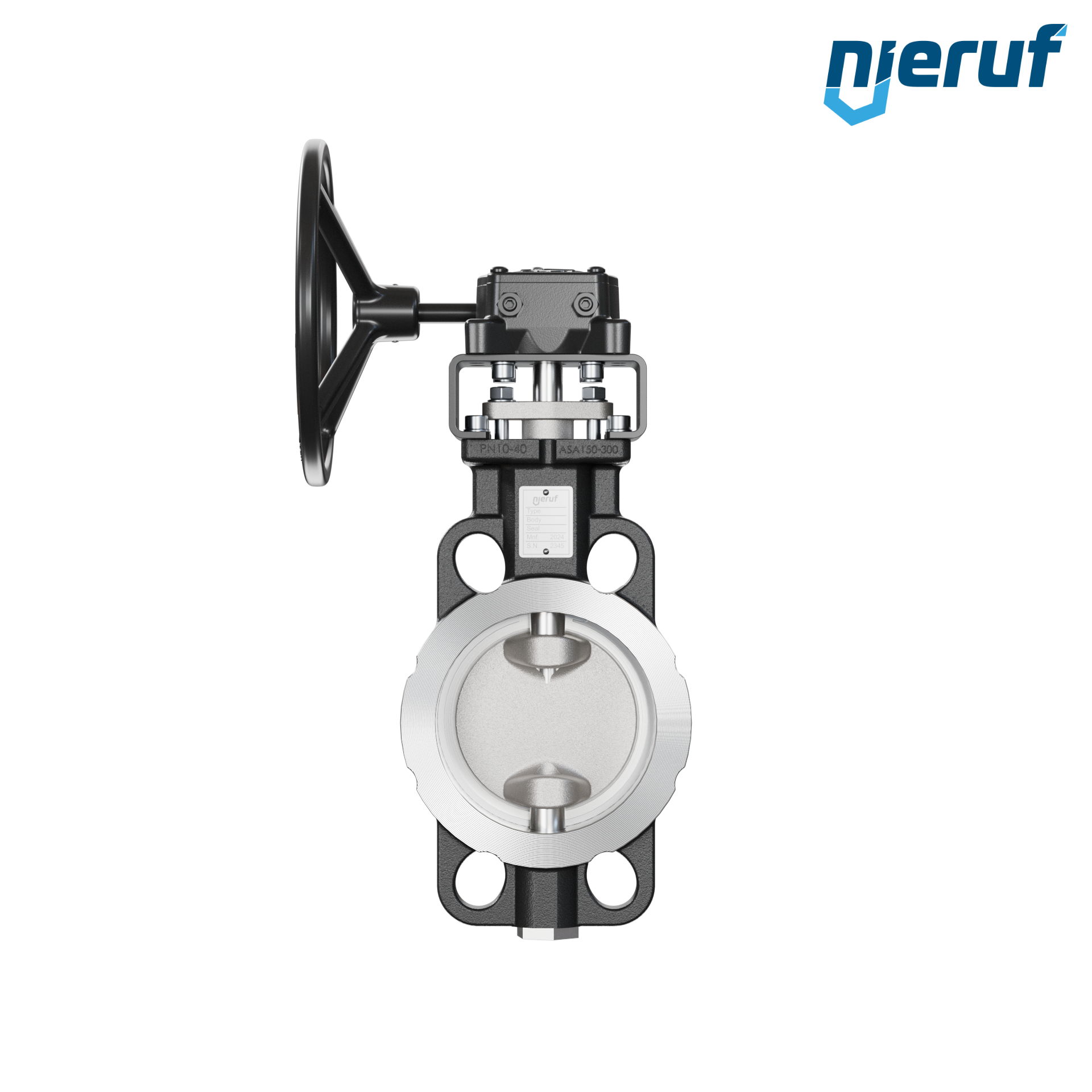

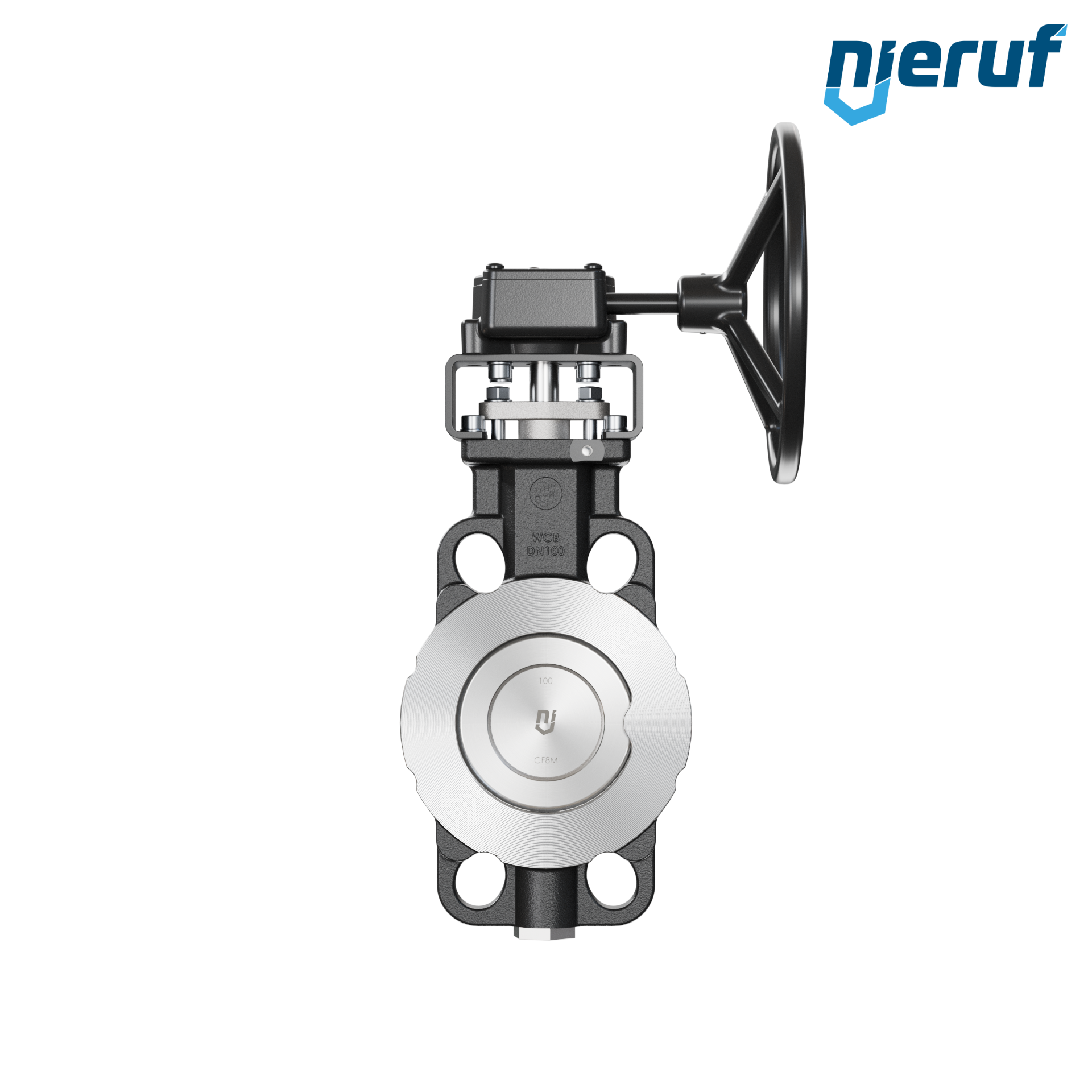

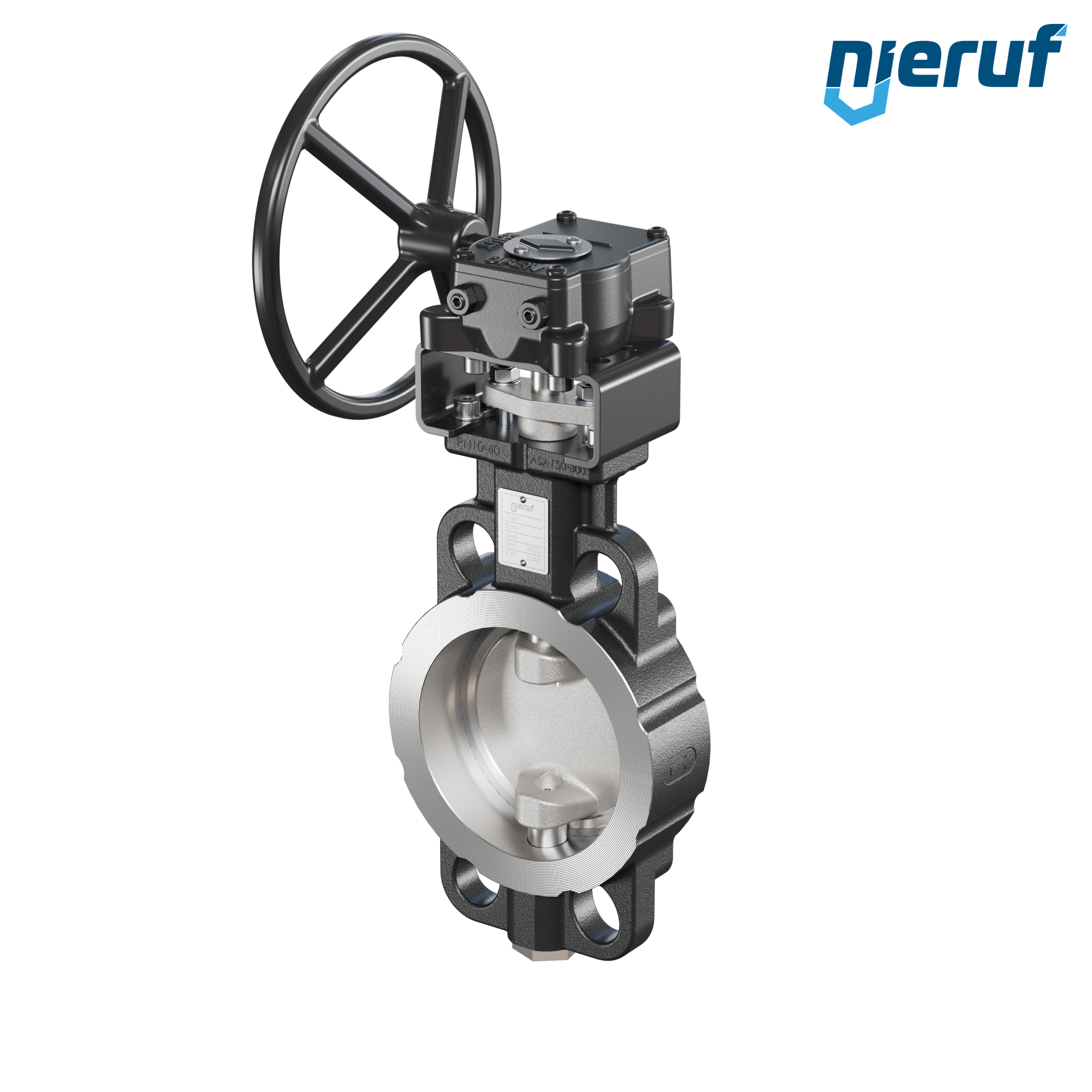

Double eccentric butterfly valve WAFER type AK11 DN 100 PN10-PN16-PN25-PN40 & ANSI150-ANSI300 with body made of carbon steel max. 50 bar worm gear
| product: | Butterfly valve |
|---|---|
| type: | AK11 |
| manufacturer: | NieRuf |
| version: | Double offset |
| design: | Wafer type |
| diameter: | DN 100 |
| body material: | carbon steel 1.0625 (A216 WCB) |
| disc: | stainless steel 1.4408 (CF8M) |
| Seat material: | R-PTFE (PTFE reinforced by 25% glass fibre) |
| nominal pressure: | PN10-PN16-PN25-PN40 & ANSI150-ANSI300 |
| max. working pressure: | 50 bar |
| media: | liquid and gaseous media |
| temperature: | -29°C up to +200°C |
| actuation: | worm gear |
| installation position: | Any, stem upwards. Note the direction of flow! |
| product feature: | Double offset butterfly valve for demanding applications. Split stem for higher flow value, low maintenance. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Double offset butterfly-valve AK11 DN 100 PN10-40 ANSI150-300 worm gear
Article no.
: AK11100111
product:
Butterfly valve
type:
AK11
manufacturer:
NieRuf
version:
Double offset
design:
Wafer type
diameter:
DN 100
body material:
carbon steel 1.0625 (A216 WCB)
disc:
stainless steel 1.4408 (CF8M)
Seat material:
R-PTFE (PTFE reinforced by 25% glass fibre)
nominal pressure:
PN10-PN16-PN25-PN40 & ANSI150-ANSI300
max. working pressure:
50 bar
media:
liquid and gaseous media
temperature:
-29°C up to +200°C
actuation:
worm gear
installation position:
Any, stem upwards. Note the direction of flow!
product feature:
Double offset butterfly valve for demanding applications. Split stem for higher flow value, low maintenance.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
