AK14100117
Triple offset butterfly-valve carbon steel AK14 DN 350 PN16 worm gear
Delivery time: 5 - 6 weeks
Questions about the article?
Our employee Max Eisele
will be happy to help you

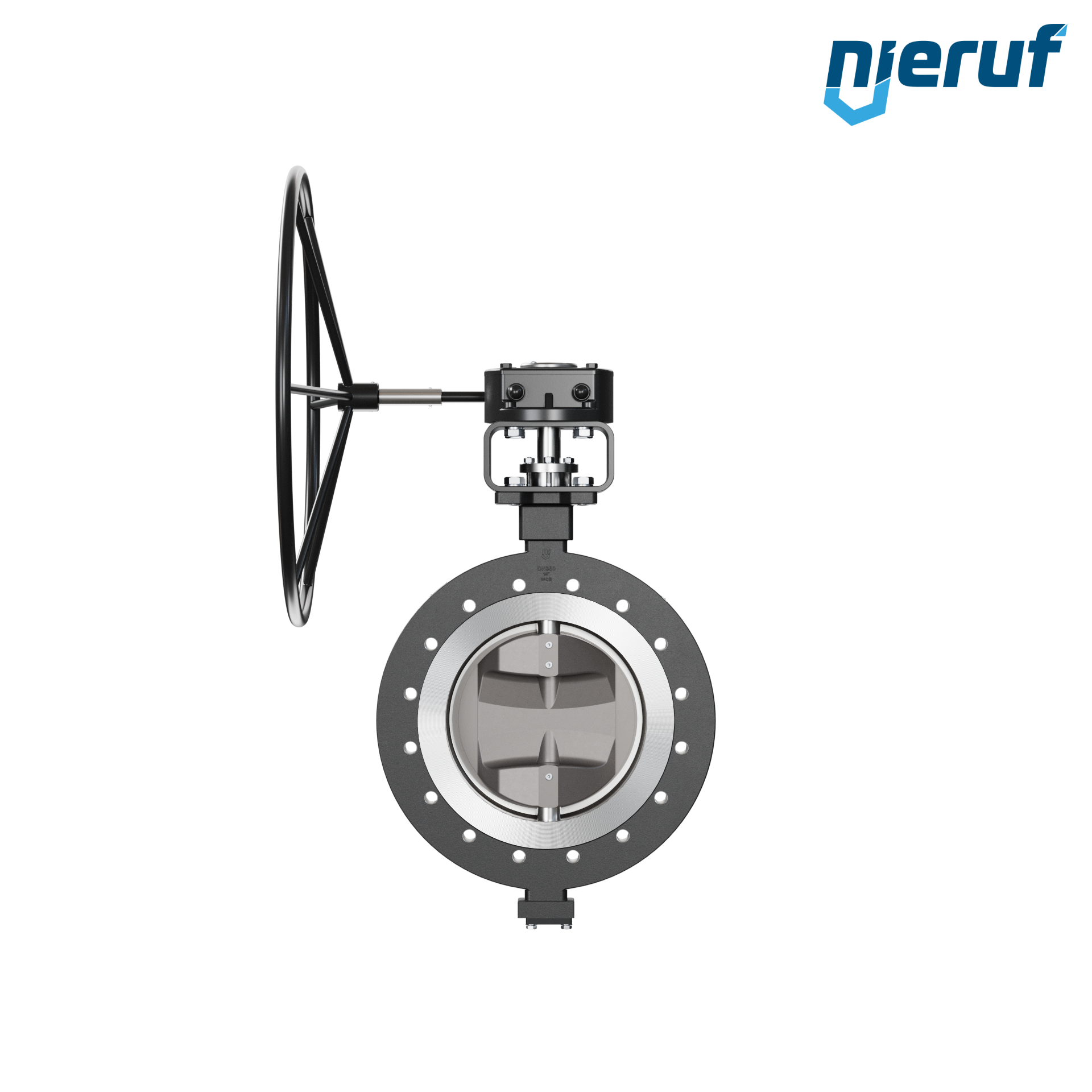

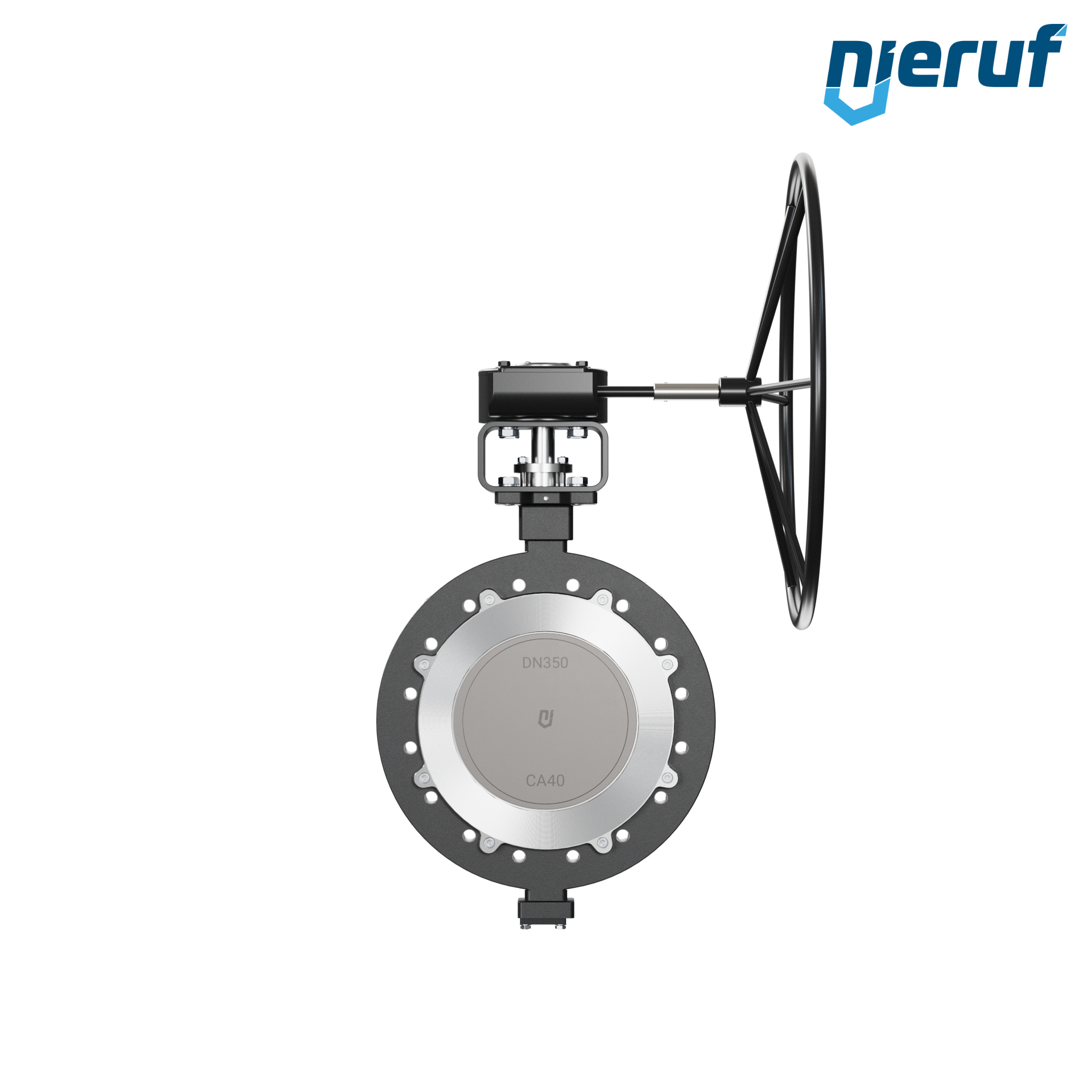

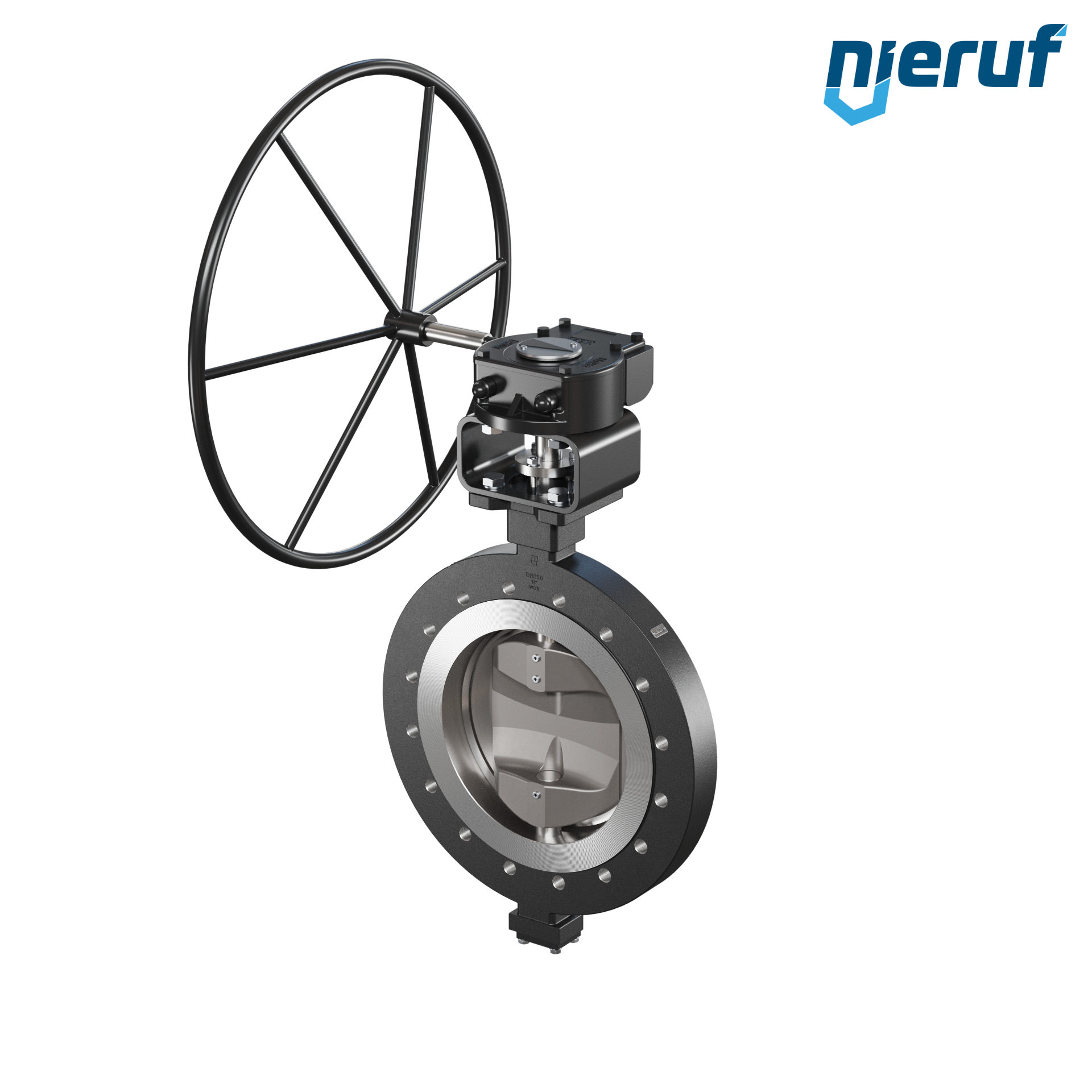

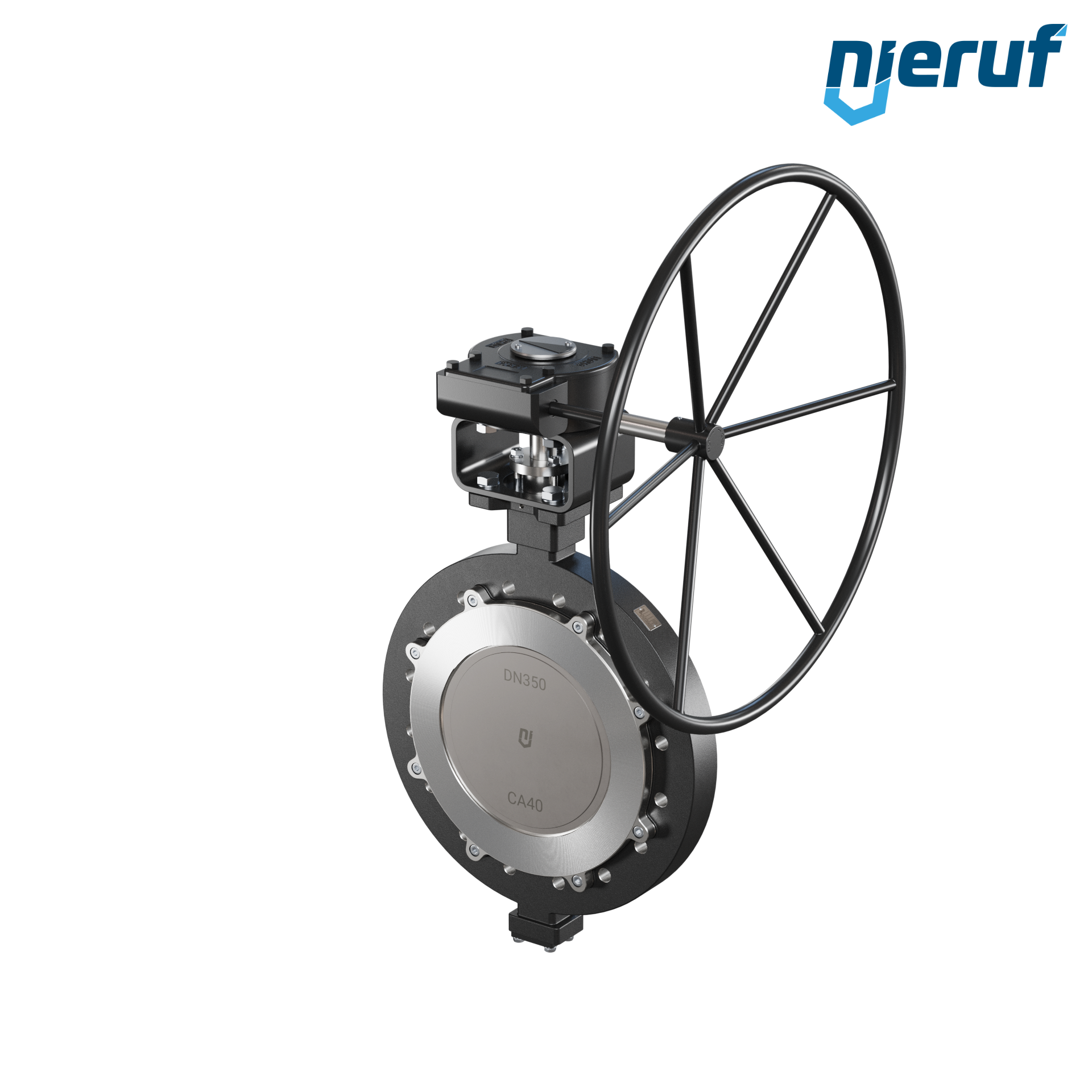

Triple eccentric butterfly valve LUG type AK14 DN 350 PN16 with body made of carbon steel max. 25 bar worm gear
| product: | Butterfly valve |
|---|---|
| type: | AK14 |
| manufacturer: | NieRuf |
| version: | Triple offset |
| design: | Lug type |
| diameter: | DN 350 |
| body material: | carbon steel 1.0625 (A216 WCB) |
| disc: | stainless steel 1.4027 (ASTM CA-40) |
| Seat material: | metal seated (lamellar) - stainless steel + graphite |
| nominal pressure: | PN16 |
| max. working pressure: | 25 bar |
| media: | liquid and gaseous media |
| temperature: | -29°C up to +320°C |
| actuation: | worm gear |
| installation position: | Any, stem upwards. Note the direction of flow! |
| product feature: | Triple offset butterfly valve for demanding applications and high temperatures. Low maintenance. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Triple offset butterfly-valve carbon steel AK14 DN 350 PN16 worm gear
Article no.
: AK14100117
product:
Butterfly valve
type:
AK14
manufacturer:
NieRuf
version:
Triple offset
design:
Lug type
diameter:
DN 350
body material:
carbon steel 1.0625 (A216 WCB)
disc:
stainless steel 1.4027 (ASTM CA-40)
Seat material:
metal seated (lamellar) - stainless steel + graphite
nominal pressure:
PN16
max. working pressure:
25 bar
media:
liquid and gaseous media
temperature:
-29°C up to +320°C
actuation:
worm gear
installation position:
Any, stem upwards. Note the direction of flow!
product feature:
Triple offset butterfly valve for demanding applications and high temperatures. Low maintenance.
