AK01120412

Butterfly valve DN 125 AK01 FPM pneumatic actuator double acting

€558.50*

€664.62 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time
in stock
Express delivery*

Order in within by express delivery

Shipping on: Tuesday, 11. March

Guaranteed delivery until Wednesday, 12. March, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€44.40*

€52.84 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€70.80*

€84.25 VAT included.


PS01000000

Positioner PS01 for pneumatic actuators double acting air volume less than 5 l

€711.90*

€847.16 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: AK01120412

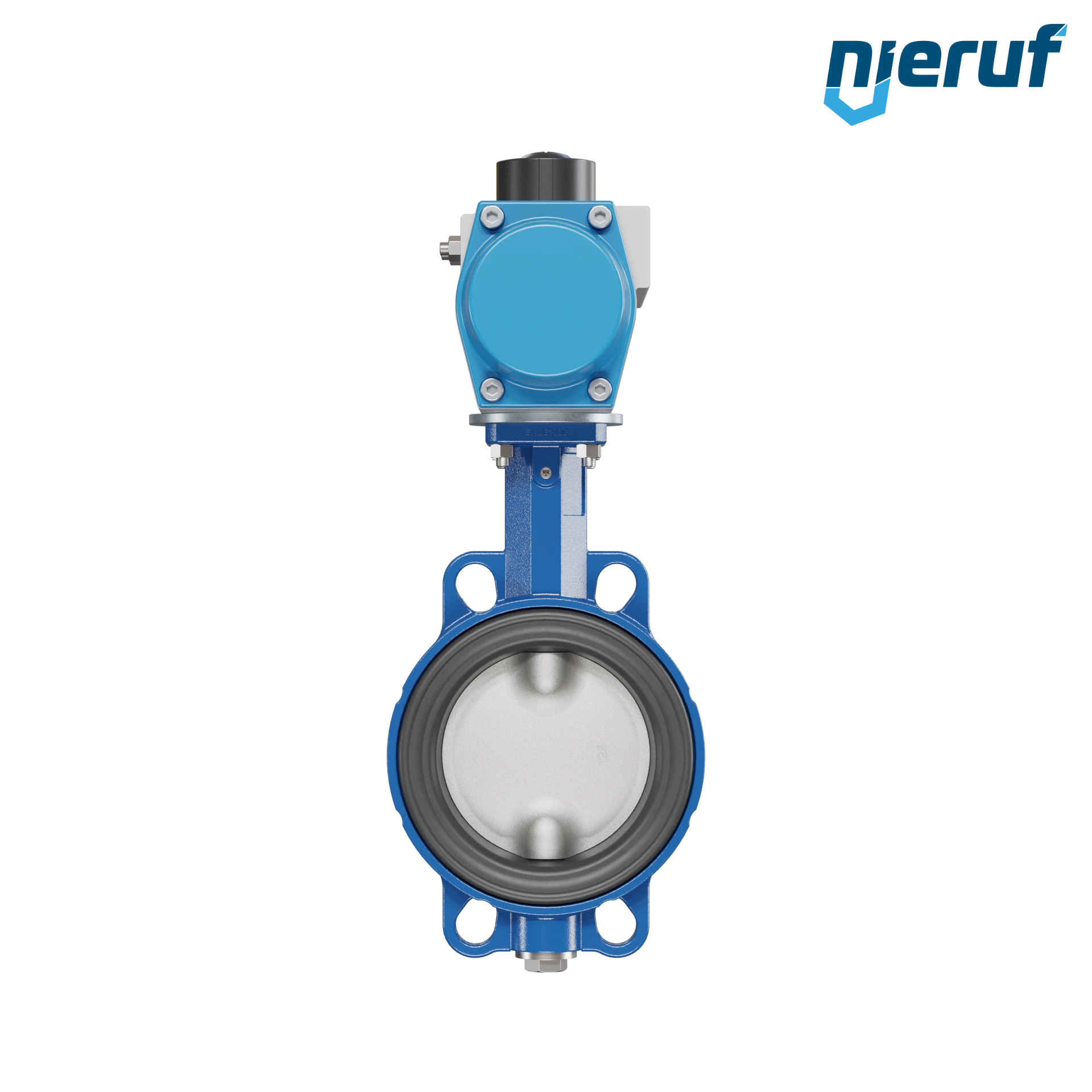

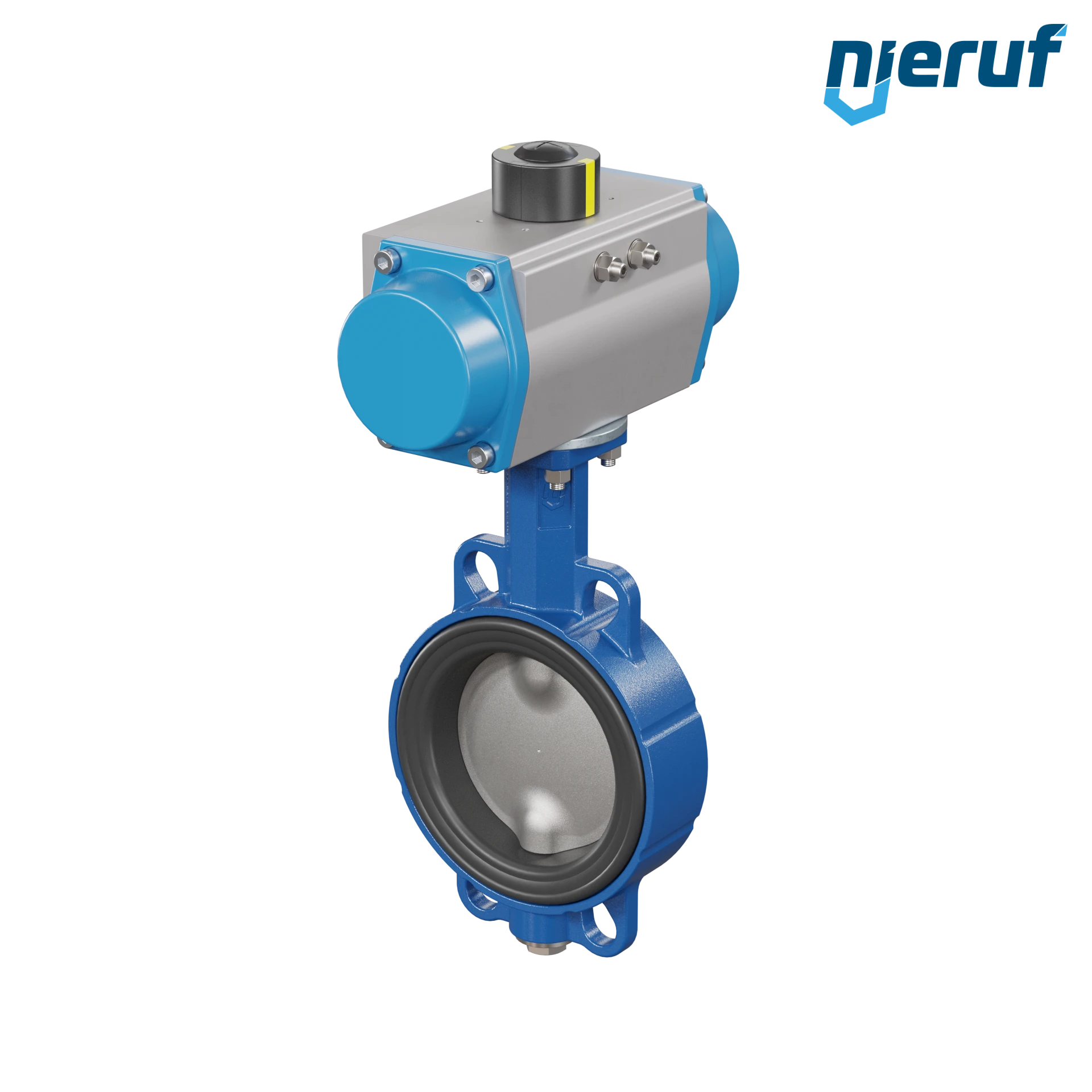

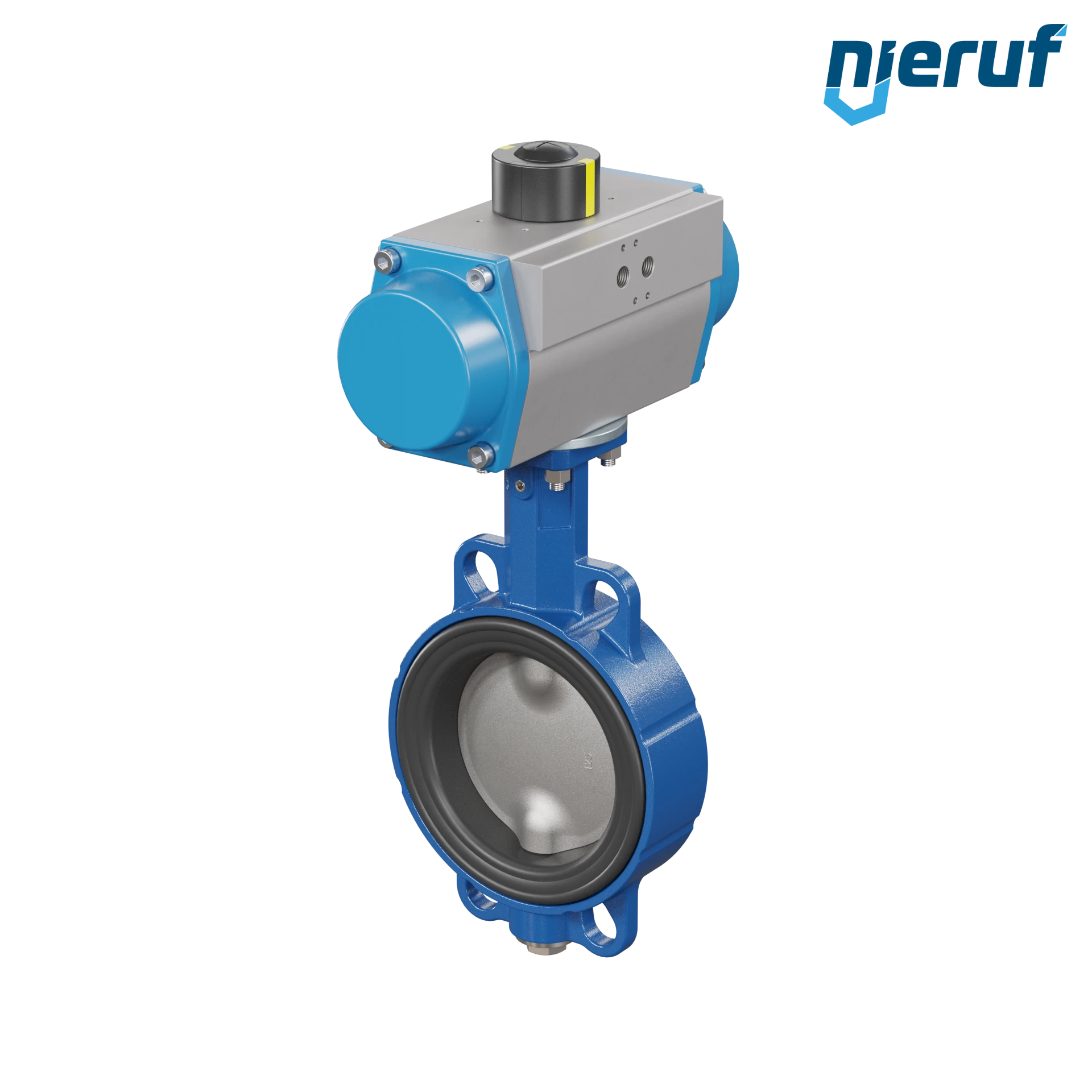

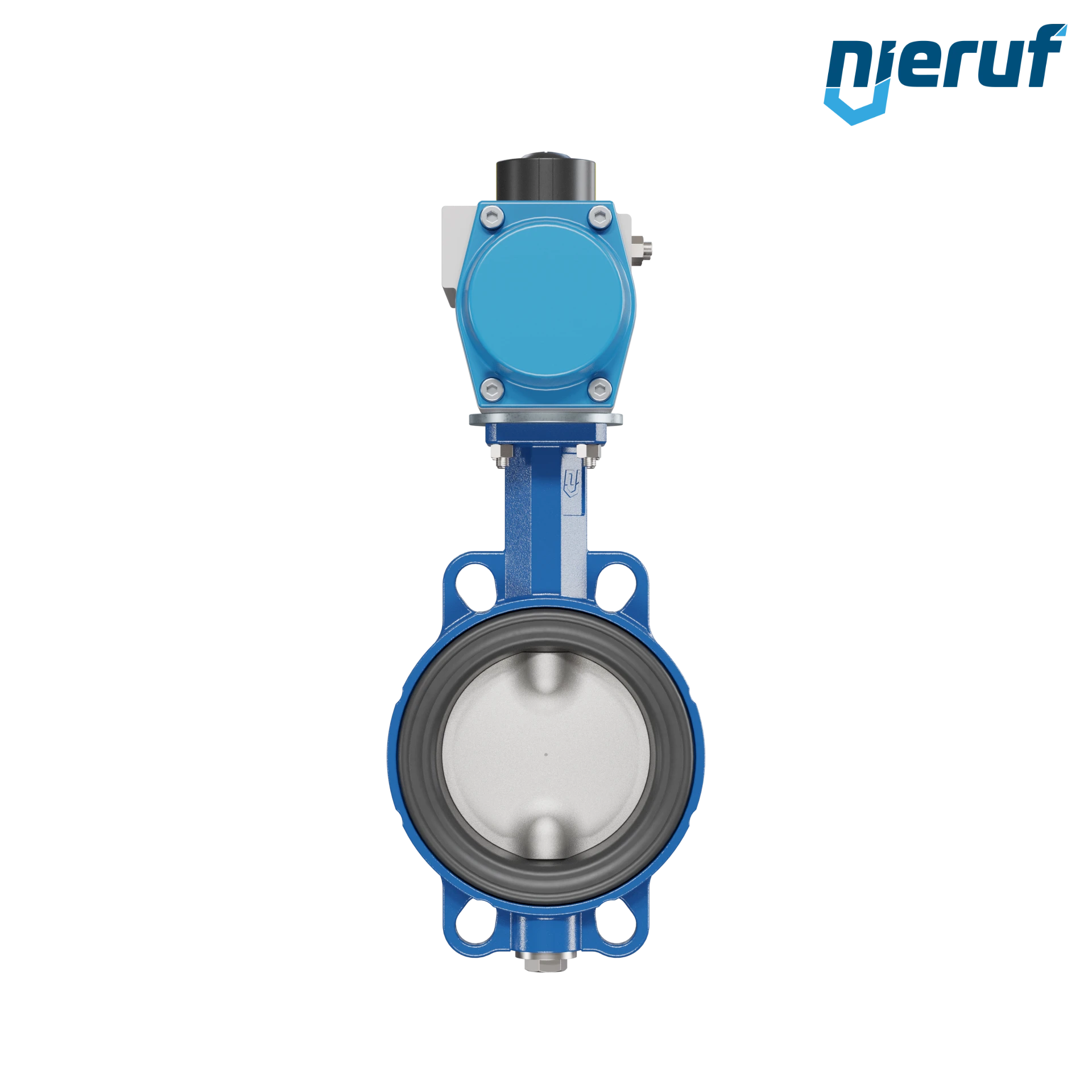

Butterfly valve DN 125 AK01 FPM pneumatic actuator double acting

Butterfly valve DN 125 Wafer type body made of GGG40 with pneumatic actuator double acting seal FPM industry design

product Butterfly valve
type AK01
manufacturer NieRuf
diameter DN 125
nominal pressure PN6-PN10-PN16 & ANSI150
max. working pressure 16 bar
sleeves FPM
media liquid and gaseous media
temperature Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design Wafer type
body material SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc stainless steel 1.4408
actuation pneumatic actuator double acting
actuator Pneumatic actuator AN02 GD-92 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval DIN EN 12266-1 leckage rate A
application industry design
installation position any position
product feature Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 125 AK01 FPM pneumatic actuator double acting

Article no. : AK01120412
product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 125
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: FPM
media: liquid and gaseous media
temperature: Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator double acting
actuator: Pneumatic actuator AN02 GD-92 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.

No spare parts were found for the item number .

FD01000112

flange seal DN125 PN10/16 141x192x2 Klingersil C 4400

€6.10*

€7.26 VAT included.

FL01020112

Flange DN125 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€52.60*

€62.59 VAT included.

NA02010001

5/2 ways NAMUR-Solenoid valve G 1/4" Inch NA02 24V DC

€44.40*

€52.84 VAT included.

EF01000106

Straight male adaptor EF01 brass NBR G1/4" D6mm

€1.00*

€1.19 VAT included.

EF04000606

Elbow connector EF04 brass NBR D6mm

€1.90*

€2.26 VAT included.

EF06010110

Complete single swivel banjo EF06 brass FKM G1/4" D10mm

€4.20*

€5.00 VAT included.

EF07110106

rotary elbow male adaptor parallel EF07 stainless steel FKM G1/4" D6mm

€31.60*

€37.60 VAT included.

VS03010212

joint set butterfly valve/flange DN125 - 5" Inch for flange PN16 steel

€35.20*

€41.89 VAT included.

RF01011201

pipe bend (welded) 90° 139,7 x 2,0 stainless steel 1.4571

€97.20*

€115.67 VAT included.

RF01301304.1

reducing bush (welded) 168,3 x 2,9 to 60,3 x 2,0 stainless steel 1.4571

€105.90*

€126.02 VAT included.

PS01030000

Positioner PS01 for pneumatic actuators double acting with safety function air volume less than 5 l

€833.70*

€992.10 VAT included.
