AK02110013
Butterfly valve AK02 DN 150 PN10-PN16 DVGW-gas
Delivery time: in stock
Express delivery*:
Shipping on: Friday, 22. November
Guaranteed delivery until Monday, 25. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

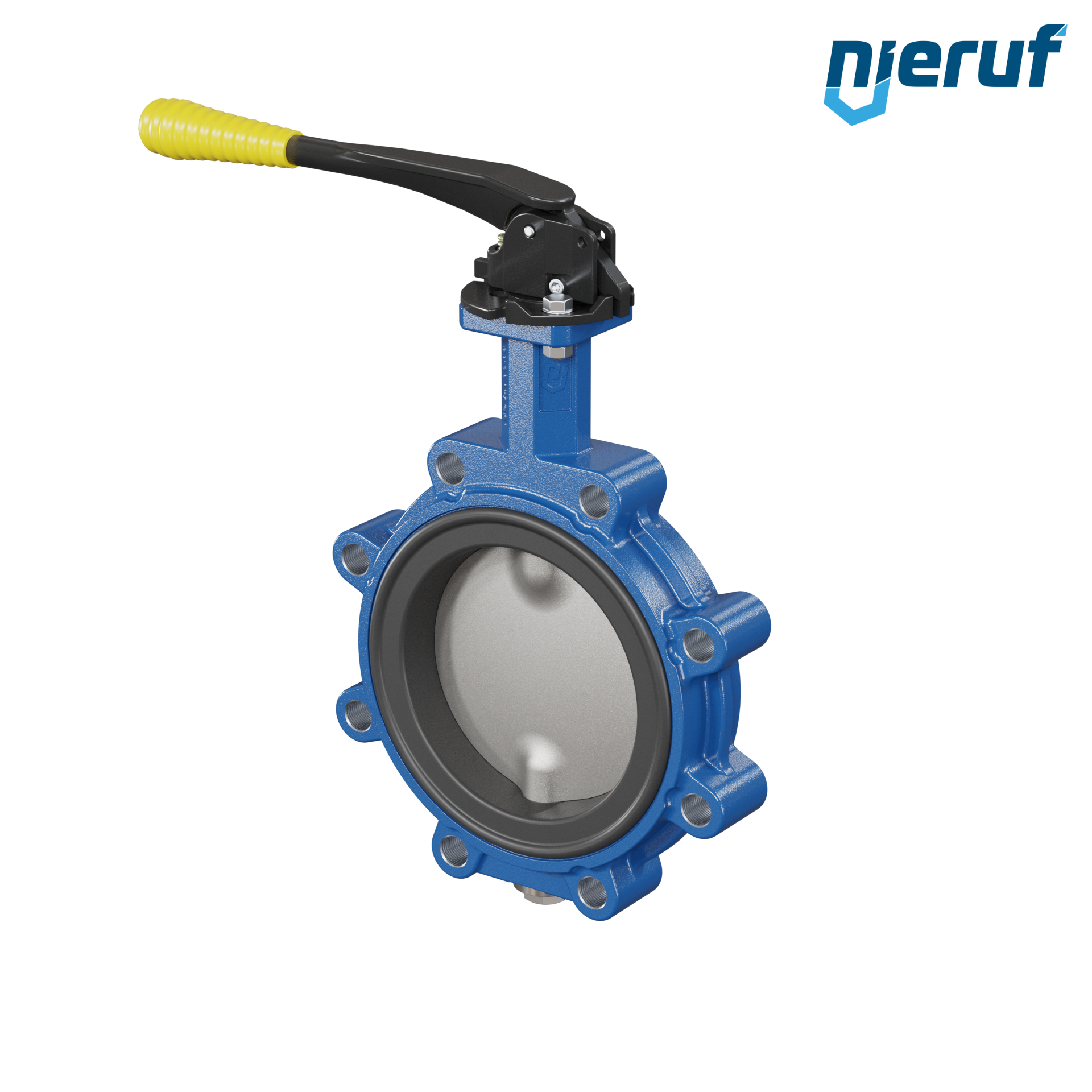

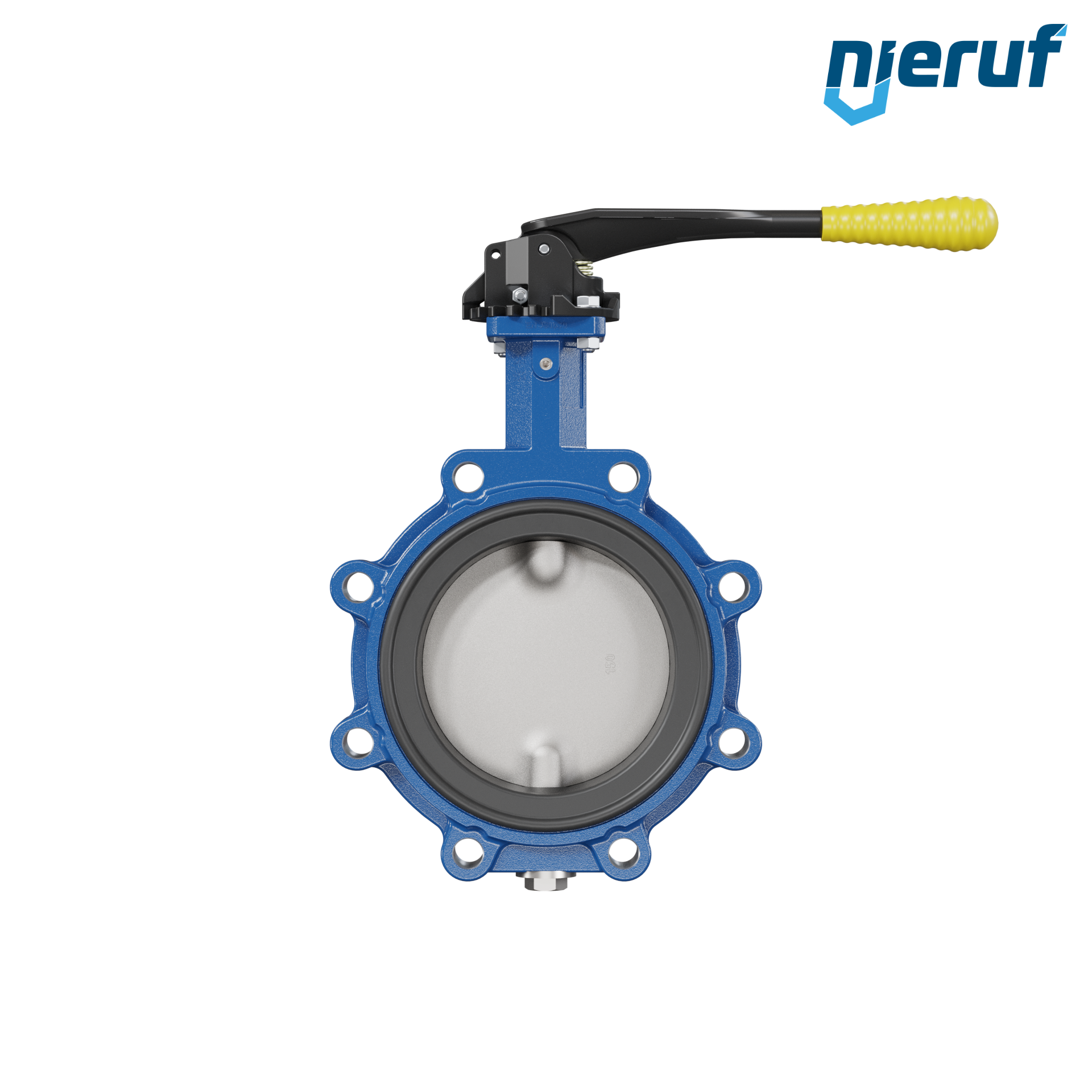

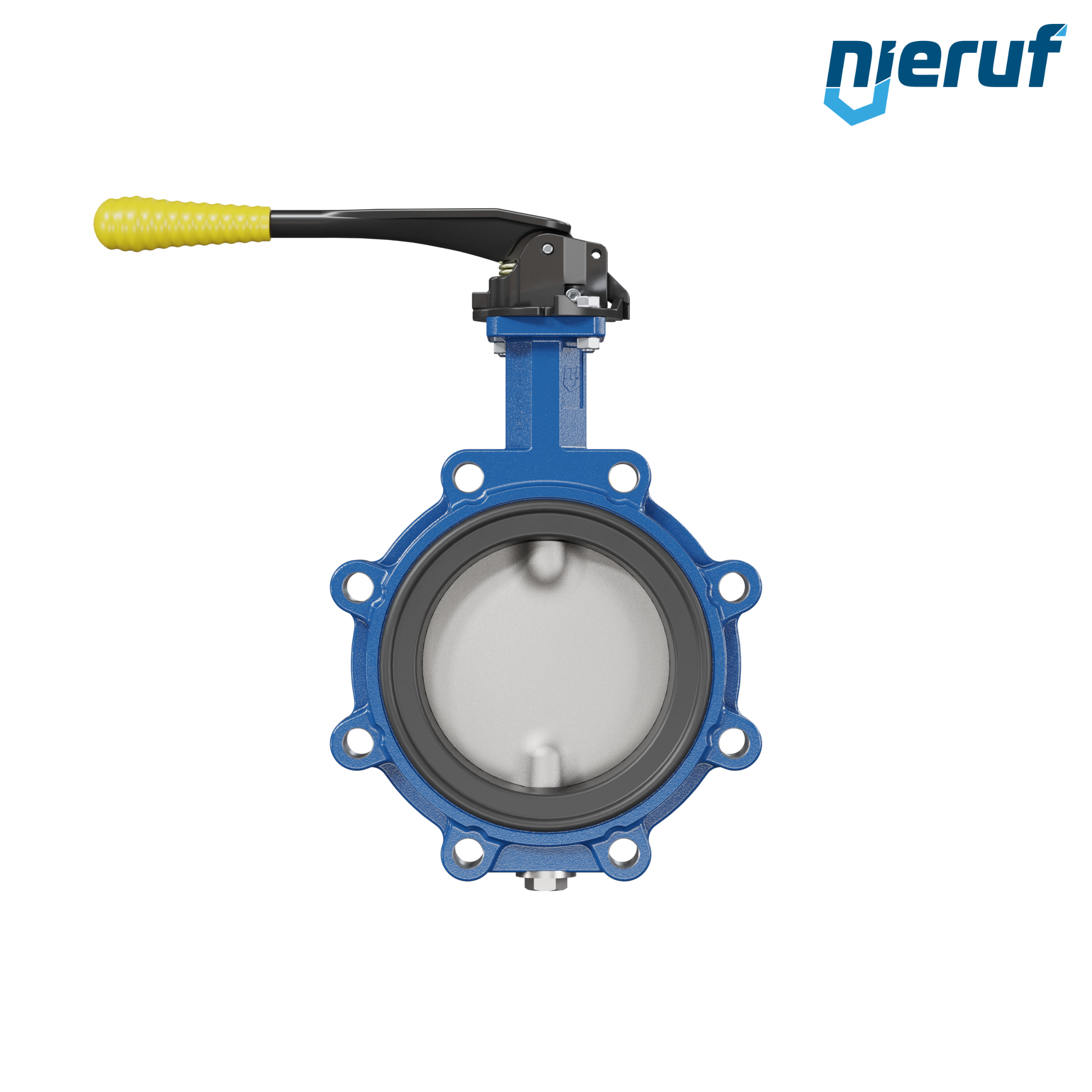

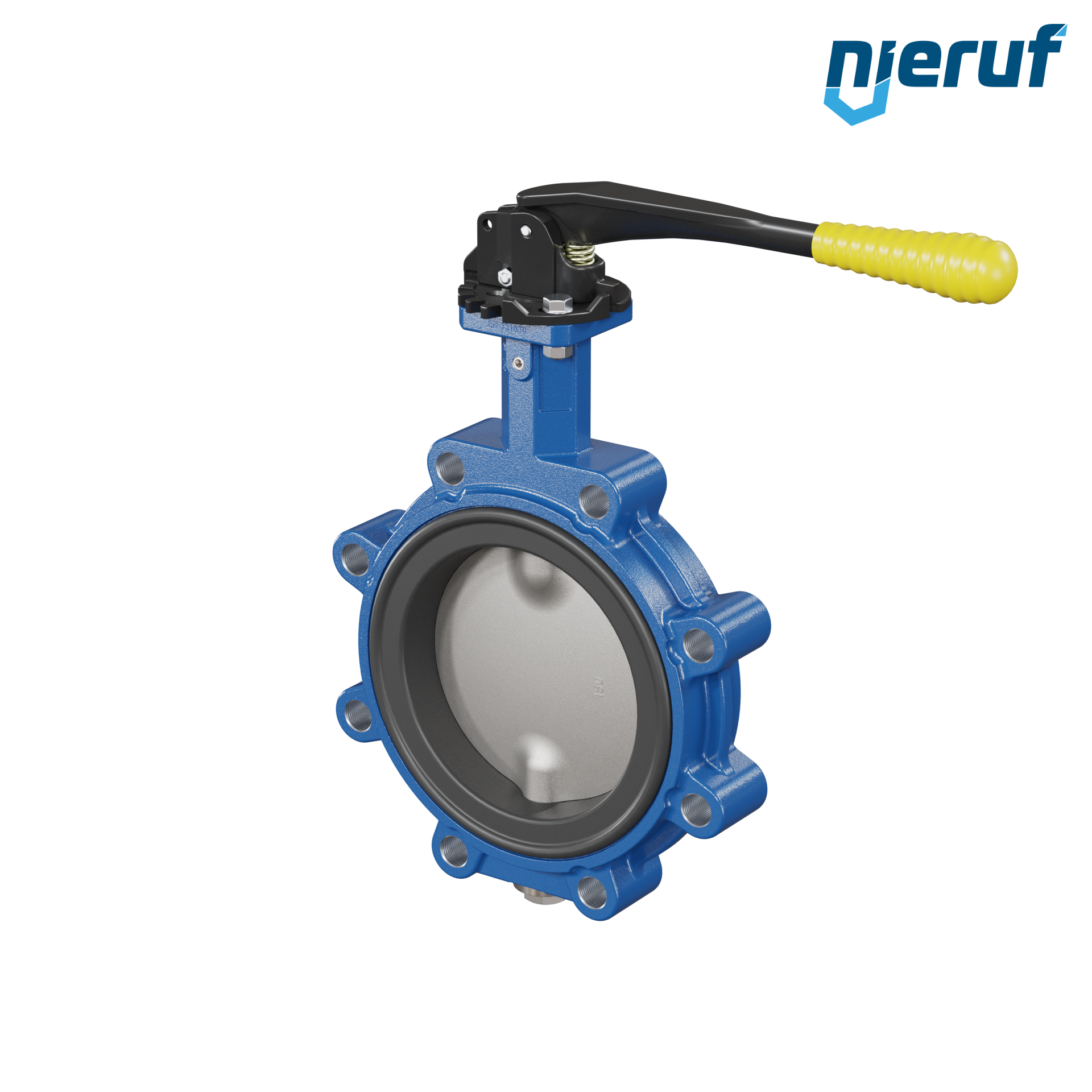

Butterfly valve DN 150 PN10-PN16 Lug type GGG40 with notch lever with yellow sleeve NBR-70-black DVGW gas
| product: | Butterfly valve |
|---|---|
| type: | AK02 |
| manufacturer: | NieRuf |
| diameter: | DN 150 |
| nominal pressure: | PN10-PN16 |
| max. working pressure: | 16 bar |
| sleeves: | NBR-70-black DVGW gas |
| media: | liquid and gaseous media |
| temperature: | -10°C up to +60°C |
| design: | Lug type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | notch lever with yellow sleeve |
| approval: | NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C) |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK02 DN 150 PN10-PN16 DVGW-gas
Article no.
: AK02110013
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 150
nominal pressure:
PN10-PN16
max. working pressure:
16 bar
sleeves:
NBR-70-black DVGW gas
media:
liquid and gaseous media
temperature:
-10°C up to +60°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever with yellow sleeve
approval:
NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
€77.59 VAT included.
€8.45 VAT included.
€183.62 VAT included.
€319.52 VAT included.
