AK02000214

Butterfly valve DN 200 Lug type electric actuator 24-240V DVGW drinking water

€1,133.30*

€1,348.63 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time
2 - 3 weeks

Equipment

AKKUPACK02

AkkuPack BSR for S140-S300

€441.00*

€524.79 VAT included.


DPSKIT02

Digital Positioning System for S140-S300

€386.90*

€460.41 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02000214

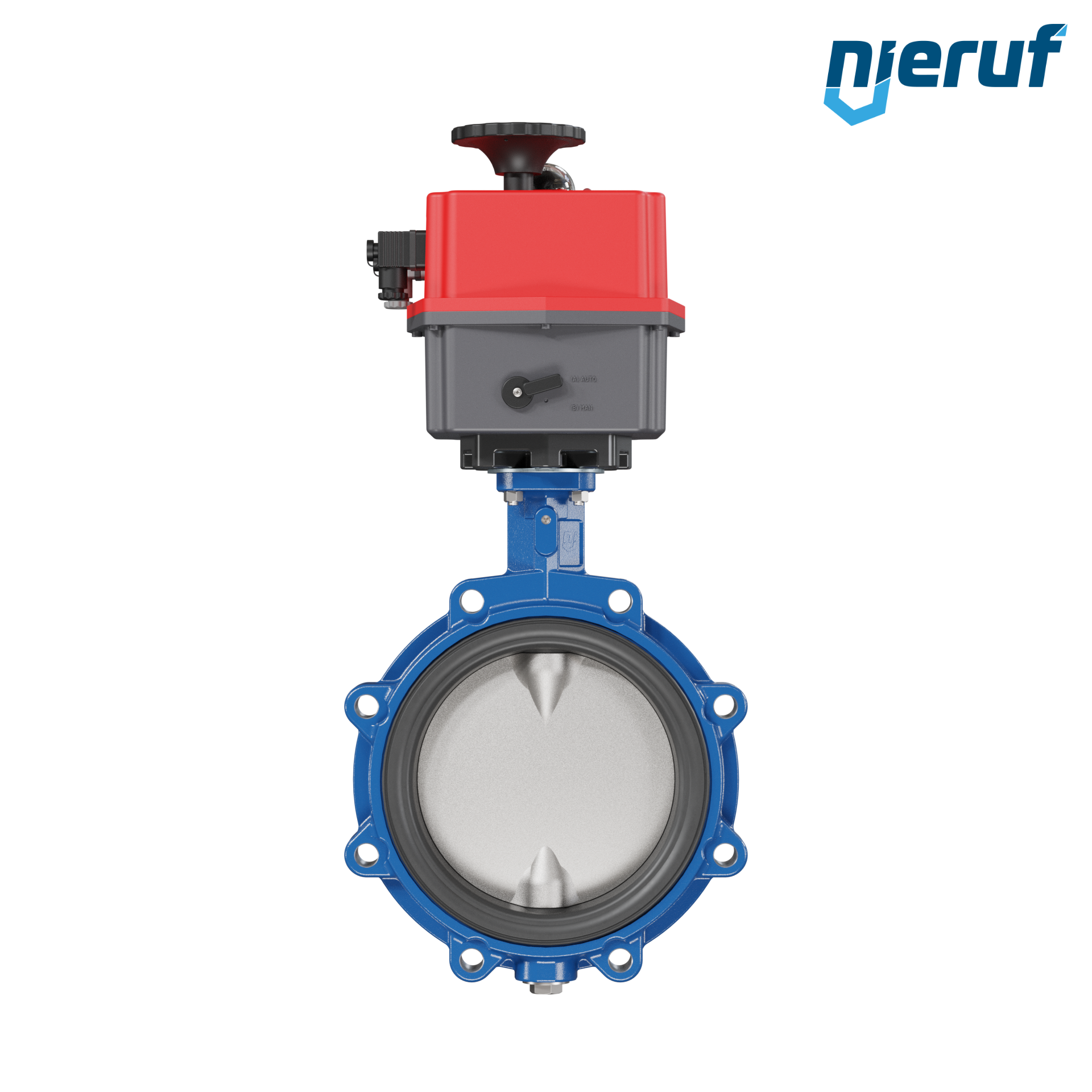

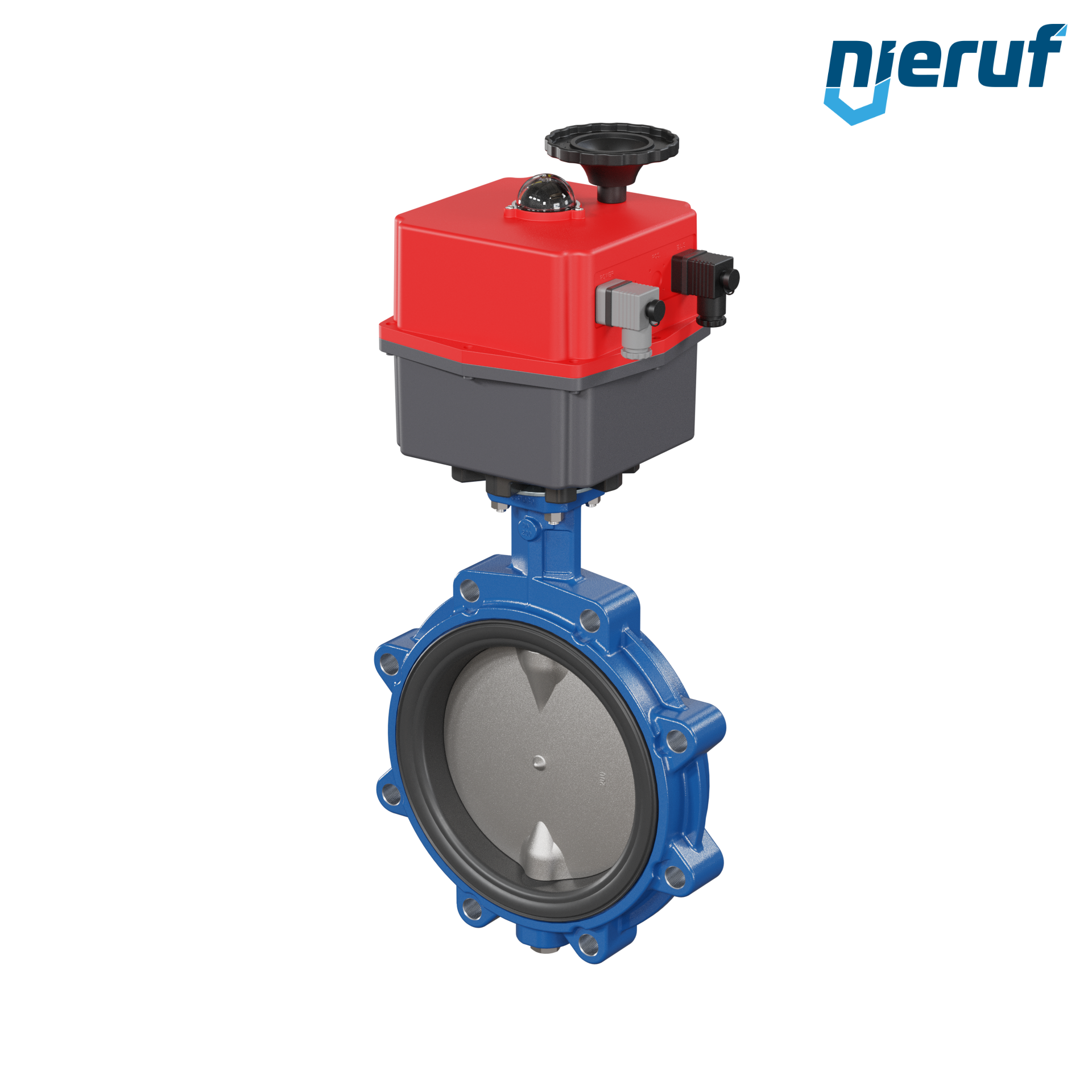

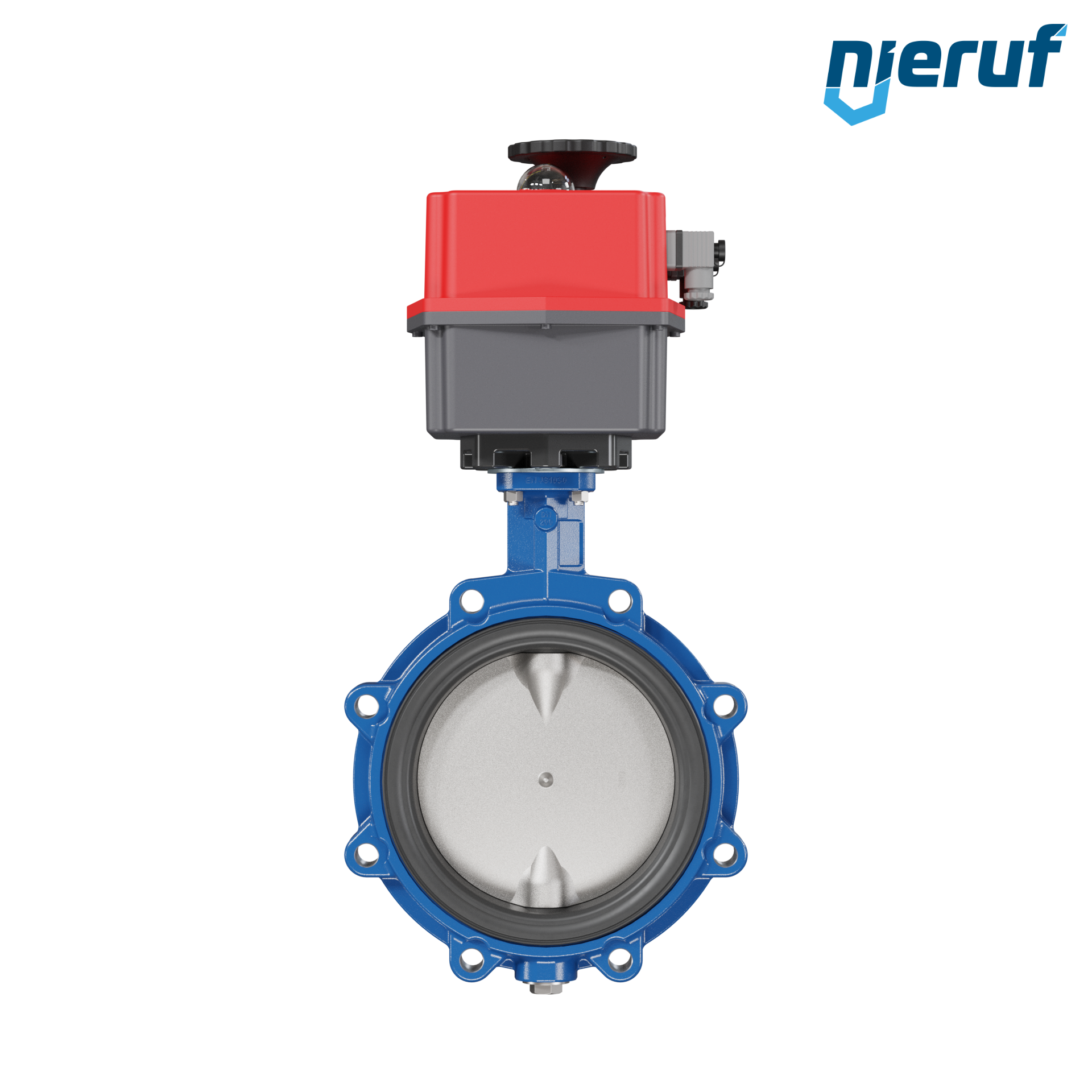

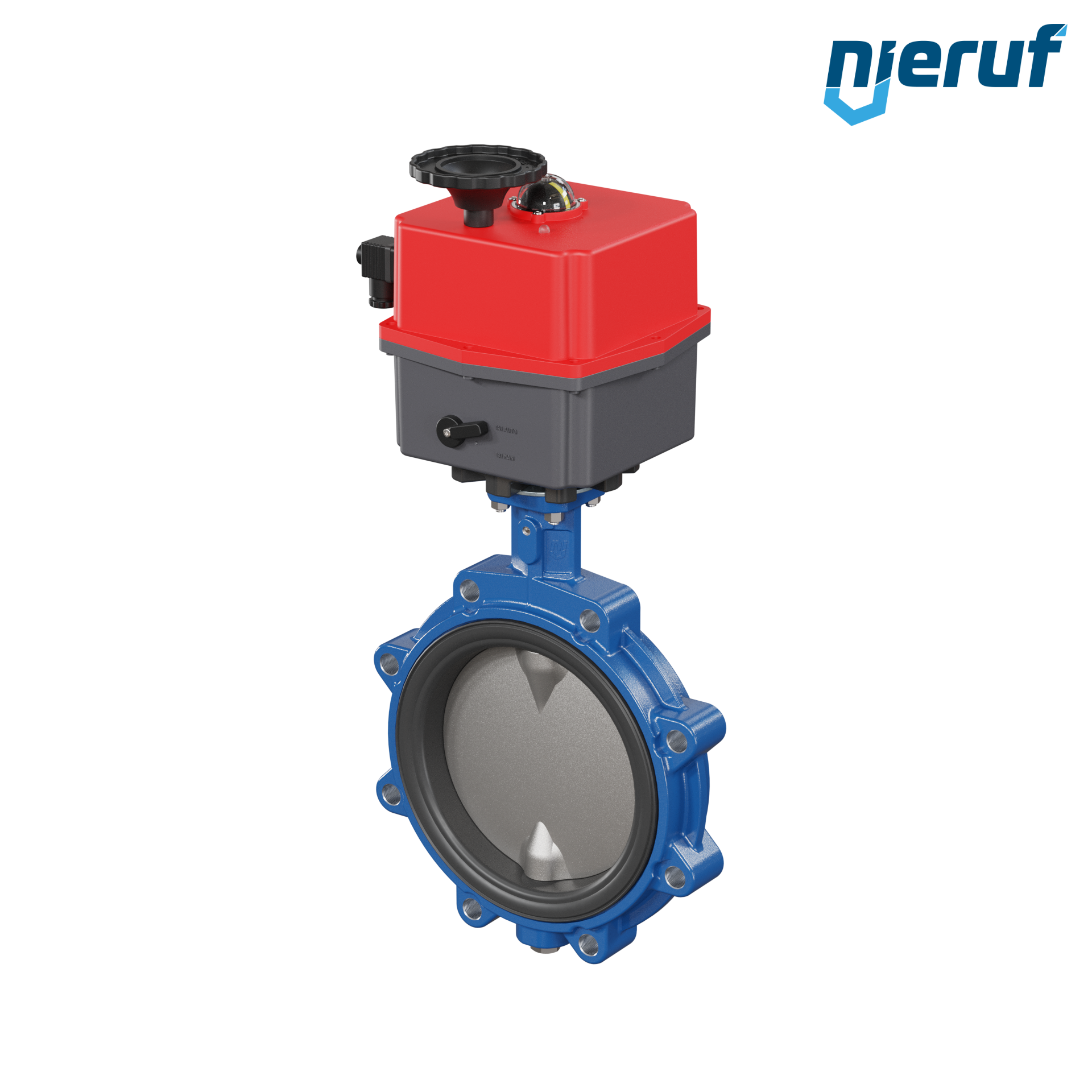

Butterfly valve DN 200 Lug type electric actuator 24-240V DVGW drinking water

Butterfly valve DN 200 PN10 Lug type body made of GGG40 with electric actuator 24-240V AC/DC seal EPDM DVGW drinking water, WRAS, ACS, W270 industry design

product Butterfly valve
type AK02
manufacturer NieRuf
diameter DN 200
nominal pressure PN10
max. working pressure 10 bar
sleeves EPDM DVGW drinking water, WRAS, ACS, W270
media liquid and gaseous media
temperature Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design Lug type
body material SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc stainless steel 1.4408
actuation electric actuator 24-240V AC/DC
actuator Electronic actuator AN01 S300 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application industry design
installation position any position
product feature Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 200 Lug type electric actuator 24-240V DVGW drinking water

Article no. : AK02000214
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 200
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: EPDM DVGW drinking water, WRAS, ACS, W270
media: liquid and gaseous media
temperature: Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: electric actuator 24-240V AC/DC
actuator: Electronic actuator AN01 S300 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval: EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.

No spare parts were found for the item number .

FD01000114

flange seal DN200 PN10/16 220x273x2 Klingersil C 4400

€8.40*

€10.00 VAT included.

FL01020114

Flange DN200 PN10 EN1092-1 11 B1 C22.8 / P250GH bare

€85.20*

€101.39 VAT included.

RF01011405

pipe bend (welded) 90° 219,1 x 3,0 stainless steel 1.4571

€308.00*

€366.52 VAT included.

RF01101405

tee (welded) 219,1 x 3,0 stainless steel 1.4571

€423.10*

€503.49 VAT included.
