AK02000414

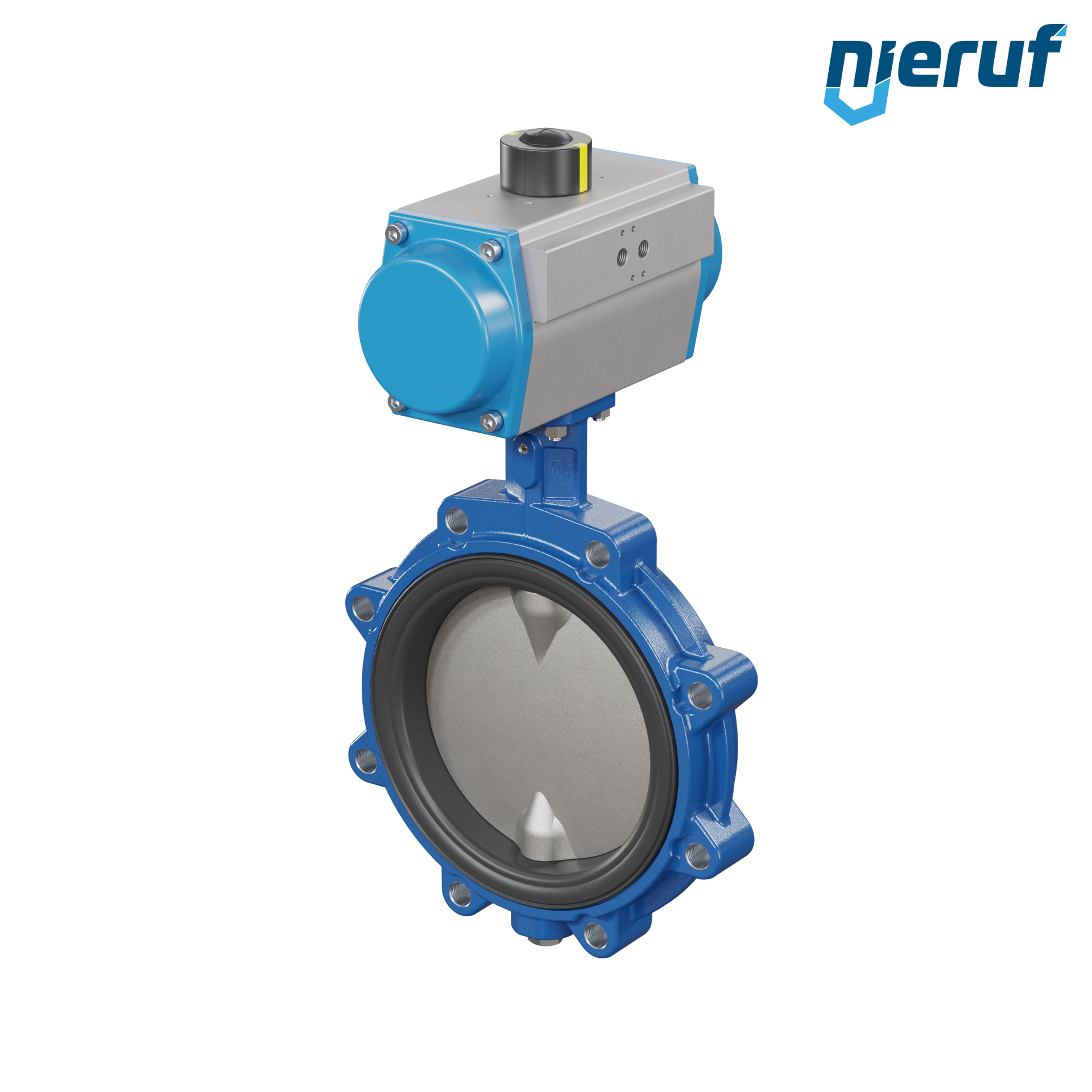

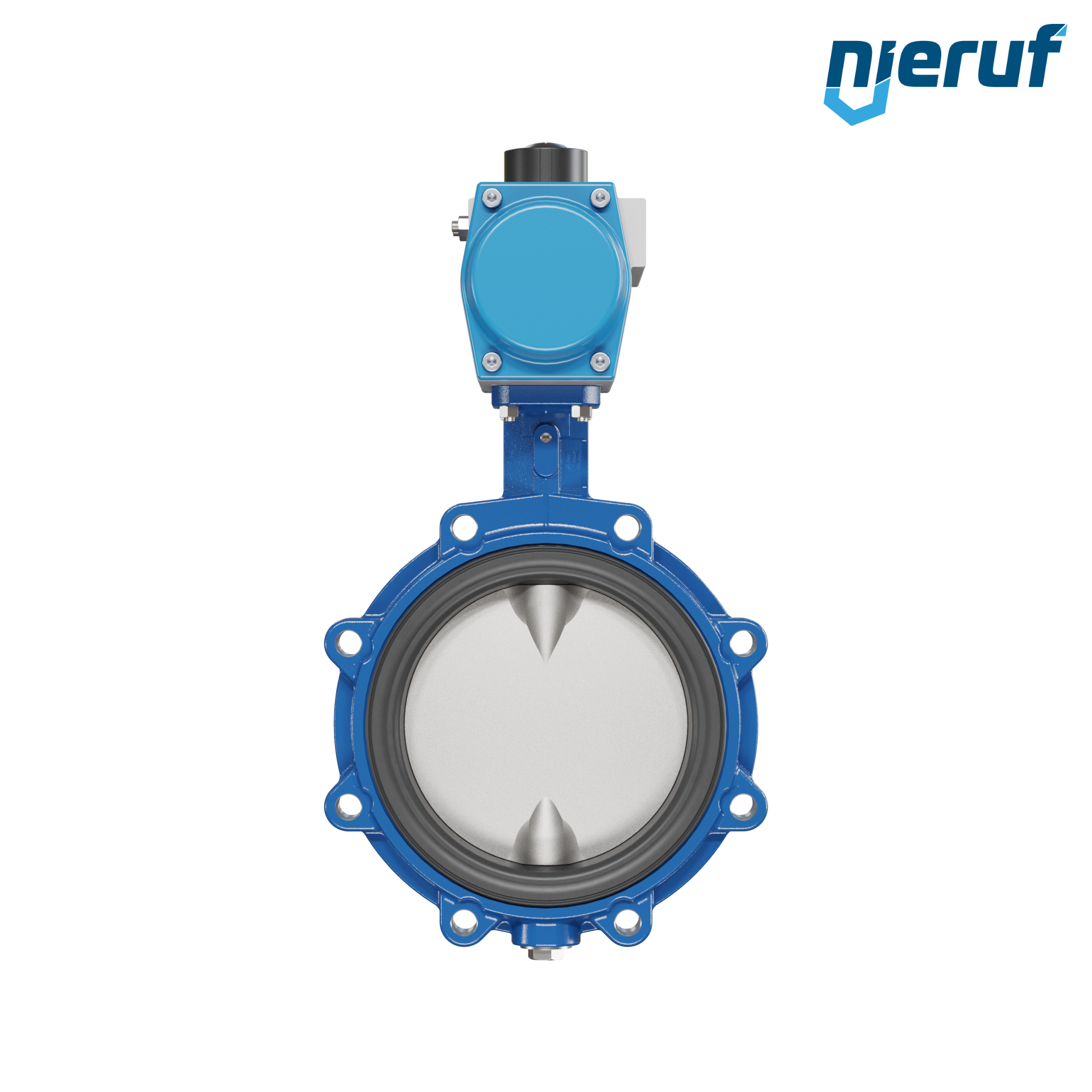

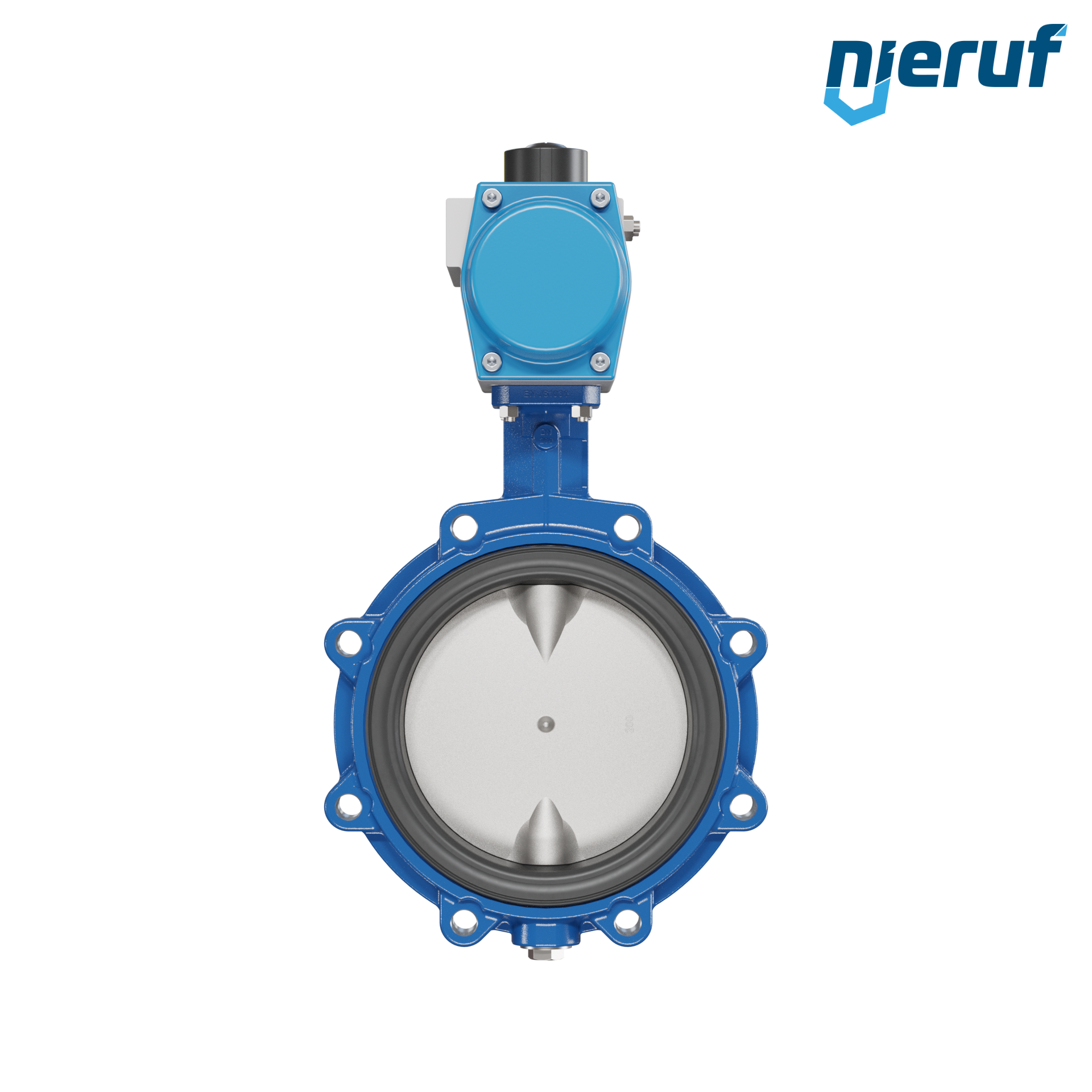

Butterfly valve DN 200 AK02 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator double acting
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Butterfly valve DN 200 Lug type body made of GGG40 with pneumatic actuator double acting seal EPDM DVGW drinking water, WRAS, ACS, W270 industry design
| product: | Butterfly valve |
|---|---|
| type: | AK02 |
| manufacturer: | NieRuf |
| diameter: | DN 200 |
| nominal pressure: | PN10 |
| max. working pressure: | 10 bar |
| sleeves: | EPDM DVGW drinking water, WRAS, ACS, W270 |
| media: | liquid and gaseous media |
| temperature: | Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| design: | Lug type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | pneumatic actuator double acting |
| actuator: | Pneumatic actuator AN02 GD-105 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). |
| approval: | EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C) |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 200 AK02 EPDM DVGW drinking water, WRAS, ACS, W270 pneumatic actuator double acting
Article no.
: AK02000414
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 200
nominal pressure:
PN10
max. working pressure:
10 bar
sleeves:
EPDM DVGW drinking water, WRAS, ACS, W270
media:
liquid and gaseous media
temperature:
Butterfly valve: -20°C up to +90°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator double acting
actuator:
Pneumatic actuator AN02 GD-105 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval:
EPDM for water DW-6201CR0174 nach DIN EN 1074-1/-2 (Operating range - 20 °C to +90 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
€25.35 VAT included.
€101.39 VAT included.
€52.84 VAT included.
€1.19 VAT included.
€3.21 VAT included.
€3.93 VAT included.
€37.60 VAT included.
€366.52 VAT included.
€503.49 VAT included.
