AK02020515

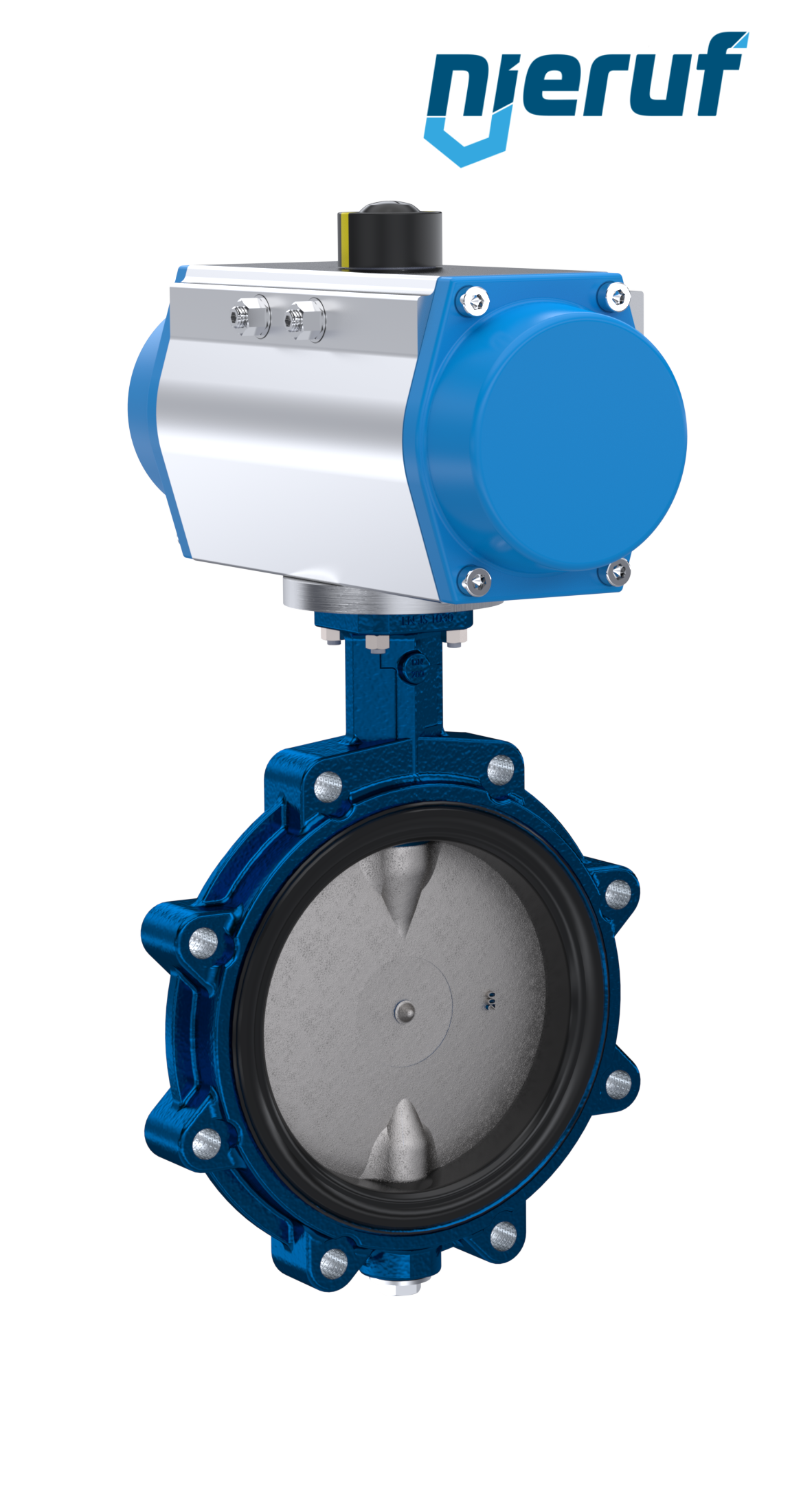

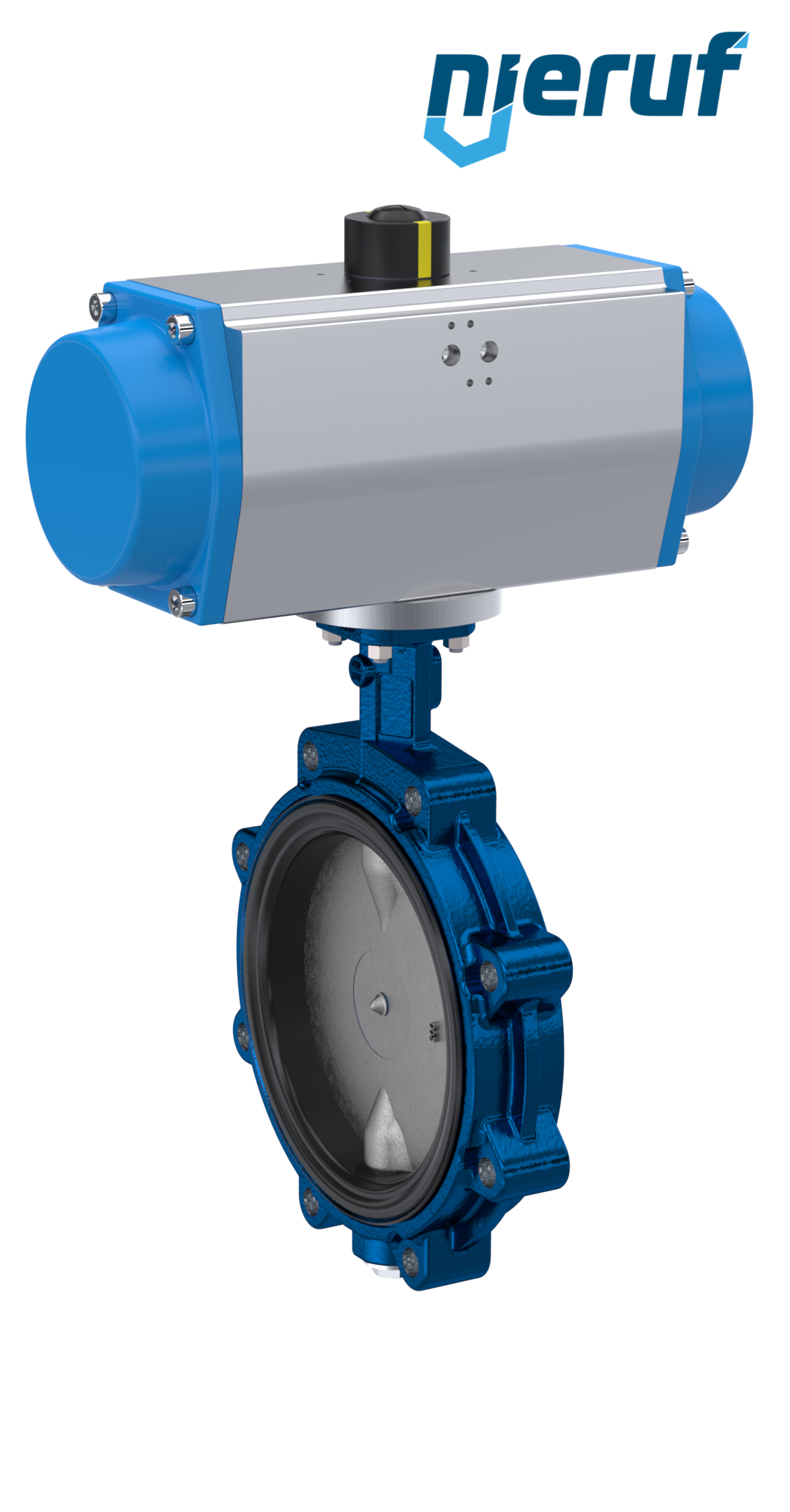

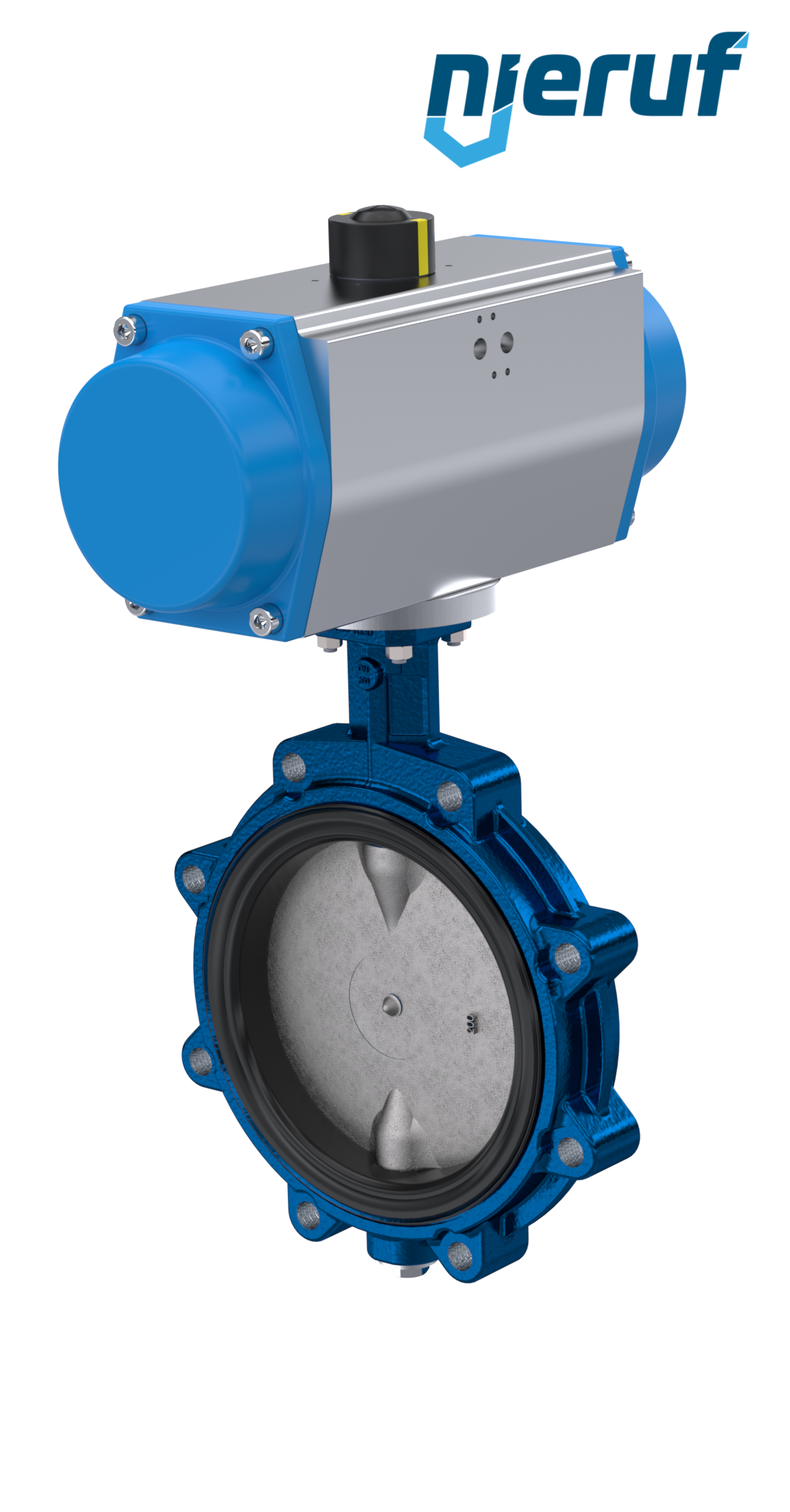

Butterfly valve DN 250 AK02 FPM pneumatic actuator single acting normally closed

€1,951.40*

€2,322.17 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 2 - 3 weeks

Delivery information

Equipment

NA01010001

3/2 ways NAMUR-Solenoid valve G 1/4" Inch NA01 24V DC

€44.40*

€52.84 VAT included.


PR02000000

Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black

€70.80*

€84.25 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02020515
Butterfly valve DN 250 AK02 FPM pneumatic actuator single acting normally closed

Butterfly valve DN 250 Lug type body made of GGG40 with pneumatic actuator single acting normally closed seal FPM industry design

product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 250
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: FPM
media: liquid and gaseous media
temperature: Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator single acting normally closed
actuator: Pneumatic actuator AN02 GS-160 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 250 AK02 FPM pneumatic actuator single acting normally closed

Article no. : AK02020515
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 250
nominal pressure: PN10
max. working pressure: 10 bar
sleeves: FPM
media: liquid and gaseous media
temperature: Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: pneumatic actuator single acting normally closed
actuator: Pneumatic actuator AN02 GS-160 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). (spring closes)
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
