AK01120206

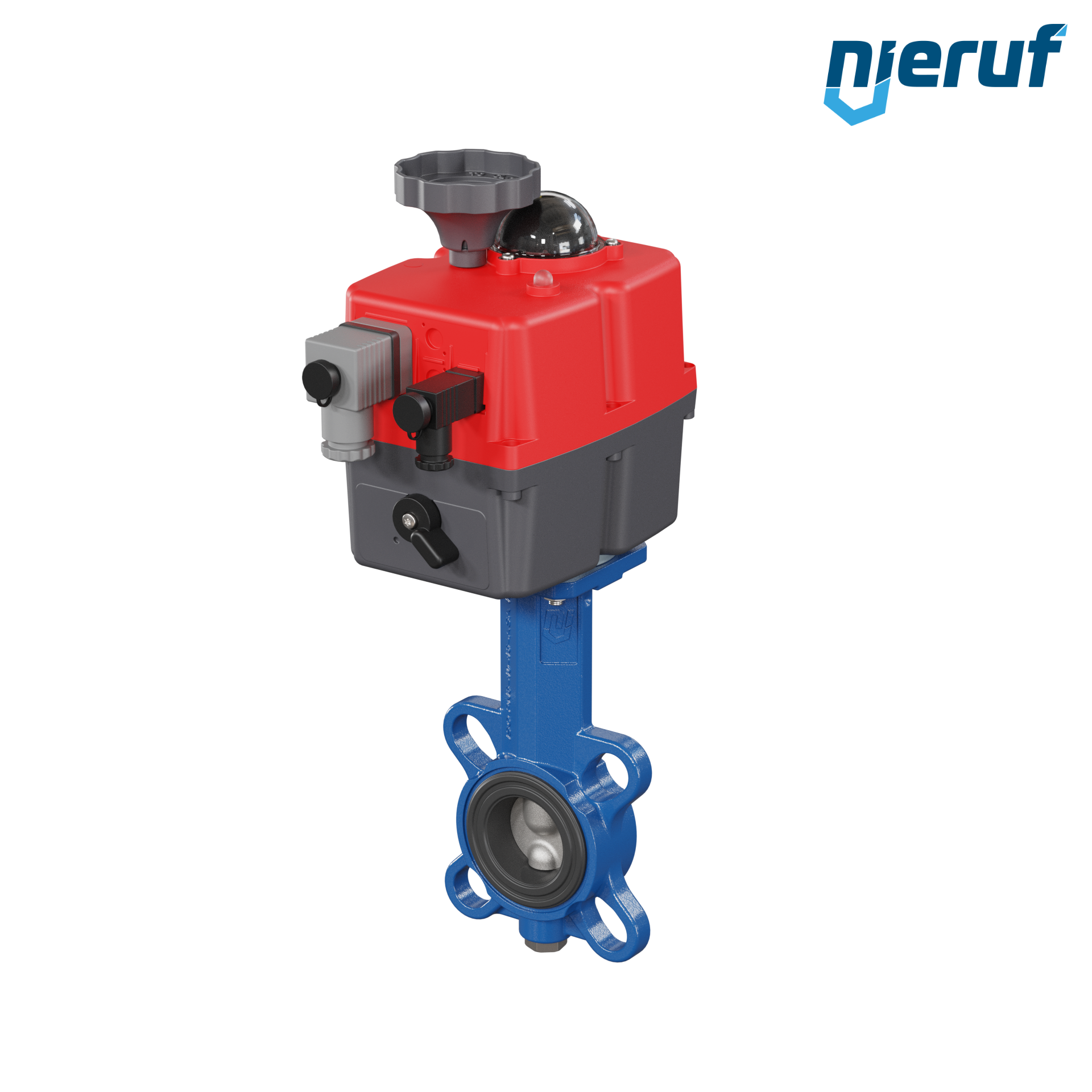

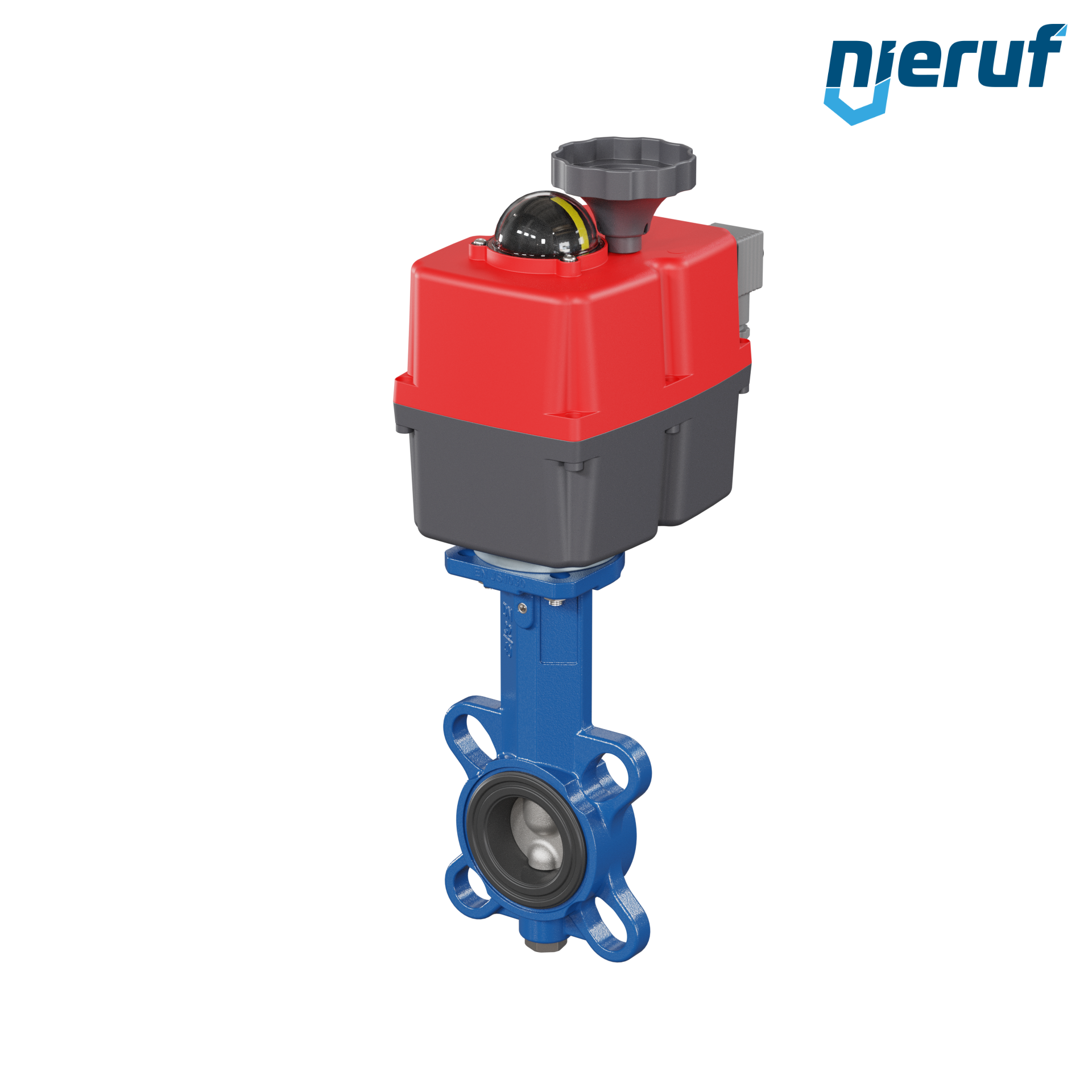

Butterfly valve DN 32 Wafer type electric actuator 24-240V FPM

€462.60*

€550.49 VAT included.


Configure valve
Configure your automated valve for your specific application here.

Delivery time: 2 - 3 weeks

Delivery information

Equipment

AKKUPACK01

AkkuPack BSR for S20-S85

€282.70*

€336.41 VAT included.


DPSKIT01

Digital Positioning System for S20-S85

€254.10*

€302.38 VAT included.


×
Our employee <strong>Max Eisele</strong><br>will be happy to help you

Questions about the article?

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: AK01120206
Butterfly valve DN 32 Wafer type electric actuator 24-240V FPM

Butterfly valve DN 32 PN6-PN10-PN16 & ANSI150 Wafer type body made of GGG40 with electric actuator 24-240V AC/DC seal FPM industry design

product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 32
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: FPM
media: liquid and gaseous media
temperature: Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: electric actuator 24-240V AC/DC
actuator: Electronic actuator AN01 S20 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve DN 32 Wafer type electric actuator 24-240V FPM

Article no. : AK01120206
product: Butterfly valve
type: AK01
manufacturer: NieRuf
diameter: DN 32
nominal pressure: PN6-PN10-PN16 & ANSI150
max. working pressure: 16 bar
sleeves: FPM
media: liquid and gaseous media
temperature: Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design: Wafer type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: electric actuator 24-240V AC/DC
actuator: Electronic actuator AN01 S20 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval: DIN EN 12266-1 leckage rate A
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.
