AK02110406

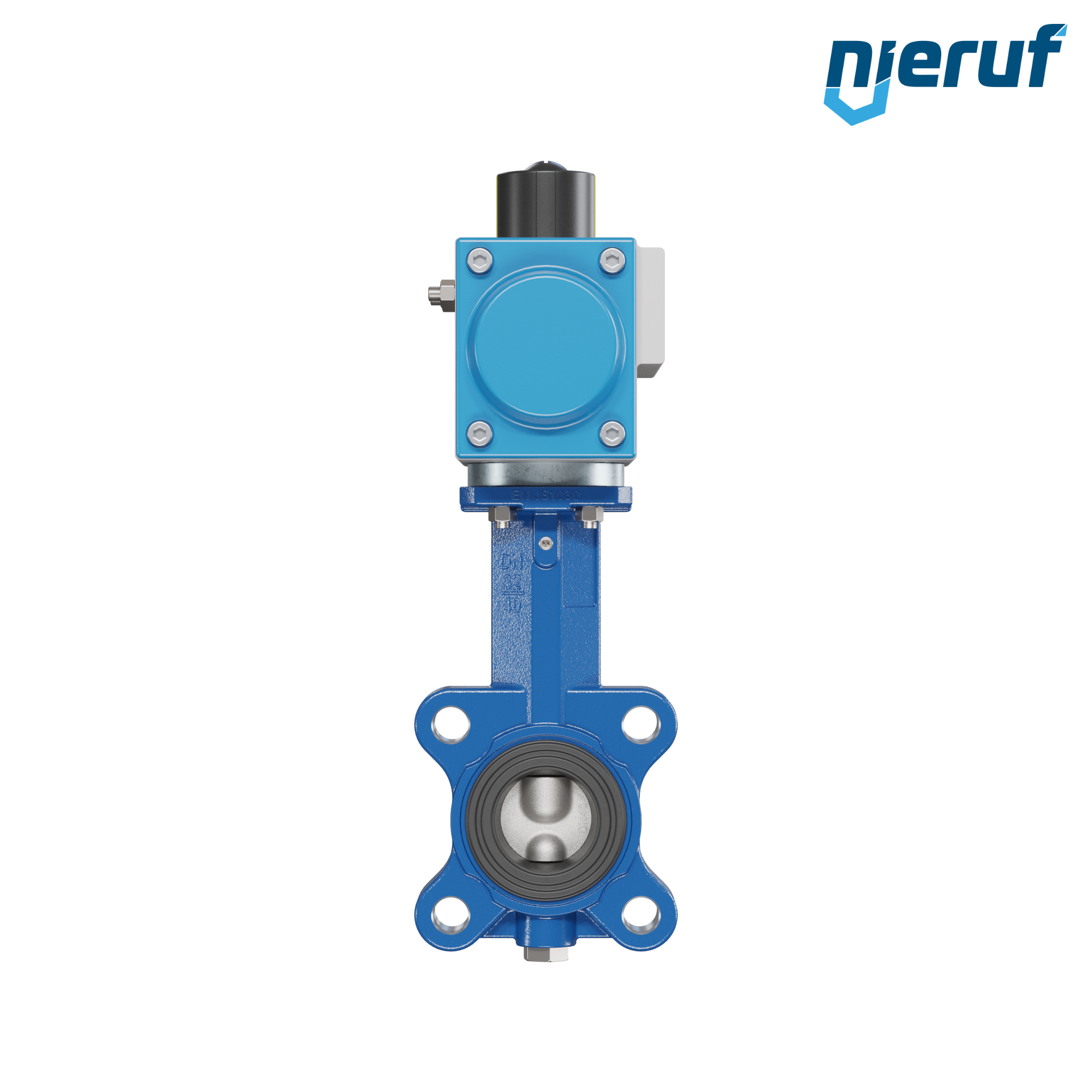

Butterfly valve DN 32 AK02 NBR-70-black DVGW gas pneumatic actuator double acting
Delivery time: in stock
Express delivery:
Shipping on: Friday, 27. December
Guaranteed delivery until Monday, 30. December, 12 o'clock
Order in within by express delivery
Equipment
Position indicator PR02 mechanical micro switches ZF, D44X Polyamid PA6 black
€84.25 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Butterfly valve DN 32 Lug type body made of GGG40 with pneumatic actuator double acting seal NBR-70-black DVGW gas industry design
| product: | Butterfly valve |
|---|---|
| type: | AK02 |
| manufacturer: | NieRuf |
| diameter: | DN 32 |
| nominal pressure: | PN10-PN16 |
| max. working pressure: | 16 bar |
| sleeves: | NBR-70-black DVGW gas |
| media: | liquid and gaseous media |
| temperature: | Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C |
| design: | Lug type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | pneumatic actuator double acting |
| actuator: | Pneumatic actuator AN02 GD-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa). |
| approval: | NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C) |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 32 AK02 NBR-70-black DVGW gas pneumatic actuator double acting
Article no.
: AK02110406
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 32
nominal pressure:
PN10-PN16
max. working pressure:
16 bar
sleeves:
NBR-70-black DVGW gas
media:
liquid and gaseous media
temperature:
Butterfly valve: -10°C up to +60°C (depending on working pressure and media) - pneumatic actuator: - 20°C bis + 80°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
pneumatic actuator double acting
actuator:
Pneumatic actuator AN02 GD-63 with Position indicator, Control Pressure: 6,0 bar (0,6 MPa).
approval:
NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can be optionally extended with a limit switch box.
€2.50 VAT included.
€17.85 VAT included.
€52.84 VAT included.
€1.19 VAT included.
€5.00 VAT included.
€37.60 VAT included.
€10.23 VAT included.
€37.96 VAT included.
€11.78 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
