AK02120009
Butterfly valve AK02 DN 65 PN10-PN16 FPM
Delivery time: in stock
Express delivery:
Shipping on: Tuesday, 31. December
Guaranteed delivery until Wednesday, 01. January, 12 o'clock
Order in within by express delivery
Equipment
lever with spring return F05-F07 14x14 shaft torque value max. 30Nm
€170.17 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

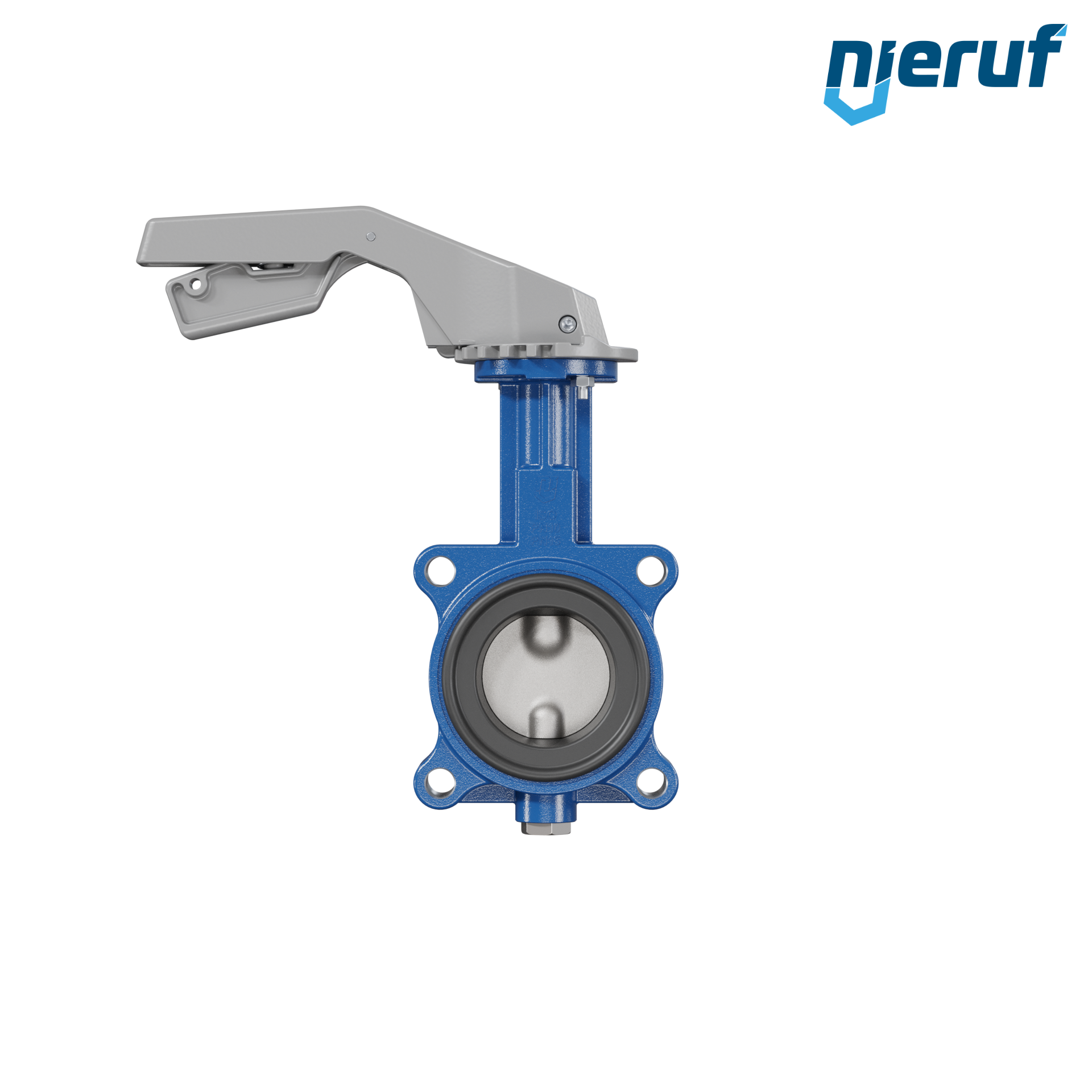

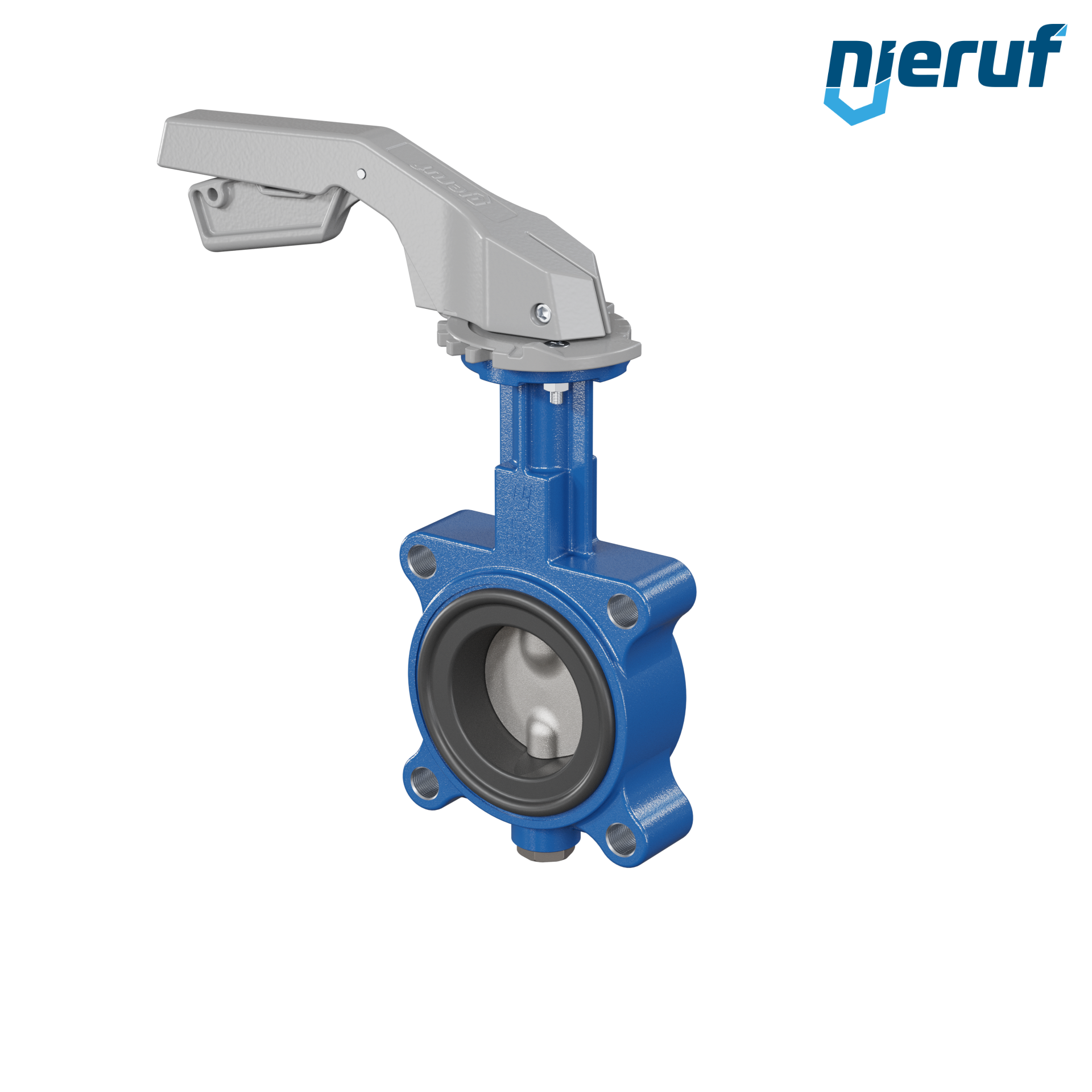

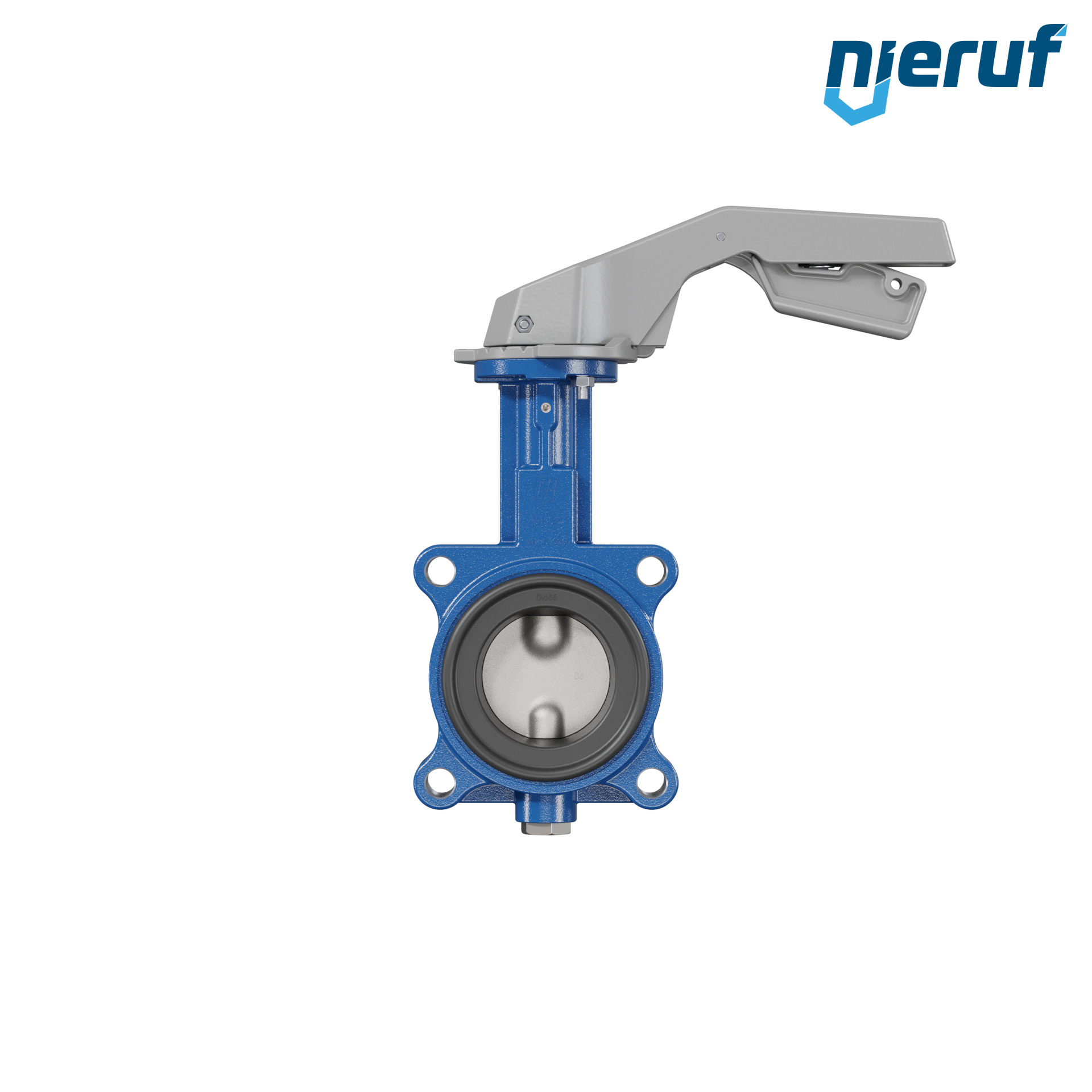

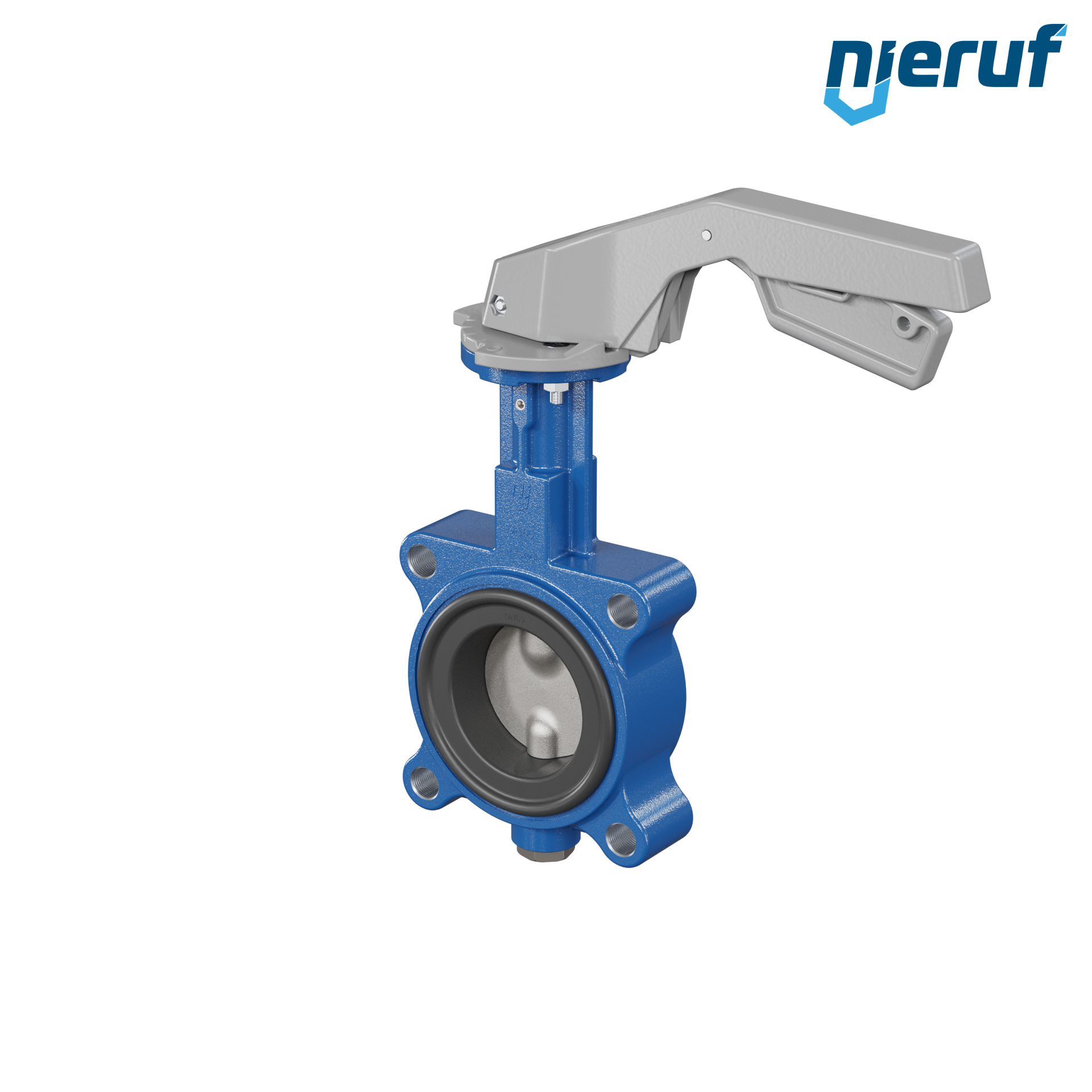

Butterfly valve DN 65 PN10-PN16 Lug type body made of GGG40 with notch lever grey seal FPM for liquid and gaseous media industry design
| product: | Butterfly valve |
|---|---|
| type: | AK02 |
| manufacturer: | NieRuf |
| diameter: | DN 65 |
| nominal pressure: | PN10-PN16 |
| max. working pressure: | 16 bar |
| sleeves: | FPM |
| media: | liquid and gaseous media |
| temperature: | -5°C up to +200°C |
| design: | Lug type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | notch lever grey |
| approval: | DIN EN 12266-1 leckage rate A |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve AK02 DN 65 PN10-PN16 FPM
Article no.
: AK02120009
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 65
nominal pressure:
PN10-PN16
max. working pressure:
16 bar
sleeves:
FPM
media:
liquid and gaseous media
temperature:
-5°C up to +200°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
notch lever grey
approval:
DIN EN 12266-1 leckage rate A
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
