AK02110009

Butterfly valve AK02 DN 65 PN10-PN16 DVGW-gas

€104.50*

€124.36 VAT included.

Delivery time
in stock
Express delivery*

Order in within by express delivery

Shipping on: Tuesday, 11. March

Guaranteed delivery until Wednesday, 12. March, 12 o'clock

* Specified delivery times apply for Mon. - Fri. without consideration of public holidays.

Equipment

HB04000004

lever with spring return F05-F07 14x14 shaft torque value max. 30Nm

€143.00*

€170.17 VAT included.


FL01020109

Flange DN65 PN10/16 EN1092-1 11 B1 C22.8 / P250GH bare

€26.40*

€31.42 VAT included.


×

Questions about the article?

Our employee <strong>Max Eisele</strong><br>will be happy to help you

Our employee Max Eisele
will be happy to help you

Tel: +49714396669-12

E-Mail: eisele@nieruf.com

NIERUF-SERVICE

NieRuf-Exchange

NieRuf-Exchange

24 months warranty

24 months warranty

Certified

Certified

Product number: AK02110009

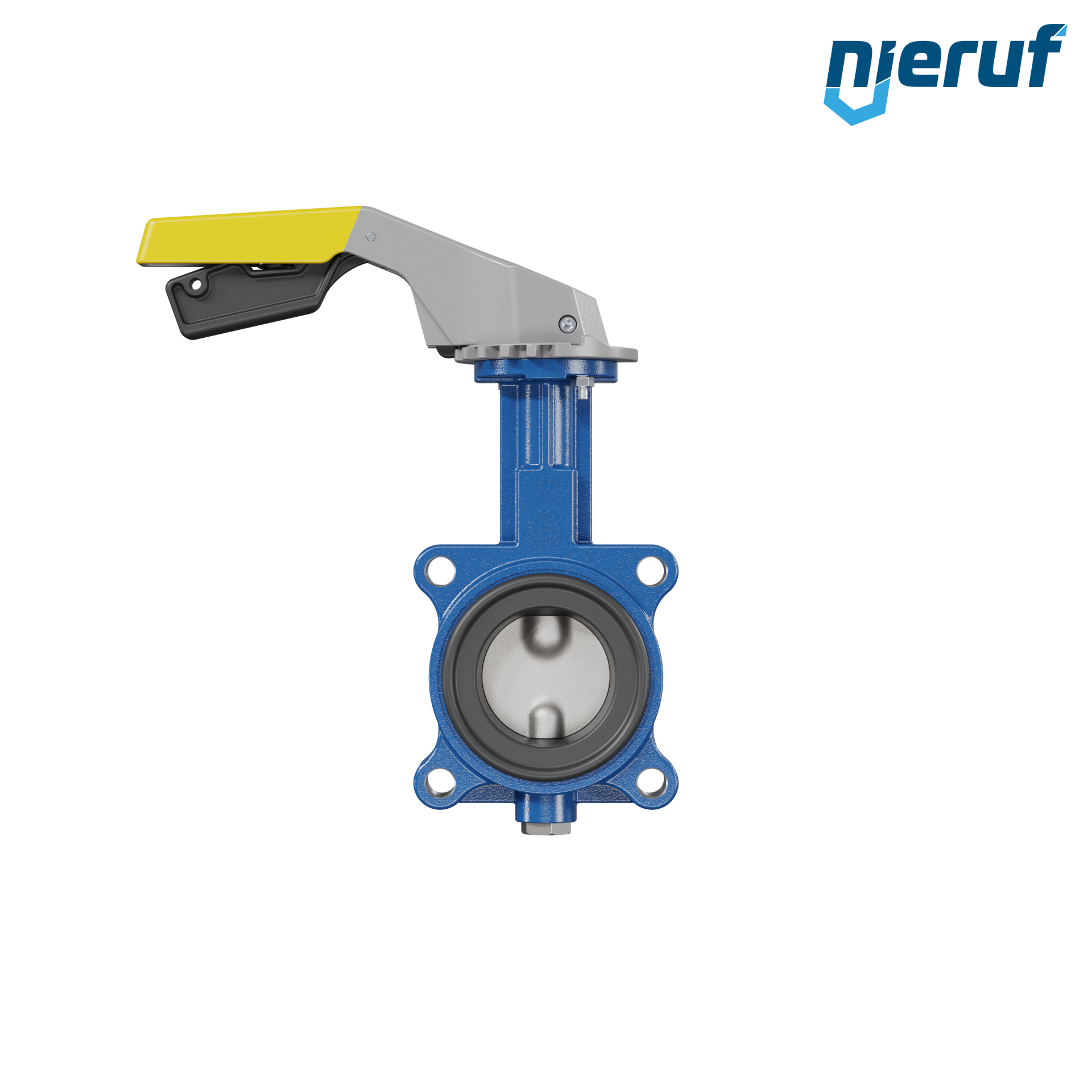

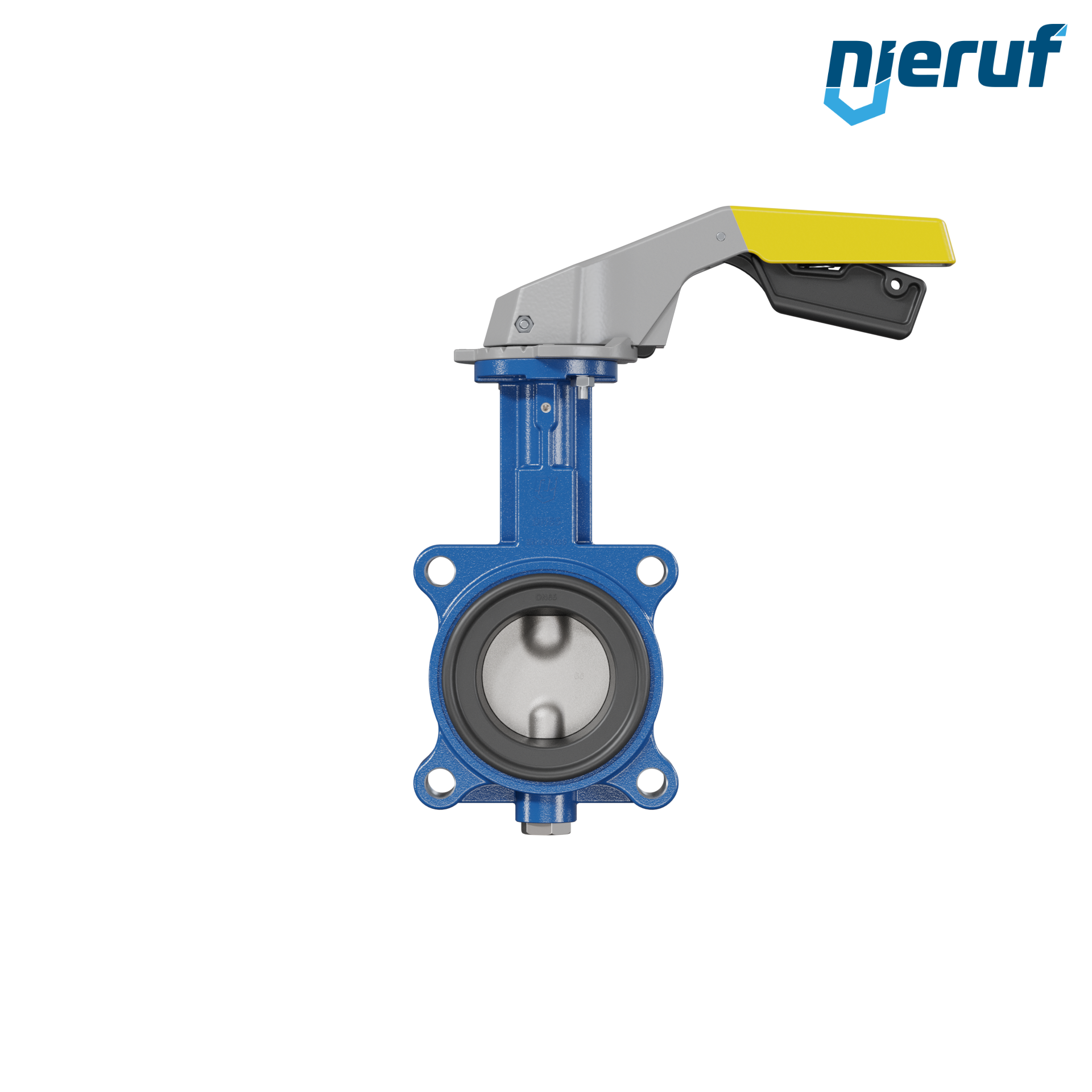

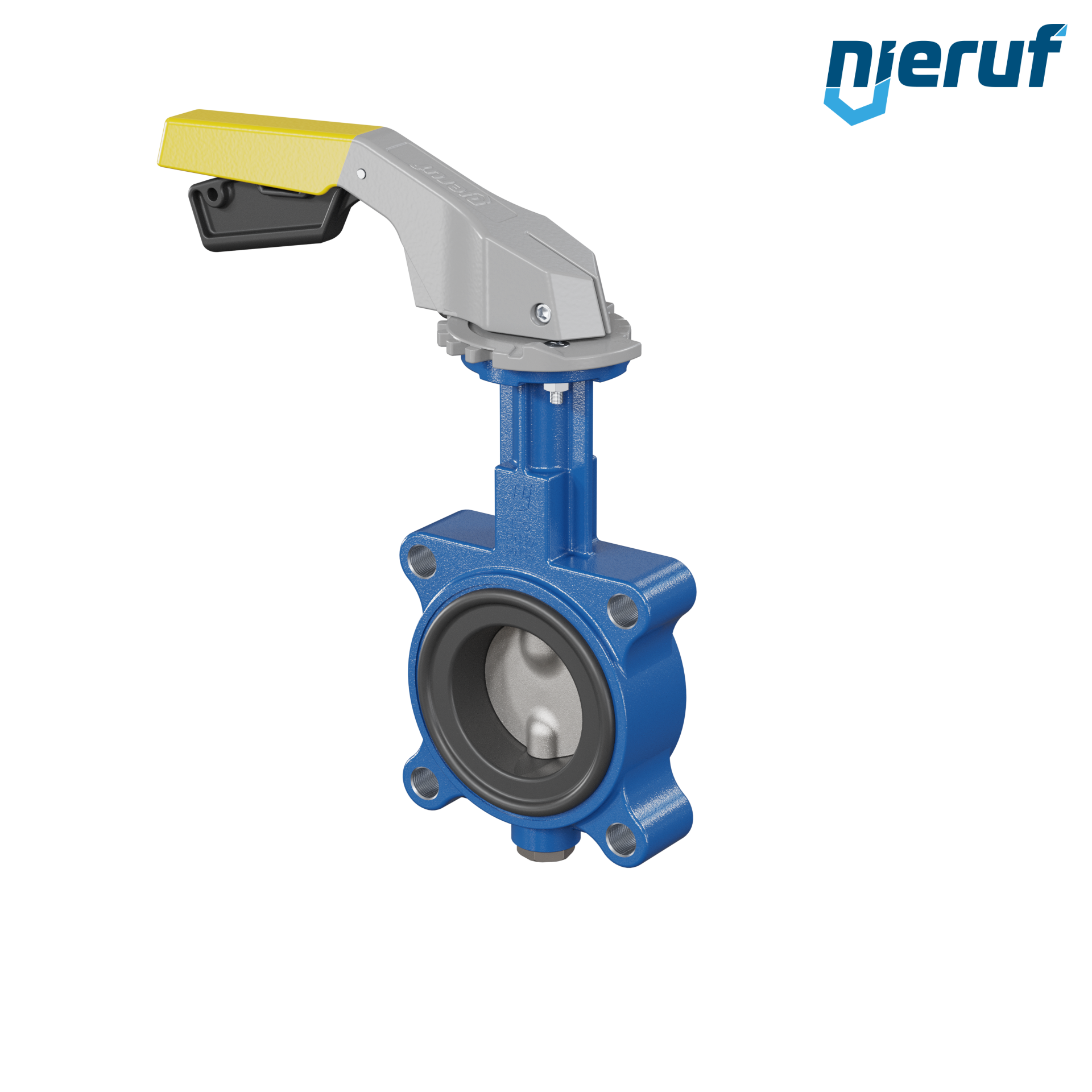

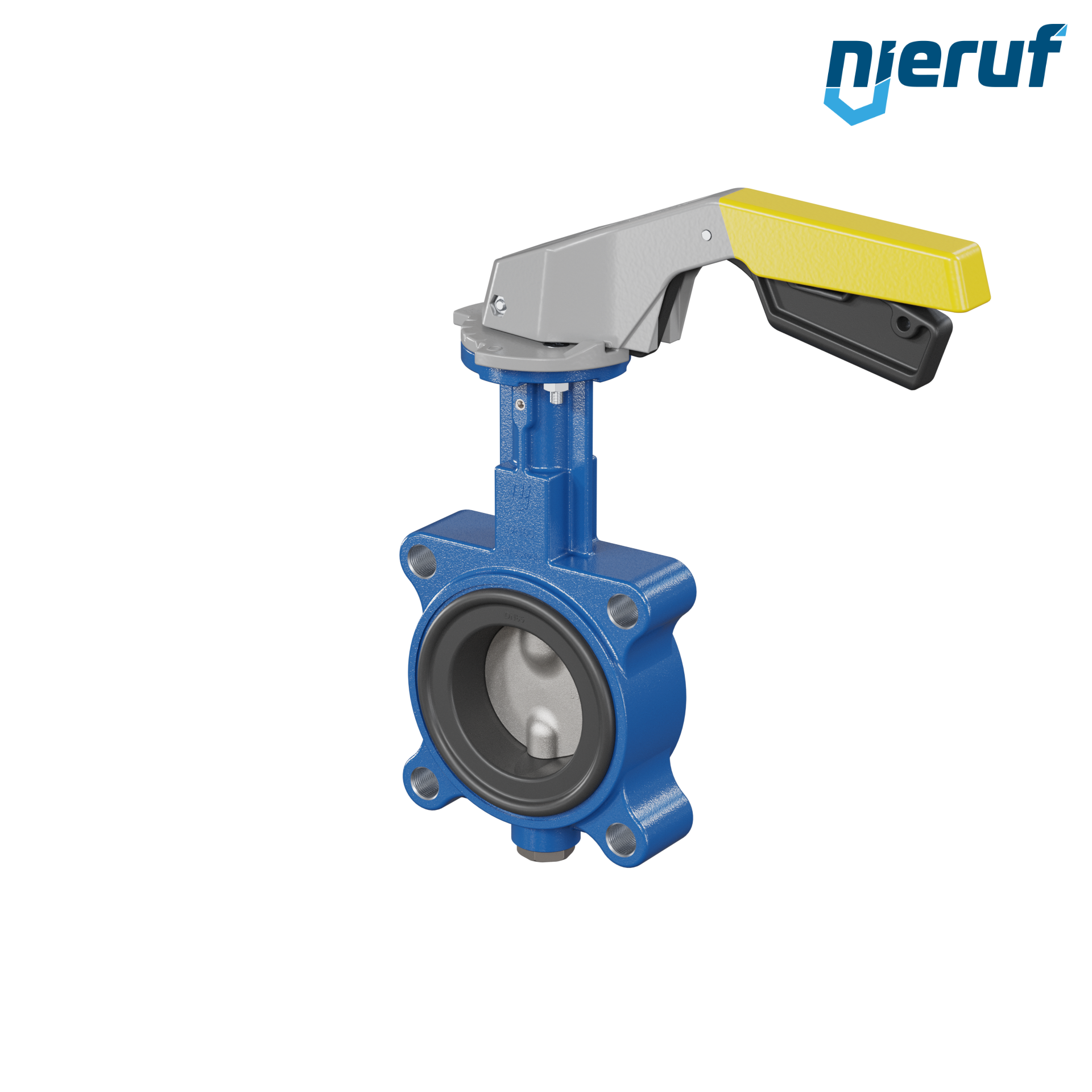

Butterfly valve AK02 DN 65 PN10-PN16 DVGW-gas

Butterfly valve DN 65 PN10-PN16 Lug type GGG40 with notch lever yellow NBR-70-black DVGW gas

product Butterfly valve
type AK02
manufacturer NieRuf
diameter DN 65
nominal pressure PN10-PN16
max. working pressure 16 bar
sleeves NBR-70-black DVGW gas
media liquid and gaseous media
temperature -10°C up to +60°C
design Lug type
body material SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc stainless steel 1.4408
actuation notch lever yellow
approval NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application industry design
installation position any position
product feature Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.

Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.

Butterfly valve AK02 DN 65 PN10-PN16 DVGW-gas

Article no. : AK02110009
product: Butterfly valve
type: AK02
manufacturer: NieRuf
diameter: DN 65
nominal pressure: PN10-PN16
max. working pressure: 16 bar
sleeves: NBR-70-black DVGW gas
media: liquid and gaseous media
temperature: -10°C up to +60°C
design: Lug type
body material: SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc: stainless steel 1.4408
actuation: notch lever yellow
approval: NBR for gas NG-4313CN0141, acc. to DIN EN 13774 (Operating range - 10 °C to + 60 °C)
application: industry design
installation position: any position
product feature: Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. Industrial design.
