AK02120209

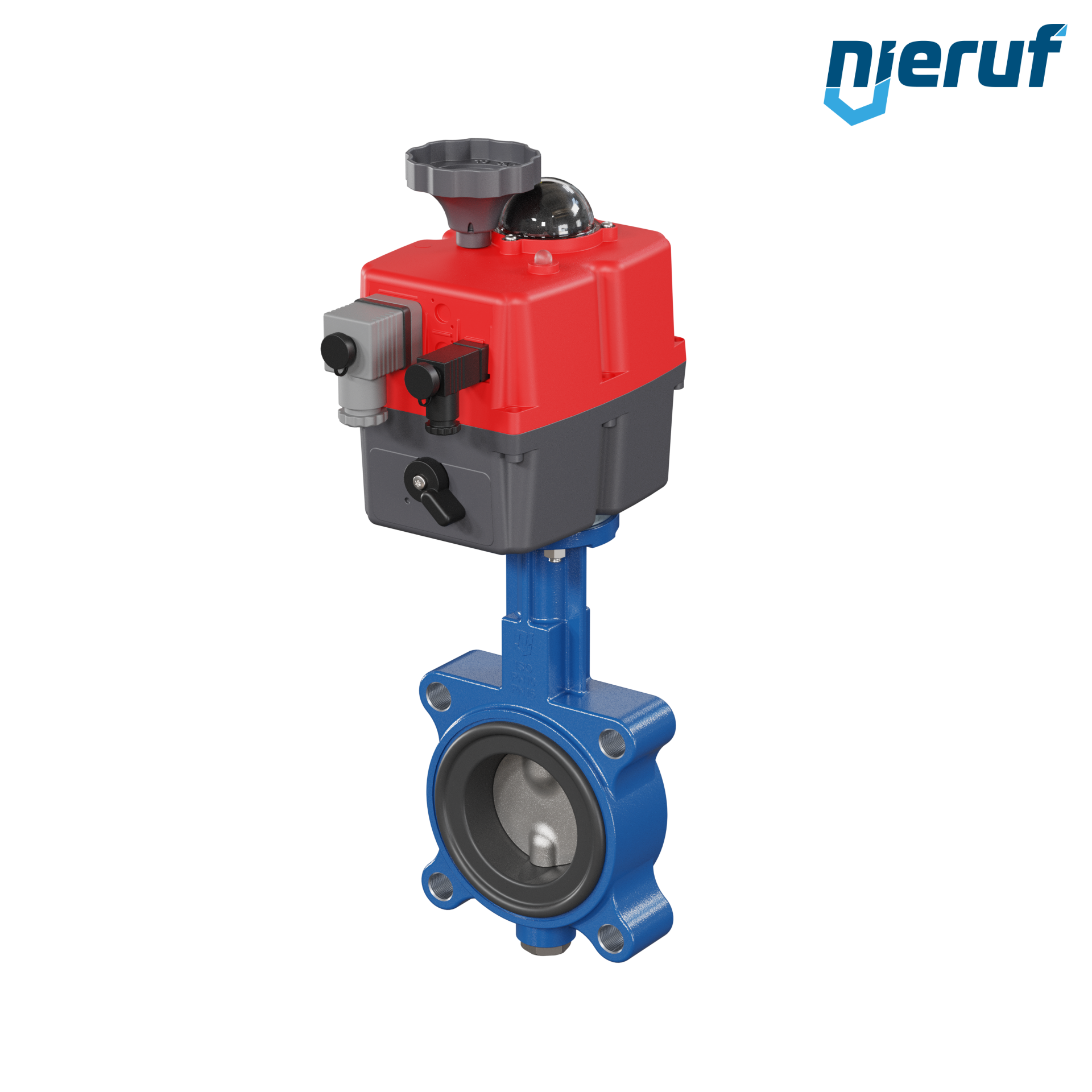

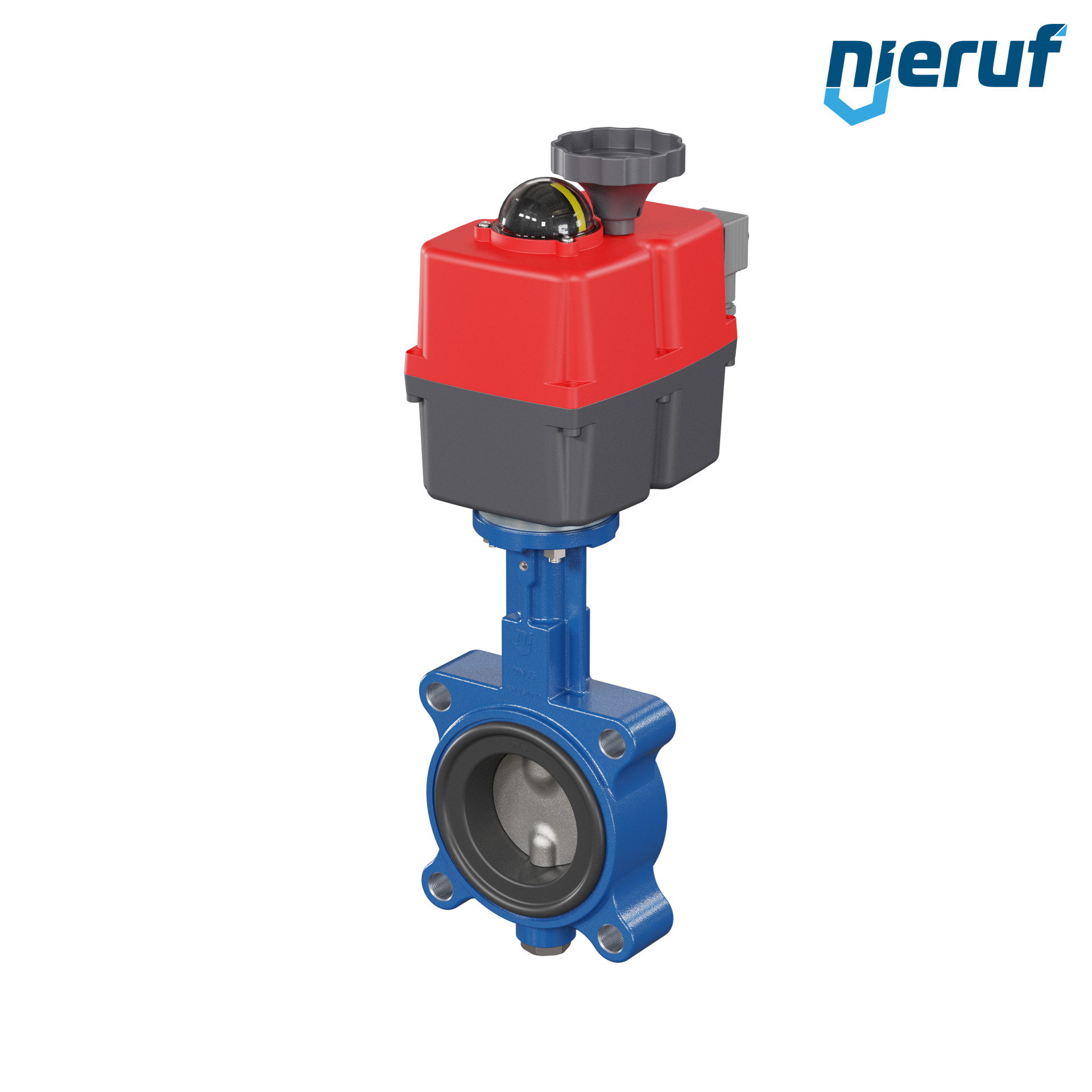

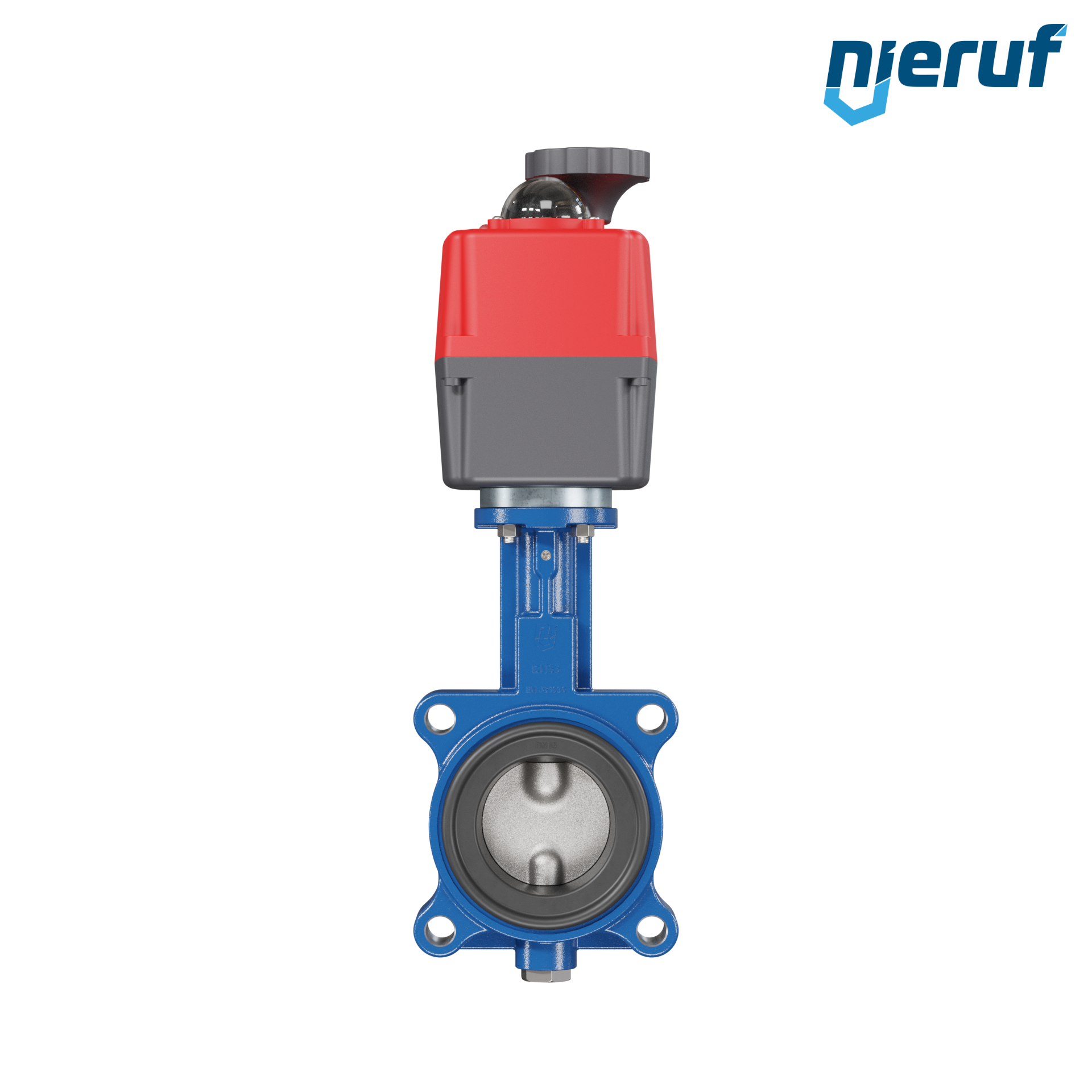

Butterfly valve DN 65 Lug type electric actuator 24-240V FPM
Delivery time: in stock
Express delivery:
Shipping on: Friday, 27. December
Guaranteed delivery until Monday, 30. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Butterfly valve DN 65 PN10-PN16 Lug type body made of GGG40 with electric actuator 24-240V AC/DC seal FPM industry design
| product: | Butterfly valve |
|---|---|
| type: | AK02 |
| manufacturer: | NieRuf |
| diameter: | DN 65 |
| nominal pressure: | PN10-PN16 |
| max. working pressure: | 16 bar |
| sleeves: | FPM |
| media: | liquid and gaseous media |
| temperature: | Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C |
| design: | Lug type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | electric actuator 24-240V AC/DC |
| actuator: | Electronic actuator AN01 S35 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC. |
| approval: | DIN EN 12266-1 leckage rate A |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 65 Lug type electric actuator 24-240V FPM
Article no.
: AK02120209
product:
Butterfly valve
type:
AK02
manufacturer:
NieRuf
diameter:
DN 65
nominal pressure:
PN10-PN16
max. working pressure:
16 bar
sleeves:
FPM
media:
liquid and gaseous media
temperature:
Butterfly valve: -5°C up to +200°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design:
Lug type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
electric actuator 24-240V AC/DC
actuator:
Electronic actuator AN01 S35 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval:
DIN EN 12266-1 leckage rate A
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.
