AK01160210
Butterfly valve DN 80 Wafer type electric actuator 24-240V FDA
Delivery time: in stock
Express delivery:
Shipping on: Monday, 30. December
Guaranteed delivery until Tuesday, 31. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

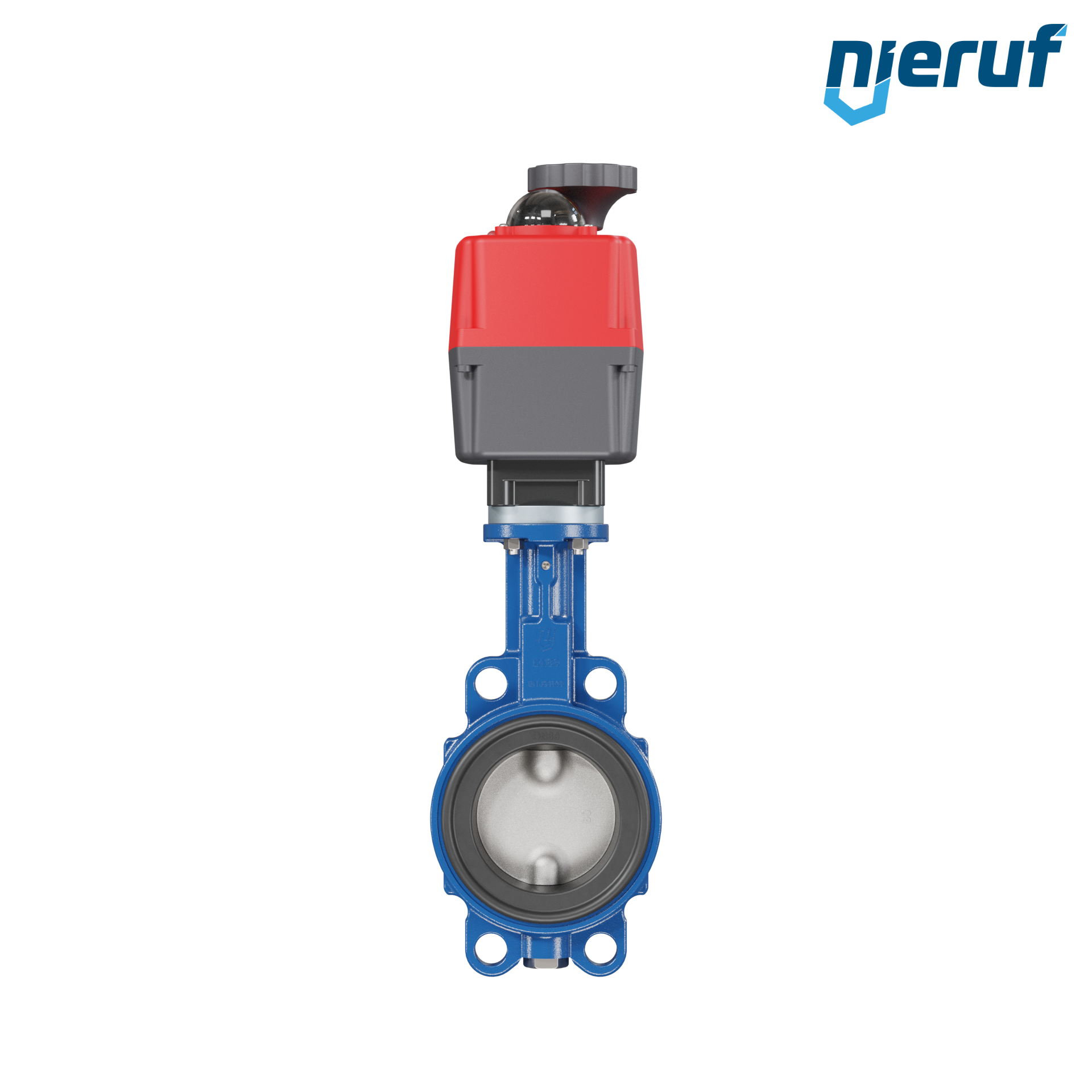

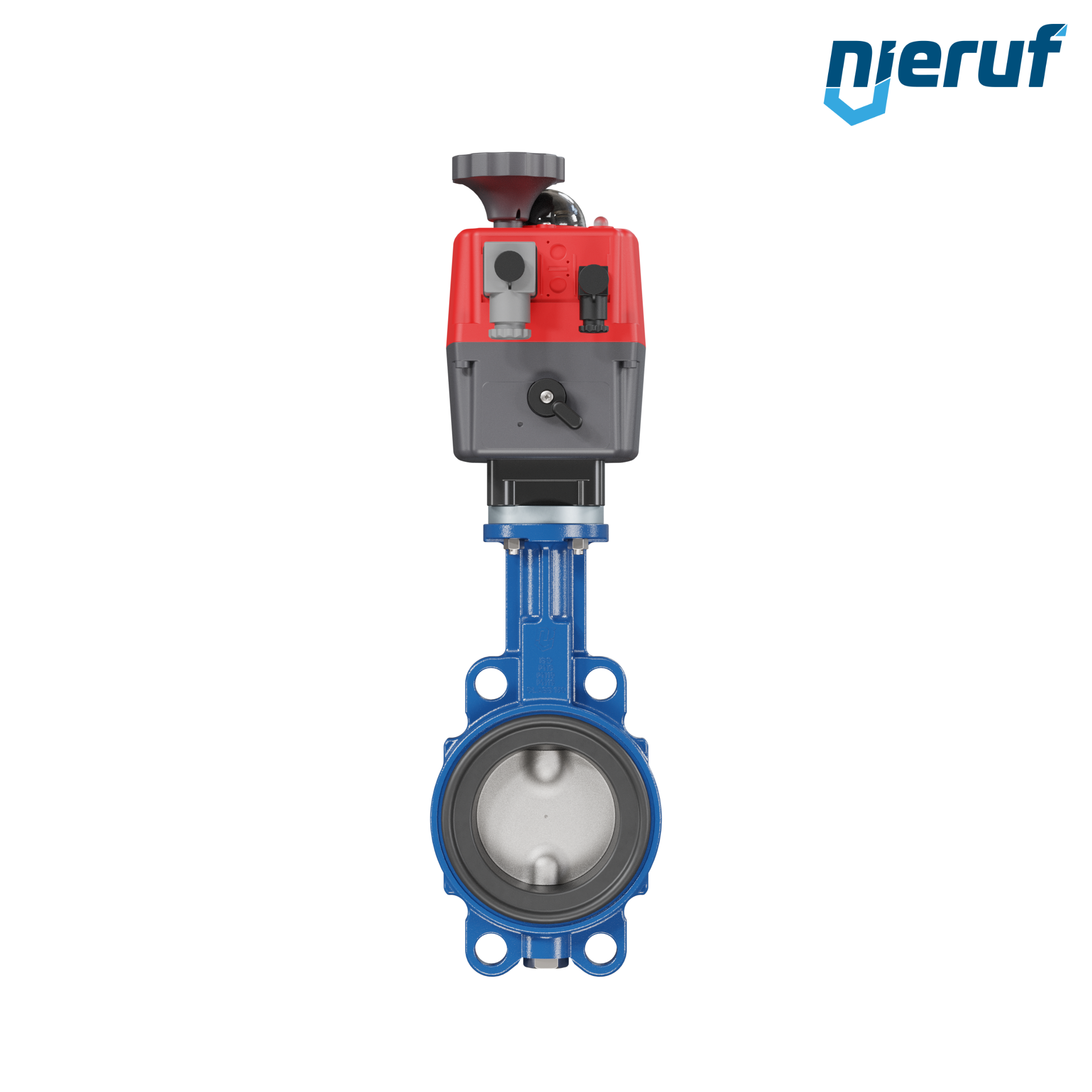

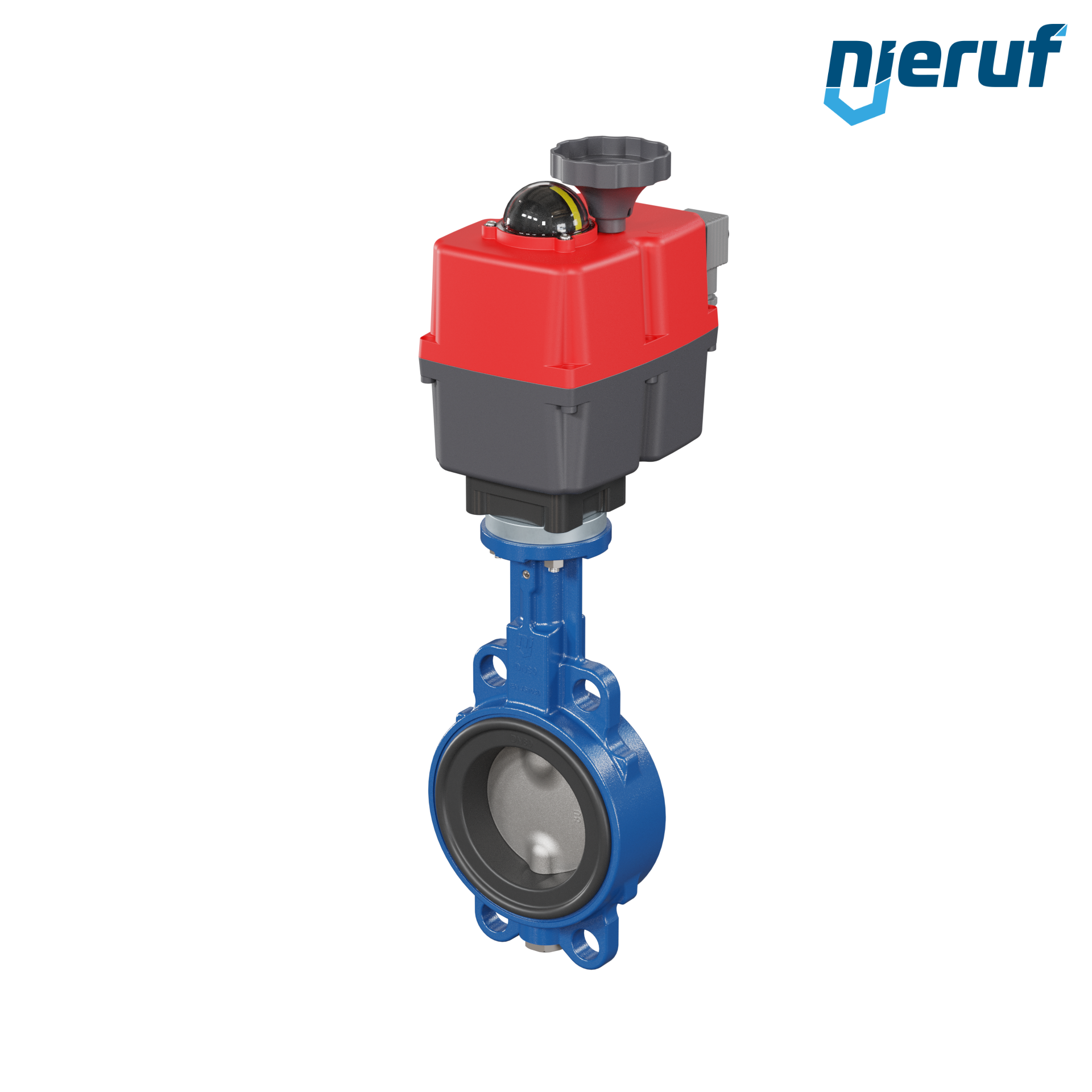

Butterfly valve DN 80 PN6-PN10-PN16 & ANSI150 Wafer type body made of GGG40 with electric actuator 24-240V AC/DC seal EPDM high temperature & FDA industry design
| product: | Butterfly valve |
|---|---|
| type: | AK01 |
| manufacturer: | NieRuf |
| diameter: | DN 80 |
| nominal pressure: | PN6-PN10-PN16 & ANSI150 |
| max. working pressure: | 16 bar |
| sleeves: | EPDM high temperature & FDA |
| media: | liquid and gaseous media |
| temperature: | Butterfly valve: -5°C up to +130°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C |
| design: | Wafer type |
| body material: | SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm |
| disc: | stainless steel 1.4408 |
| actuation: | electric actuator 24-240V AC/DC |
| actuator: | Electronic actuator AN01 S55 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC. |
| approval: | EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C) |
| application: | industry design |
| installation position: | any position |
| product feature: | Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly valve DN 80 Wafer type electric actuator 24-240V FDA
Article no.
: AK01160210
product:
Butterfly valve
type:
AK01
manufacturer:
NieRuf
diameter:
DN 80
nominal pressure:
PN6-PN10-PN16 & ANSI150
max. working pressure:
16 bar
sleeves:
EPDM high temperature & FDA
media:
liquid and gaseous media
temperature:
Butterfly valve: -5°C up to +130°C (depending on working pressure and media) - electronic actuator: -20°C up to +70°C
design:
Wafer type
body material:
SG iron EN-JS1030 (GGG40) blue body RAL 5005 epoxy-coating 80μm
disc:
stainless steel 1.4408
actuation:
electric actuator 24-240V AC/DC
actuator:
Electronic actuator AN01 S55 duty cycle 75%, with automatic voltage detection, integrated limit switches, switch compartment heating and manual override, protection class IP67 24-240V AC/DC.
approval:
EPDM for higher temperatures and FDA food approval (application range -5°C to +130°C)
application:
industry design
installation position:
any position
product feature:
Maintenance-free butterfly valve with high-quality epoxy coating and split shaft. Three-stage sealing system for guaranteed tightness, long-term service life and safe operation. The actuator can optionally be extended with a digital positioning system 0-10V or 4-20mA or with a battery pack NC or NO.
€34.51 VAT included.
€38.08 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
