AK08100009
Butterfly-valve-stainless-steel DN 65 PN16 AK08 EPDM notch lever
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

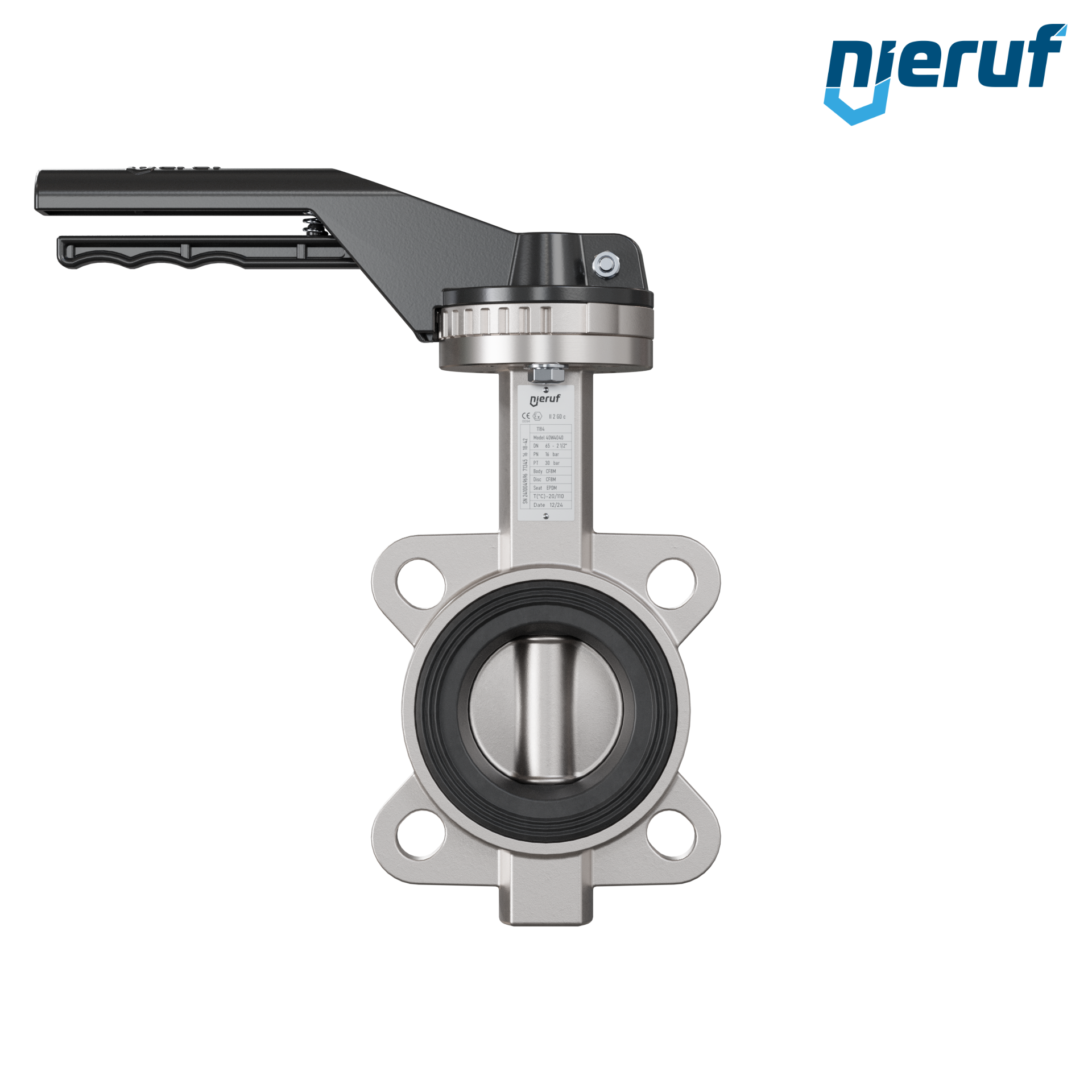

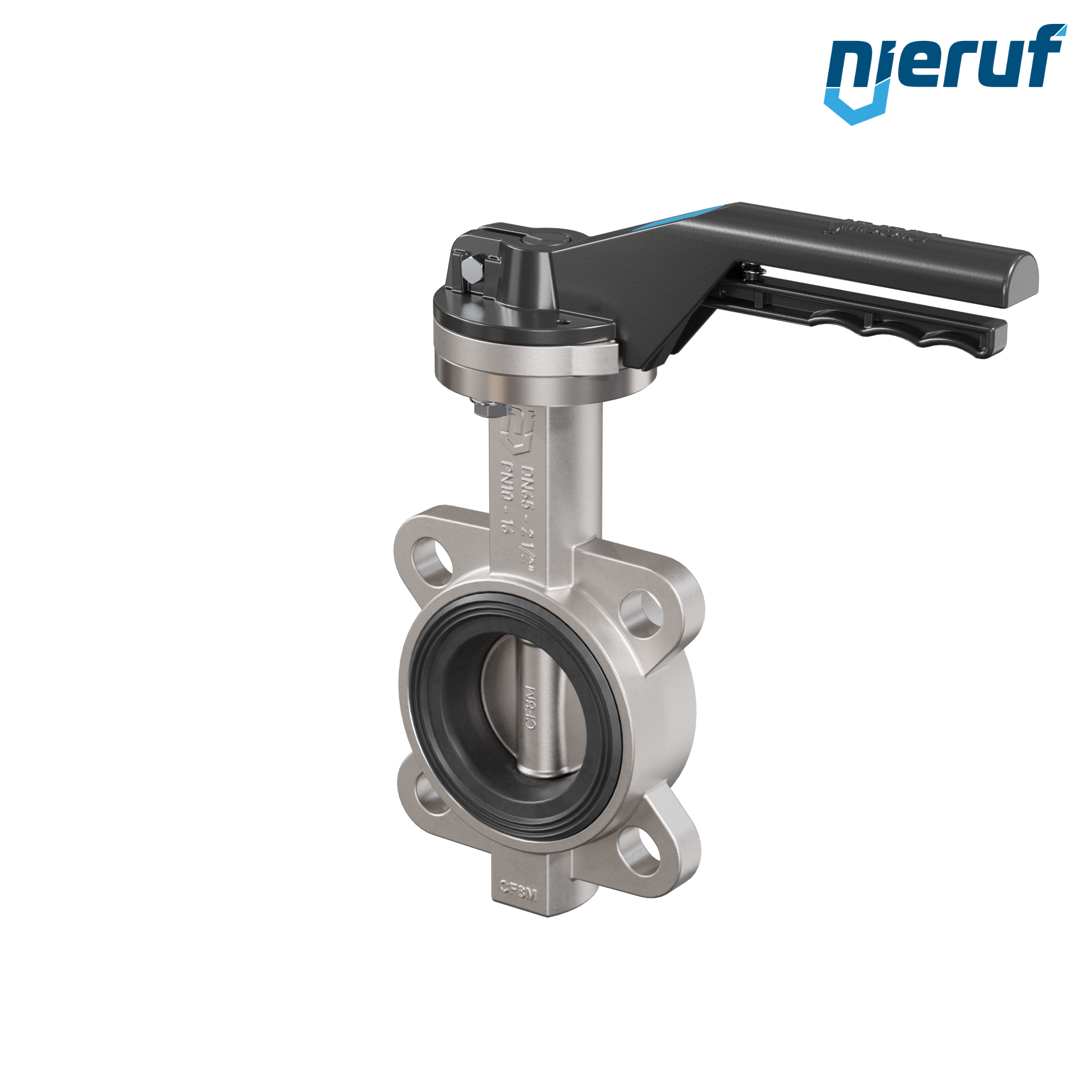

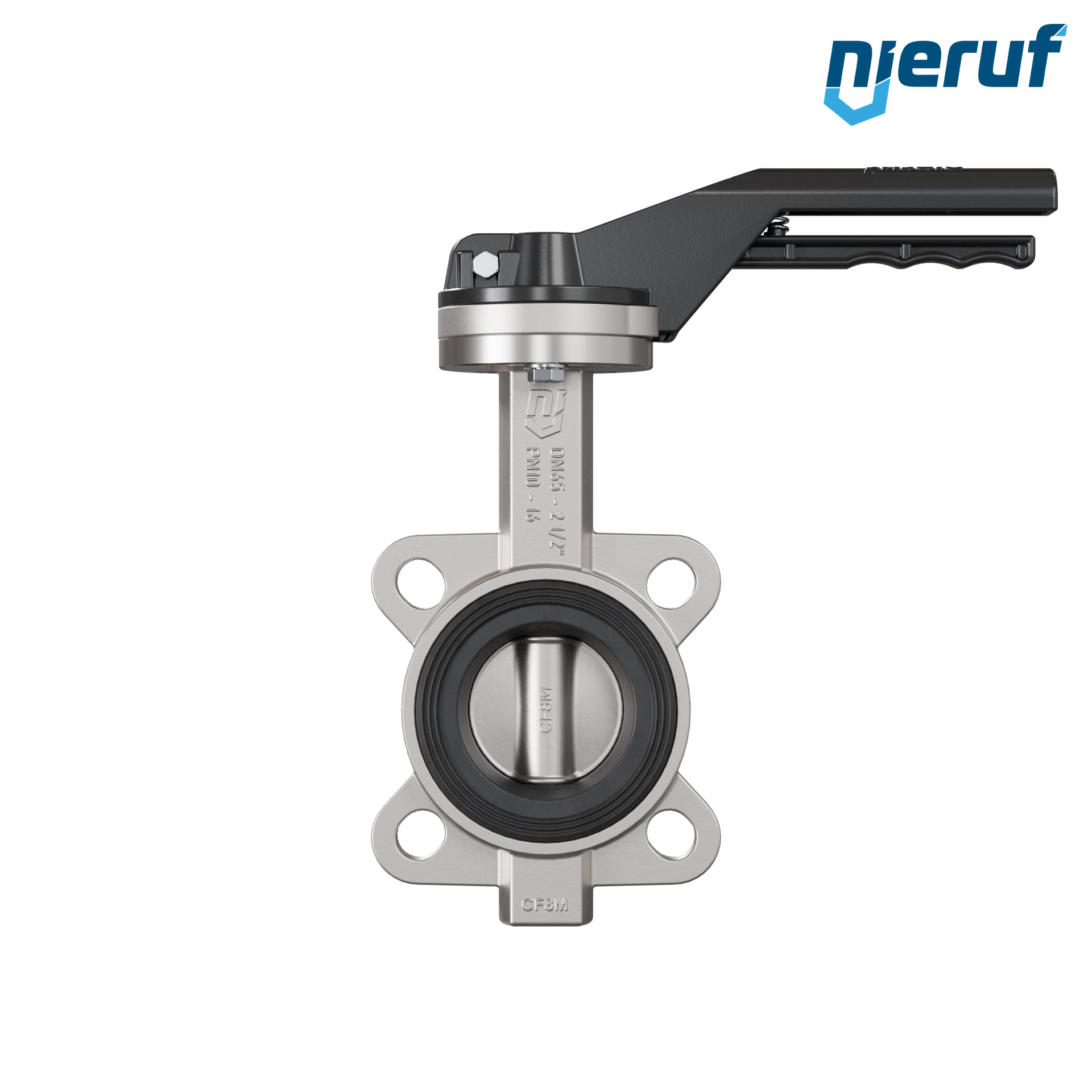

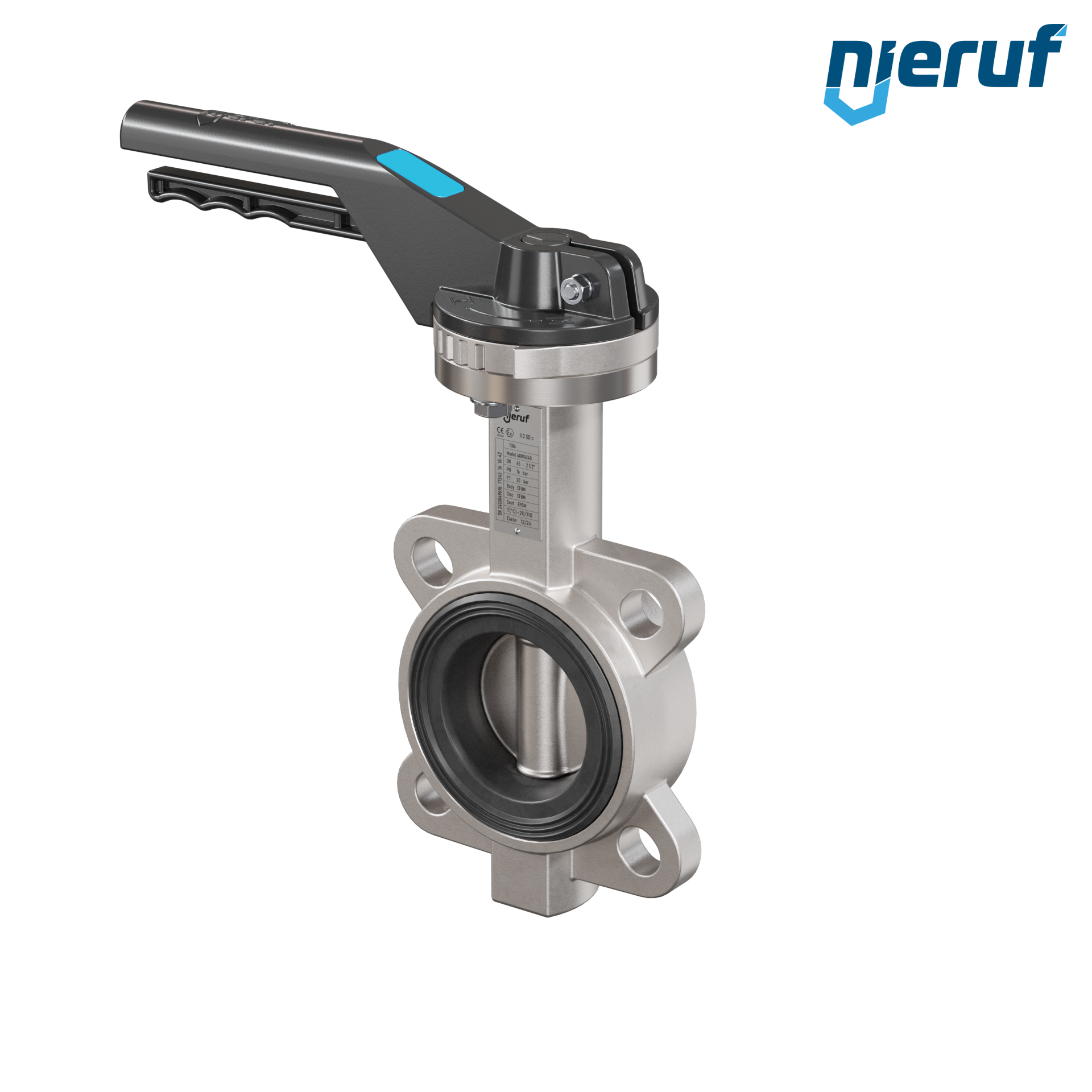

stainless-steel butterfly valve DN 65 PN16 Wafer type body made of stainless-steel 1.4408 with notch lever seal made of EPDM
| product: | Butterfly-valve-stainless-steel |
|---|---|
| type: | AK08 |
| manufacturer: | NieRuf |
| diameter: | DN 65 |
| nominal pressure: | PN16 |
| max. working pressure: | 16 bar |
| sleeves: | EPDM |
| media: | liquid and gaseous media |
| temperature: | -20°C up to +110°C |
| design: | Wafer type |
| body material: | stainless-steel 1.4408 |
| disc: | stainless steel 1.4408 |
| actuation: | notch lever |
| application: | for extreme usage |
| installation position: | any position |
| product feature: | stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly-valve-stainless-steel DN 65 PN16 AK08 EPDM notch lever
Article no.
: AK08100009
product:
Butterfly-valve-stainless-steel
type:
AK08
manufacturer:
NieRuf
diameter:
DN 65
nominal pressure:
PN16
max. working pressure:
16 bar
sleeves:
EPDM
media:
liquid and gaseous media
temperature:
-20°C up to +110°C
design:
Wafer type
body material:
stainless-steel 1.4408
disc:
stainless steel 1.4408
actuation:
notch lever
application:
for extreme usage
installation position:
any position
product feature:
stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly
