AK08130009
Butterfly-valve-stainless-steel DN 65 PN16 AK08 metall notch lever
Delivery time: 3 - 5 working days
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you

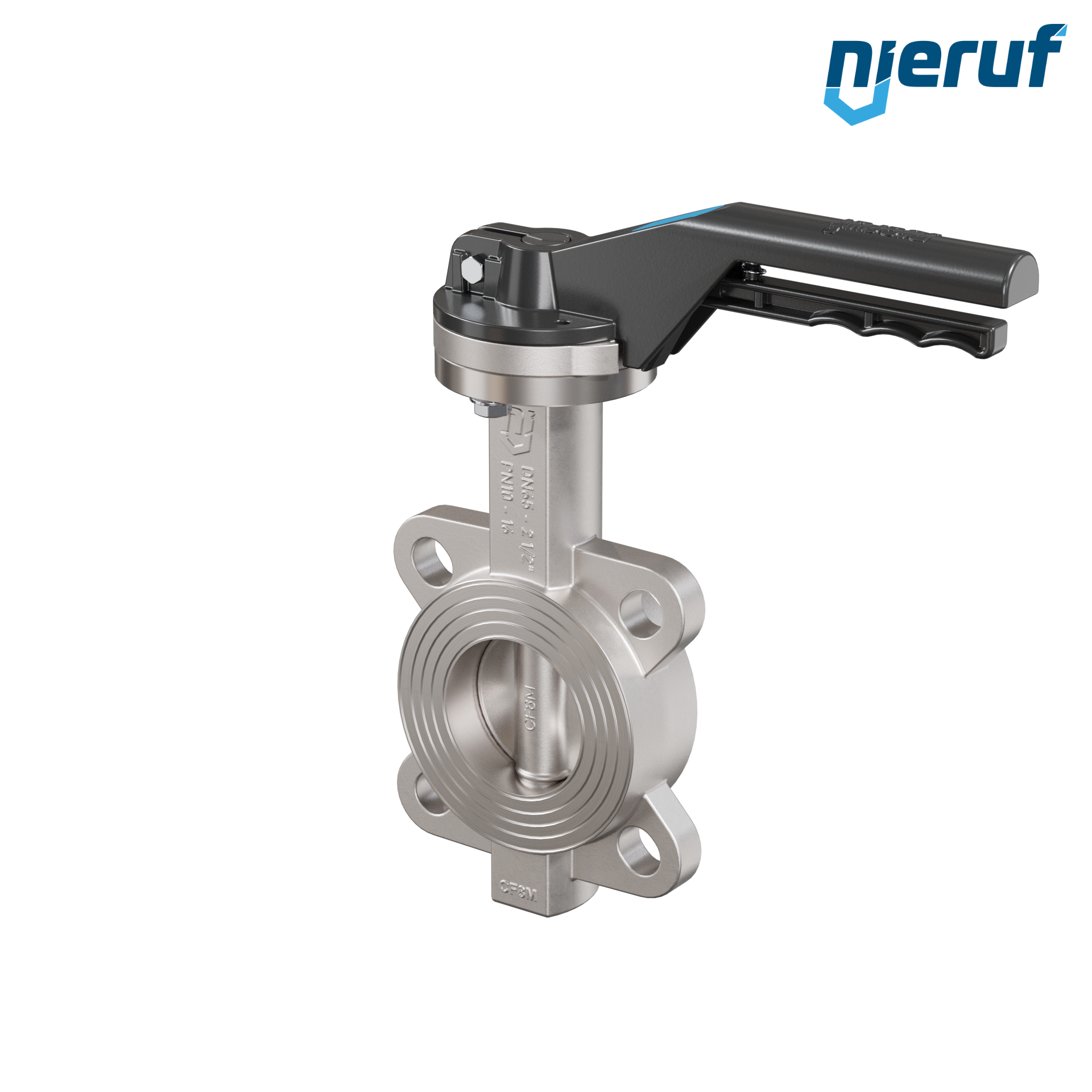

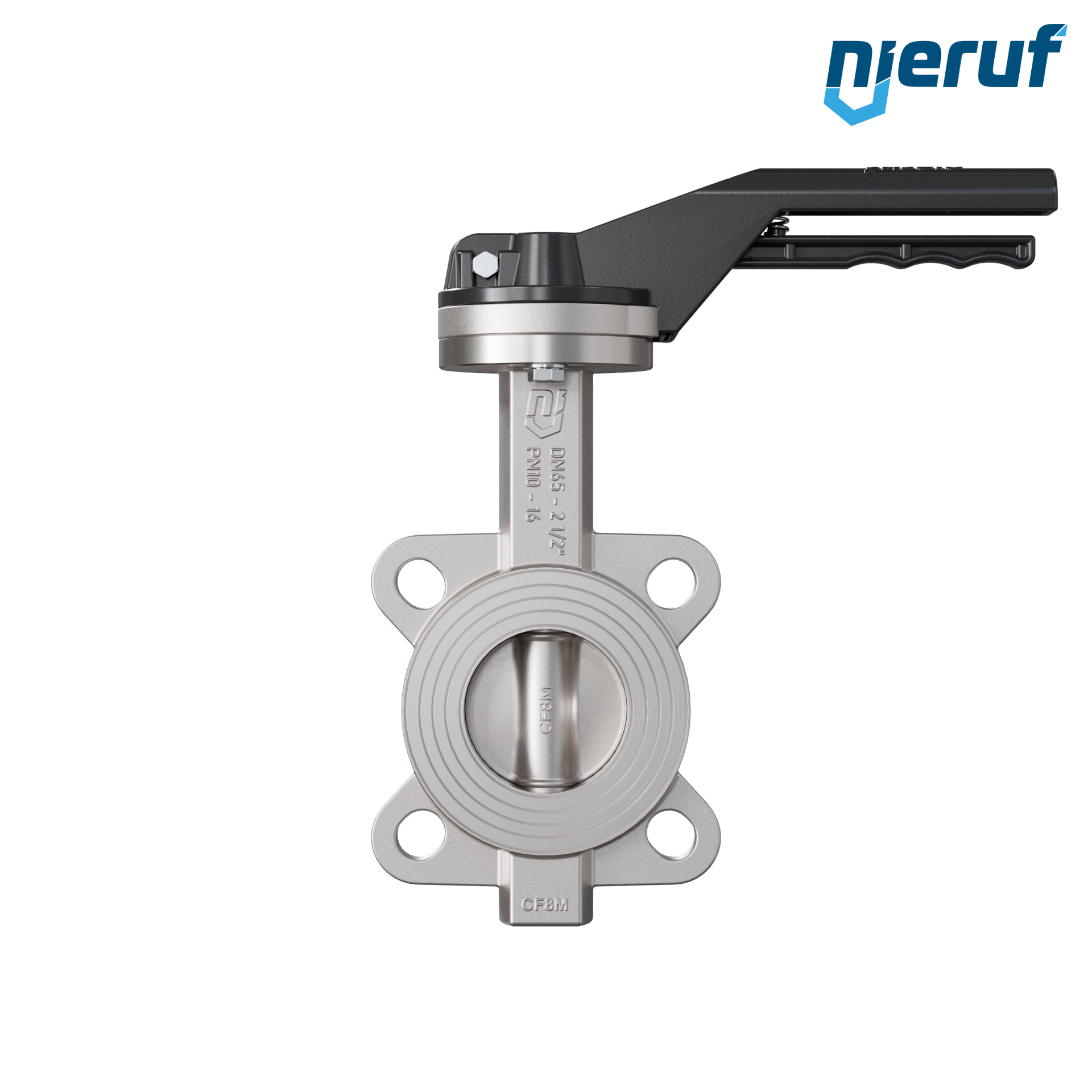

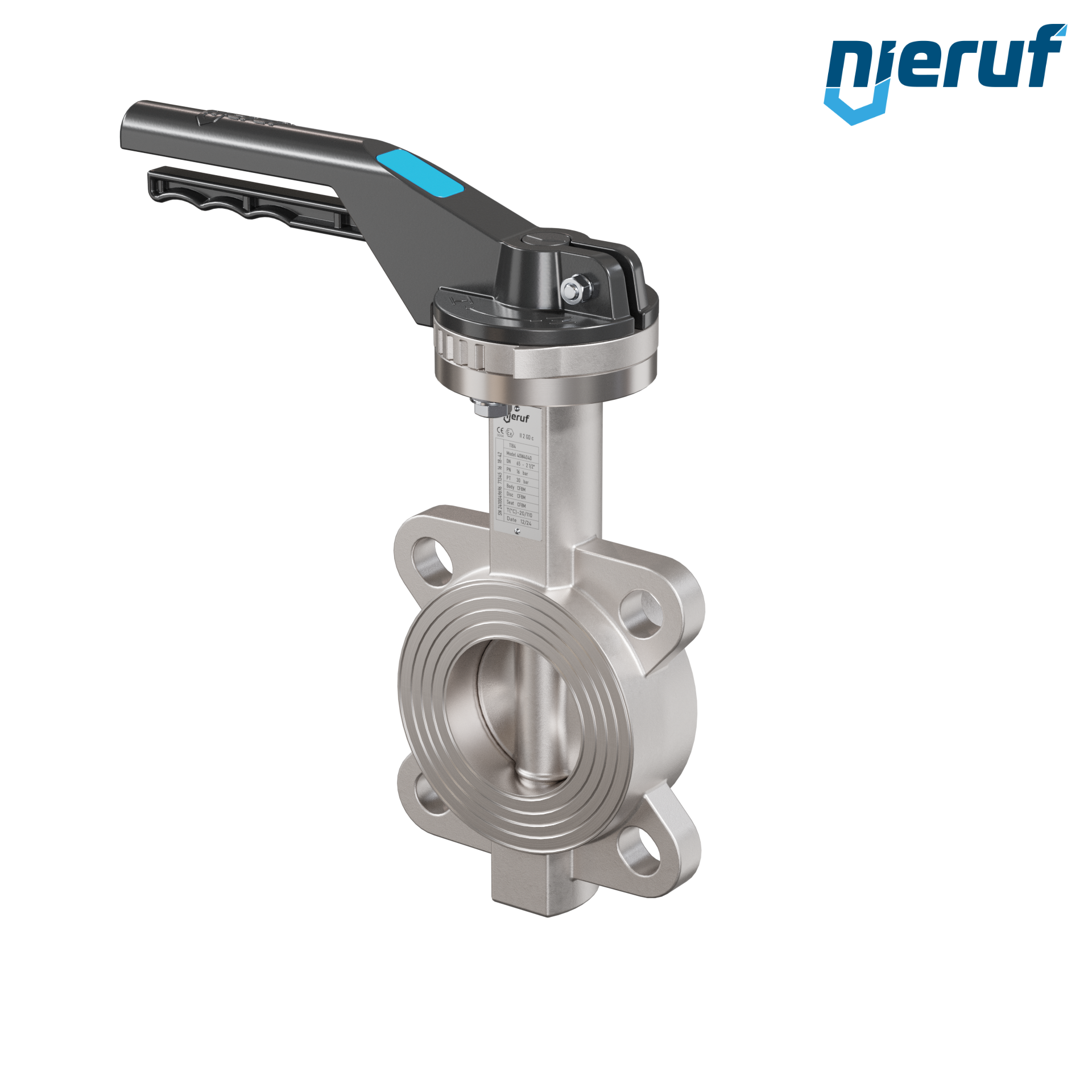

stainless-steel butterfly valve DN 65 PN16 Wafer type body made of stainless-steel 1.4408 with notch lever seal made of metall
| product: | Butterfly-valve-stainless-steel |
|---|---|
| type: | AK08 |
| manufacturer: | NieRuf |
| diameter: | DN 65 |
| nominal pressure: | PN16 |
| max. working pressure: | 16 bar |
| sleeves: | metall |
| media: | liquid, gaseous media and powder |
| temperature: | -30°C up to +350°C |
| design: | Wafer type |
| body material: | stainless-steel 1.4408 |
| disc: | stainless steel 1.4408 |
| actuation: | notch lever |
| application: | for extreme usage |
| installation position: | any position |
| product feature: | stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly, no seat, no tightness |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Butterfly-valve-stainless-steel DN 65 PN16 AK08 metall notch lever
Article no.
: AK08130009
product:
Butterfly-valve-stainless-steel
type:
AK08
manufacturer:
NieRuf
diameter:
DN 65
nominal pressure:
PN16
max. working pressure:
16 bar
sleeves:
metall
media:
liquid, gaseous media and powder
temperature:
-30°C up to +350°C
design:
Wafer type
body material:
stainless-steel 1.4408
disc:
stainless steel 1.4408
actuation:
notch lever
application:
for extreme usage
installation position:
any position
product feature:
stainless steel butterfly-valve body made of stainless steel and stainless steel butterfly, no seat, no tightness
