FK11000004
Compact ball valve stainless steel DN20 PN16 FK11
Delivery time: in stock
Express delivery:
Shipping on: Friday, 27. December
Guaranteed delivery until Monday, 30. December, 12 o'clock
Order in within by express delivery
Equipment
joint set flange/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€4.76 VAT included.
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€26.78 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

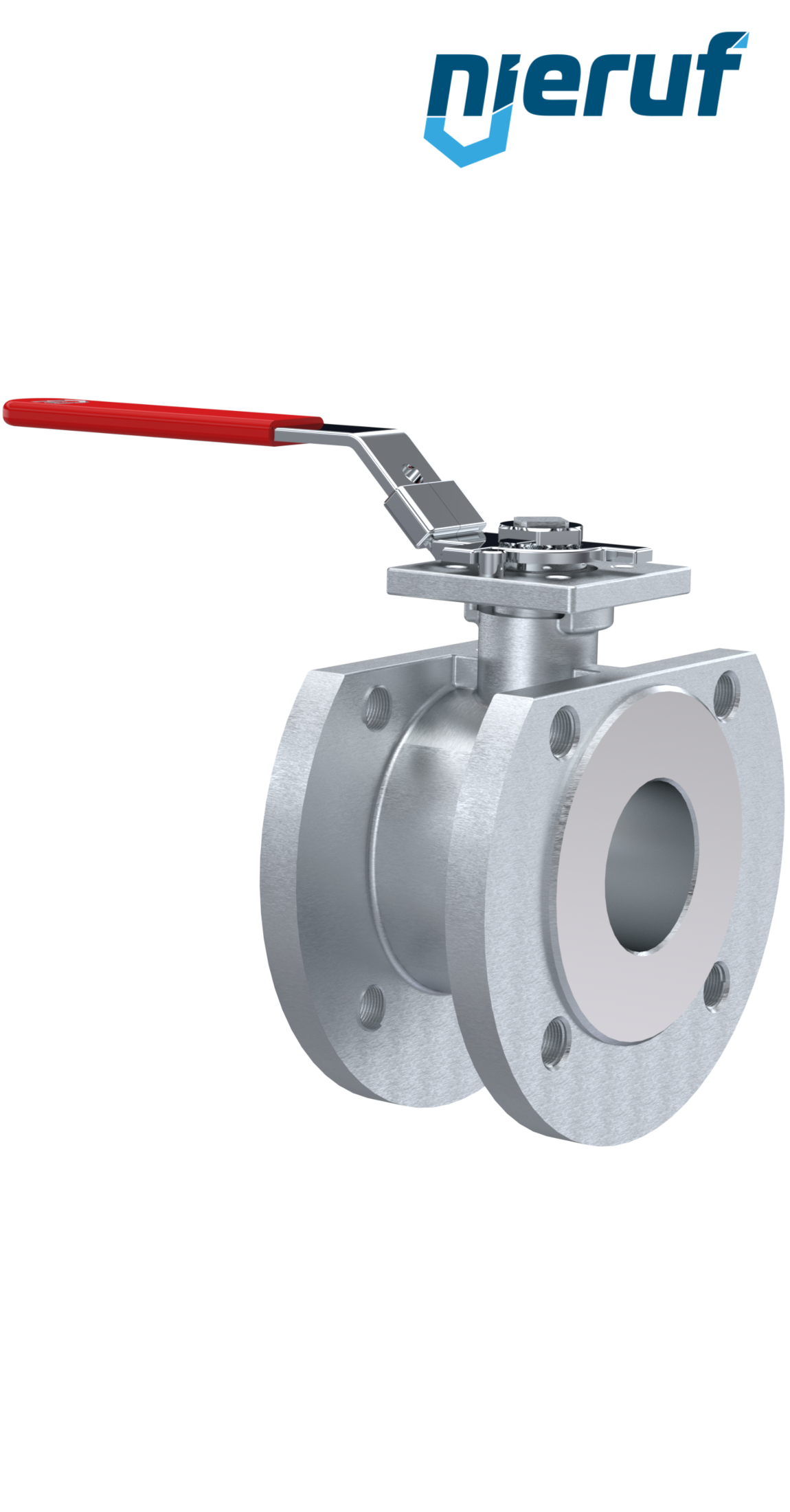

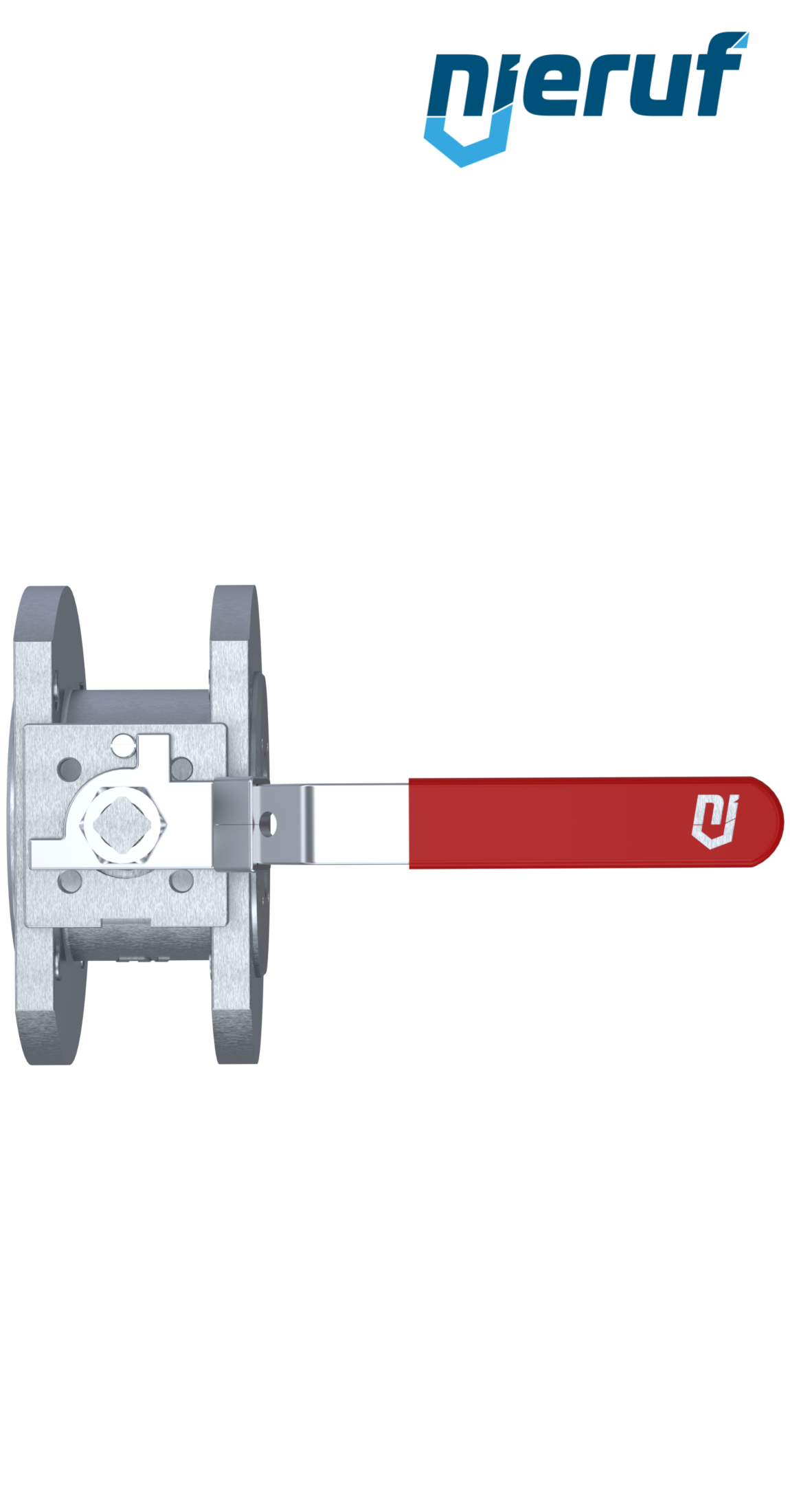

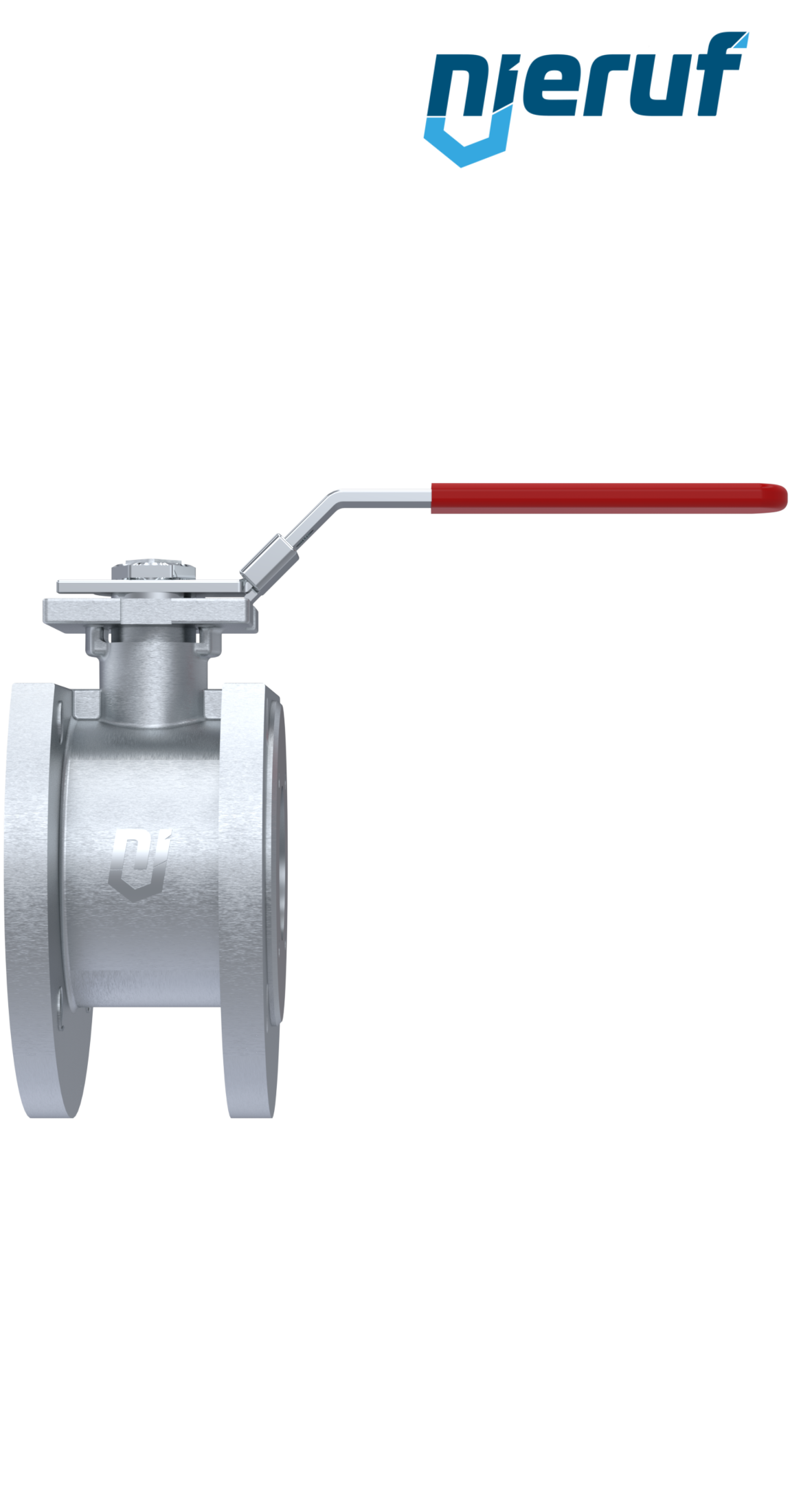

Compact ball valve DN20 PN16 made of stainless steel 1.4408 with PTFE seal and flange dimensions acc. DIN EN 1092-1 PN 16 for liquid and gaseous media
| product: | Compact ball valve |
|---|---|
| type: | FK11 |
| manufacturer: | NieRuf |
| diameter: | DN20 |
| connection: | flange dimensions acc. DIN EN 1092-1 PN 16 |
| Seal steam: | PTFE |
| ball seal: | PTFE |
| media: | liquid and gaseous media |
| temperature: | - 20°C up to 180°C - depending on working pressure and media |
| max. pressure: | PN16 |
| design: | flange ball valve with Wafer-design |
| body material: | stainless steel 1.4408 |
| ball material: | stainless steel 1.4408 |
| length: | 39mm |
| actuator: | hand lever with red plastic cover |
| product description: | Ball valve in stainless steel with stainless steel handle and ball in compact design. Flanges with metric drilling holes. To shut off pipeline systems. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compact ball valve stainless steel DN20 PN16 FK11
Article no.
: FK11000004
product:
Compact ball valve
type:
FK11
manufacturer:
NieRuf
diameter:
DN20
connection:
flange dimensions acc. DIN EN 1092-1 PN 16
Seal steam:
PTFE
ball seal:
PTFE
media:
liquid and gaseous media
temperature:
- 20°C up to 180°C - depending on working pressure and media
max. pressure:
PN16
design:
flange ball valve with Wafer-design
body material:
stainless steel 1.4408
ball material:
stainless steel 1.4408
length:
39mm
actuator:
hand lever with red plastic cover
product description:
Ball valve in stainless steel with stainless steel handle and ball in compact design. Flanges with metric drilling holes. To shut off pipeline systems.
€2.02 VAT included.
€26.78 VAT included.
€4.76 VAT included.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
