KP04000114

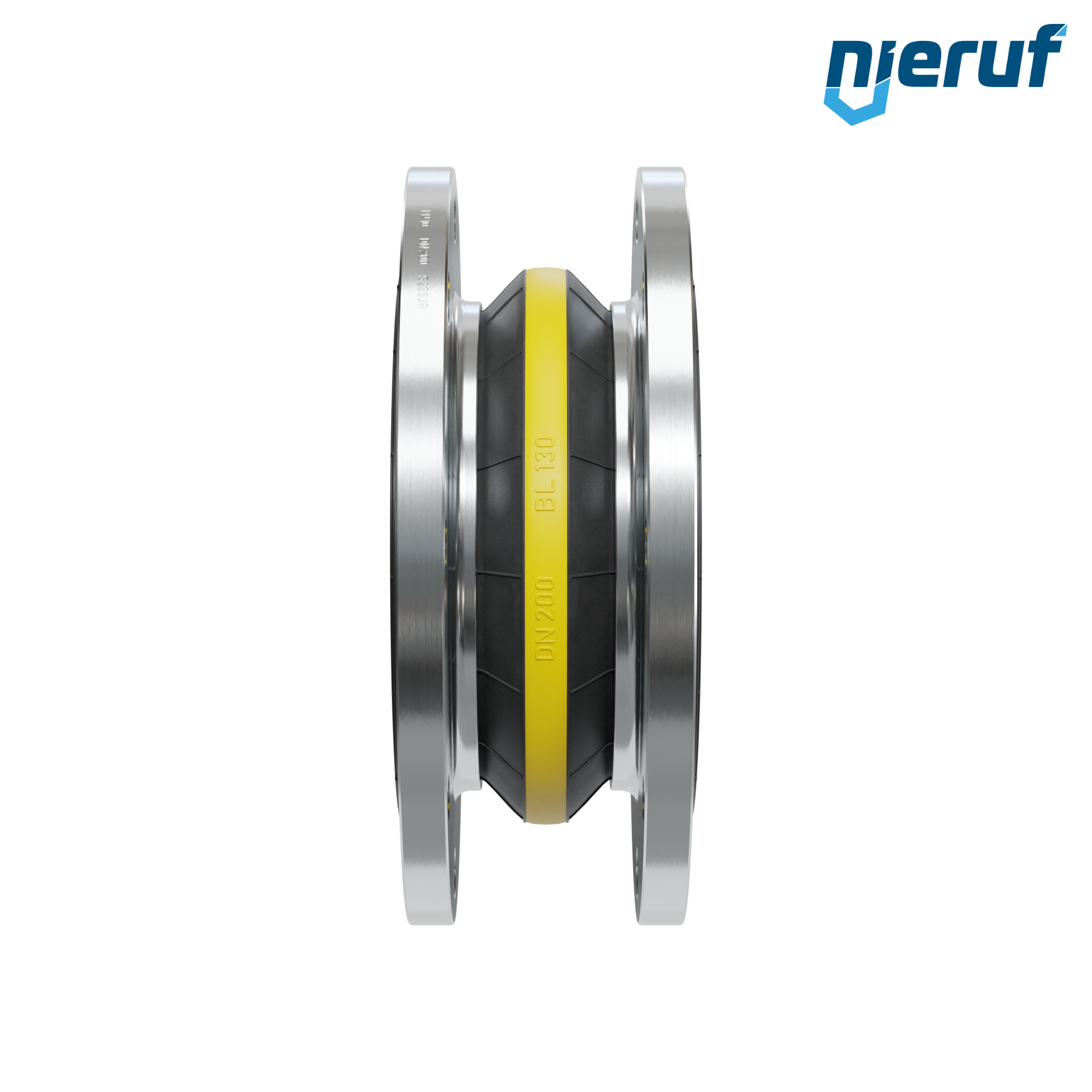

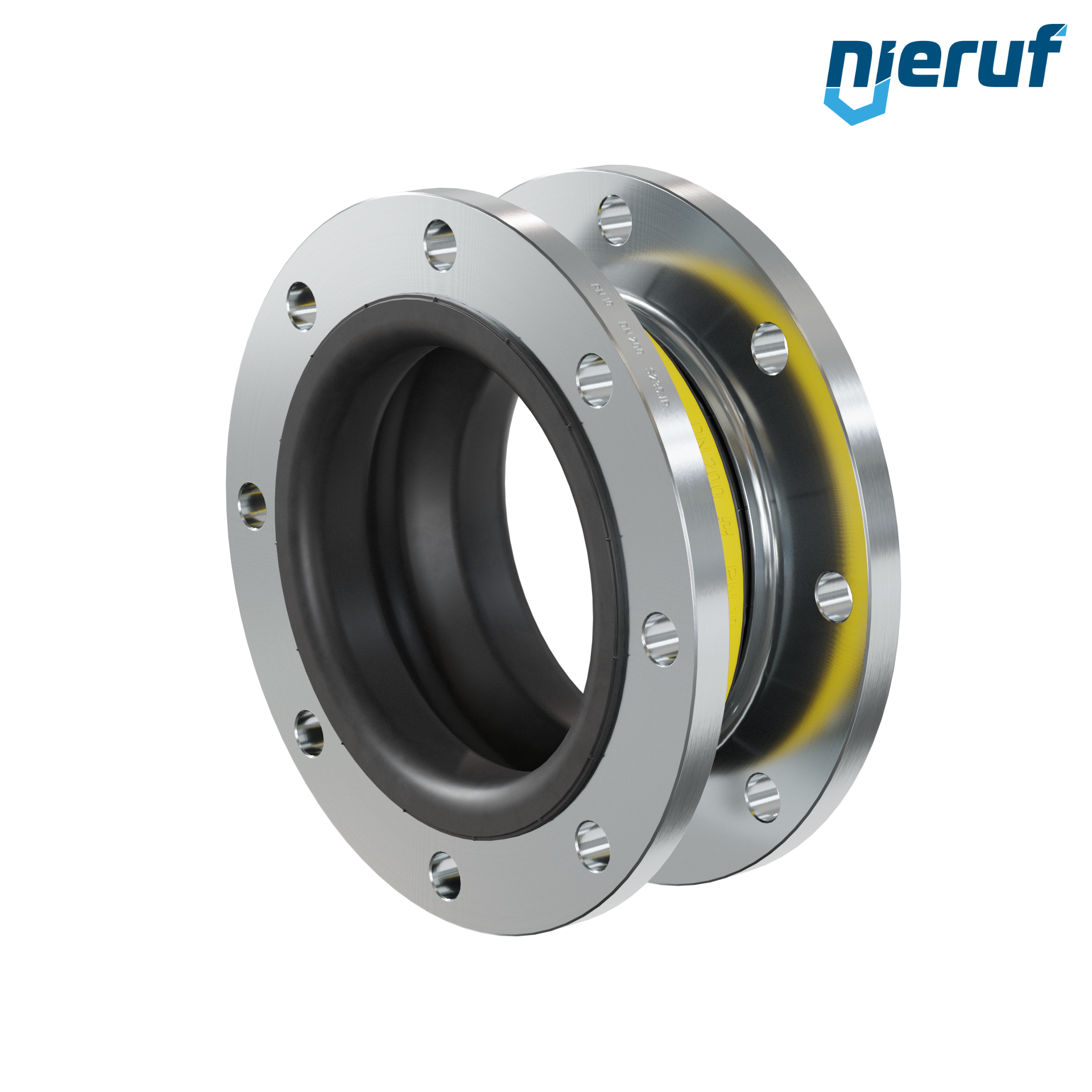

Compensators DN200 type KP04 steel-flange NBR
- Delivery time
- in stock
- Express delivery*
Order in within by express delivery
Shipping on: Wednesday, 12. March
Guaranteed delivery until Thursday, 13. March, 12 o'clock
Equipment
joint set flange/flange DN200 - 8" Inch for flange PN10 steel
€27.61 VAT included.
Questions about the article?
Compensators DN200 with NBR-sleeve and steel flange for liquid media and gases (no steam)
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN200 |
| connection | flange acc. DIN EN 1092-1 PN10 |
| max. pressure | max. 10 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 10 |
| material | steel (electro galvanized) 235JR |
| sleeves | NBR |
| media | liquid media and gases (no steam) |
| temperature | -20°C up to +90°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | High quality compensator with NBR sleeve and steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compensators DN200 type KP04 steel-flange NBR
Article no.
: KP04000114
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN200
connection:
flange acc. DIN EN 1092-1 PN10
max. pressure:
max. 10 bar (consider pressure-temperature diagram)
nominal pressure:
PN 10
material:
steel (electro galvanized) 235JR
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
High quality compensator with NBR sleeve and steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
