KP04000005

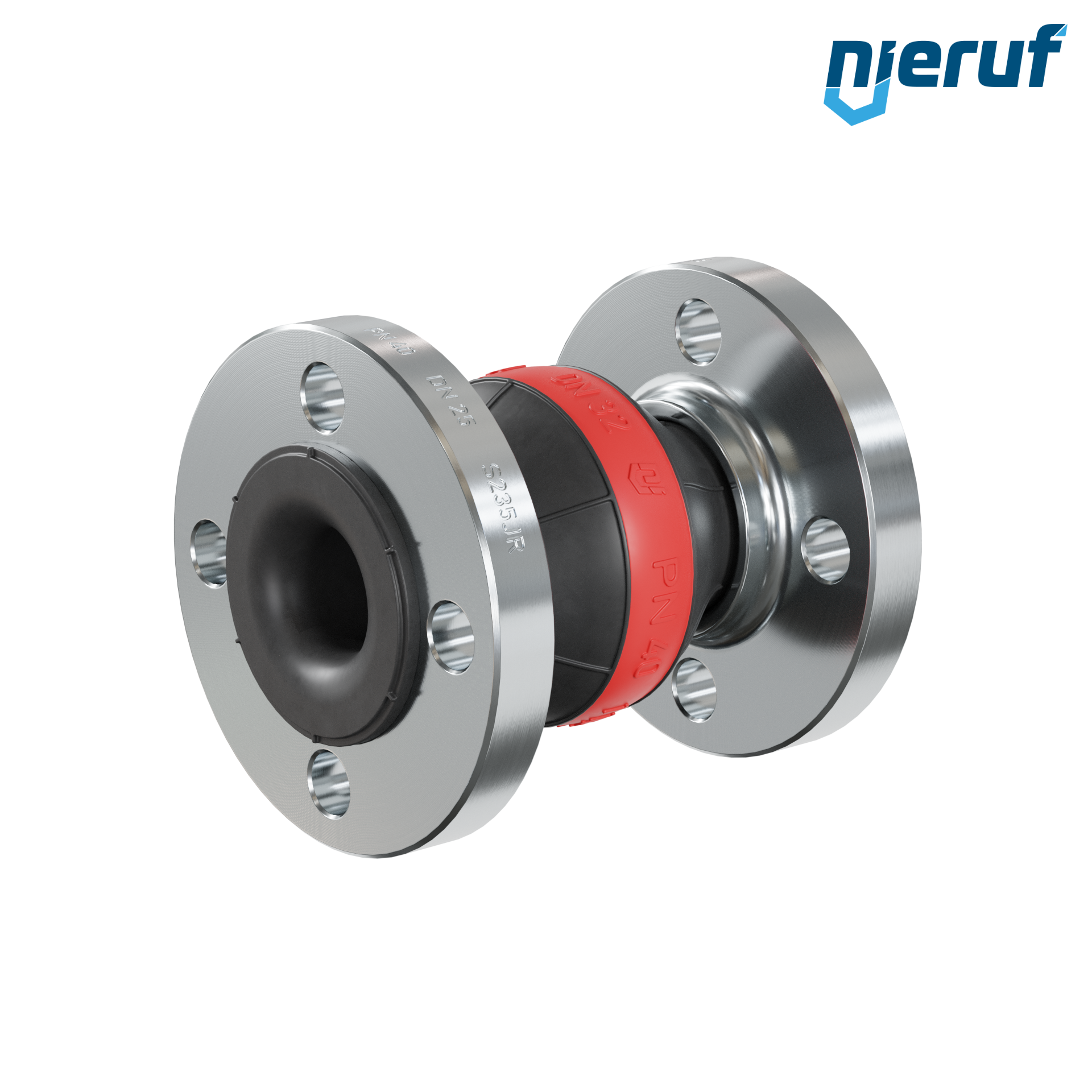

Compensators DN25 type KP04 steel-flange EPDM DVGW drinking water authorization
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Flange DN25 PN10/16/25/40 EN1092-1 11 B1 C22.8 / P250GH bare
€16.66 VAT included.
joint set flange/flange DN25 - 1" Inch for flange PN10/16/25/40 steel
€4.28 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Compensators DN25 with EPDM-sleeve and steel flange with DVGW drinking water authorization for liquid media and gases (no steam) and drinking water
| product: | Compensators |
|---|---|
| type: | KP04 |
| manufacturer: | NieRuf |
| diameter: | DN25 |
| connection: | flange acc. DIN EN 1092-1 PN40 |
| max. pressure: | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure: | PN 16 |
| material: | steel (electro galvanized) 235JR |
| sleeves: | EPDM |
| media: | liquid media and gases (no steam) and drinking water |
| temperature: | -40°C up to +100°C |
| design: | straightway form |
| CE: | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| authorized for: | DVGW drinking water |
| product feature: | This high quality compensator with EPDM sleeve and steel flanges has a DVGW drinking water authorization. This type can be extended by PTFE lining, vacuum support rings and other options on request. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compensators DN25 type KP04 steel-flange EPDM DVGW drinking water authorization
Article no.
: KP04000005
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN25
connection:
flange acc. DIN EN 1092-1 PN40
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
steel (electro galvanized) 235JR
sleeves:
EPDM
media:
liquid media and gases (no steam) and drinking water
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
authorized for:
DVGW drinking water
product feature:
This high quality compensator with EPDM sleeve and steel flanges has a DVGW drinking water authorization. This type can be extended by PTFE lining, vacuum support rings and other options on request.
€16.66 VAT included.
€4.28 VAT included.
