KP04010008
Compensators DN50 type KP04 stainless-steel-flanges EPDM DVGW drinking water authorization
Delivery time: 3 - 5 working days
Equipment
joint set flange/flange DN50 - 2" Inch for flange PN10/16/25/40 stainless steel
€10.00 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

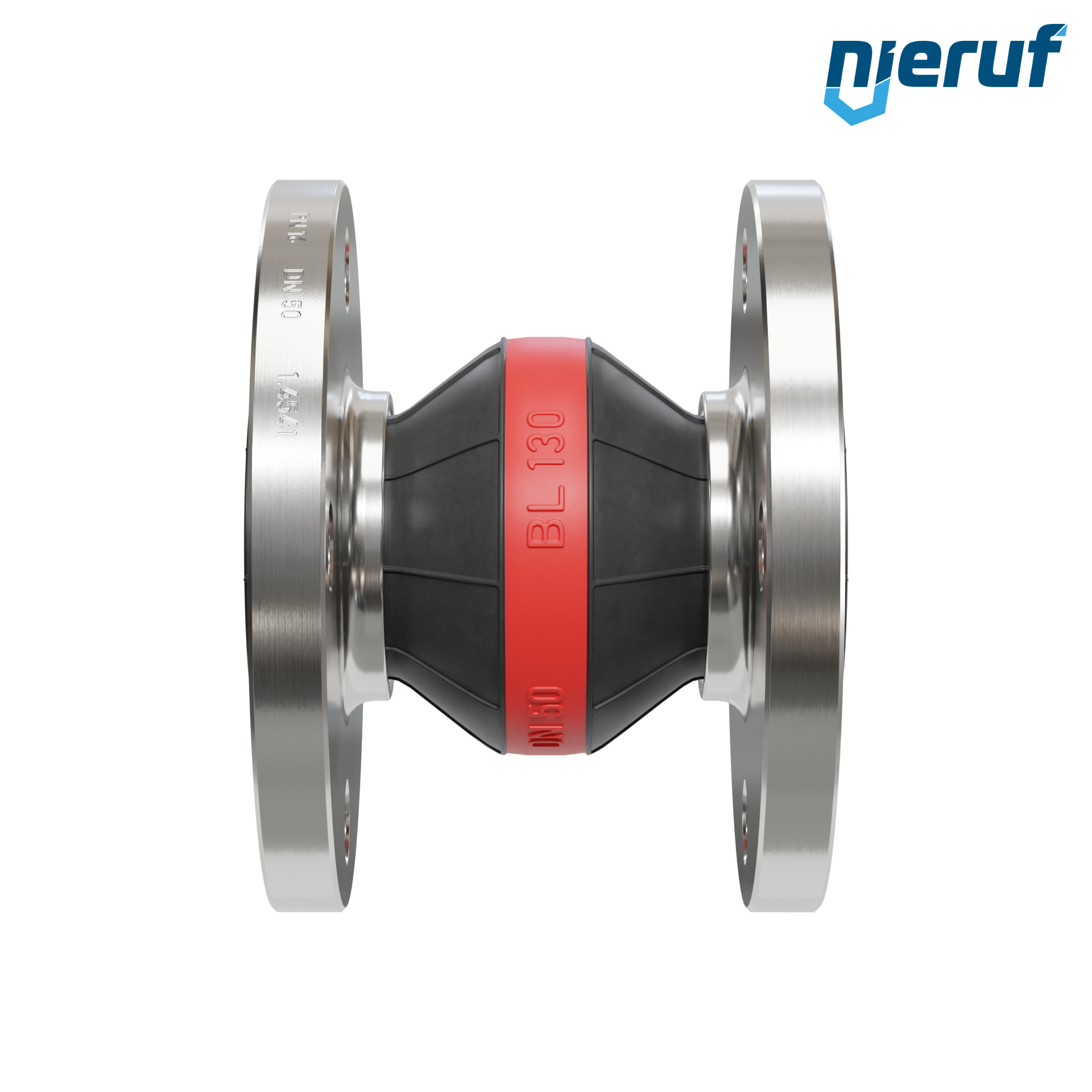

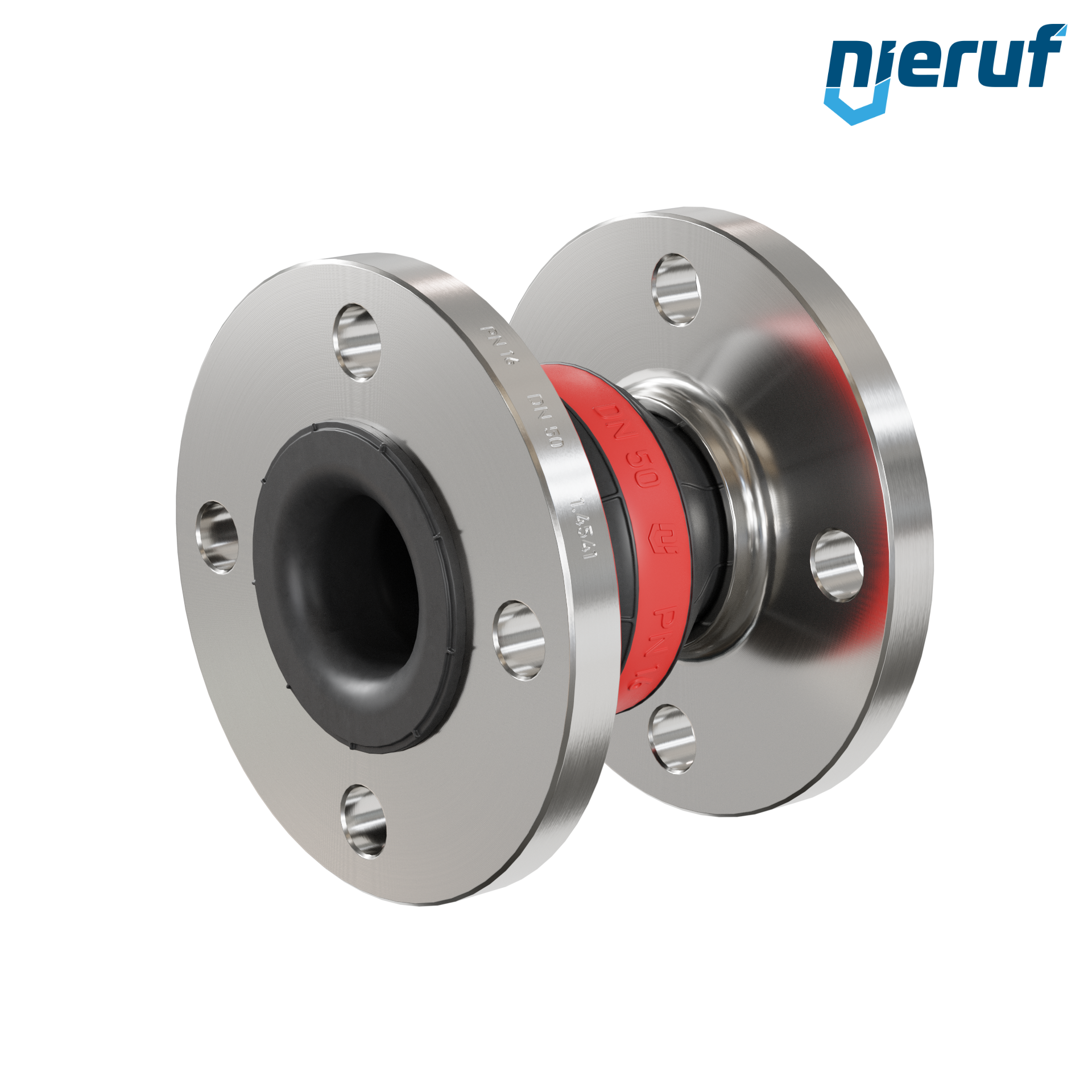

Compensators DN50 with EPDM-sleeve and stainless steel flange with DVGW drinking water authorization for liquid media and gases (no steam) and drinking water
| product: | Compensators |
|---|---|
| type: | KP04 |
| manufacturer: | NieRuf |
| diameter: | DN50 |
| connection: | flange acc. DIN EN 1092-1 PN16 |
| max. pressure: | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure: | PN 16 |
| material: | stainless steel 1.4541 |
| sleeves: | EPDM |
| media: | liquid media and gases (no steam) and drinking water |
| temperature: | -40°C up to +100°C |
| design: | straightway form |
| CE: | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| authorized for: | DVGW drinking water |
| product feature: | This high quality compensator with EPDM sleeve and stainless steel flanges has a DVGW drinking water authorization. This type can be extended by PTFE lining, vacuum support rings and other options on request. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compensators DN50 type KP04 stainless-steel-flanges EPDM DVGW drinking water authorization
Article no.
: KP04010008
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN50
connection:
flange acc. DIN EN 1092-1 PN16
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
stainless steel 1.4541
sleeves:
EPDM
media:
liquid media and gases (no steam) and drinking water
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
authorized for:
DVGW drinking water
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges has a DVGW drinking water authorization. This type can be extended by PTFE lining, vacuum support rings and other options on request.
€10.00 VAT included.
