- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN80 - 3" Inch for flange PN10/16/25 stainless steel
€19.99 VAT included.
Questions about the article?

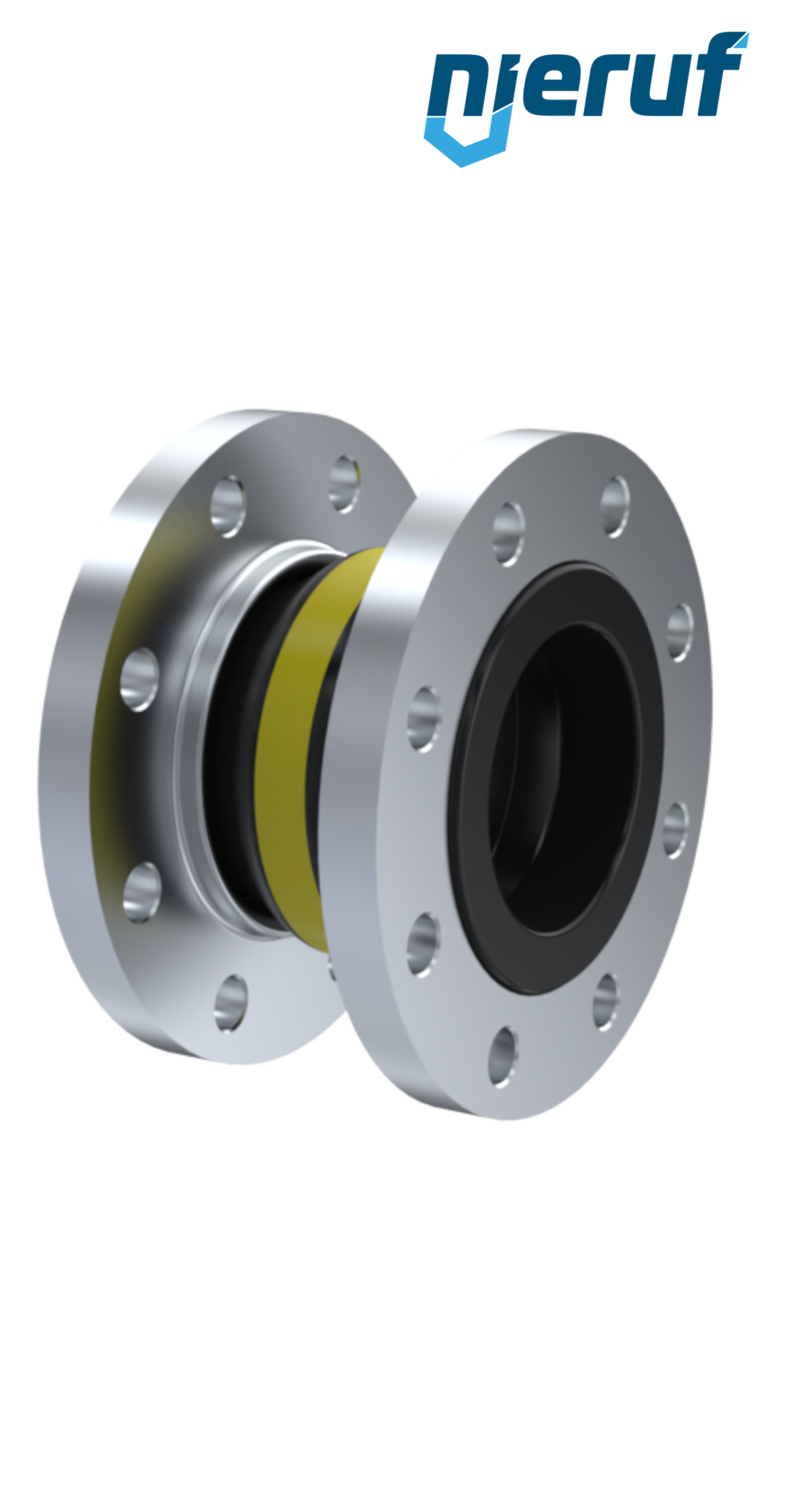

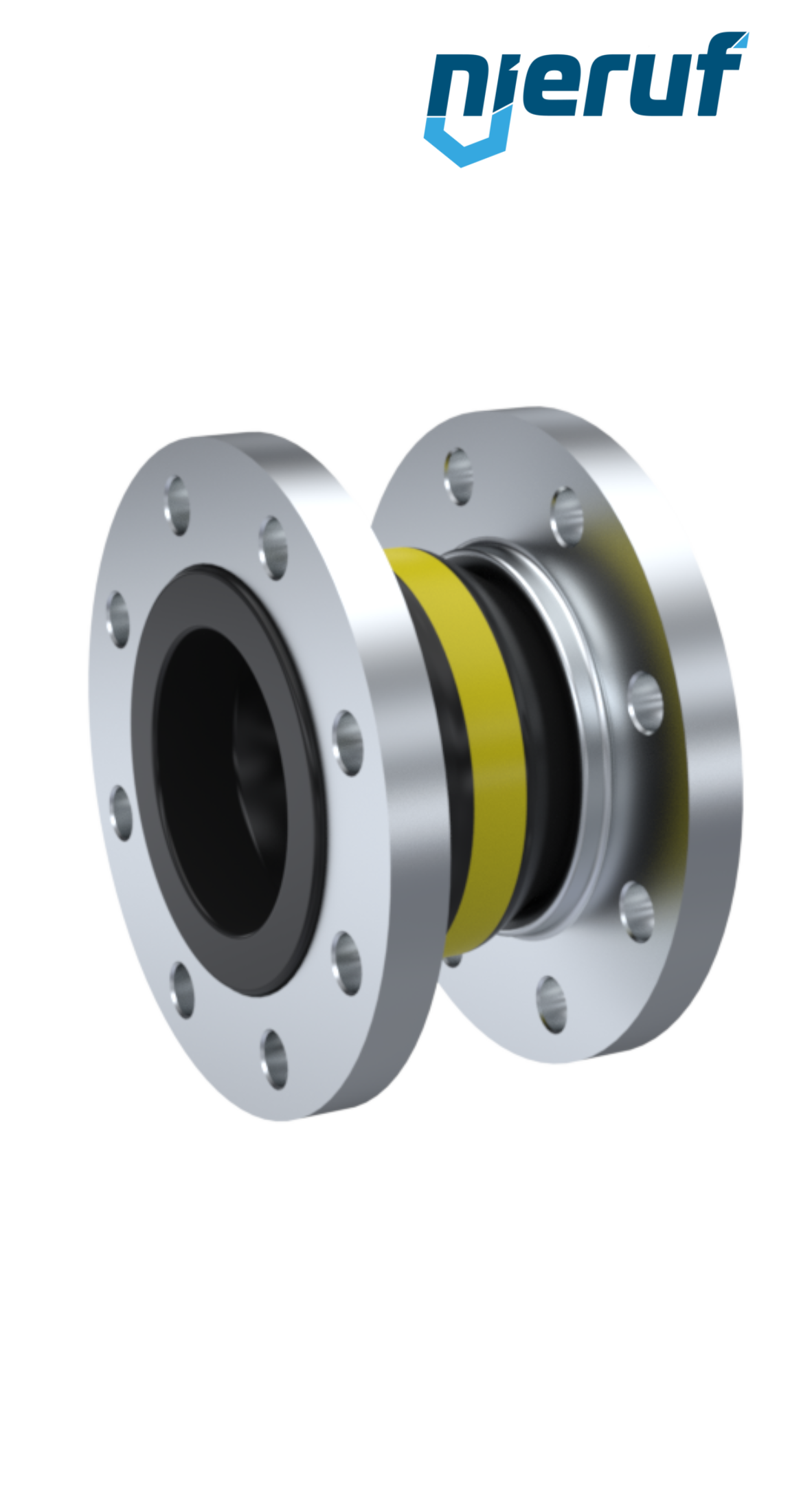

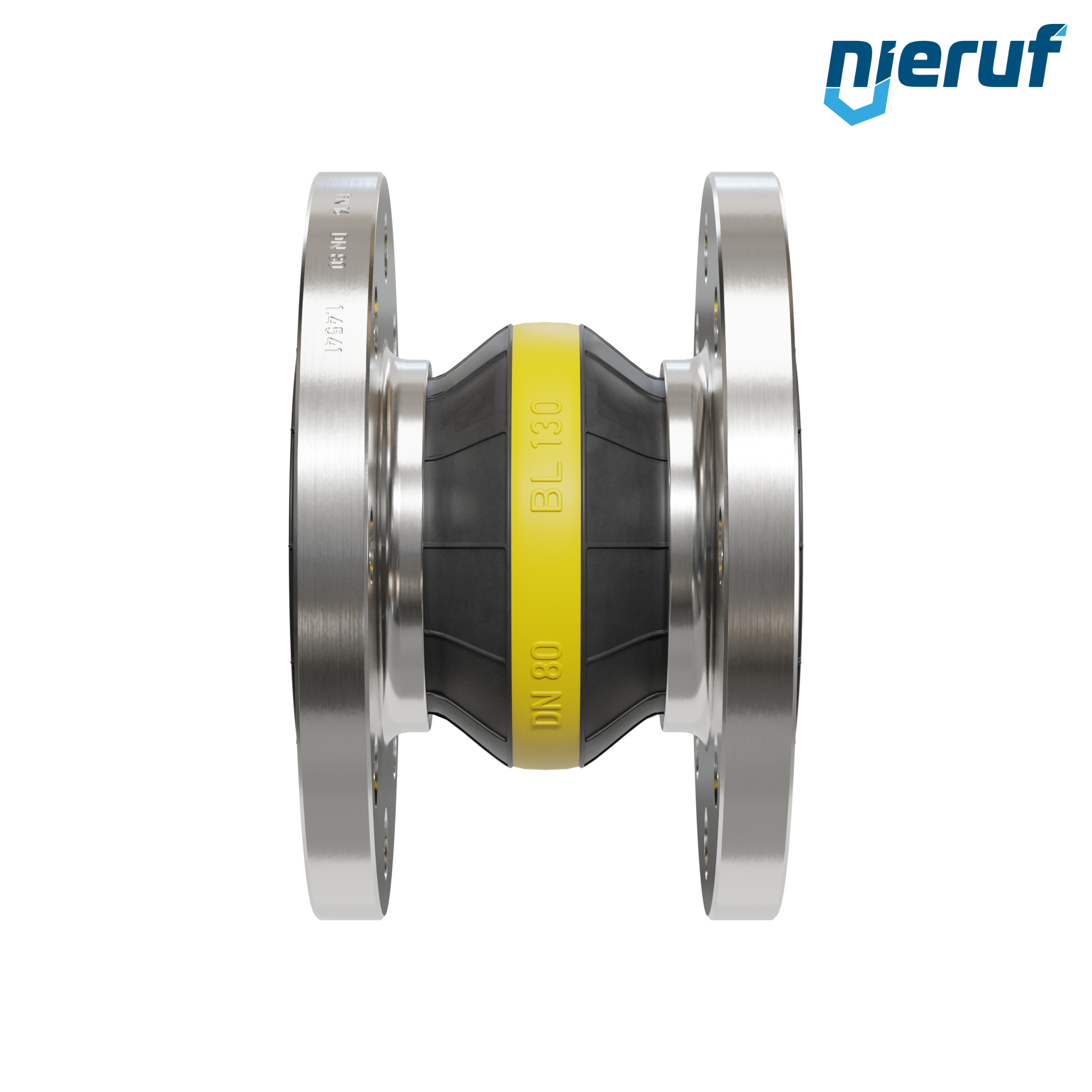

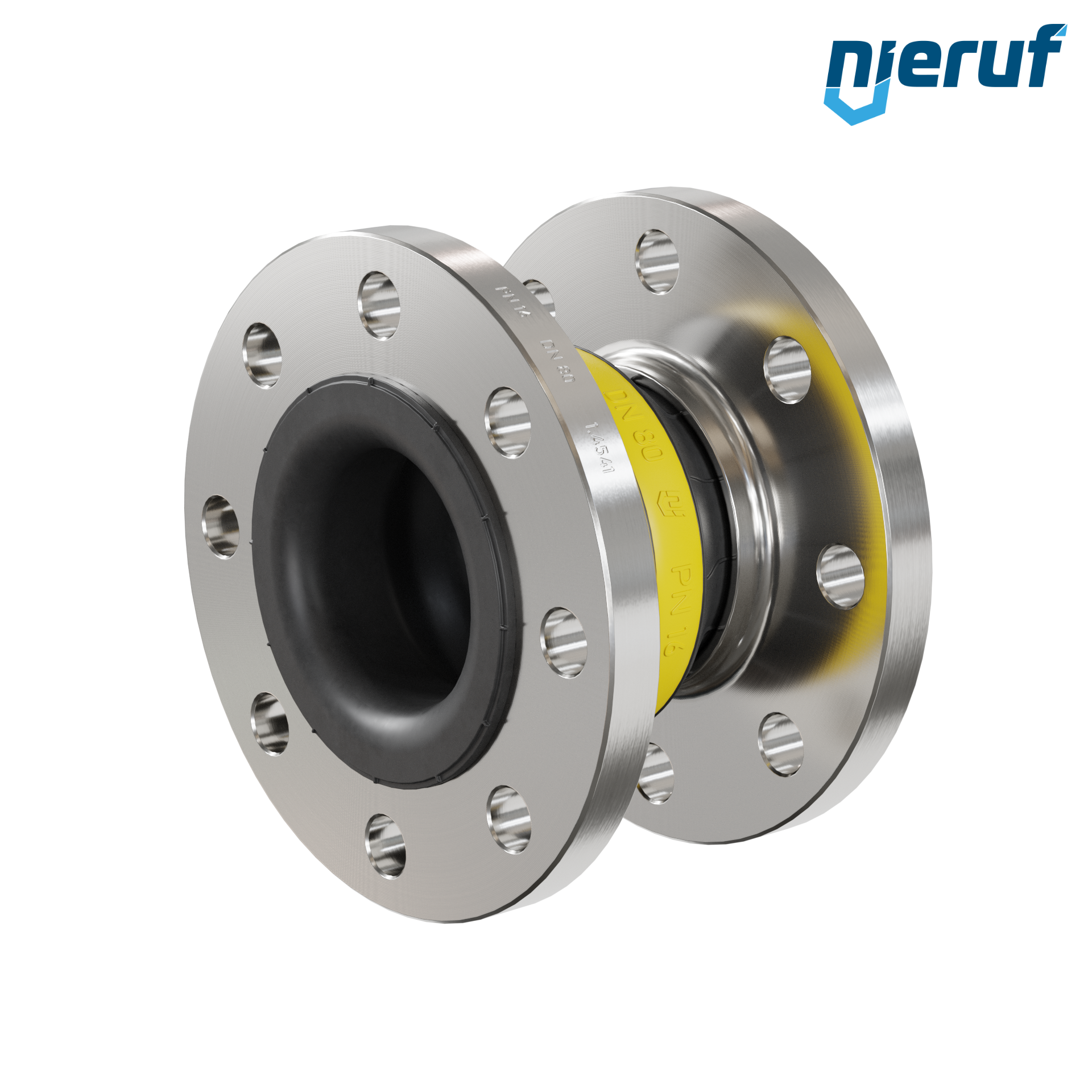

Compensators DN80 with NBR-sleeve and stainless steel flange for liquid media and gases (no steam)
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN80 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 16 |
| material | stainless steel 1.4541 |
| sleeves | NBR |
| media | liquid media and gases (no steam) |
| temperature | -20°C up to +90°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | High quality compensator with NBR sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Compensators DN80 type KP04 stainless-steel-flanges NBR
Article no.
: KP04010110
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN80
connection:
flange acc. DIN EN 1092-1 PN16
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
stainless steel 1.4541
sleeves:
NBR
media:
liquid media and gases (no steam)
temperature:
-20°C up to +90°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
High quality compensator with NBR sleeve and stainless steel flanges. This type can be extended by PTFE lining, vacuum support rings and other options on request.
