- Delivery time
- 3 - 5 working days
Equipment
joint set flange/flange DN125 - 5" Inch for flange PN10/16/25 stainless steel
€20.94 VAT included.
Questions about the article?
Downloads

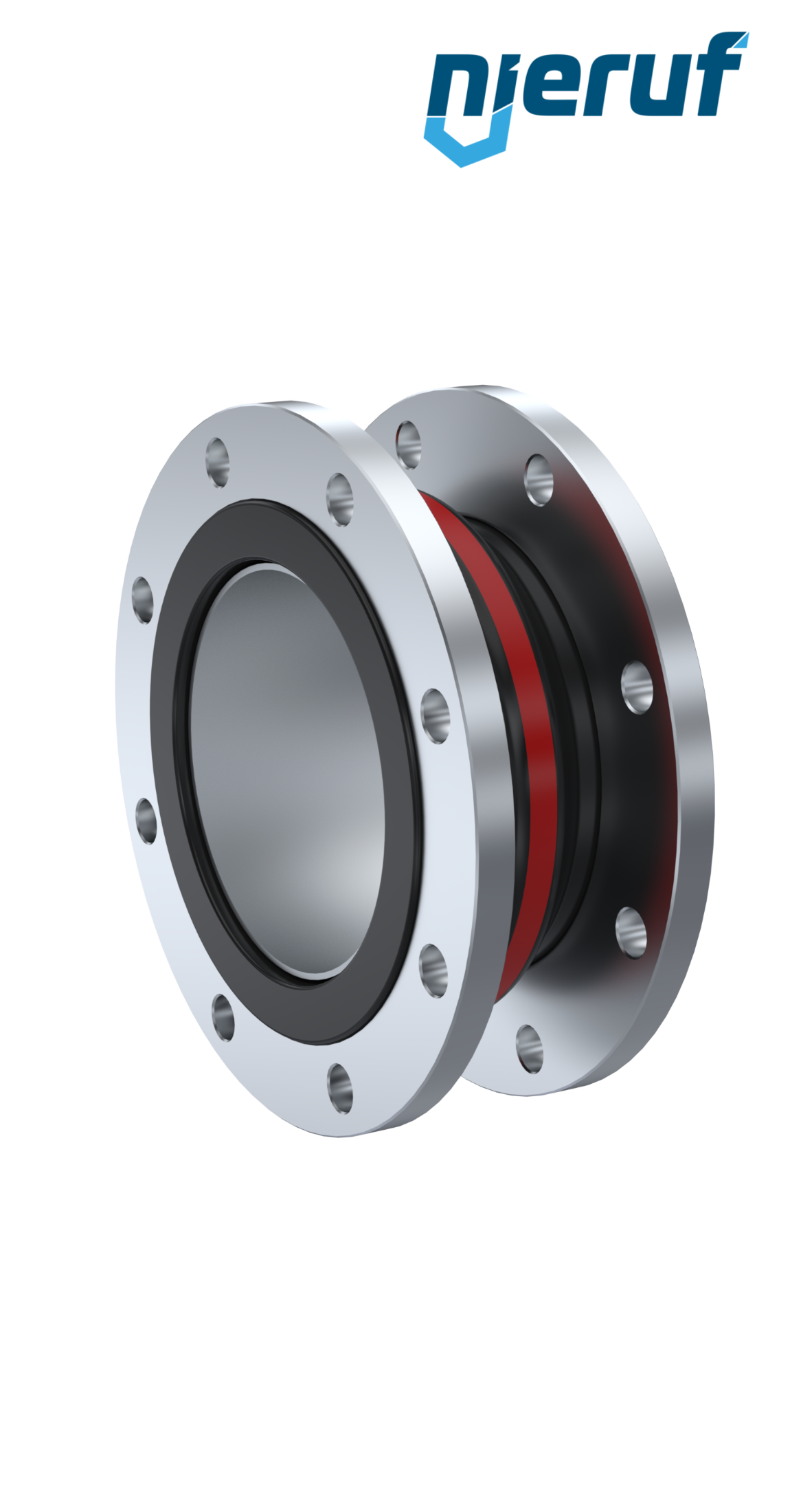

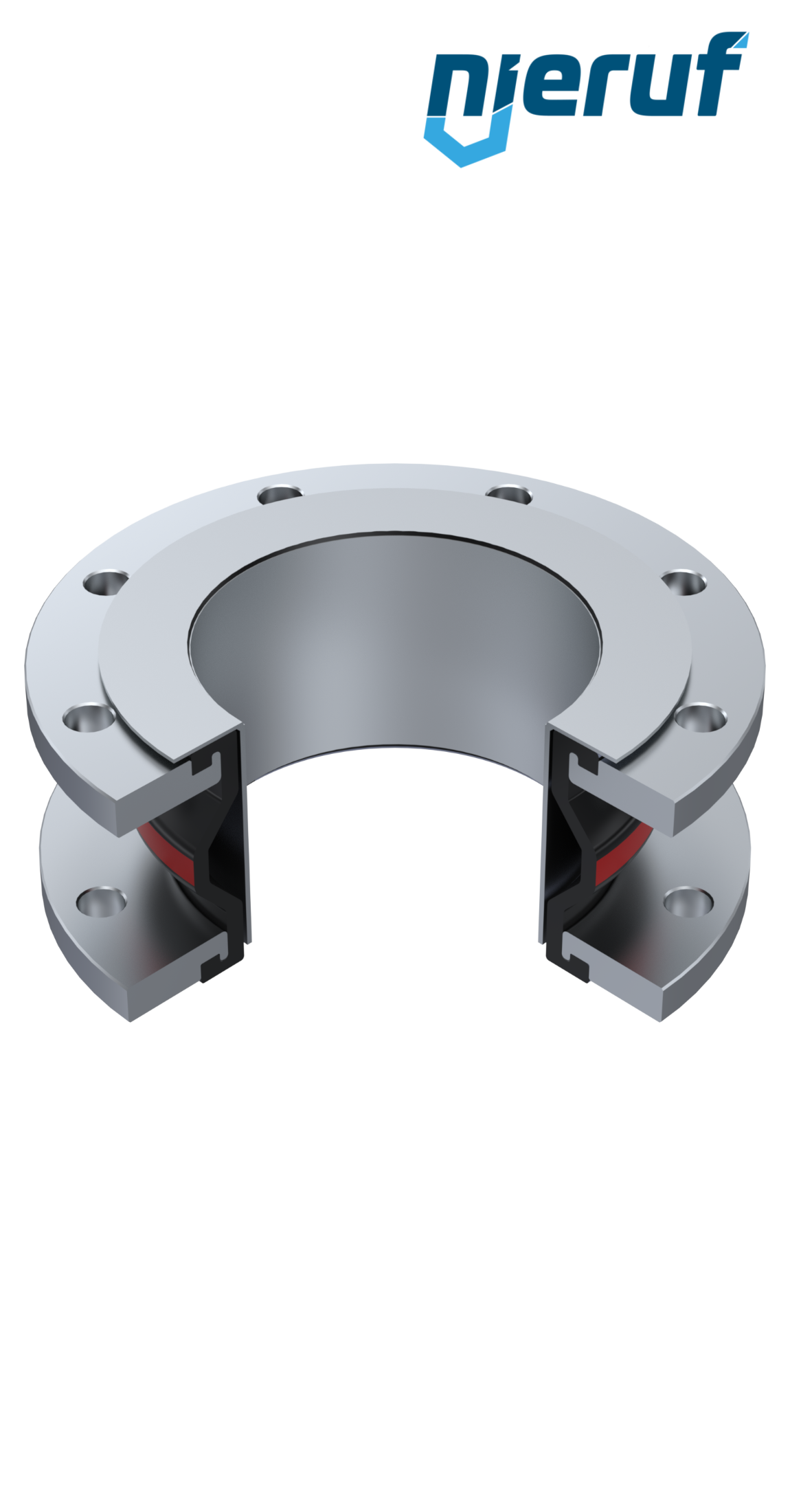

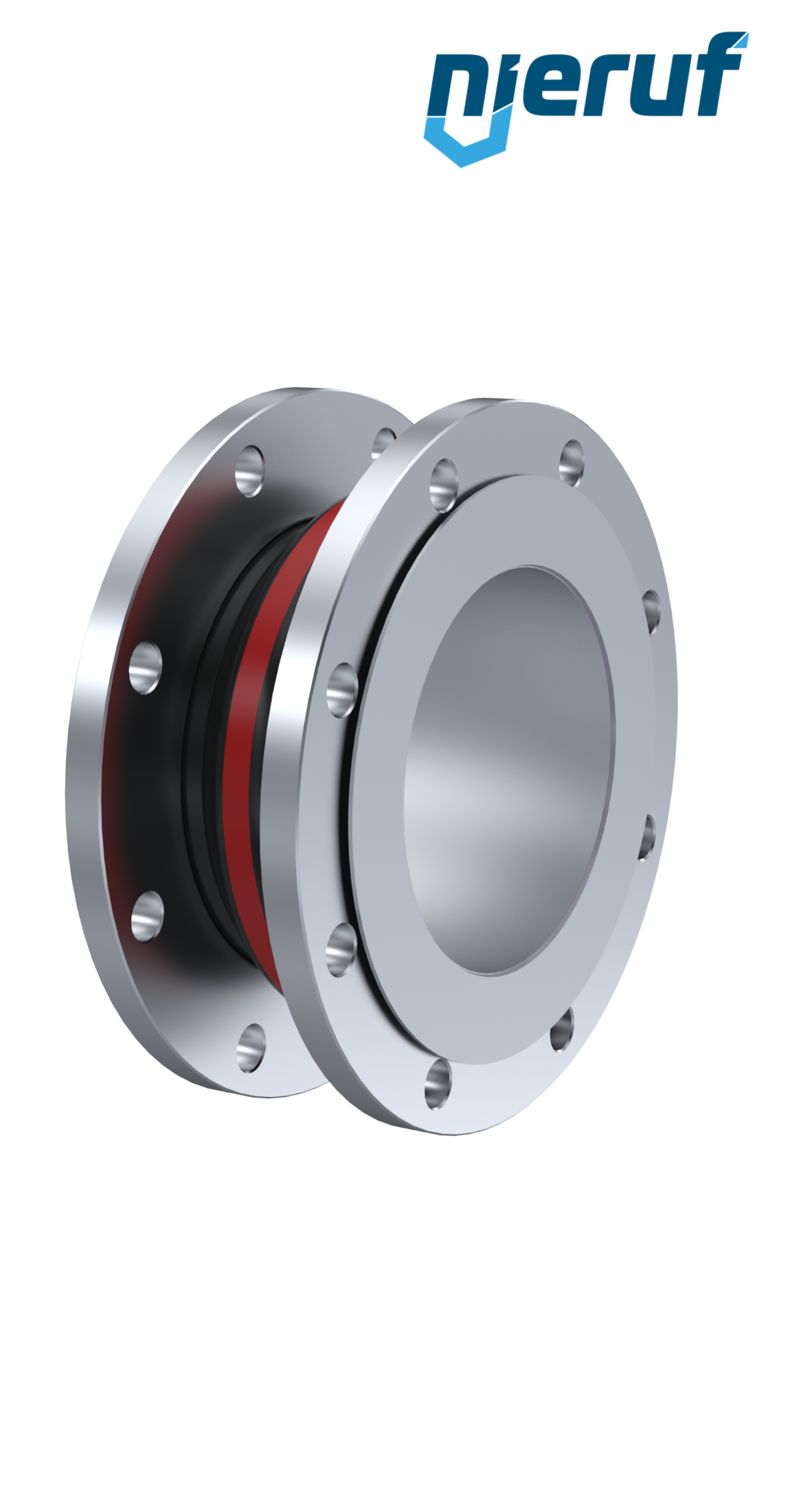

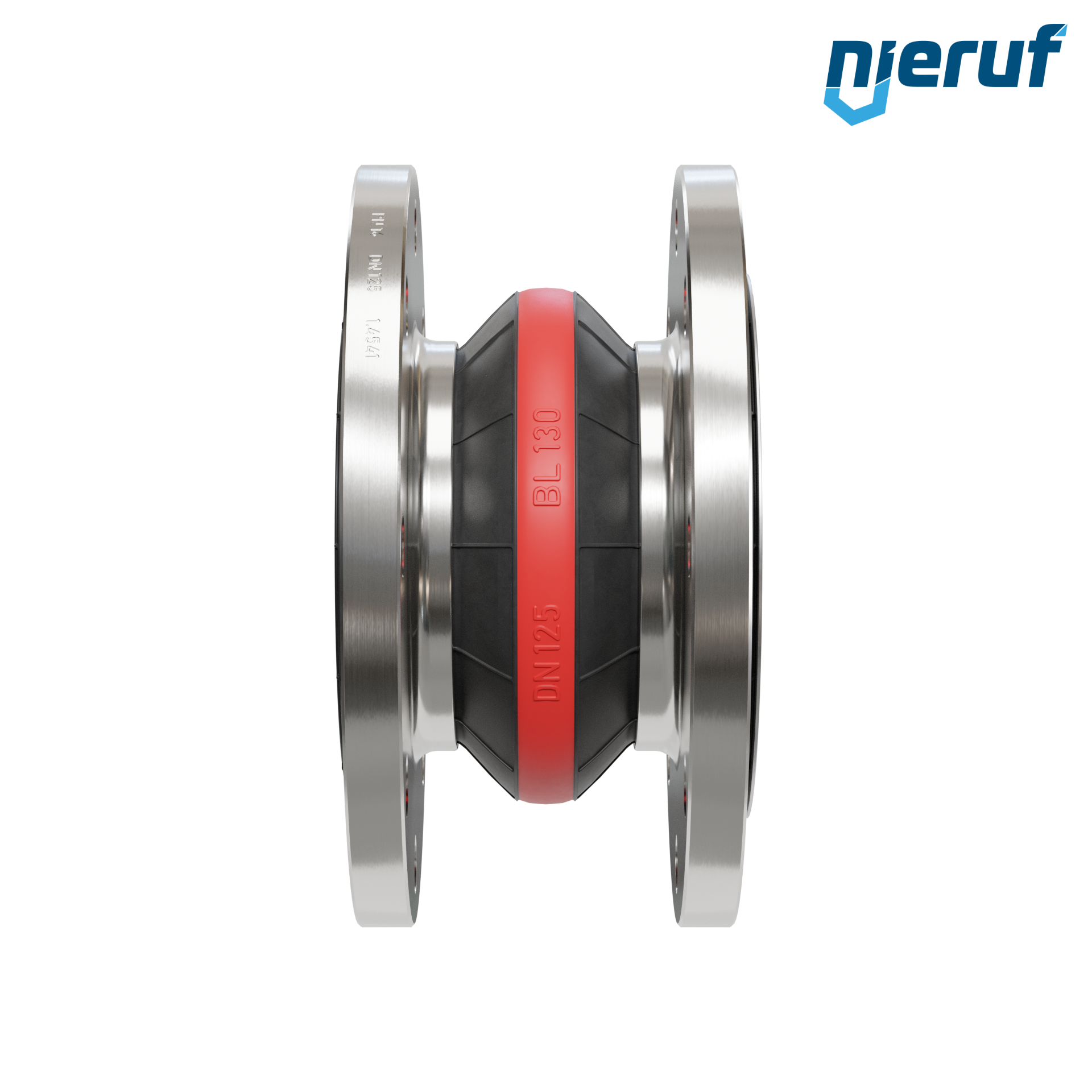

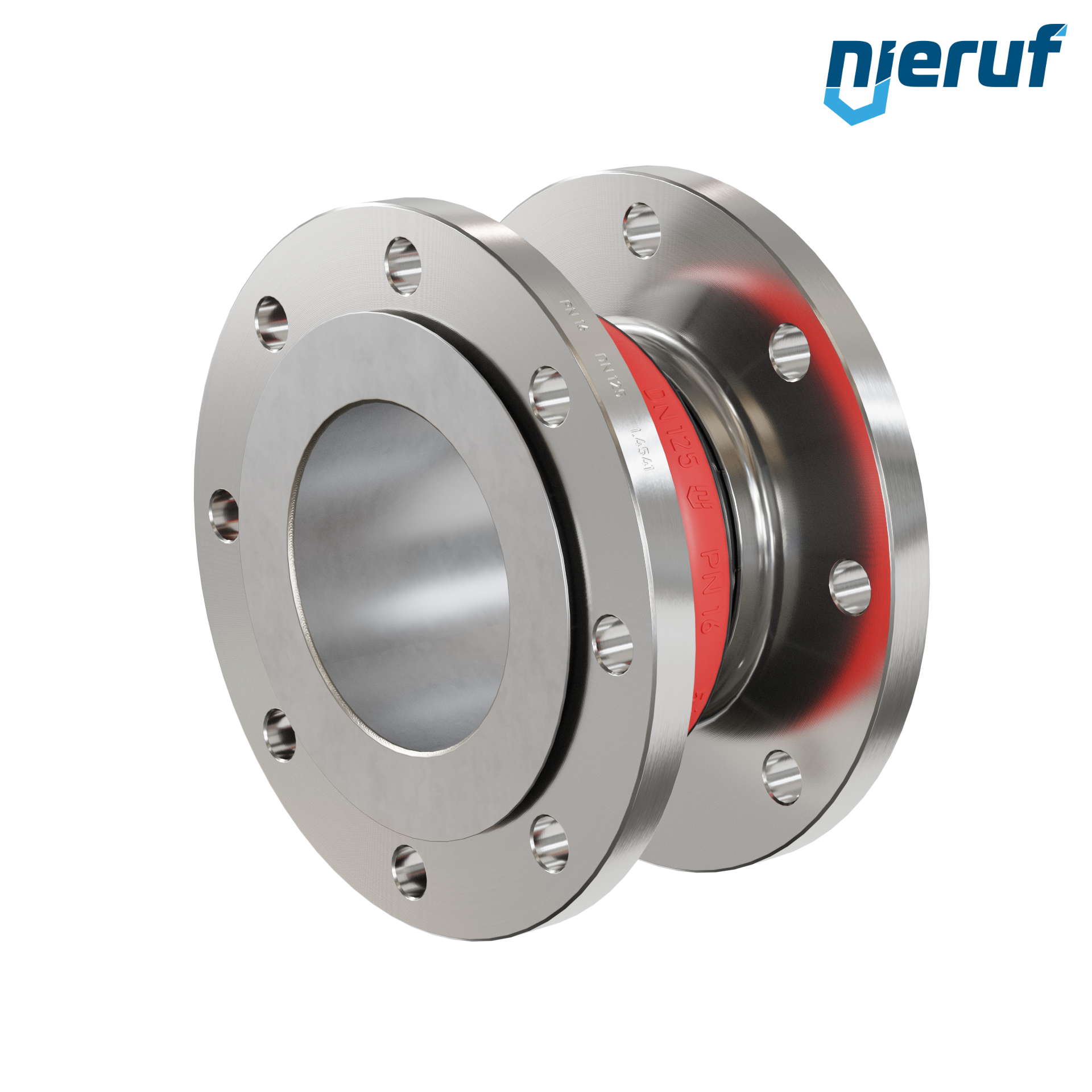

Rubber expansion joint DN125 guide pipe for liquid & gaseous media (no steam) with stainless steel flanges & EPDM seal
| product | Compensators |
|---|---|
| type | KP04 |
| manufacturer | NieRuf |
| diameter | DN125 |
| connection | flange acc. DIN EN 1092-1 PN16 |
| option | guide pipe |
| max. pressure | max. 16 bar (consider pressure-temperature diagram) |
| nominal pressure | PN 16 |
| material | stainless steel 1.4541 |
| sleeves | EPDM |
| media | liquid media and gases (no steam) and drinking water |
| temperature | -40°C up to +100°C |
| design | straightway form |
| CE | Directive 2014/68/EU: product excluded from directive (article 4 § 3) |
| product feature | This high quality compensator with EPDM sleeve and stainless steel flanges has a ACS drinking water authorization. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Rubber expansion joint guide pipe DN125 type KP04 stainless steel flanges EPDM
Article no.
: KP04011012
product:
Compensators
type:
KP04
manufacturer:
NieRuf
diameter:
DN125
connection:
flange acc. DIN EN 1092-1 PN16
option:
guide pipe
max. pressure:
max. 16 bar (consider pressure-temperature diagram)
nominal pressure:
PN 16
material:
stainless steel 1.4541
sleeves:
EPDM
media:
liquid media and gases (no steam) and drinking water
temperature:
-40°C up to +100°C
design:
straightway form
CE:
Directive 2014/68/EU: product excluded from directive (article 4 § 3)
product feature:
This high quality compensator with EPDM sleeve and stainless steel flanges has a ACS drinking water authorization. In addition, this componesator is equipped with a guide plate to minimize damage to the compensator.
