RV06000407
Check valve DN 40 stainless steel CF8M NBR PN 61 - 100 (+ASME B16.5 / ANSI 600 and 900)
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you

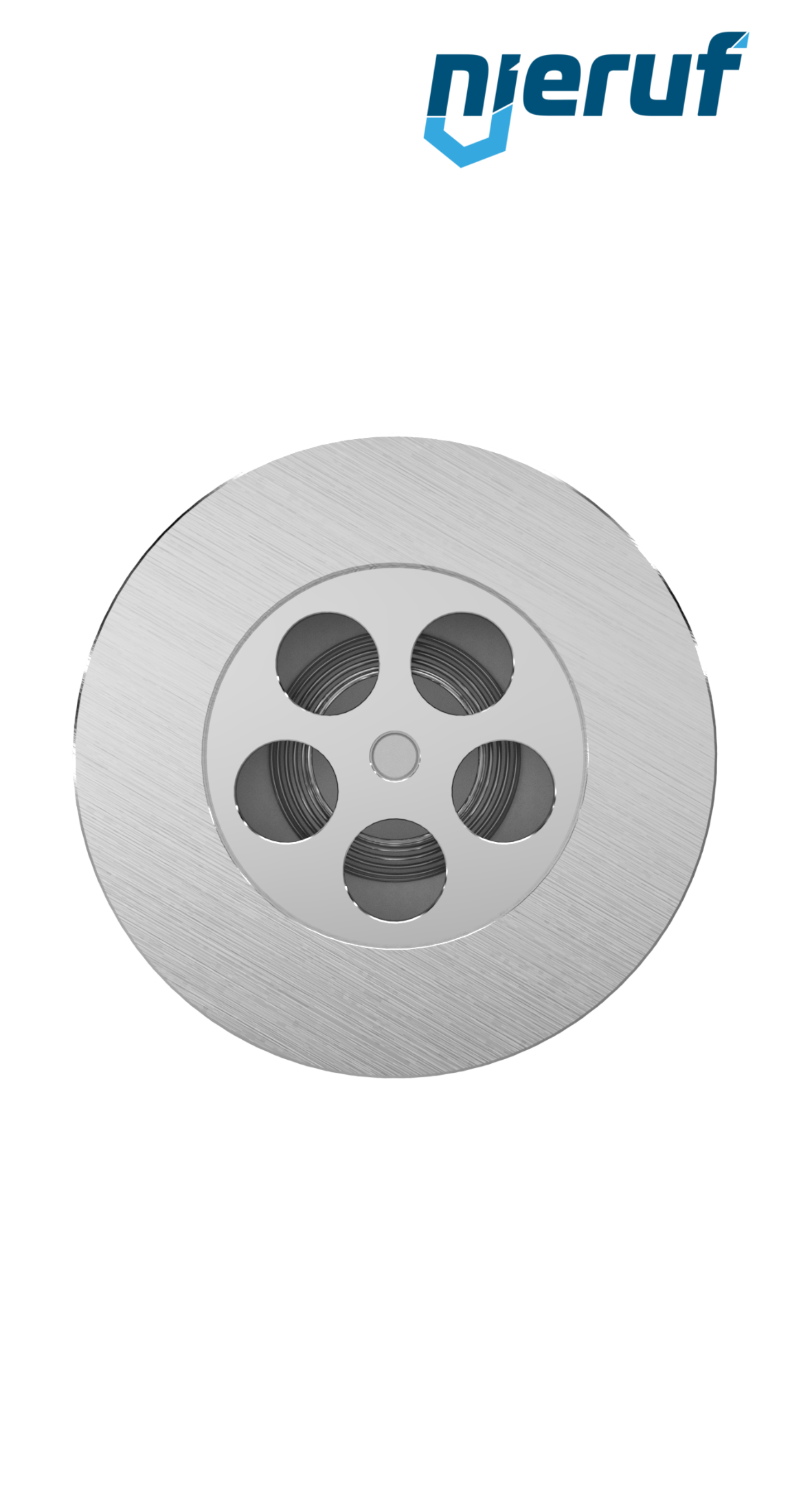

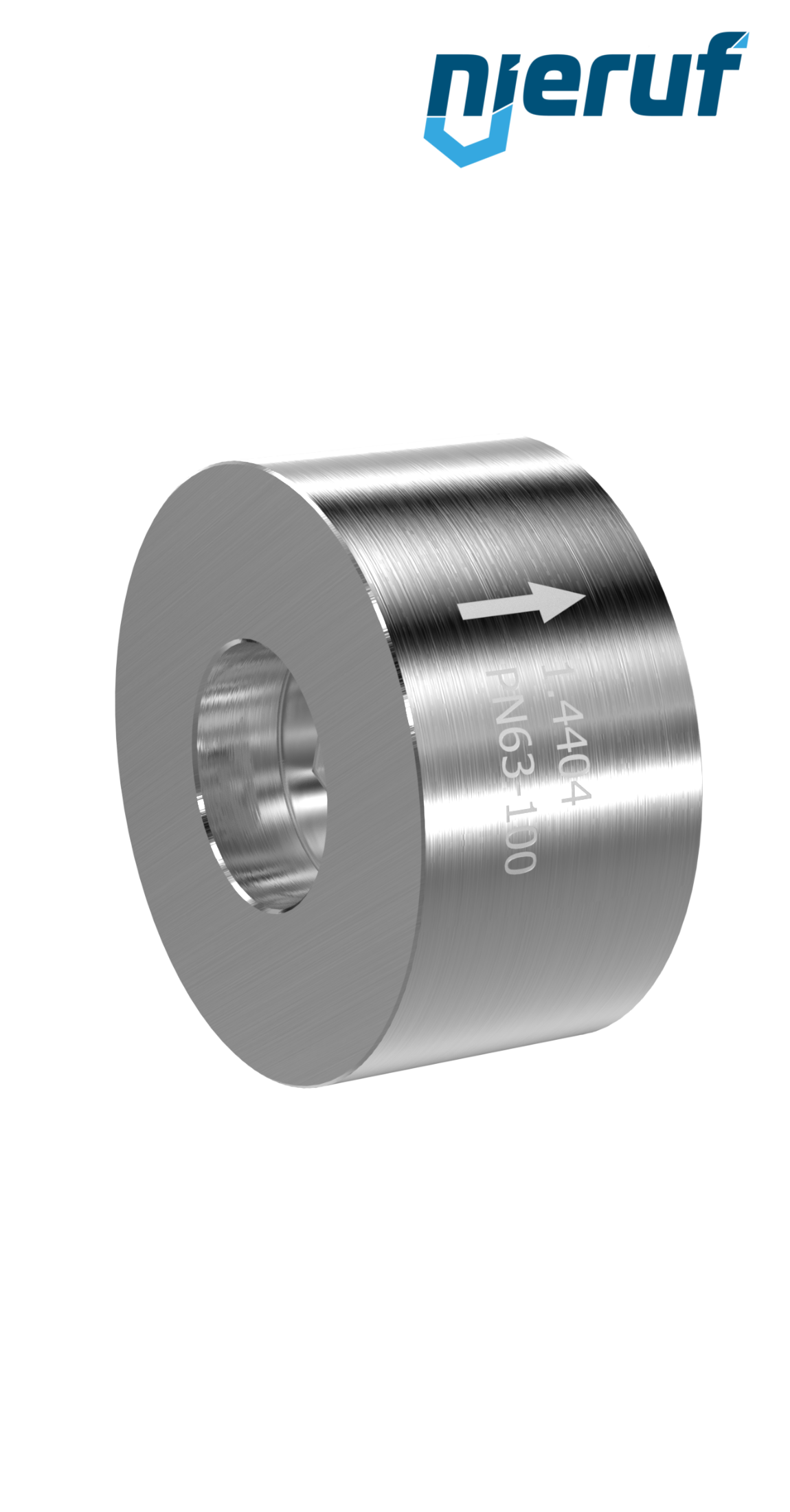

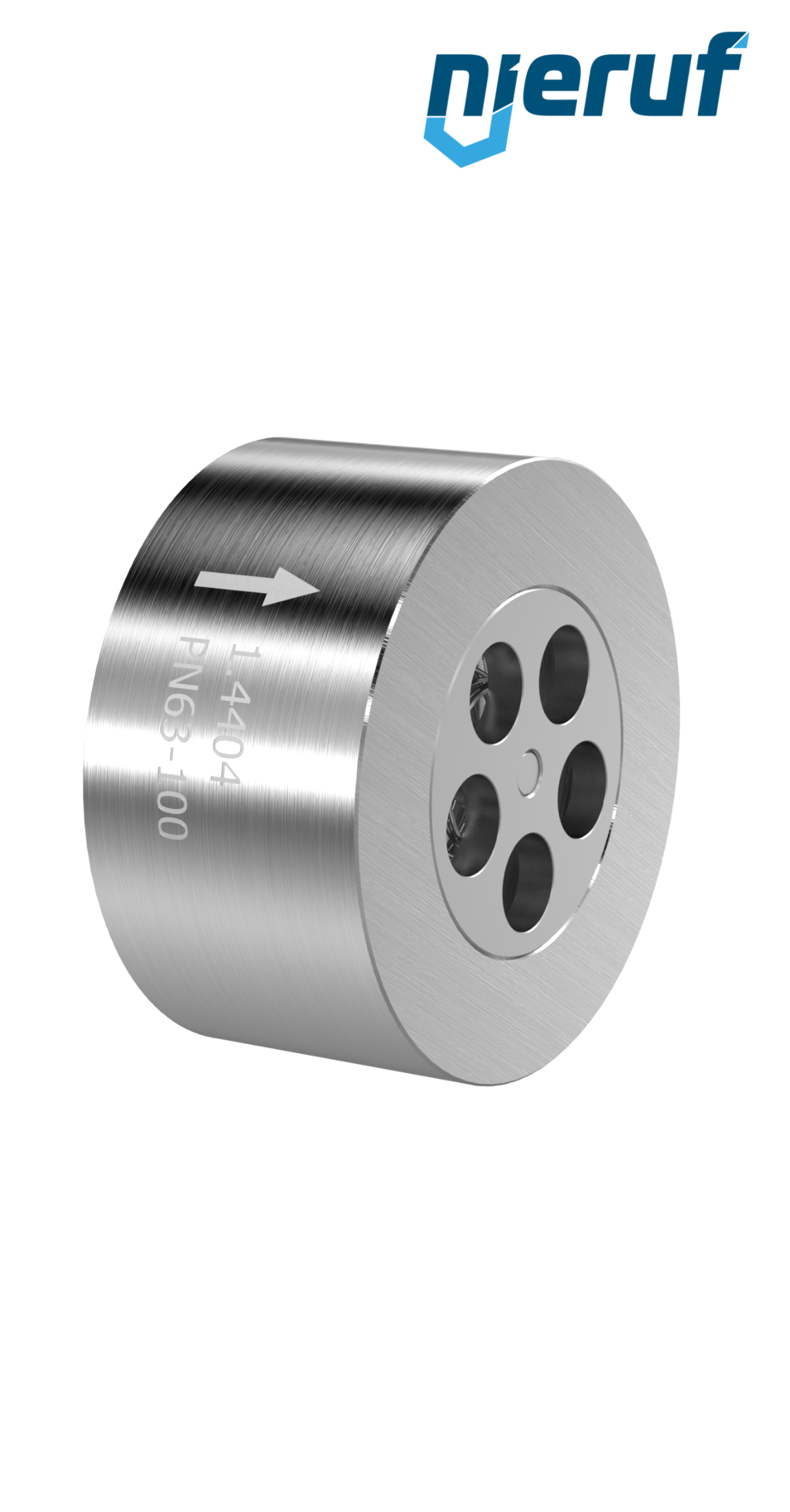

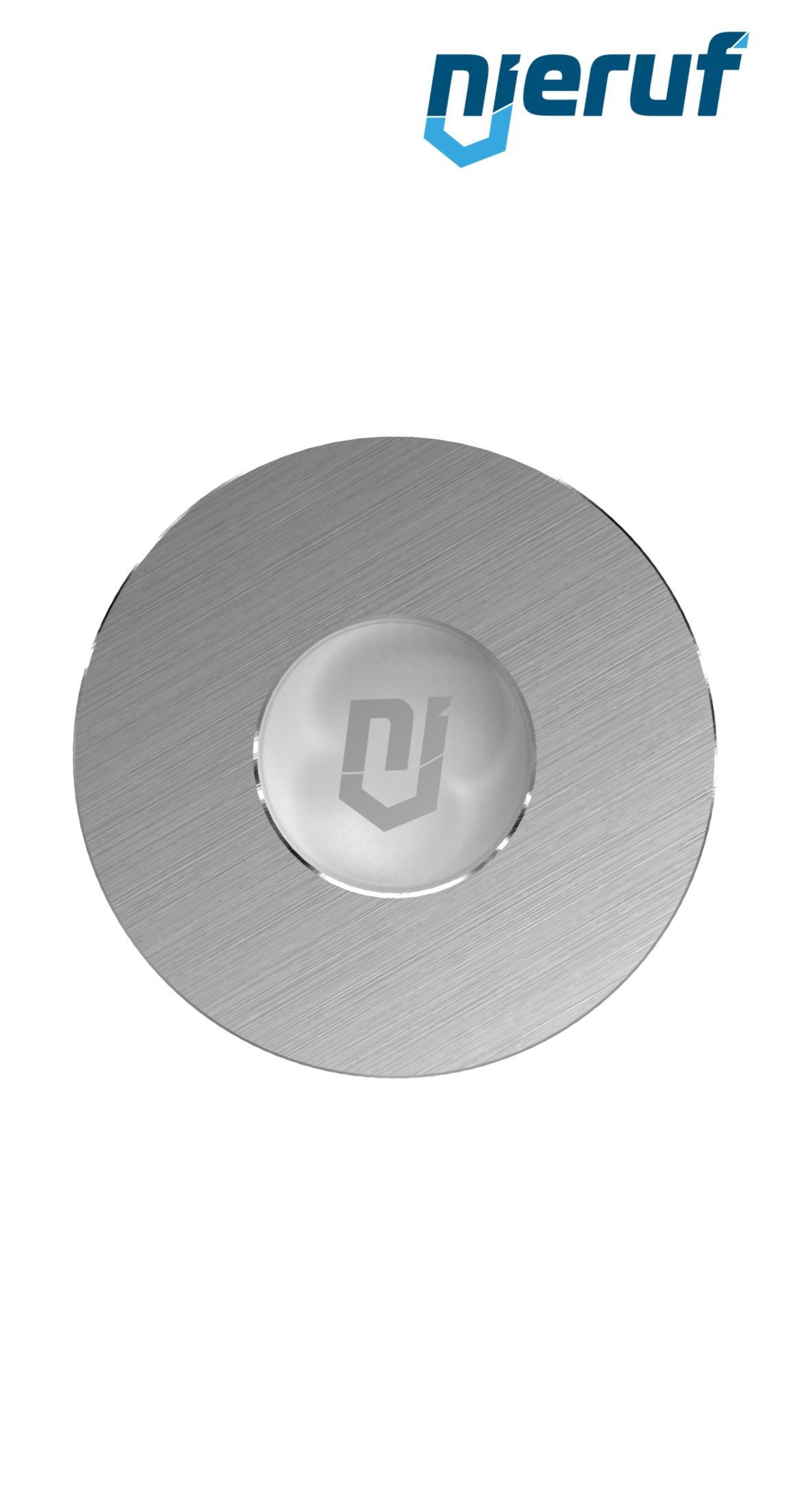

DISCO - Check valve DN 40 made of stainless steel CF8M seal NBR for liquid and gaseous media PN 63 - 100 (+ASME B16.5 ANSI 600 and 900) DIN EN 1092-1 B1
| product: | check valve |
|---|---|
| type: | RV06 |
| manufacturer: | NieRuf |
| design: | disco check valve |
| diameter: | DN 40 |
| body material: | Stainless steel CF8M |
| disc material: | Stainless steel CF8M |
| seal: | NBR |
| tightness acc. to DIN EN 12266: | leak rate A |
| temperature: | -30°C up to +100°C |
| flange: | PN 63-100 DIN EN 1092-1 B1, ASME B16.5 ANSI 600 / 900 |
| pressure range: | 0 - 160 bar |
| Kv-value in m3/h: | 23,50 |
| spring material: | stainless steel 1.4571 |
| media: | liquid and gaseous media |
| installation position: | any position |
| product feature: | Length according DIN EN 558 row 52 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Check valve DN 40 stainless steel CF8M NBR PN 61 - 100 (+ASME B16.5 / ANSI 600 and 900)
Article no.
: RV06000407
product:
check valve
type:
RV06
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 40
body material:
Stainless steel CF8M
disc material:
Stainless steel CF8M
seal:
NBR
tightness acc. to DIN EN 12266:
leak rate A
temperature:
-30°C up to +100°C
flange:
PN 63-100 DIN EN 1092-1 B1, ASME B16.5 ANSI 600 / 900
pressure range:
0 - 160 bar
Kv-value in m3/h:
23,50
spring material:
stainless steel 1.4571
media:
liquid and gaseous media
installation position:
any position
product feature:
Length according DIN EN 558 row 52
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
