RV01000504
check valve DN 20 Stainless steel CF8M metall PN 6/10/16/25/40 DIN EN 1092-1 Form B
Delivery time: in stock
Express delivery:
Shipping on: Monday, 23. December
Guaranteed delivery until Tuesday, 24. December, 12 o'clock
Order in within by express delivery
Equipment
Welding neck flange DN20 PN10/16/25/40 EN1092-1 11 B1 1.4541
€26.78 VAT included.
joint set check valve/flange DN20 - 3/4" Inch for flange PN10/16/25/40 stainless steel
€5.71 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

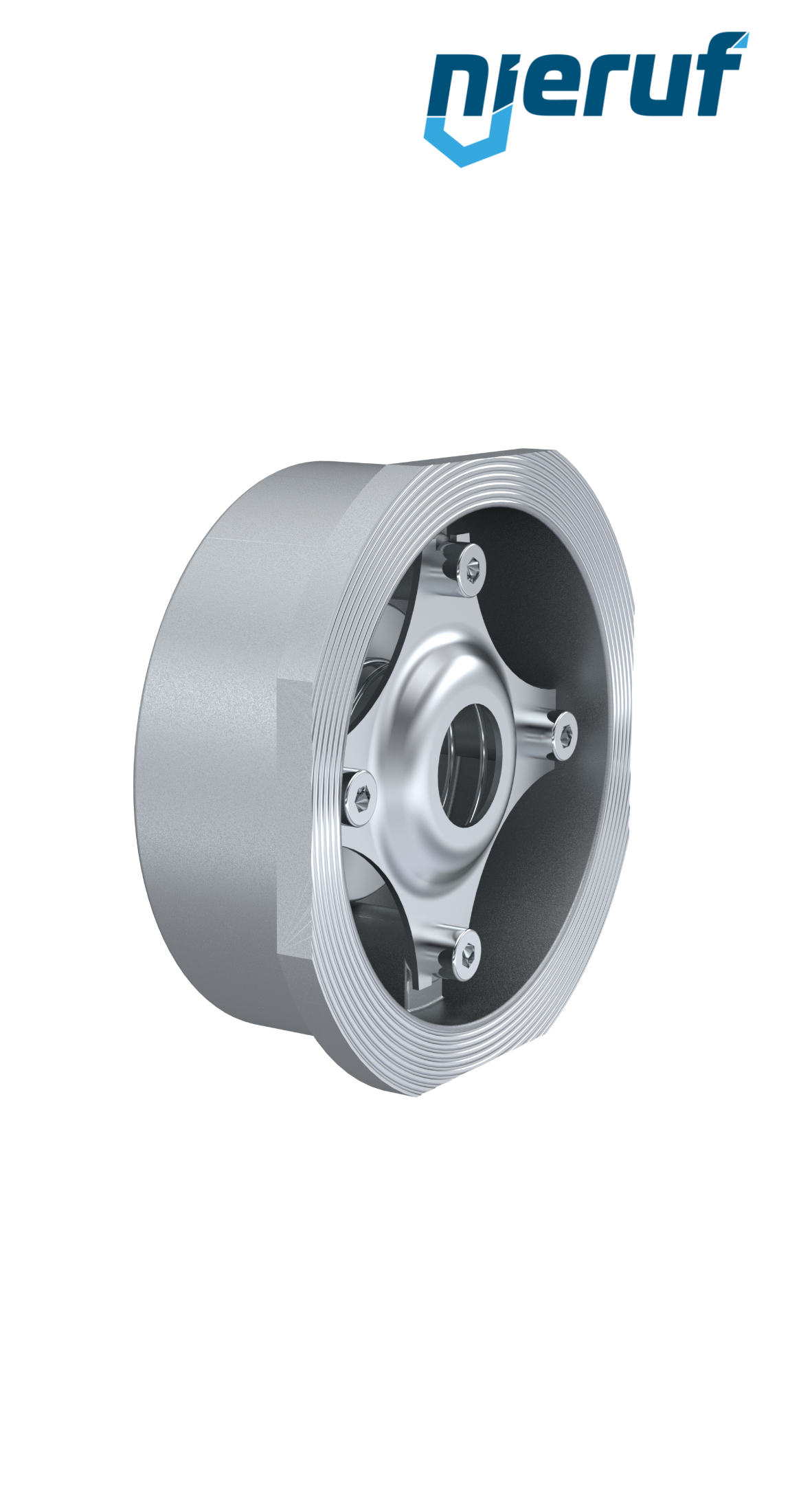

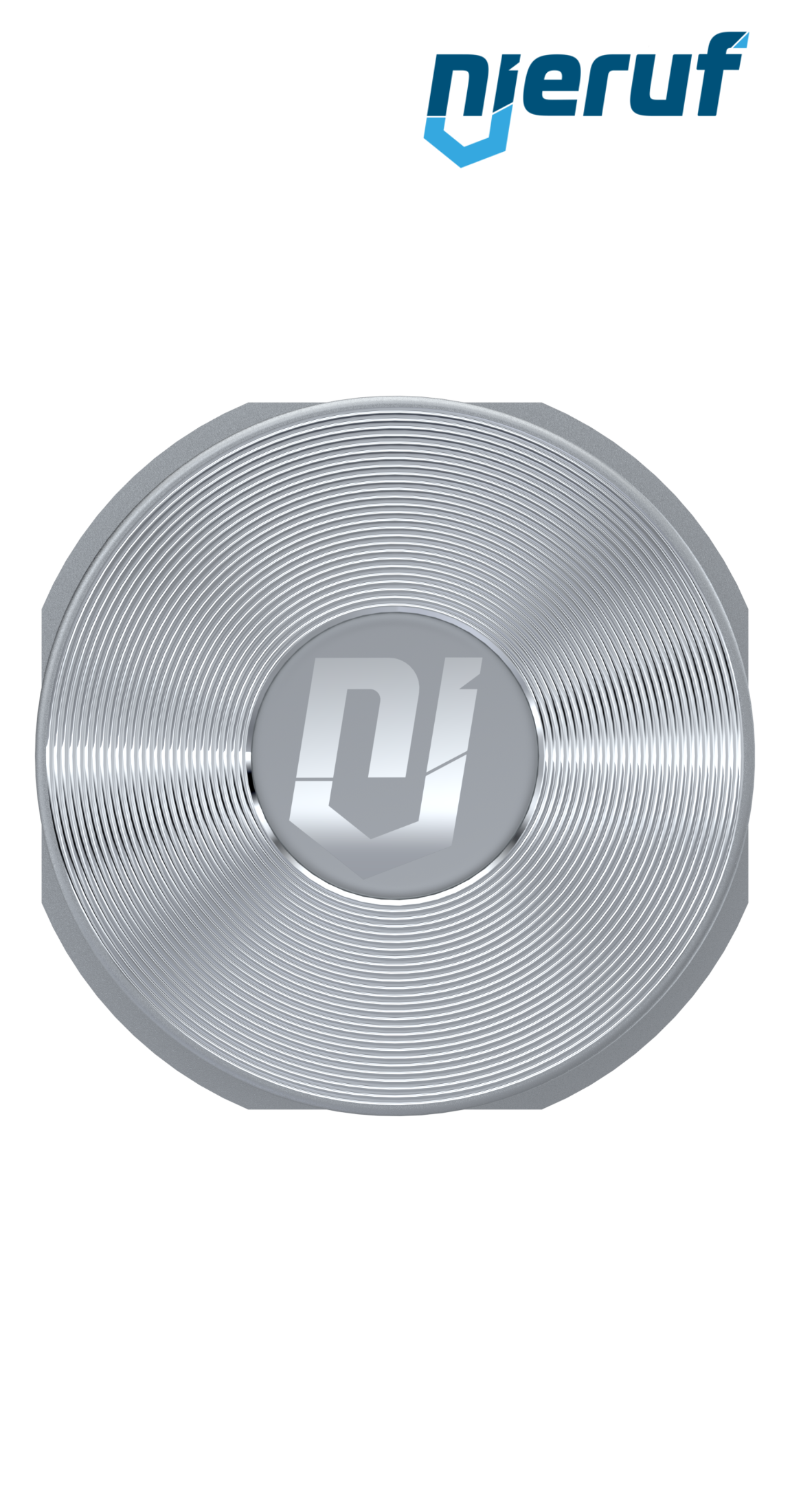

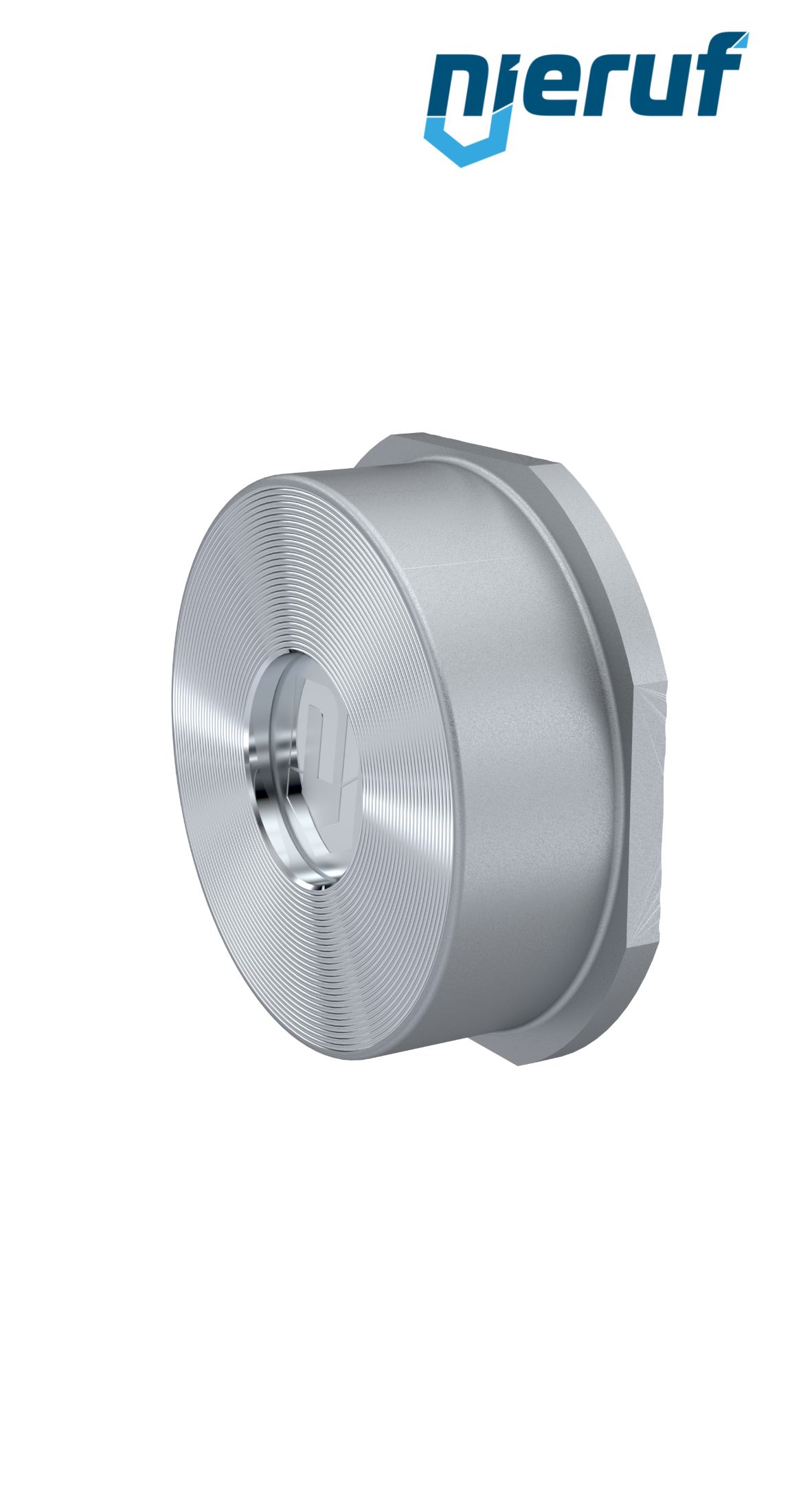

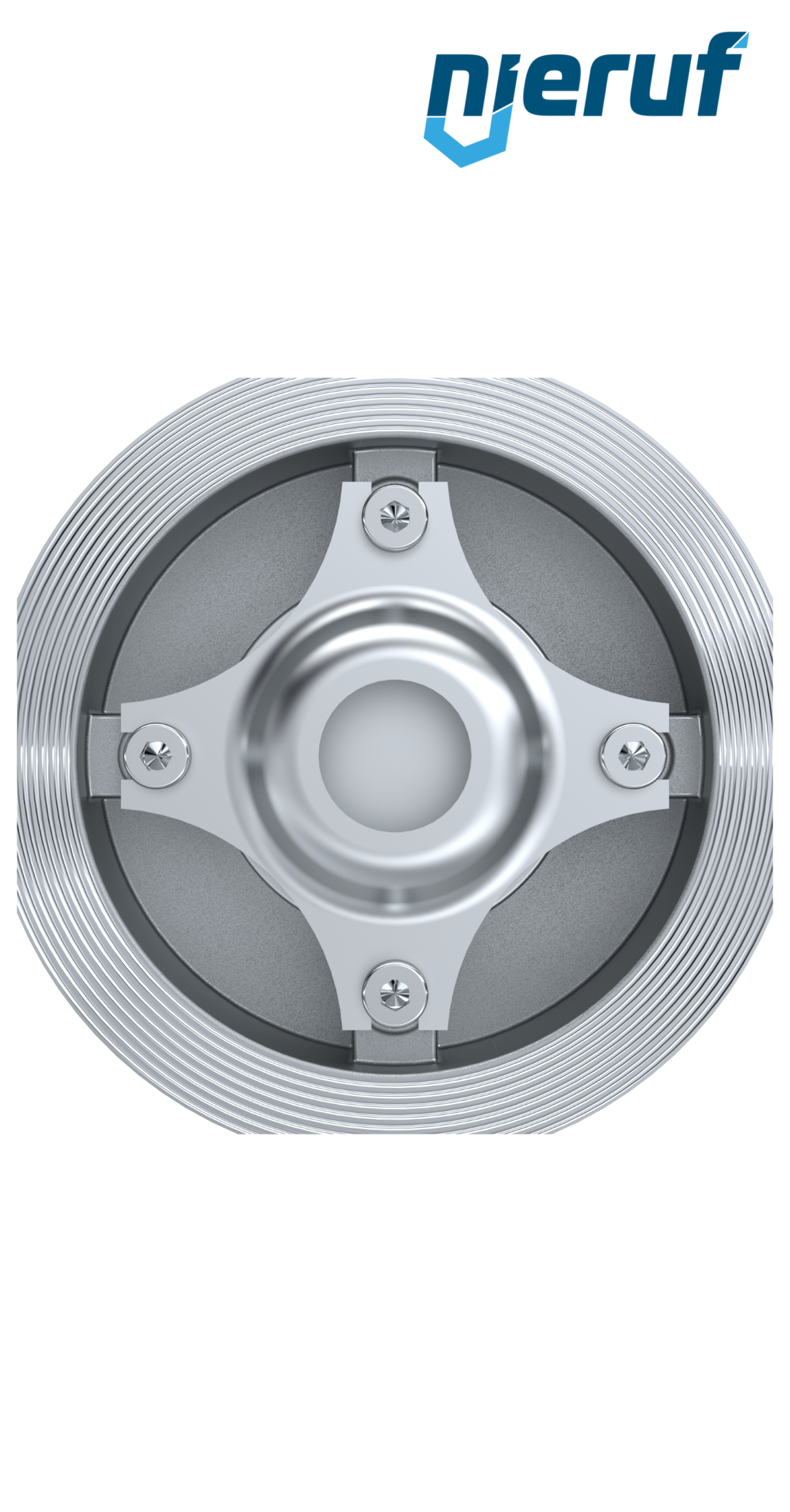

disco check valve DN 20 made of Stainless steel CF8M seal metall for liquid and gaseous media PN 6/10/16/25/40 DIN EN 1092-1 Form B
| product: | check valve |
|---|---|
| type: | RV01 |
| manufacturer: | NieRuf |
| design: | disco check valve |
| diameter: | DN 20 |
| body material: | Stainless steel CF8M |
| disc material: | Stainless steel CF8M |
| seal: | metall |
| tightness acc. to DIN EN 12266: | leak rate ≥ G |
| temperature: | -20°C up to +300°C |
| flange: | PN 6/10/16/25/40 DIN EN 1092-1 Form B |
| pressure range: | 0 - 40 bar |
| Kv-value in m3/h: | 7,00 |
| spring material: | stainless steel 1.4436 |
| media: | liquid and gaseous media |
| installation position: | any position |
| product feature: | face to face according DIN EN 558-1 row 49 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
check valve DN 20 Stainless steel CF8M metall PN 6/10/16/25/40 DIN EN 1092-1 Form B
Article no.
: RV01000504
product:
check valve
type:
RV01
manufacturer:
NieRuf
design:
disco check valve
diameter:
DN 20
body material:
Stainless steel CF8M
disc material:
Stainless steel CF8M
seal:
metall
tightness acc. to DIN EN 12266:
leak rate ≥ G
temperature:
-20°C up to +300°C
flange:
PN 6/10/16/25/40 DIN EN 1092-1 Form B
pressure range:
0 - 40 bar
Kv-value in m3/h:
7,00
spring material:
stainless steel 1.4436
media:
liquid and gaseous media
installation position:
any position
product feature:
face to face according DIN EN 558-1 row 49
