DR02000113

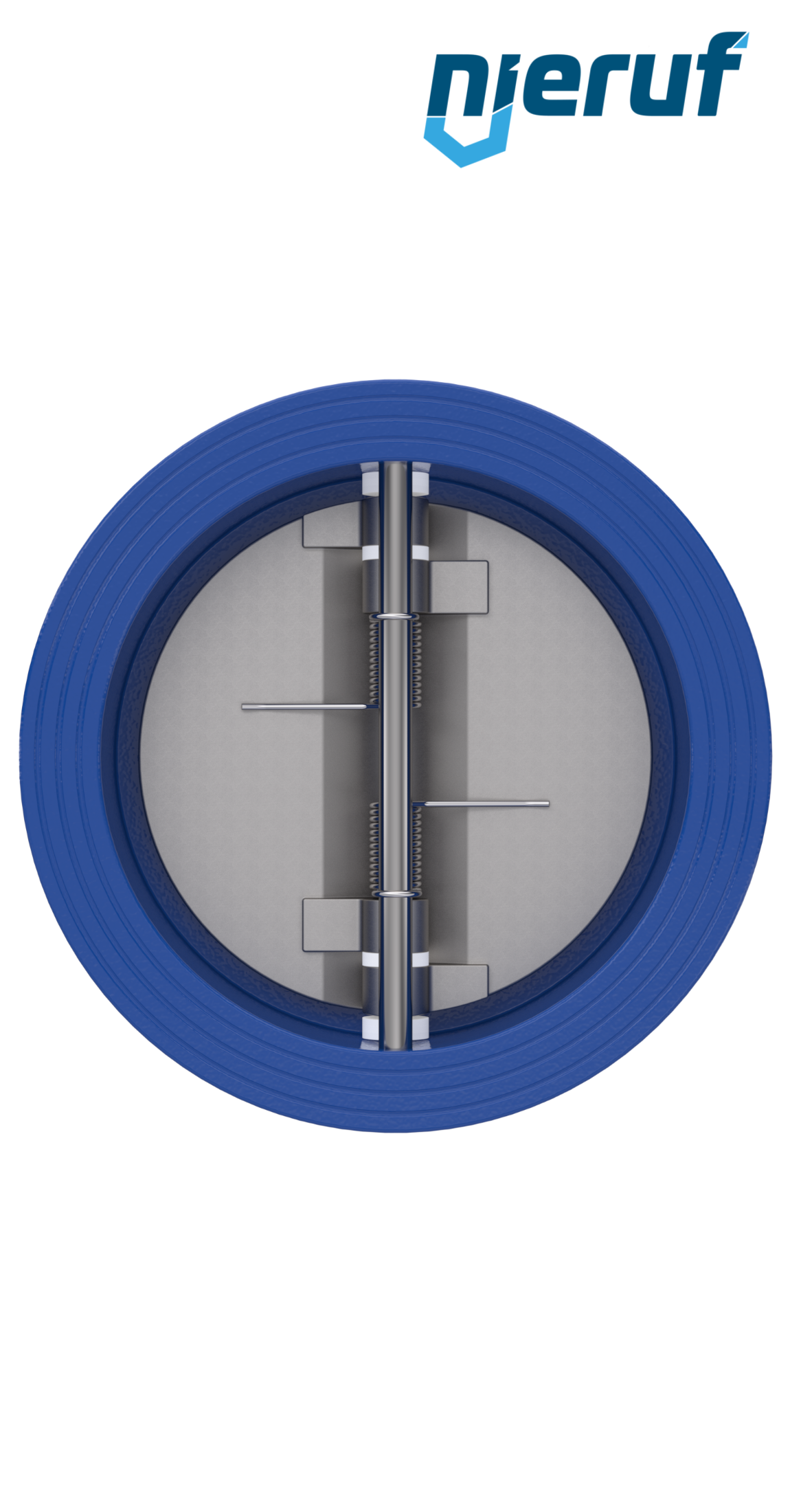

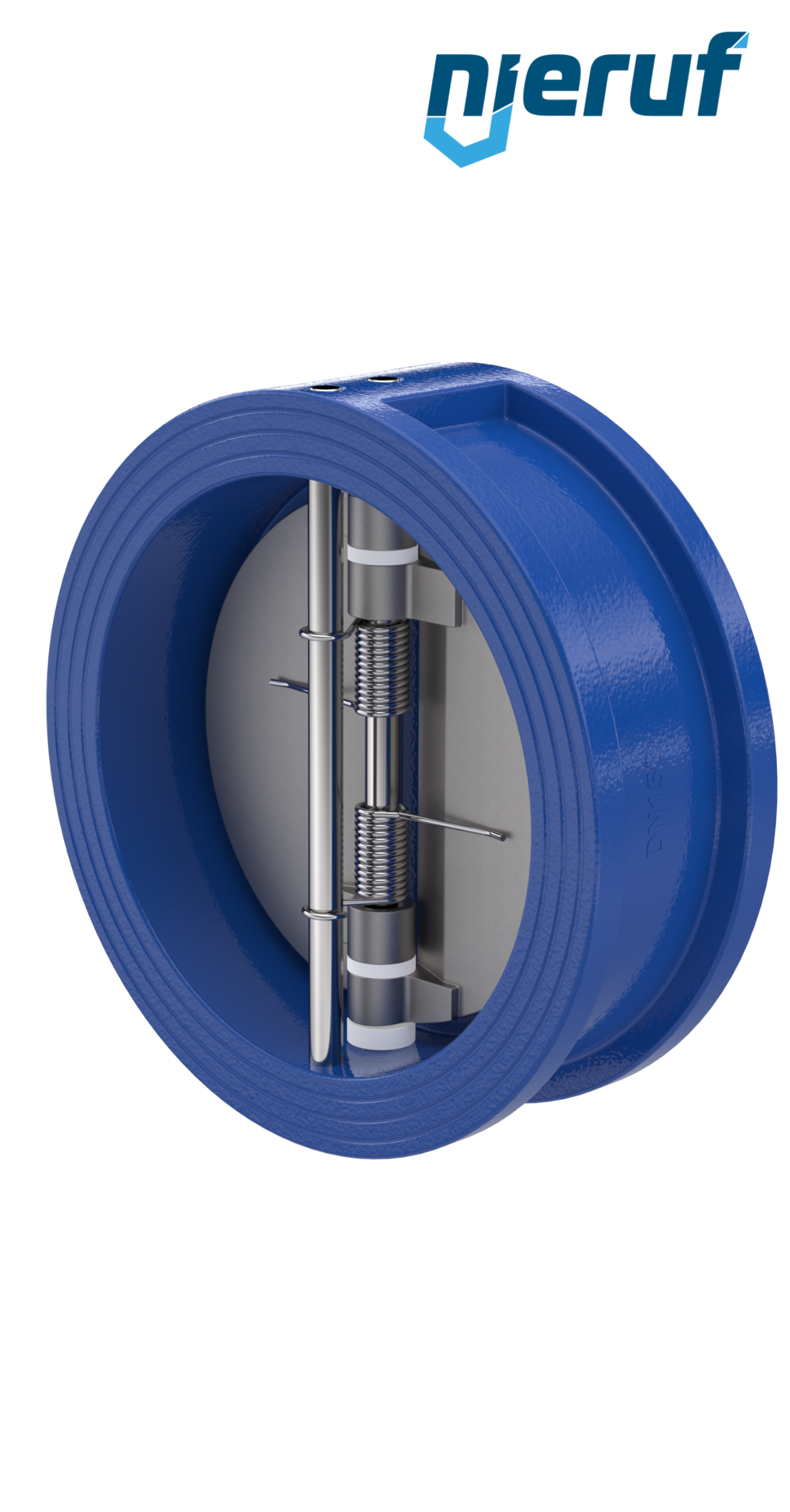

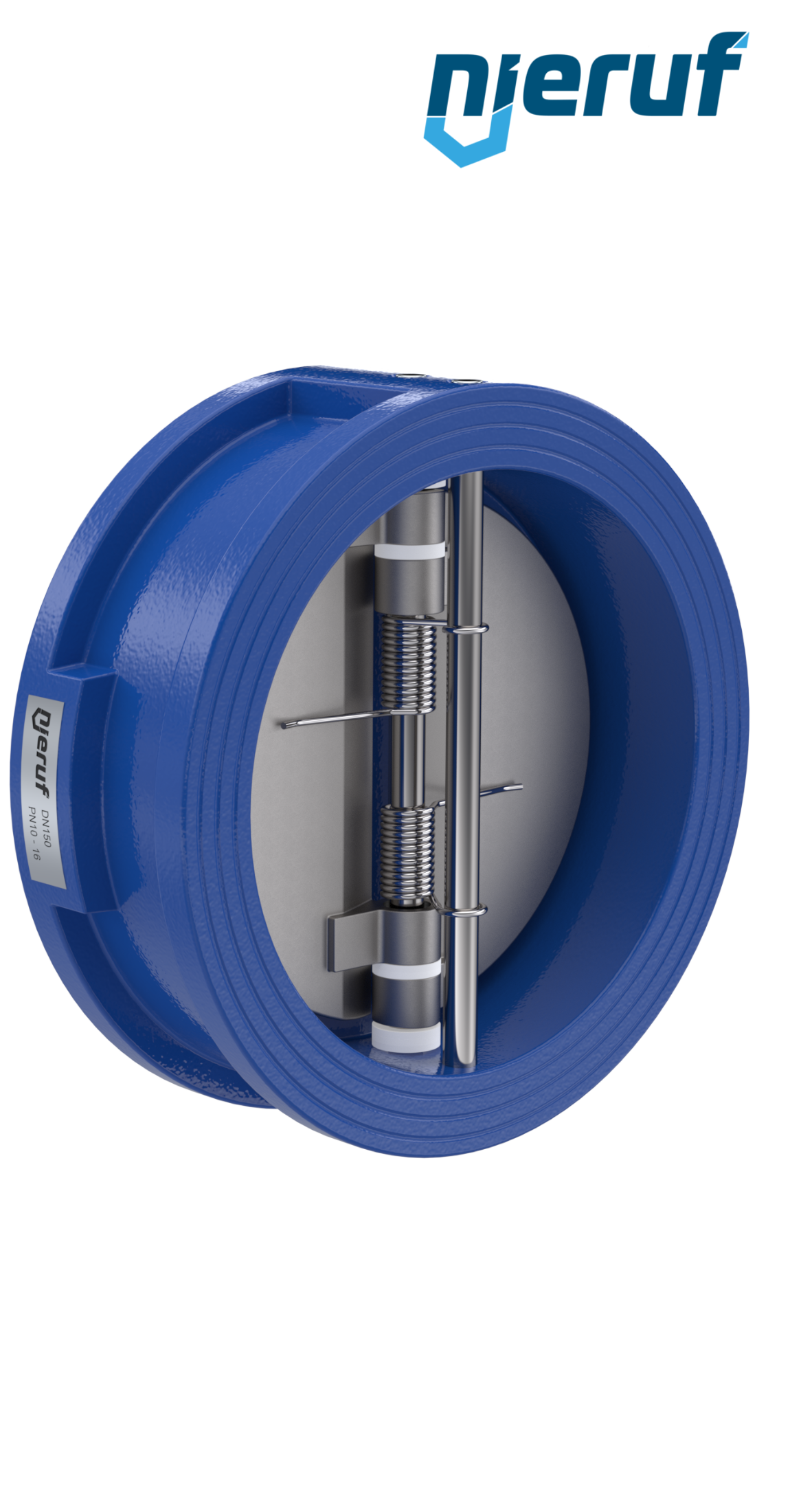

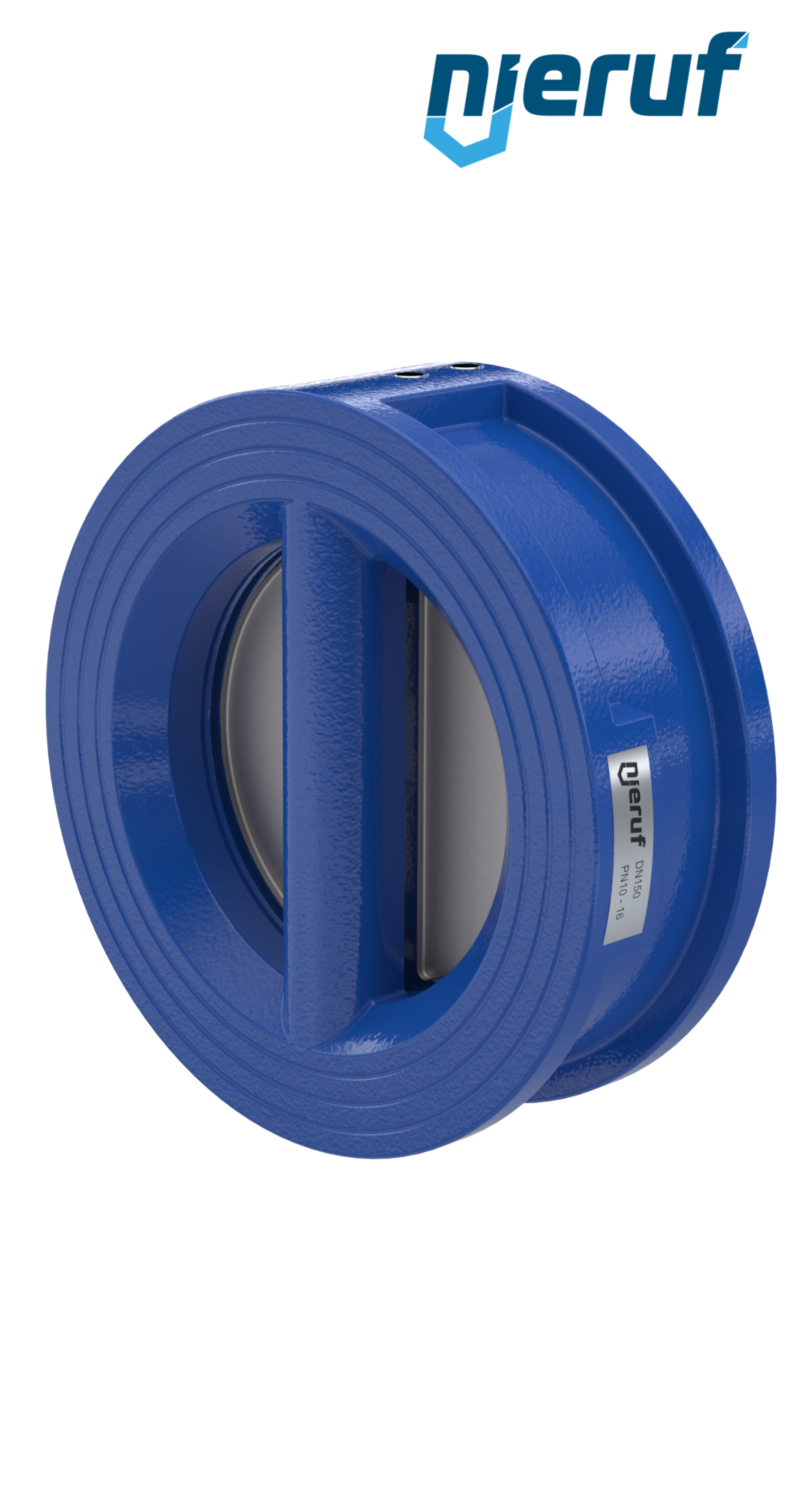

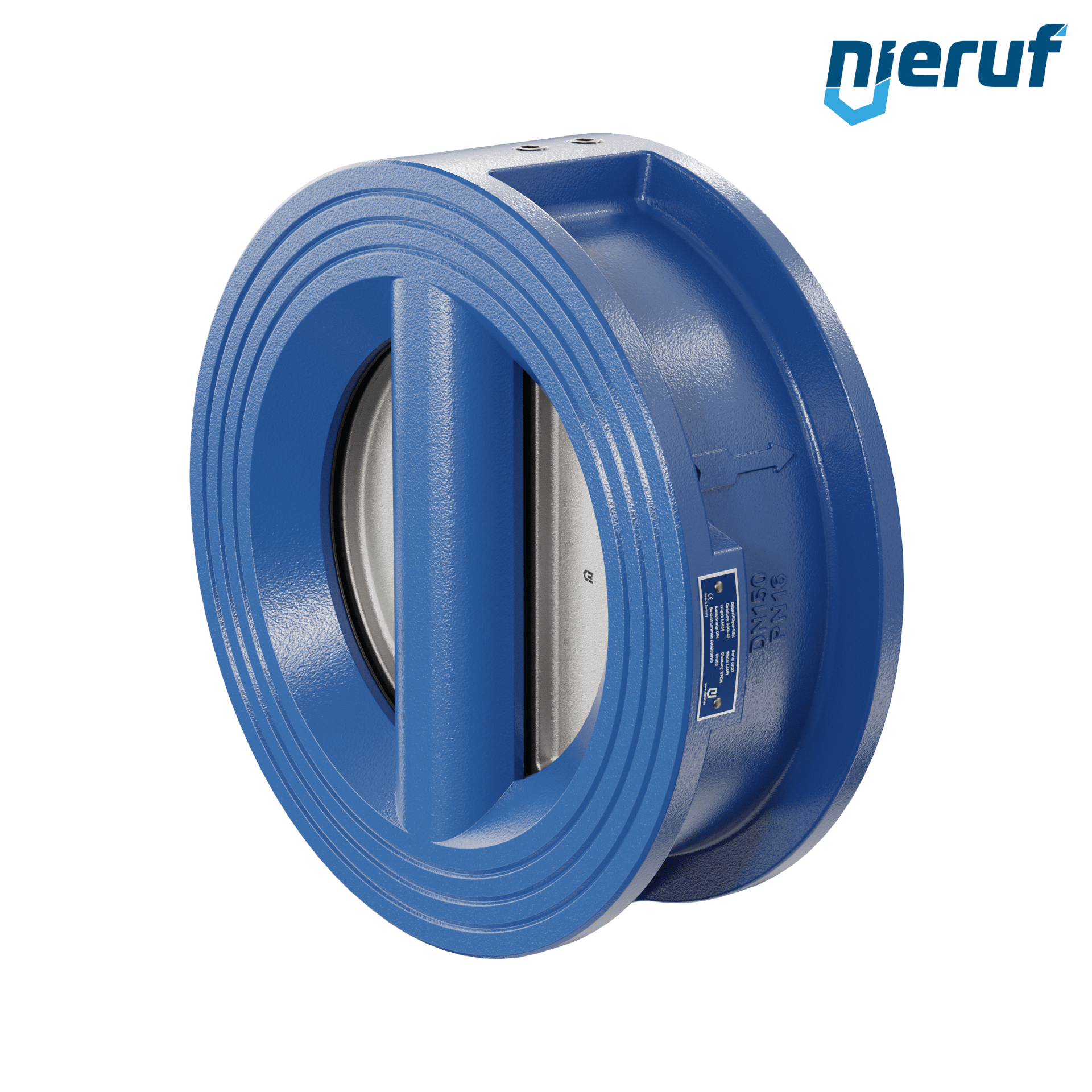

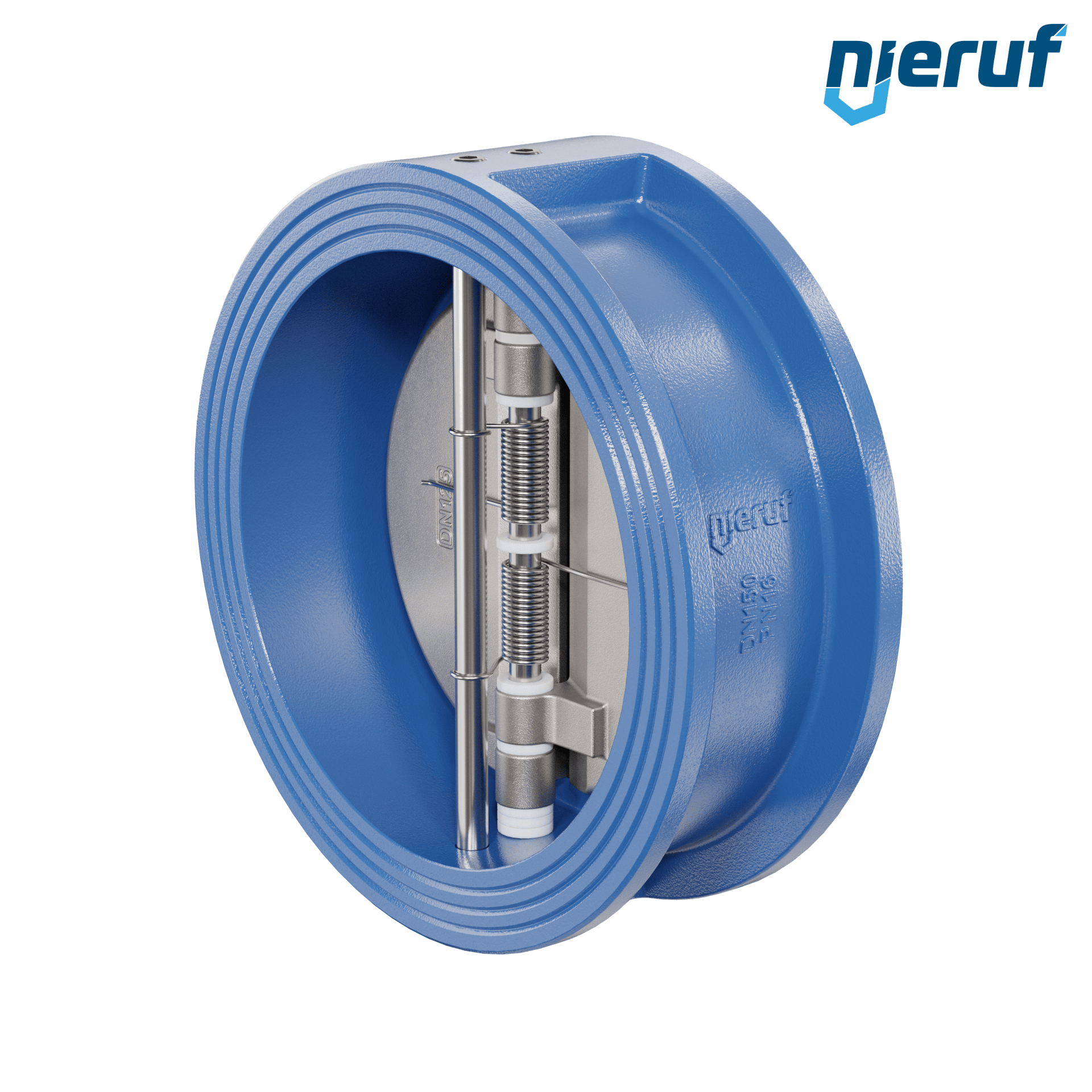

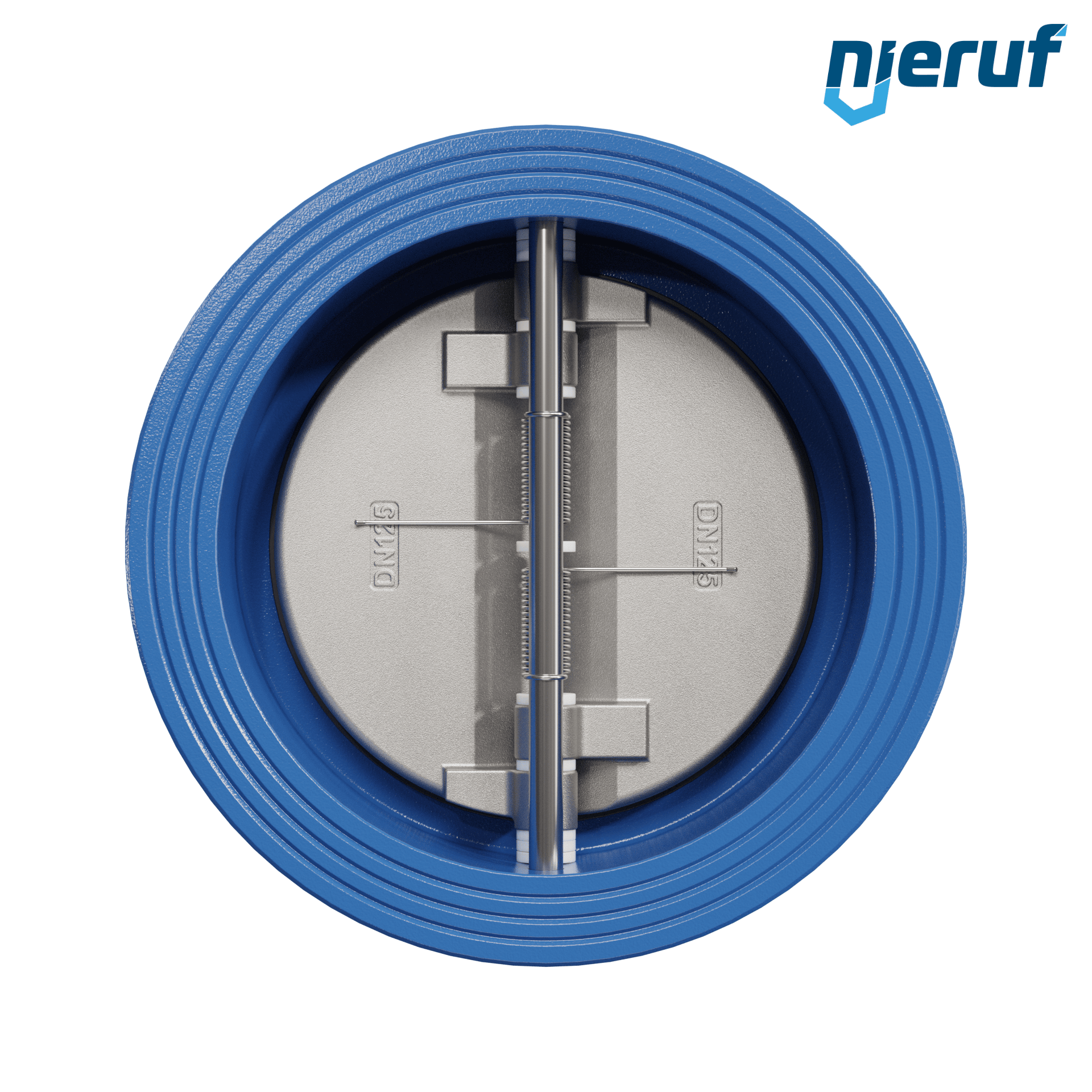

dual plate check valve DN150 DR02 GGG40 epoxyd plated blue 180µm EPDM
Delivery time: in stock
Express delivery*:
Shipping on: Monday, 25. November
Guaranteed delivery until Tuesday, 26. November, 12 o'clock
Order in within by express delivery
Equipment
joint set dual plate check valve/flange DN150 - 6" Inch for flange PN10/16 stainless steel
€51.41 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
dual plate check valve DN150 seal EPDM PN 10/16 DIN EN 1092-1 Form B, body made of grey cast iron wings made of stainless steel
| product: | dual plate check valve |
|---|---|
| type: | DR02 |
| manufacturer: | NieRuf |
| design: | dual plate check valve |
| diameter: | DN150 |
| body material: | GGG40 epoxyd plated blue 180µm |
| disc material: | stainless steel 1.4408 |
| seal: | EPDM |
| temperature: | -10°C to +120°C |
| connection: | flange |
| flange: | PN 10/16 DIN EN 1092-1 Form B |
| pressure range: | 0 - 16 bar |
| media: | liquid and gaseous media |
| tightness acc. to DIN EN 12266: | leak rate A |
| option: | with spring made of stainless steel |
| installation position: | direction of flow horizontal, vertical from below - up to DN200 also from above |
| product feature: | face to face according DIN EN 558-1 row 16 |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
dual plate check valve DN150 DR02 GGG40 epoxyd plated blue 180µm EPDM
Article no.
: DR02000113
product:
dual plate check valve
type:
DR02
manufacturer:
NieRuf
design:
dual plate check valve
diameter:
DN150
body material:
GGG40 epoxyd plated blue 180µm
disc material:
stainless steel 1.4408
seal:
EPDM
temperature:
-10°C to +120°C
connection:
flange
flange:
PN 10/16 DIN EN 1092-1 Form B
pressure range:
0 - 16 bar
media:
liquid and gaseous media
tightness acc. to DIN EN 12266:
leak rate A
option:
with spring made of stainless steel
installation position:
direction of flow horizontal, vertical from below - up to DN200 also from above
product feature:
face to face according DIN EN 558-1 row 16
€77.59 VAT included.
€8.45 VAT included.
€81.87 VAT included.
€183.62 VAT included.
€319.52 VAT included.
