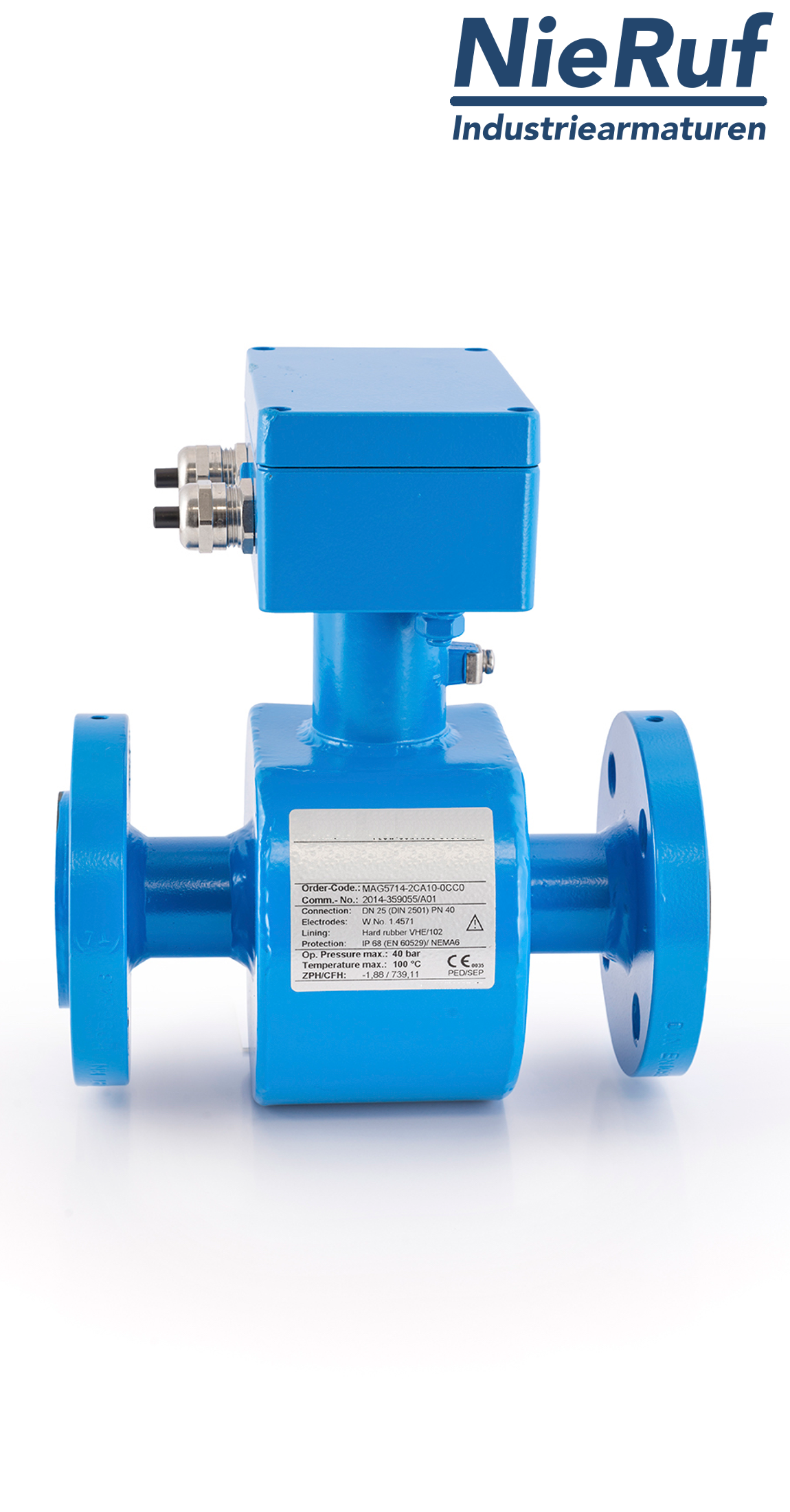

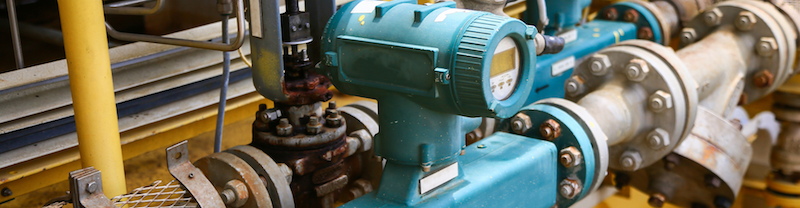

Continuous flow measurements must be performed in pipes and technical plants. The magnetically induced flow meters (MID) from NieRuf are suitable in particular for measurements with feedback. The data is transmitted by electronic signal, 4-20mA to the control system. Alternatively, there is a meter model with a display (MI02) for direct reading of the flow volume. The advantage of an electromagnetic flow meter lies in the fact that it can be used almost regardless of temperature, viscosity and pressure The meter comprises a measuring pipe, through which a medium (the medium must have a minimum conductivity) flows. Two opposing measuring electrodes are fitted to the measuring pipe, which determine the inductive measurement voltage and transmit it to the measuring point. Thanks to this method, in which a measuring element does not have to be integrated into the measuring pipe, viscous media such as sludge, mash or pastes can also be metered. Depending on the design, the MIDs are also suitable for acids, solvents, alkalis, as well as sand and water mixtures. The electronically inductive flow meters are frequently used in building technology, shipbuilding, in the food industry, the chemical industry and in the extraction and processing of oil, gas, cement, pulps, minerals or wastewater and water management.
MI02012115
Electromagnetic flow Sensor DN250 Flange DIN 2501 PN10 with display, lining of measuring pipe made of PTFE voltage 18-36V comunikation 4 - 20mA
MI02011115
Electromagnetic flow Sensor DN250 Flange DIN 2501 PN10 with display, lining of measuring pipe made of PTFE voltage AC 230V 50/60hz comunikation 4 - 20mA
MI01012113
Electromagnetic flow Sensor DN150 Flange DIN 2501 PN16 remote version design, lining of measuring pipe made of PTFE 18-36V
MI02001120
Electromagnetic flow Sensor DN500 Flange DIN 2501 PN10 with display, lining of measuring pipe made of Hard rubber VHE/102 voltage AC 230V 50/60hz comunikation 4 - 20mA
MI02001113
Electromagnetic flow Sensor DN150 Flange DIN 2501 PN16 with display, lining of measuring pipe made of Hard rubber VHE/102 voltage AC 230V 50/60hz comunikation 4 - 20mA
MI01012119
Electromagnetic flow Sensor DN450 Flange DIN 2501 PN10 remote version design, lining of measuring pipe made of PTFE 18-36V
MI01011113
Electromagnetic flow Sensor DN150 Flange DIN 2501 PN16 remote version design, lining of measuring pipe made of PTFE AC 230V 50/60hz
MI02012111
Electromagnetic flow Sensor DN100 Flange DIN 2501 PN16 with display, lining of measuring pipe made of PTFE voltage 18-36V comunikation 4 - 20mA
The installation location of the electromagnetically inductive meter should be selected such that there is a sufficiently straight pipe before and after the meter. An inlet pipe of at least 5 x DN and an outlet pipe of 2-3 x DN is needed for this. Non-standing vortices in the measurement should be prevented by appropriate countermeasures, as these can influence the result. The MID can be installed both horizontally and vertically. However, it should be ensured that emptying of the measuring point is prevented. Further installation instructions are contained in the product-specific datasheets on the product detail page. Thanks to the design of the MID, it is very low maintenance and can be cleaned very quickly and easily To achieve this, suitable shut-off fittings should be installed before and after the meter
The MID is designed to guarantee the continuous measurement of the flow. The meter records the flow speed of the flowing meter. However, the medium must have a minimum conductivity of > 5 µS/cm because otherwise a measurement cannot be taken. The measurement deviation is +/- 0.5% of the measured value. Flow rate values can be recorded from 0.25m/s, the maximum flow rate that can be measures is 10m/s. The measuring pipe of the inductive meter is made from high quality stainless steel and be coated either with PTFE or hard rubber. The electrodes are also made from stainless steel. The flange and the coil chamber are made from steel. The electromagnetic flow meter is available with flange connection in the nominal widths DN15 – DN600 and in the voltage ranges 18-36V, 115V or 230 volts. The measured value is transmitted via a signal in the range of 4-20mA. We will be happy to help you choose the right MID.
