MI02012105

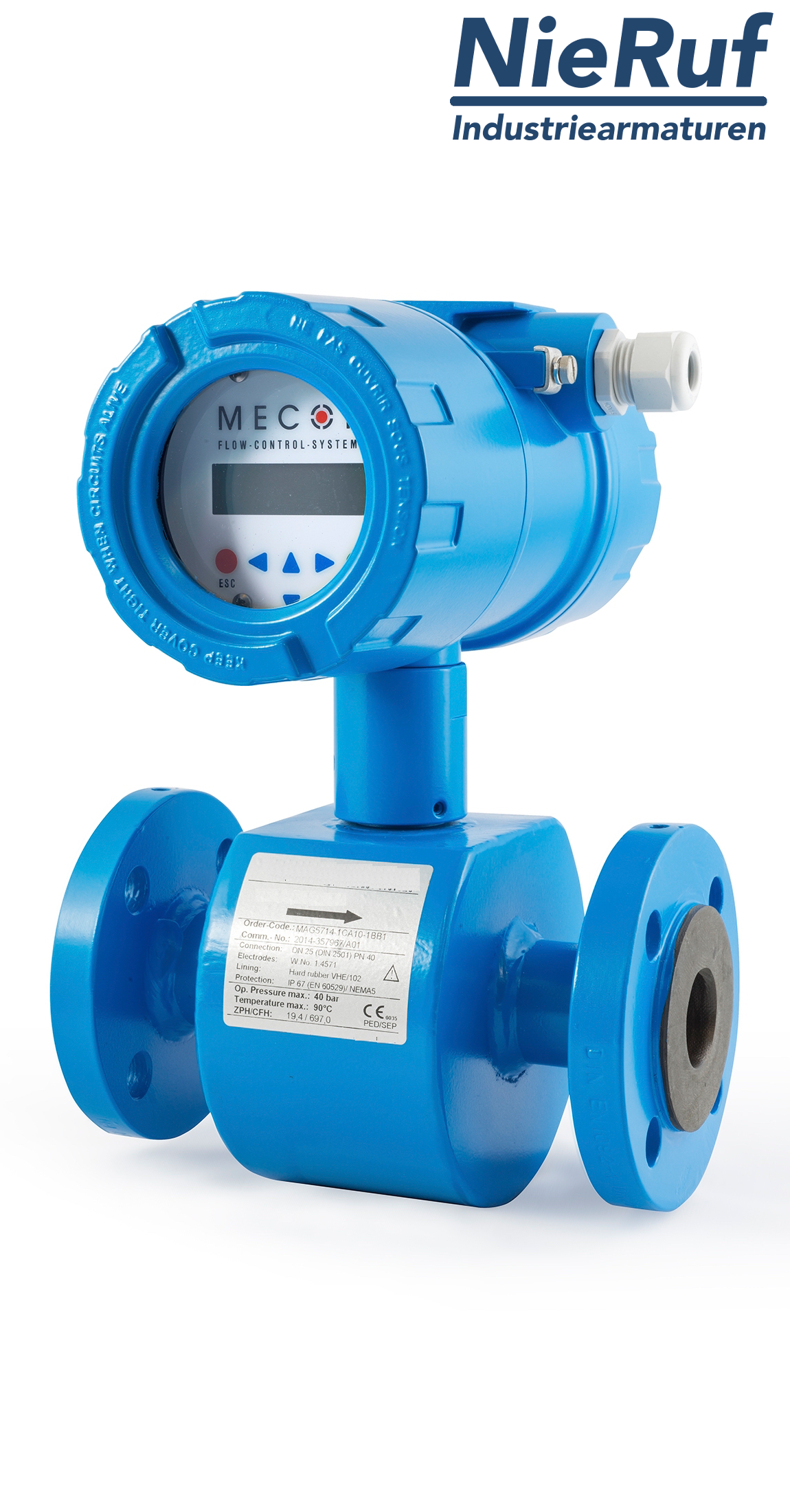

Electromagnetic flow Sensor DN25 MI02, PTFE 18-36V
Delivery time: 5 - 6 weeks
Equipment
Welding neck flange DN25 PN10/16/25/40 EN1092-1 11 B1 1.4541
€32.49 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you
Electromagnetic flow Sensor DN25 Flange DIN 2501 PN40 with display, lining of measuring pipe made of PTFE voltage 18-36V comunikation 4 - 20mA
| product: | Electromagnetic flow Sensor |
|---|---|
| type: | MI02 |
| manufacturer: | NieRuf |
| diameter: | DN25 |
| connection: | Flange DIN 2501 PN40 |
| design: | with display |
| measuring tube: | stainless steel 1.4301 |
| solenoid chamber: | steel |
| flange: | steel |
| coating: | Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015 |
| lining of measuring pipe: | PTFE |
| electrodes: | stainless steel 1.4571 |
| error of measurement: | +/- 0,5% of the reading from 0,25 ms to 10m/s |
| repeat accuracy: | +/- 0,15% of the reading from 0,25 ms to 10m/s |
| operqting temerature: | +180°C |
| protection class: | IP67 |
| minimum conductivity media: | > 20 μS/cm |
| max. flow rate: | 10 m/s |
| flow rate final value: | 0,25 - 10 m/s |
| flow rate range: | 0,0442 - 17,67 m3/h |
| wiring: | 2 x M16 x 1,5 |
| power supply: | 18-36V |
| analogue output: | 4 - 20mA |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Electromagnetic flow Sensor DN25 MI02, PTFE 18-36V
Article no.
: MI02012105
product:
Electromagnetic flow Sensor
type:
MI02
manufacturer:
NieRuf
diameter:
DN25
connection:
Flange DIN 2501 PN40
design:
with display
measuring tube:
stainless steel 1.4301
solenoid chamber:
steel
flange:
steel
coating:
Primer: Coating thickness: min. 50 mu, top coat: layer thickness: min. 120 mu RAL 5015
lining of measuring pipe:
PTFE
electrodes:
stainless steel 1.4571
error of measurement:
+/- 0,5% of the reading from 0,25 ms to 10m/s
repeat accuracy:
+/- 0,15% of the reading from 0,25 ms to 10m/s
operqting temerature:
+180°C
protection class:
IP67
minimum conductivity media:
> 20 μS/cm
max. flow rate:
10 m/s
flow rate final value:
0,25 - 10 m/s
flow rate range:
0,0442 - 17,67 m3/h
wiring:
2 x M16 x 1,5
power supply:
18-36V
analogue output:
4 - 20mA
