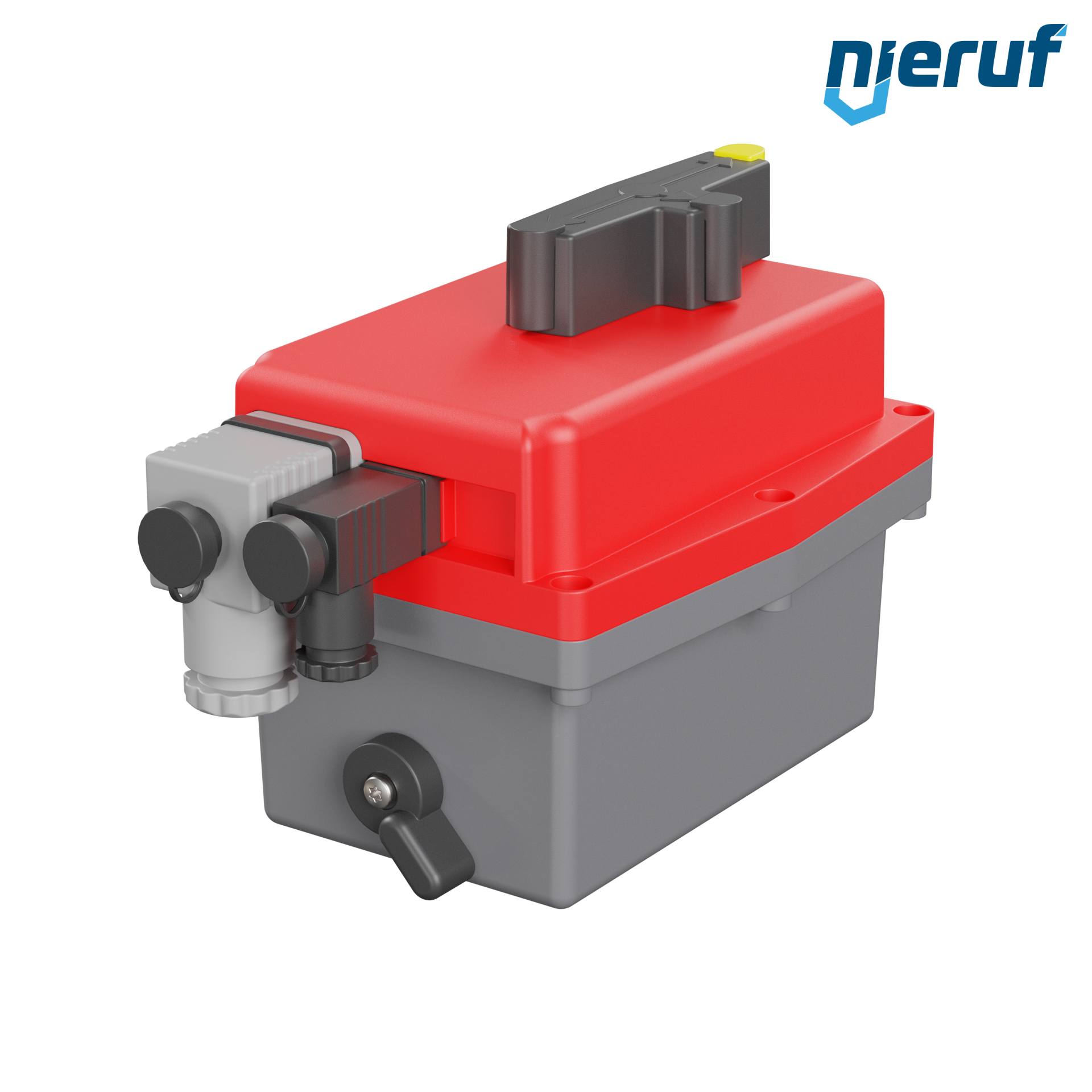

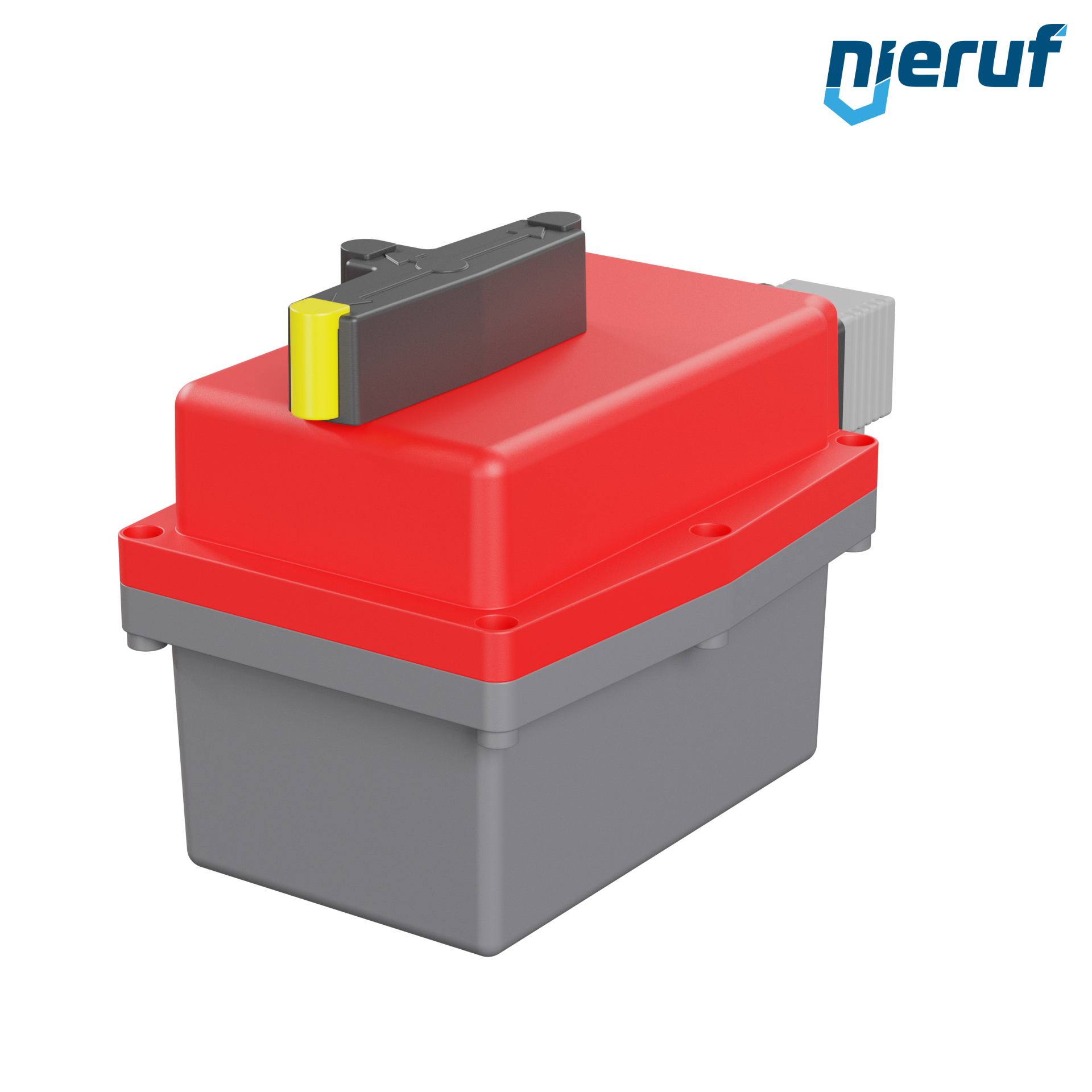

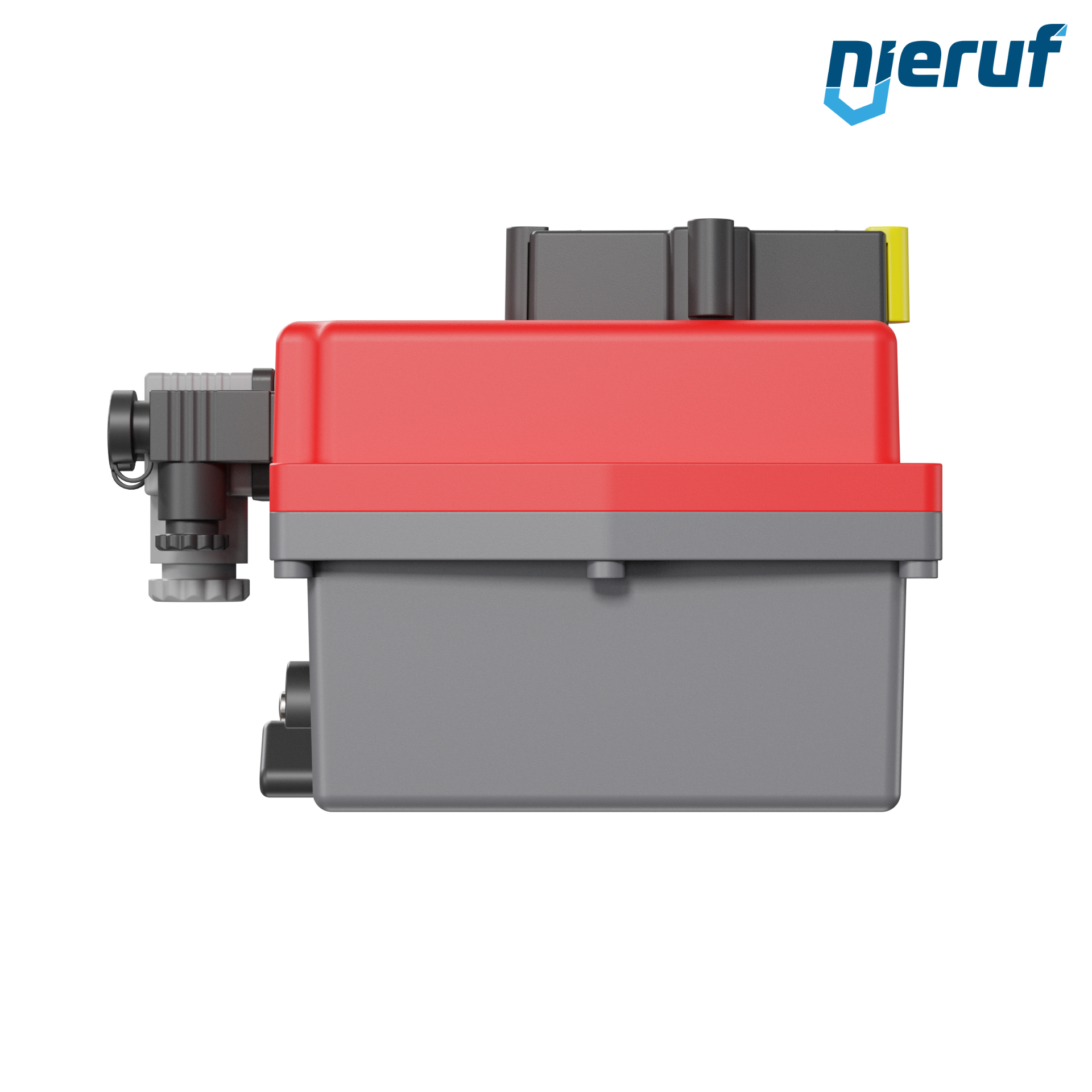

Electronic actuator L10 - series L (low voltage) 24V AC/DC 10Nm torque 75% ED IP65
| product | electric actuator |
|---|---|
| type | AN01 |
| manufacturer | NieRuf |
| ISO flange 5211 | F03-F05 |
| stem intake | 14mm |
| screw depth | 17mm |
| duty rating | 75% |
| torque | 10Nm |
| drive sprocket design | octagon |
| protection class | IP65 |
| voltage | 24V AC/DC |
| working time | 19sec |
| temperature | - 20°C up to +70°C |
| length | 172mm |
| width | 104mm |
| high | 125,5mm |
| actuator | L10 - Serie L (low voltage) 24V AC/DC |
| body material | corrosion resistant synthetic body polyamid PA6 |
| swivel angle | 90° |
| installation position | any position, not upside down |
| product description | Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with automatic voltage sensing and automatic temperature control. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
electric actuator L10 - Serie L (low voltage) 24V AC/DC 10Nm torque 75% ED IP65
Article no.
: AN01000100
product:
electric actuator
type:
AN01
manufacturer:
NieRuf
ISO flange 5211:
F03-F05
stem intake:
14mm
screw depth:
17mm
duty rating:
75%
torque:
10Nm
drive sprocket design:
octagon
protection class:
IP65
voltage:
24V AC/DC
working time:
19sec
temperature:
- 20°C up to +70°C
length:
172mm
width:
104mm
high:
125,5mm
actuator:
L10 - Serie L (low voltage) 24V AC/DC
body material:
corrosion resistant synthetic body polyamid PA6
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with automatic voltage sensing and automatic temperature control.
