AN01000002
electric actuator S20 - 24-240V AC/DC 20Nm torque 75% ED IP67
Delivery time: in stock
Express delivery*:
Shipping on: Wednesday, 20. November
Guaranteed delivery until Thursday, 21. November, 12 o'clock
Order in within by express delivery
Equipment
Questions about the article?
Our employee Max Eisele
will be happy to help you
Electronic actuator S20 - 24-240V AC/DC 20Nm torque 75% ED IP67
| product: | electric actuator |
|---|---|
| type: | AN01 |
| manufacturer: | NieRuf |
| ISO flange 5211: | F03-F04-F05 |
| stem intake: | 14mm |
| screw depth: | 16mm |
| duty rating: | 75% |
| torque: | 20Nm |
| drive sprocket design: | octagon |
| protection class: | IP67 |
| voltage: | 24-240V AC/DC |
| working time: | 10sec |
| temperature: | - 20°C up to +70°C |
| length: | 181mm |
| width: | 110mm |
| high: | 169mm |
| actuator: | S20 - 24-240V AC/DC |
| actuator informations: | This drive can be operated with voltages from 24V to 240V AC/DC. |
| body material: | corrosion resistant synthetic body polyamid PA6 |
| swivel angle: | 90° |
| installation position: | any position, not upside down |

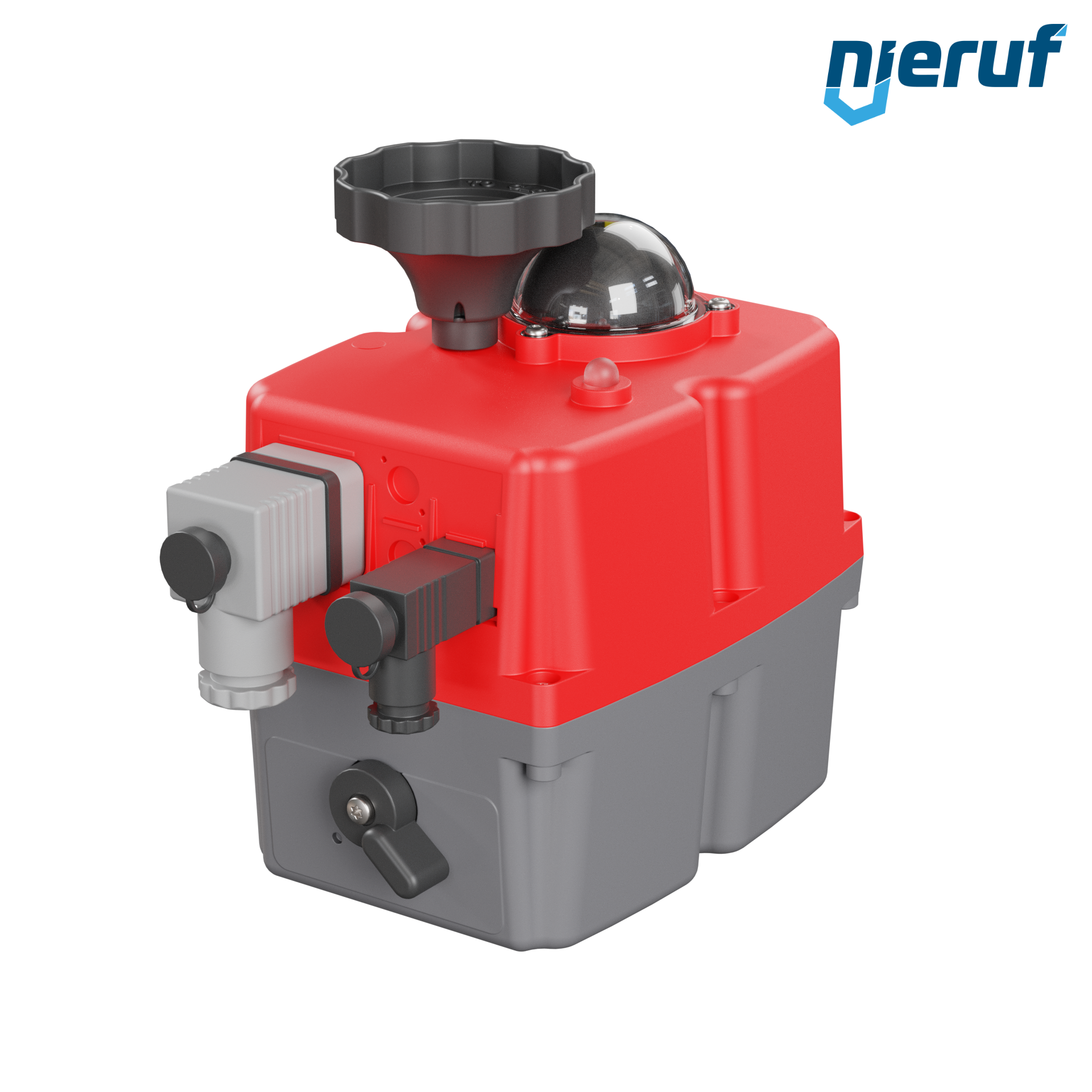

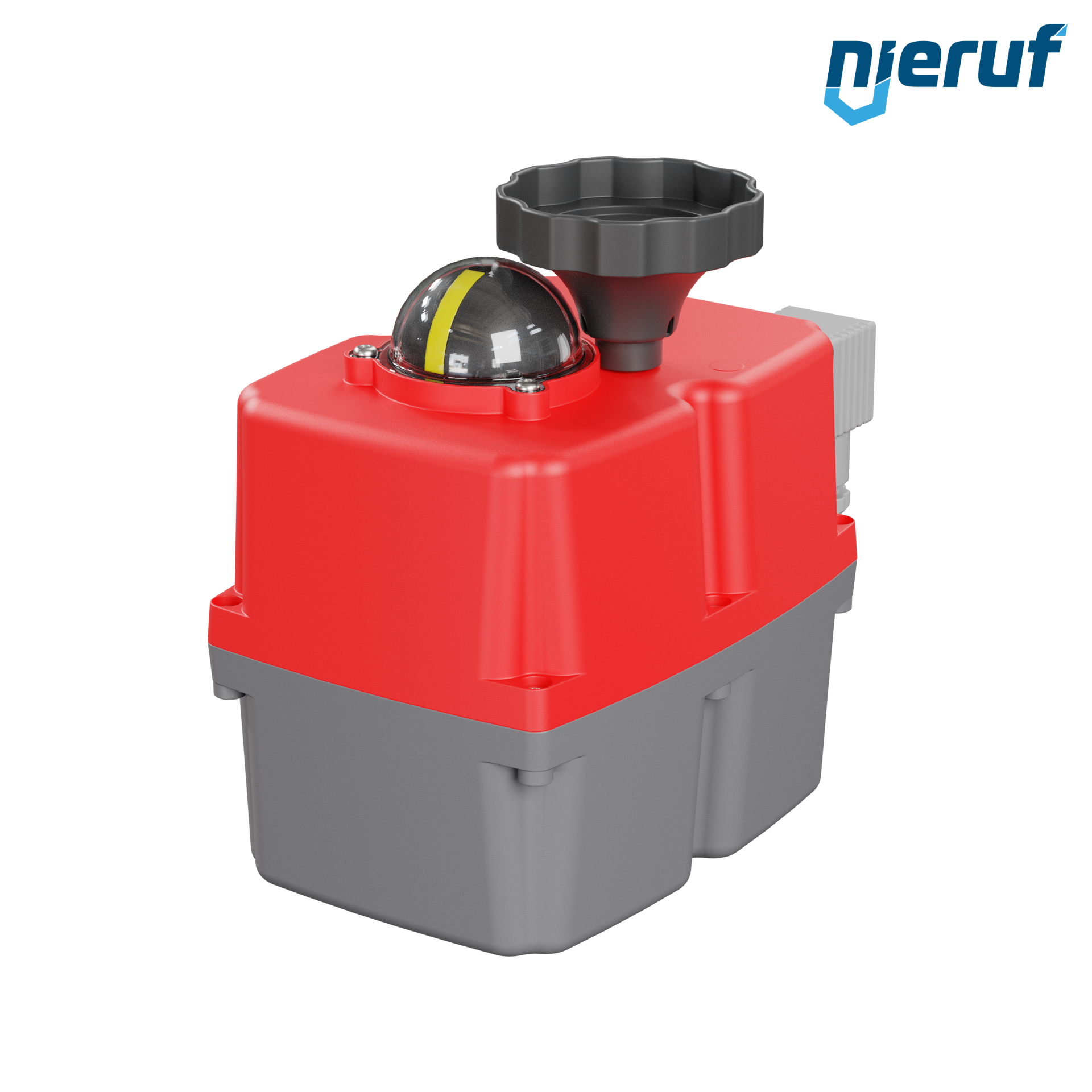

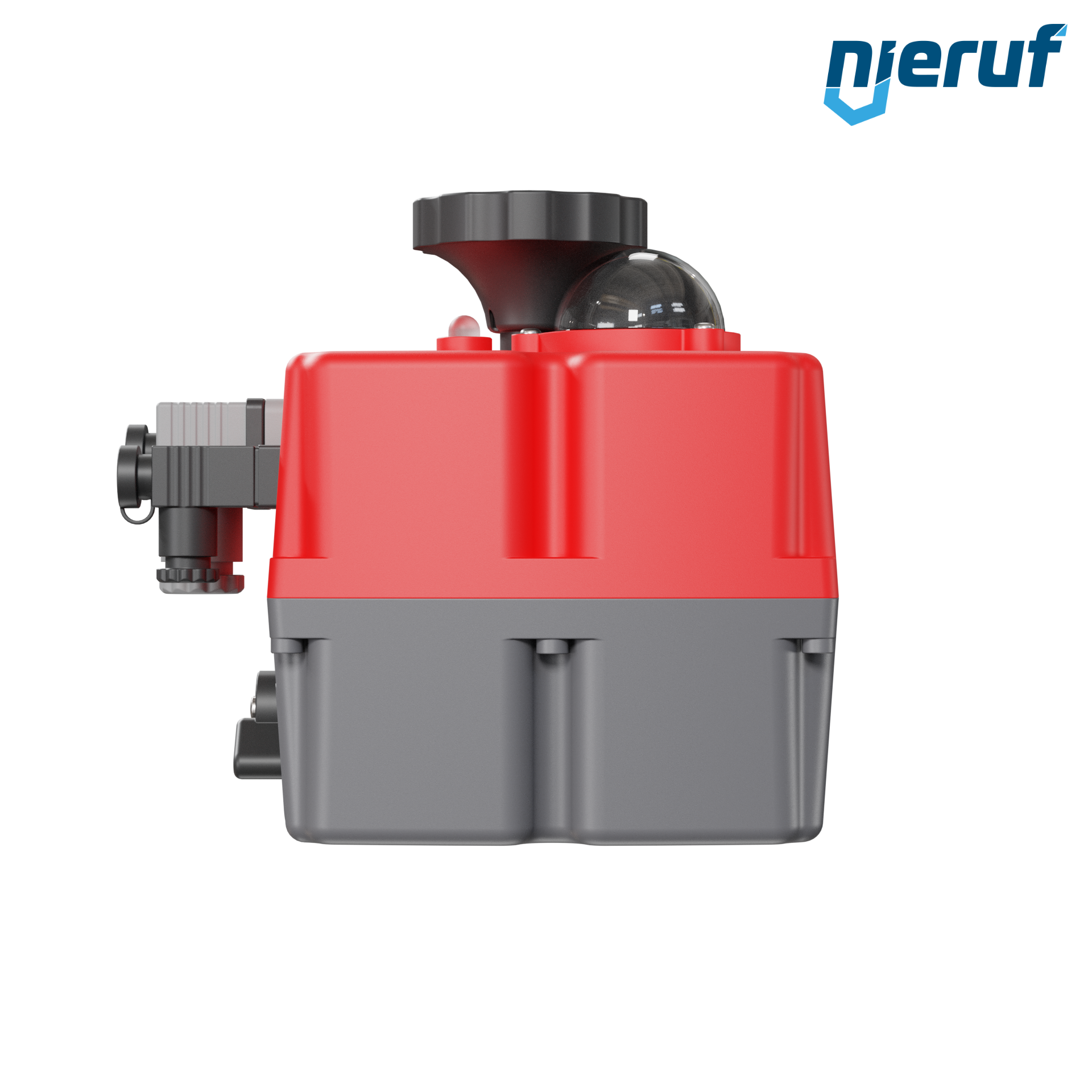

| product description: | Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with brushless motor, automatic voltage sensing and automatic temperature control. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
electric actuator S20 - 24-240V AC/DC 20Nm torque 75% ED IP67
Article no.
: AN01000002
product:
electric actuator
type:
AN01
manufacturer:
NieRuf
ISO flange 5211:
F03-F04-F05
stem intake:
14mm
screw depth:
16mm
duty rating:
75%
torque:
20Nm
drive sprocket design:
octagon
protection class:
IP67
voltage:
24-240V AC/DC
working time:
10sec
temperature:
- 20°C up to +70°C
length:
181mm
width:
110mm
high:
169mm
actuator:
S20 - 24-240V AC/DC
actuator informations:
This drive can be operated with voltages from 24V to 240V AC/DC.
body material:
corrosion resistant synthetic body polyamid PA6
swivel angle:
90°
installation position:
any position, not upside down
product description:
Compact actuator to control or regulate valves. With a preset working angle of 90° with emergency override with handwheel and position indicator. This actuator comes with brushless motor, automatic voltage sensing and automatic temperature control.
