PF01050408
Pressfitting Flange Coupling F DN50 - 54,0 mm stainless steel
Delivery time: 3 - 5 working days
Questions about the article?
Our employee Max Eisele
will be happy to help you

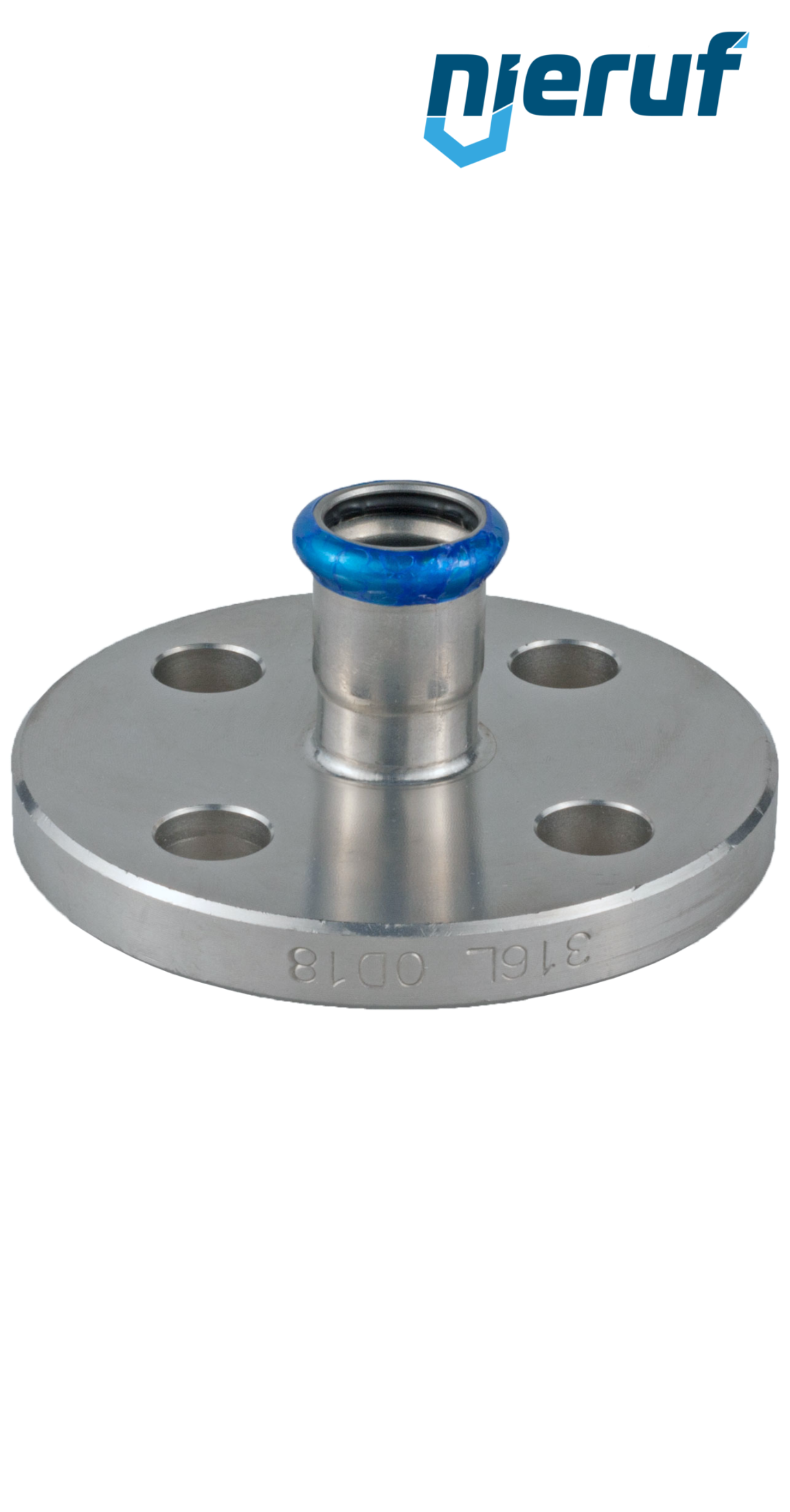

Flange Coupling PF01-05-04 with press connection F DN50 - 54,0 mm, made of stainless steel for liquid and gaseous media
| product: | Flange Coupling |
|---|---|
| type: | PF01-05-04 |
| manufacturer: | NieRuf |
| diameter 1: | DN50 - 54,0 mm |
| connection 1: | F |
| diameter 2: | DN50 |
| connection 2: | flange 4 hole |
| Contour: | M-Contour |

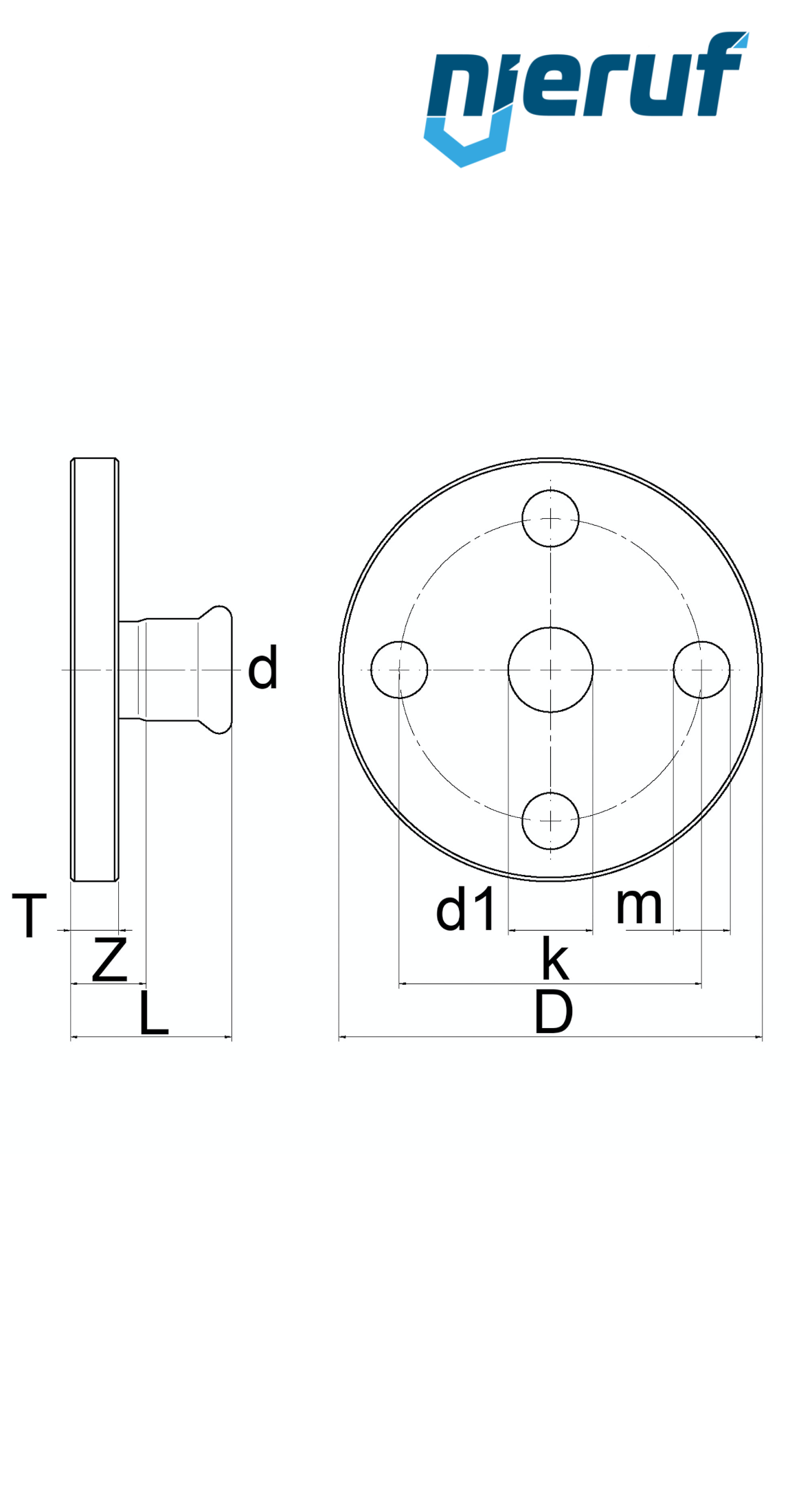

| d: | 54,0 |
| d1: | 50,0 |
| D: | 165,0 |
| k: | 125,0 |
| L: | 84,0 |
| T: | 18,0 |
| m: | 18,0 |
| Z: | 49,0 |
| max. working pressure: | 16 bar at +20°C |
| material: | stainless steel 316 L |
| certification: | DVGW-drinking water |
| product feature 1: | These Pressfittings are ideal to connect pipelines fast and efficiently. |
| product feature 2: | As standard, the press fittings are supplied with an inserted EPDM-LBP seal. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Pressfitting Flange Coupling F DN50 - 54,0 mm stainless steel
Article no.
: PF01050408
product:
Flange Coupling
type:
PF01-05-04
manufacturer:
NieRuf
diameter 1:
DN50 - 54,0 mm
connection 1:
F
diameter 2:
DN50
connection 2:
flange 4 hole
Contour:
M-Contour
d:
54,0
d1:
50,0
D:
165,0
k:
125,0
L:
84,0
T:
18,0
m:
18,0
Z:
49,0
max. working pressure:
16 bar at +20°C
material:
stainless steel 316 L
certification:
DVGW-drinking water
product feature 1:
These Pressfittings are ideal to connect pipelines fast and efficiently.
product feature 2:
As standard, the press fittings are supplied with an inserted EPDM-LBP seal.
There for you
Special requests, spare parts or a quick support? Our staff will answer your questions and concerns immediately.
You can reach us from Monday to Friday at +497143 9666900 and any time at sales@nieruf.com
Quality
Our certified quality management according to DIN EN ISO 9001: 2015 is part of our DNA. With our test stands we can carry out pressure tests with up to 350 bar with air and water as well as leak tests according to DIN EN 122661.
