DM20020108
Flange-pressure reducing valve DN50 DM20 flange ANSI 150 stainless steel EPDM 0.5 - 9.0 bar
Delivery time: 3 - 5 working days
Equipment
pressure gauge 0 - 10,0 bar G 1/4" axial 50 mm stainless steel MM05
€101.27 VAT included.
Questions about the article?
Our employee Max Eisele
will be happy to help you

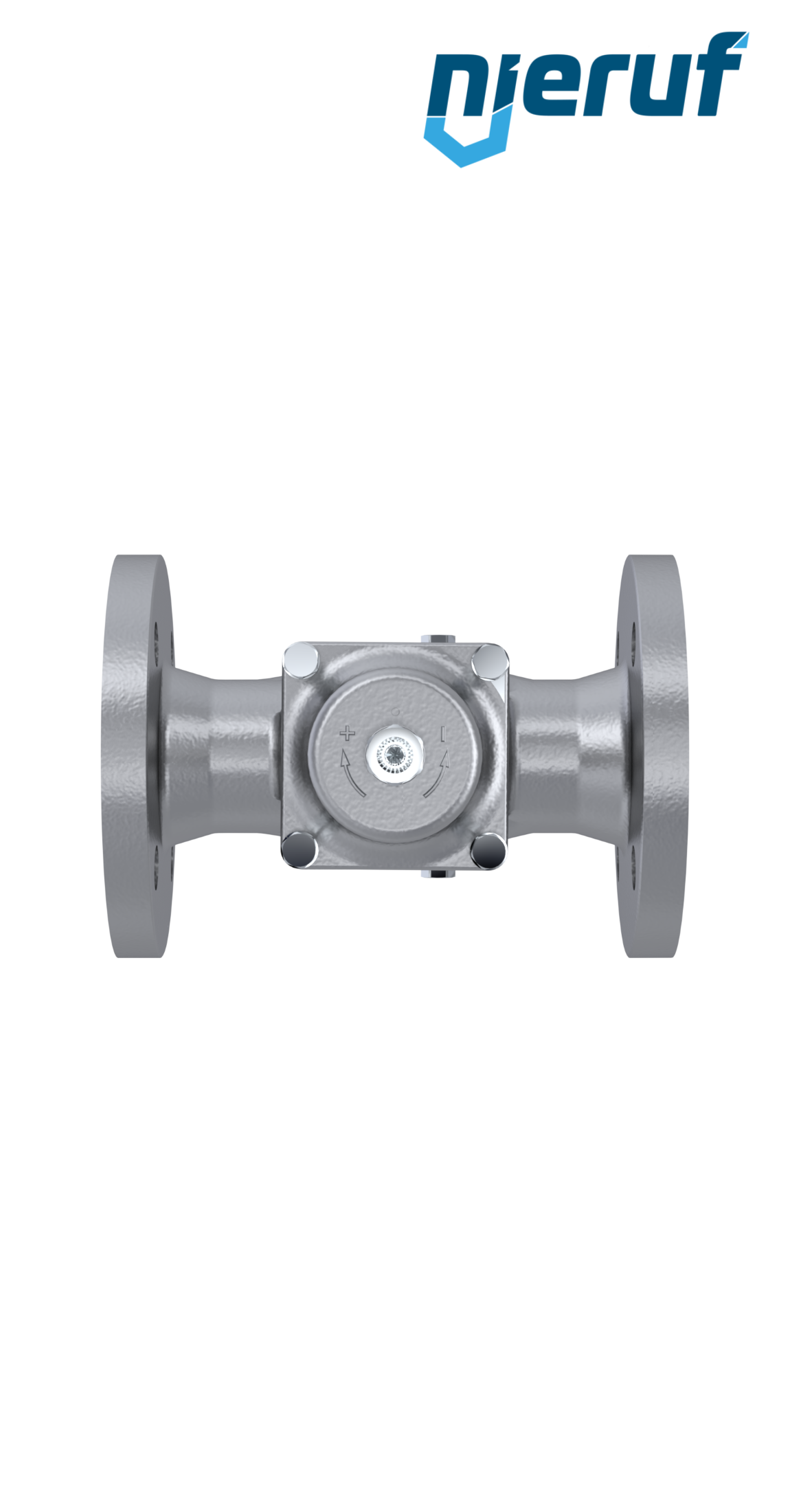

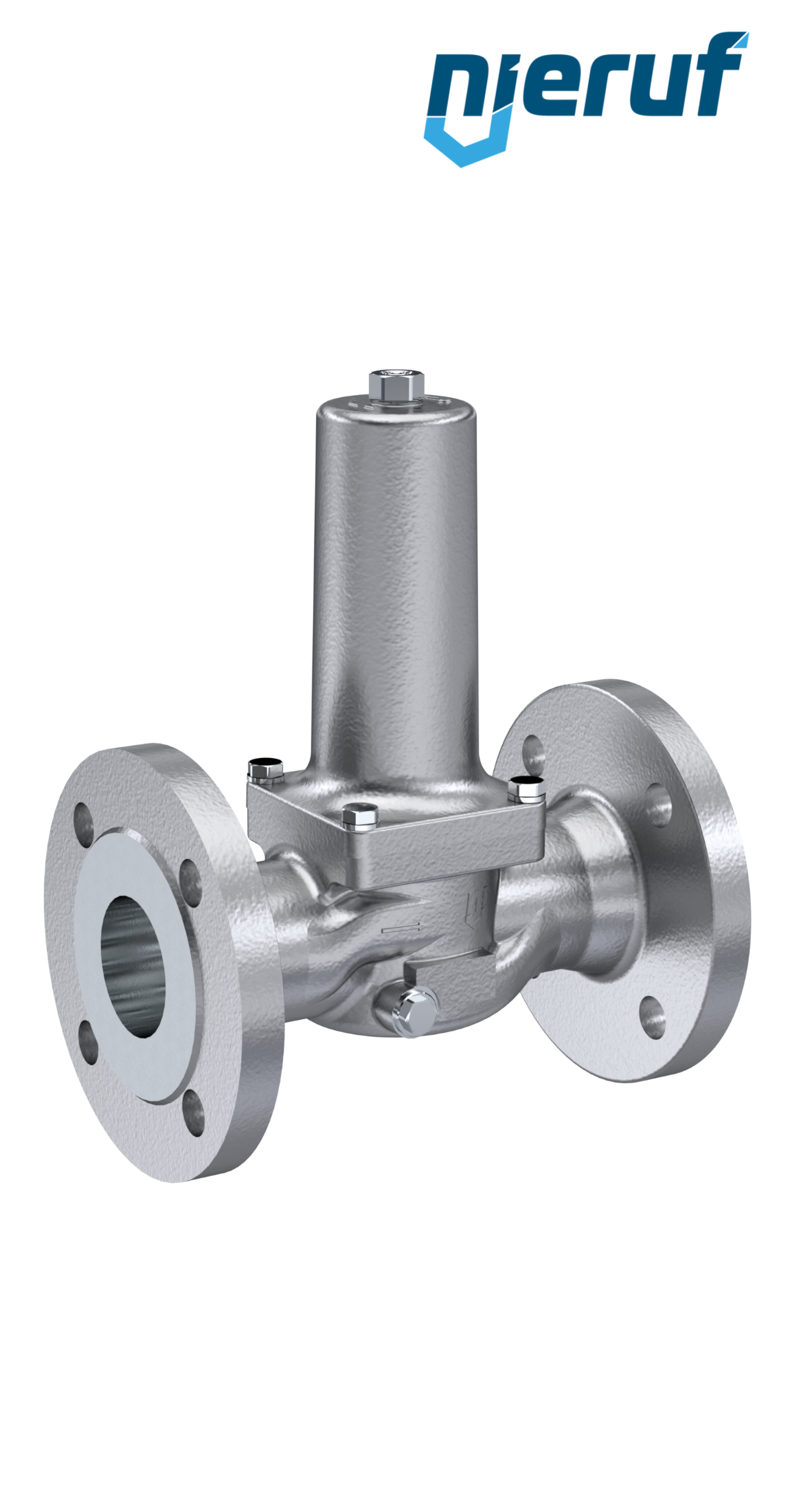

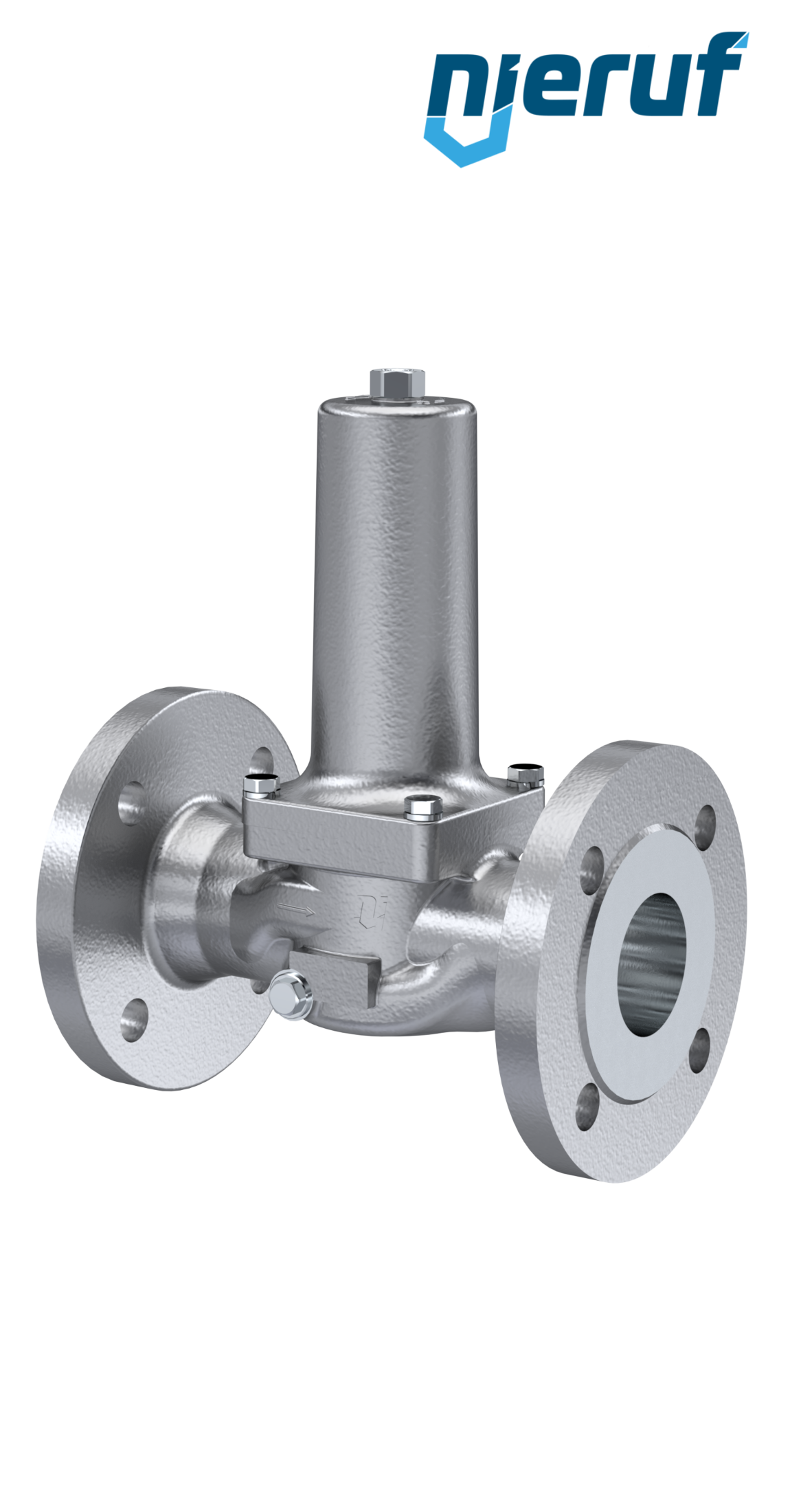

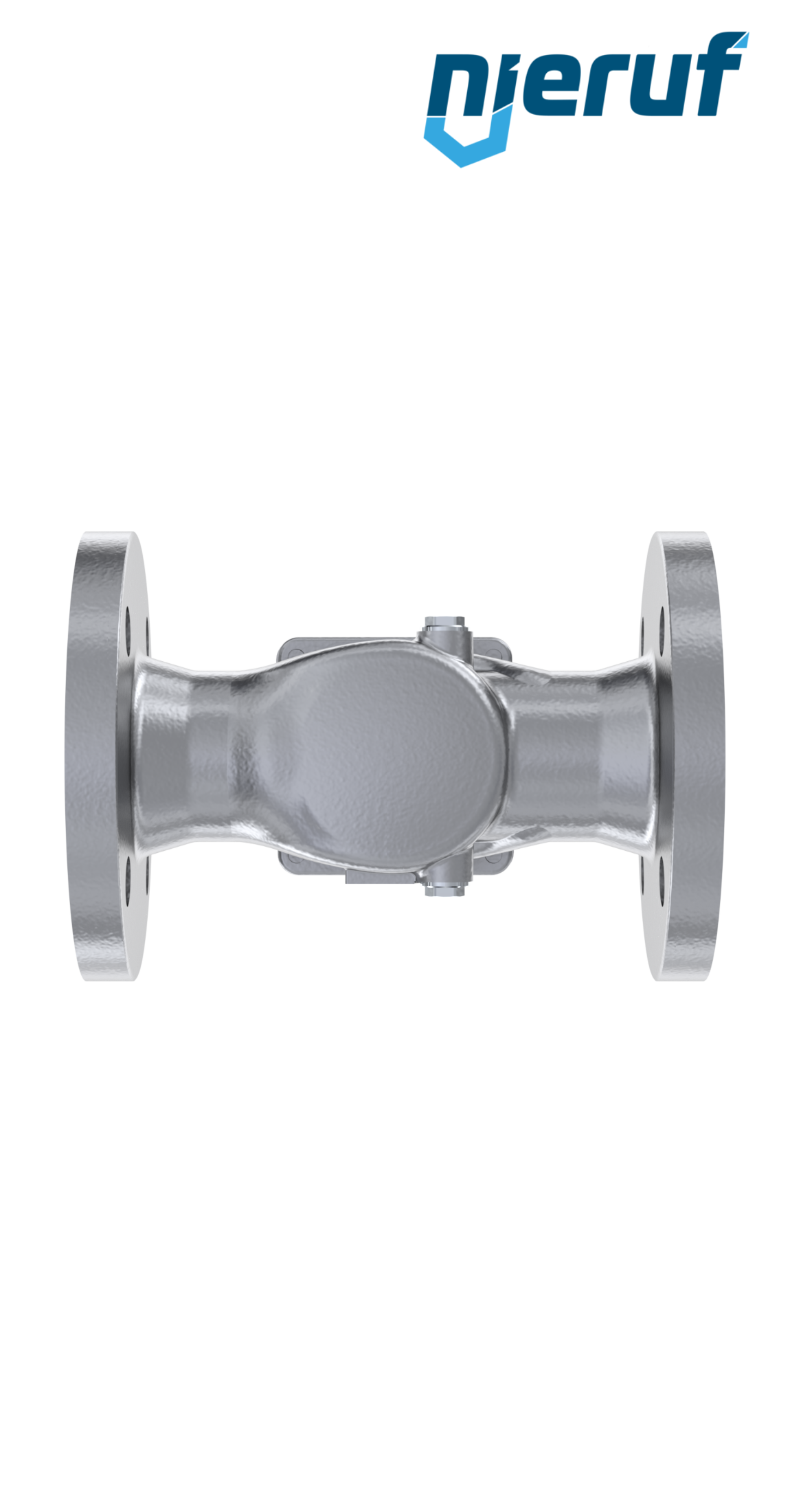

Flange-pressure reducing valve DN50 flange ANSI 150 pressure 0.5 - 9.0 bar made of stainless steel seal EPDM for the food industrie
| product: | Flange-pressure reducing valve |
|---|---|
| type: | DM20 |
| manufacturer: | NieRuf |
| diameter: | DN50 |
| connection: | flange ANSI 150 |
| material: | stainless steel |
| seal: | EPDM |
| media: | liquid and neutral gaseous media |
| temperature: | -20°C up to +120°C |
| range of adjustment: | 0.5 - 9.0 bar |
| max. inlet pressure: | 20 bar |
| design: | straightway form |
| installation position: | any position |
| product feature: | This version with cast iron flanges meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant. |
Quickly and easily transfer the specification of our valves to your tender text or specification of services.
Simply copy the text field below and paste it into your tender.
Flange-pressure reducing valve DN50 DM20 flange ANSI 150 stainless steel EPDM 0.5 - 9.0 bar
Article no.
: DM20020108
product:
Flange-pressure reducing valve
type:
DM20
manufacturer:
NieRuf
diameter:
DN50
connection:
flange ANSI 150
material:
stainless steel
seal:
EPDM
media:
liquid and neutral gaseous media
temperature:
-20°C up to +120°C
range of adjustment:
0.5 - 9.0 bar
max. inlet pressure:
20 bar
design:
straightway form
installation position:
any position
product feature:
This version with cast iron flanges meets the requirements of EU regulation EG1935/2004 and is therefore suitable for use in the food sector. The EPDM seals are FDA-compliant.
€369.02 VAT included.
€101.27 VAT included.
